Structures: V-n Diagrams Lecture 18 ME EN 415 Andrew Ning - - PowerPoint PPT Presentation

Structures: V-n Diagrams Lecture 18 ME EN 415 Andrew Ning aning@byu.edu Safety Factor B777 Wing Bending https://youtu.be/Ai2HmvAXcU0 25.303 Factor of safety. Unless otherwise specified, a factor of safety of 1.5 must be applied to the


slide-1

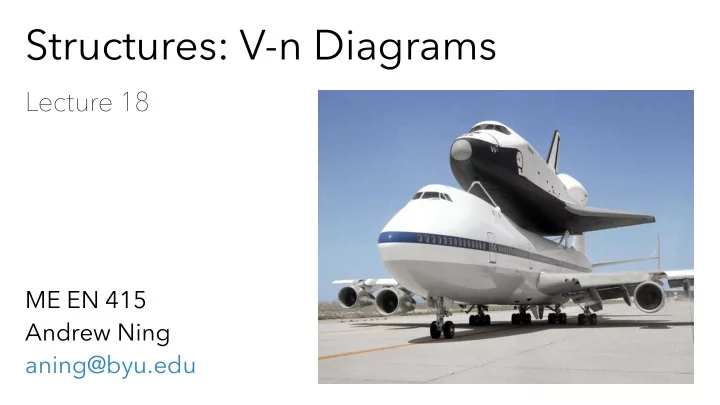

SLIDE 1

ME EN 415 Andrew Ning aning@byu.edu

Structures: V-n Diagrams

Lecture 18

slide-2
SLIDE 2

Safety Factor

https://youtu.be/Ai2HmvAXcU0 B777 Wing Bending

§25.303 Factor of safety. Unless otherwise specified, a factor of safety of 1.5 must be applied to the prescribed limit load which are considered external loads on the structure.

slide-3
SLIDE 3

Air Speed

True airspeed (TAS): speed of aircraft relative to air Equivalent airspeed (EAS): airspeed at sea level with equivalent dynamic pressure 1 2ρTAS2 = 1 2ρSLEAS2 EAS = TAS r ρ ρSL

slide-4
SLIDE 4

Design airspeeds (all in EAS)

VA : VB : Vs : VC : VD :

slide-5
SLIDE 5

V-n Diagram

V (EAS) n VD VC nmmax stall stall

slide-6
SLIDE 6

V-n Diagram

V (EAS) n VD VC nmmax stall stall

slide-7
SLIDE 7

V-n Diagram

V (EAS) n VD VC nmmax stall

except that n may not be less than 2.5 and need not be greater than 3.8

stall

slide-8
SLIDE 8

V-n Diagram

V (EAS) n VD VC nmmax stall stall

slide-9
SLIDE 9

V-n Diagram

V (EAS) n VD VC nmmax stall

From an initial condition of stabilized flight at VC/MC, the airplane is upset, flown for 20 seconds along a flight path 7.5° below the initial path, and then pulled up at a load factor of 1.5g (0.5g acceleration increment). The speed increase occurring in this maneuver may be calculated if reliable or conservative aerodynamic data is used.

stall

slide-10
SLIDE 10

V-n Diagram

V (EAS) n VD VC nmmax stall stall

slide-11
SLIDE 11

V-n Diagram

V (EAS) n VD VC nmmax stall stall

slide-12
SLIDE 12

V-n Diagram

V (EAS) n VD VC VB gusts

slide-13
SLIDE 13

Reference Gust Velocities

15,000 ft 60,000 ft altitude 60 ft/s 30 ft/s 56 ft/s 44 ft/s 20.86 ft/s VB — VC 28 ft/s 22 ft/s 10.43 ft/s VD

slide-14
SLIDE 14

Gust Equations

Kg = 0.88µ 5.3 + µ (using standard metric units) ng = 1 ± KgUref(EAS)CL,α 1.63(W/S) µ = 2W/S ρ¯ cCL,αg reduced mass gust factor

slide-15
SLIDE 15

V-n Diagram

V (EAS) n VD VC VB gusts 1 intersection

slide-16
SLIDE 16
slide-17
SLIDE 17

V-n Diagram Critical Points

V (EAS) n positive low angle of attack positive high angle of attack negative low angle of attack negative high angle of attack

slide-18
SLIDE 18

positive high angle of attack compression tension compression tension positive low angle of attack

slide-19
SLIDE 19

negative high angle of attack compression tension compression tension negative low angle of attack
