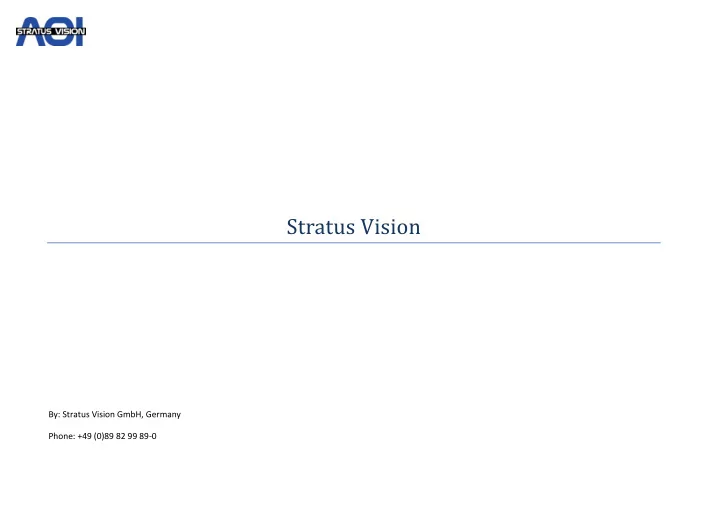

Stratus Vision

By: Stratus Vision GmbH, Germany Phone: +49 (0)89 82 99 89-0

Contents

1. Summary ......................................................................................................................................................................................................................................... 3 2.0 Lighting Solutions ............................................................................................................................................................................................................................. 3 2.1 Lighting solution ........................................................................................................................................................................................................................... 4 2.3 Measurement Inspection ................................................................................................................................................................................................................. 8 ................................................................................................................................................................................................................................................................ 8 2.4 Defect Detection ............................................................................................................................................................................................................................. 13 ...................................................................................................................................................................................................................................................... 13

• 1. Summary

Stratus Vision GmbH, a subsidiary of EPP Electronic Production Partners GmbH, is designing

and developing AOI (Automated Optical Inspection) systems and solutions since 2003. AOI is an automated visual inspection of ceramic hybrids, LTCCs, HTCCs, interposers and

• ther substrates where a camera autonomously scans the parts under test for both

catastrophic failure (eg. missing component) and quality defects (eg. fillet size/shape or component skew). This technique is commonly used in the electronic circuits manufacturing process due to the fact it is a non-contact test method and it can be implemented at many stages.

Stratus Vision provides the perfect solution for in-line and off-line inspection of ceramic hybrids, LTCCs, HTCCs, interposers and other substrates.

2.0 Lighting Solutions

Stratus Vision systems combine the right combination of state-of-the-art lighting, image acquisition, and image-processing software engineered specifically for your application. This advanced inspection technology ensures real-time detection of defects on your surface, while our next-generation inspection software can easily be configured to provide unparalleled, automatic classification, identification, and visualization of your surface defects.

2.1 Lighting solution

Using RED Top Light only. Using Backlight only. Using RED Backlight and little RED Top Light. Using RED Backlight and Blue Top Light.

The Stratus Vision Surface Inspection system is a complete solution for the inspection of surfaces in a continuous moving in fashion as they are being produced. The Stratus Vision system enables you to detect, identify, and visualize defects in these materials as they are being produced at full production speeds. Using a Top RED Light Using a TOP Blue Light with RED Backlight

Using a Red TOP Light Using a Blue TOP Light

There are Stratus Vision systems for many industries including Metals, Paper, Nonwovens, Plastics, and

• Glass. There are numerous applications in each of

these industries where Stratus Vision systems have become the standard for ensuring high levels of quality and offer the best solution during production, value-added processes, and converting operations where maximizing yield, productivity, and quality are critical.

Result Image from Measurement

2.3 Measurement Inspection

The Stratus Vision In-Image Measurement options can do multiple measurements with sub-pixel accuracy. Threshold Image for Measurement.

Green= CAD Red= detected edges Yellow= removed vectors

2.4 Defect Detection

Finding and identifying defects is our passion but that is only the beginning. The defect information and images stored in our database are used in many ways. Reports, charts, and graphs can be tailored for every need. Defect information can be used to grade, sort, or reject material. The information can even be relayed to downstream value-added processes and then used to control these processes to maximize yield and minimize downtime. SmartView data is also used to determine the disposition, plan for slitting or converting, and suitability for use of the finished product.
