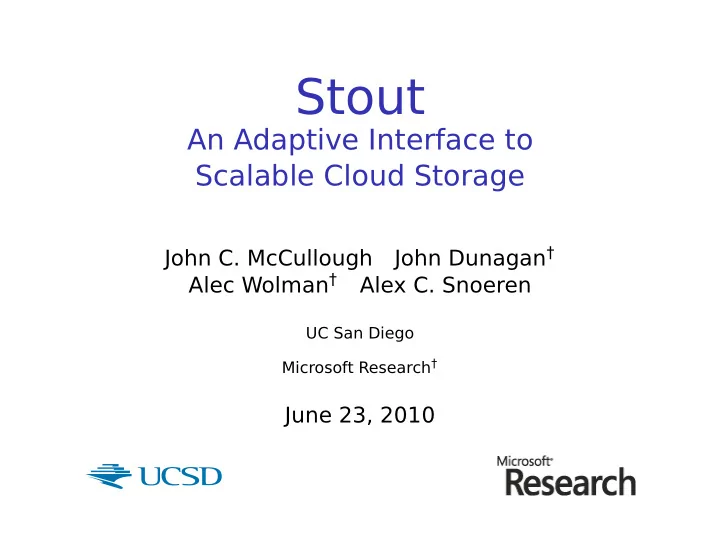

Stout
An Adaptive Interface to Scalable Cloud Storage
John C. McCullough John Dunagan† Alec Wolman† Alex C. Snoeren
UC San Diego Microsoft Research†
June 23, 2010
Scalable Multi-tiered Services
2
Stout An Adaptive Interface to Scalable Cloud Storage John Dunagan - - PowerPoint PPT Presentation
Stout An Adaptive Interface to Scalable Cloud Storage John Dunagan - - PowerPoint PPT Presentation
Stout An Adaptive Interface to Scalable Cloud Storage John Dunagan John C. McCullough Alec Wolman Alex C. Snoeren UC San Diego Microsoft Research June 23, 2010 Scalable Multi-tiered Services 2 Scalable Multi-tiered Services app
SLIDE 2
SLIDE 3
Scalable Multi-tiered Services
www app store www www app app store store
2
SLIDE 4
Scalable Multi-tiered Services
www app store www www app app store store Spreadsheet
2
SLIDE 5
Scalable Multi-tiered Services
www app store www www app app store store Spreadsheet
2
SLIDE 6
Scalable Multi-tiered Services
www app store www www app app store store client Spreadsheet
2
SLIDE 7
Scalable Multi-tiered Services
www app store www www app app store store client Spreadsheet
2
SLIDE 8
Scalable Multi-tiered Services
www app store www www app app store store client Spreadsheet
2
SLIDE 9
Scalable Multi-tiered Services
www app store www www app app store store client Spreadsheet
2
SLIDE 10
Scalable Multi-tiered Services
www app store www www app app store store client Spreadsheet
2
SLIDE 11
Scalable Multi-tiered Services
www app store www www app app store store Spreadsheet
2
SLIDE 12
Scalable Multi-tiered Services
www app store www www app app store store Spreadsheet www app app store
2
SLIDE 13
Scalable Multi-tiered Services
www app store www www app app store store Spreadsheet store
2
SLIDE 14
Scalable Multi-tiered Services
www app store www www app app store store Spreadsheet store . . . . . . store app www Other App
2
SLIDE 15
Scalable Multi-tiered Services
www app store www www app app store store Spreadsheet store . . . . . . store app www Other App
2
SLIDE 16
Key-Value Storage
app store
◮ Simple interface
◮ read(key) → value ◮ write(key, value)
◮ Natural to send requests right away
3
SLIDE 17
Key-Value Storage
app store
◮ Simple interface
◮ read(key) → value ◮ write(key, value)
◮ Natural to send requests right away ◮ Block for response to survive failures
3
SLIDE 18
Key-Value Storage
app store
◮ Simple interface
◮ read(key) → value ◮ write(key, value)
◮ Natural to send requests right away ◮ Block for response to survive failures ◮ Performance characteristics:
Load (requests/s) Latency Saturation
3
SLIDE 19
Key-Value Storage
app store
◮ Simple interface
◮ read(key) → value ◮ write(key, value)
◮ Natural to send requests right away ◮ Block for response to survive failures ◮ Performance characteristics:
Load (requests/s) Latency Saturation
3
SLIDE 20
Improving Performance Under Load
app store
◮ Application server handles requests for many
clients
◮ Storage request overheads
◮ Networking delay ◮ Protocol-processing ◮ Disk seeks ◮ etc. 4
SLIDE 21
Improving Performance Under Load
app store
◮ Application server handles requests for many
clients
◮ Storage request overheads
◮ Networking delay ◮ Protocol-processing ◮ Disk seeks ◮ etc. 4
SLIDE 22
Improving Performance Under Load
app store
◮ Application server handles requests for many
clients
◮ Storage request overheads
◮ Networking delay ◮ Protocol-processing ◮ Disk seeks ◮ etc. 4
SLIDE 23
Improving Performance Under Load
app store
◮ Application server handles requests for many
clients
◮ Storage request overheads
◮ Networking delay ◮ Protocol-processing ◮ Disk seeks ◮ etc. 4
SLIDE 24
Improving Performance Under Load
app store
◮ Application server handles requests for many
clients
◮ Storage request overheads
◮ Networking delay ◮ Protocol-processing ◮ Disk seeks ◮ etc. 4
SLIDE 25
Improving Performance Under Load
app store
◮ Application server handles requests for many
clients
◮ Storage request overheads
◮ Networking delay ◮ Protocol-processing ◮ Disk seeks ◮ etc. 4
SLIDE 26
Improving Performance Under Load
app store
◮ Application server handles requests for many
clients
◮ Storage request overheads
◮ Networking delay ◮ Protocol-processing ◮ Disk seeks ◮ etc.
◮ Batch to amortize overheads
4
SLIDE 27
Improving Performance Under Load
app store
◮ Application server handles requests for many
clients
◮ Storage request overheads
◮ Networking delay ◮ Protocol-processing ◮ Disk seeks ◮ etc.
◮ Batch to amortize overheads
4
SLIDE 28
Selecting a Batching Interval
◮ Most apps use a fixed batching interval
5
SLIDE 29
Selecting a Batching Interval
◮ Most apps use a fixed batching interval
short interval long
5
SLIDE 30
Selecting a Batching Interval
◮ Most apps use a fixed batching interval ◮ Latency/throughput tradeoff
short interval long better latency better throughput
5
SLIDE 31
Selecting a Batching Interval
◮ Most apps use a fixed batching interval ◮ Latency/throughput tradeoff
short interval long better latency better throughput
Load (requests/s) Latency
5
SLIDE 32
Selecting a Batching Interval
◮ Most apps use a fixed batching interval ◮ Latency/throughput tradeoff
short interval long better latency better throughput
Load (requests/s) Latency
5
SLIDE 33
Selecting a Batching Interval
◮ Most apps use a fixed batching interval ◮ Latency/throughput tradeoff
short interval long better latency better throughput
Load (requests/s) Latency
5
SLIDE 34
Selecting a Batching Interval
◮ Most apps use a fixed batching interval ◮ Latency/throughput tradeoff ◮ Want flexible batching interval
◮ Short when lightly loaded ◮ Long when heavily loaded
short interval long better latency better throughput
Load (requests/s) Latency
5
SLIDE 35
Solution: Stout
www app1 Stout www app2 Stout store store store
◮ Stout is a storage interposition library ◮ Our contribution is a technique for
independently adjusting the batching interval
6
SLIDE 36
Outline
- 1. Introduction
- 2. Application Structure
- 3. Adaptive Batching
- 4. Evaluation
7
SLIDE 37
Overlapped Request Processing
www app store
8
SLIDE 38
Overlapped Request Processing
www app store
8
SLIDE 39
Overlapped Request Processing
www app store ProcessRequest(req):
8
SLIDE 40
Overlapped Request Processing
www app store ProcessRequest(req): key = Parse(req)
8
SLIDE 41
Overlapped Request Processing
www app store ProcessRequest(req): key = Parse(req) Process(key,req)
8
SLIDE 42
Overlapped Request Processing
www app store ProcessRequest(req): key = Parse(req) Process(key,req) PersistState(key)
8
SLIDE 43
Overlapped Request Processing
www app store ProcessRequest(req): key = Parse(req) Process(key,req) PersistState(key)
8
SLIDE 44
Overlapped Request Processing
www app store ProcessRequest(req): key = Parse(req) Process(key,req) PersistState(key) reply = MakeReply(req)
8
SLIDE 45
Overlapped Request Processing
www app store ProcessRequest(req): key = Parse(req) Process(key,req) PersistState(key) reply = MakeReply(req) SendReply(reply)
8
SLIDE 46
Overlapped Request Processing
www app store ProcessRequest(req): key = Parse(req) Process(key,req) PersistState(key) reply = MakeReply(req) SendReply(reply)
8
SLIDE 47
Overlapped Request Processing
www app store ProcessRequest(req): key = Parse(req) Process(key,req) PersistState(key) reply = MakeReply(req) SendReply(reply)
8
SLIDE 48
Overlapped Request Processing
www app store Stout ProcessRequest(req): key = Parse(req) Process(key,req) PersistState(key) reply = MakeReply(req) SendReply(reply)
8
SLIDE 49
Overlapped Request Processing
www app store Stout ProcessRequest(req): key = Parse(req) Process(key,req) MarkDirty(key) reply = MakeReply(req) SendReply(reply)
8
SLIDE 50
Overlapped Request Processing
www app store Stout ProcessRequest(req): key = Parse(req) Process(key,req) MarkDirty(key) reply = MakeReply(req) SafeReply(key,reply)
8
SLIDE 51
Overlapped Request Processing
www app store Stout ProcessRequest(req): key = Parse(req) Process(key,req) MarkDirty(key) reply = MakeReply(req) SafeReply(key,reply) BatchingLoop: keys = DirtyKeys() replies = Depends(keys) AsyncWrite(keys, replies) Sleep(interval)
8
SLIDE 52
Overlapped Request Processing
www app store Stout ProcessRequest(req): key = Parse(req) Process(key,req) MarkDirty(key) reply = MakeReply(req) SafeReply(key,reply) BatchingLoop: keys = DirtyKeys() replies = Depends(keys) AsyncWrite(keys, replies) Sleep(interval)
8
SLIDE 53
Staying Safe: Consistency
◮ Don’t reveal uncomitted state
Synchronous app store x=5 Potential Async app store x=5
9
SLIDE 54
Staying Safe: Consistency
◮ Don’t reveal uncomitted state ◮ Potential async: Inconsistency on failure
Synchronous app store x=5 Potential Async app store x=5
9
SLIDE 55
Staying Safe: Consistency
◮ Don’t reveal uncomitted state ◮ Potential async: Inconsistency on failure
Synchronous app store x=5 Potential Async app store x=5
9
SLIDE 56
Staying Safe: Consistency
◮ Don’t reveal uncomitted state ◮ Potential async: Inconsistency on failure
Synchronous app store x=5 Potential Async app store x=5
9
SLIDE 57
Staying Safe: Consistency
◮ Don’t reveal uncomitted state ◮ Potential async: Inconsistency on failure
Synchronous app store x=5 Potential Async app store x=5 interval
9
SLIDE 58
Staying Safe: Consistency
◮ Don’t reveal uncomitted state ◮ Potential async: Inconsistency on failure
Synchronous app store x=5 Potential Async app store x=5 interval
9
SLIDE 59
Staying Safe: Consistency
◮ Don’t reveal uncomitted state ◮ Potential async: Inconsistency on failure
Synchronous app store x=5 Potential Async app store x=5
9
SLIDE 60
Staying Safe: Consistency
◮ Don’t reveal uncomitted state ◮ Potential async: Inconsistency on failure
Synchronous app store x=5 Potential Async app store x=5
9
SLIDE 61
Staying Safe: Consistency
◮ Don’t reveal uncomitted state ◮ Potential async: Inconsistency on failure
Synchronous app store x=5 Potential Async app store x=5 Failure
9
SLIDE 62
Staying Safe: Consistency
◮ Don’t reveal uncomitted state ◮ Potential async: Inconsistency on failure ◮ Stout provides serialized update semantics
Synchronous app store x=5 Stout Async app store x=5
9
SLIDE 63
Staying Safe: Consistency
◮ Don’t reveal uncomitted state ◮ Potential async: Inconsistency on failure ◮ Stout provides serialized update semantics
Synchronous app store x=5 Stout Async app store x=5 interval
9
SLIDE 64
Staying Safe: Consistency
◮ Don’t reveal uncomitted state ◮ Potential async: Inconsistency on failure ◮ Stout provides serialized update semantics
Synchronous app store x=5 Stout Async app store x=5 interval
9
SLIDE 65
Staying Safe: Consistency
◮ Don’t reveal uncomitted state ◮ Potential async: Inconsistency on failure ◮ Stout provides serialized update semantics
Synchronous app store x=5 Stout Async app store x=5 interval
9
SLIDE 66
Benefit: Write Collapsing
◮ Batched commits enable further optimization ◮ Can write most recent version only ◮ Reduces load at the store
10
SLIDE 67
Benefit: Write Collapsing
◮ Batched commits enable further optimization ◮ Can write most recent version only ◮ Reduces load at the store
x=5
10
SLIDE 68
Benefit: Write Collapsing
◮ Batched commits enable further optimization ◮ Can write most recent version only ◮ Reduces load at the store
x=5 x=6
10
SLIDE 69
Benefit: Write Collapsing
◮ Batched commits enable further optimization ◮ Can write most recent version only ◮ Reduces load at the store
x=5 x=6 x=7
10
SLIDE 70
Benefit: Write Collapsing
◮ Batched commits enable further optimization ◮ Can write most recent version only ◮ Reduces load at the store
x=5 x=6 x=7
10
SLIDE 71
Benefit: Write Collapsing
◮ Batched commits enable further optimization ◮ Can write most recent version only ◮ Reduces load at the store
x=5 x=6 x=7 x=7
10
SLIDE 72
Outline
- 1. Introduction
- 2. Application Structure
- 3. Adaptive Batching
- 4. Evaluation
11
SLIDE 73
Adapting to Shared Storage
◮ Storage system is a shared medium ◮ Independently reach efficient fair share ◮ Delay as congestion indicator
◮ Rather than modifying storage for explicit
notification
app store store store app app Stout Stout Stout Queue
12
SLIDE 74
Delay-based Congestion Control
◮ Unknown bottleneck capacity ◮ Traditional TCP signaled via packet loss ◮ Delay-based congestion control triggered by
latency changes Router Queue
13
SLIDE 75
Applications to Storage
Networking Storage Mechanism Change Rate Change Size ACCELERATE Send Faster Batch Less BACK-OFF Send Slower Batch More
14
SLIDE 76
Algorithm
if perf < recent perf BACK-OFF else ACCELERATE
15
SLIDE 77
Algorithm: Estimating Storage Performance
if perf < recent perf BACK-OFF else ACCELERATE batch size latency + interval
16
SLIDE 78
Algorithm: Estimating Storage Capacity
if perf < recent perf BACK-OFF else ACCELERATE if backed-off EWMA(batch sizei) EWMA(lati) + EWMA(intervali) else // accelerated MAXi( batch sizei lati + intervali )
17
SLIDE 79
Algorithm: Achieving Fair Share
if perf < recent perf BACK-OFF else ACCELERATE
18
SLIDE 80
Algorithm: Achieving Fair Share
if perf < recent perf BACK-OFF else ACCELERATE (1 + α) ∗ intervali
18
SLIDE 81
Algorithm: Achieving Fair Share
if perf < recent perf BACK-OFF else ACCELERATE (1 + α) ∗ intervali (1 − β) ∗ intervali + β ∗
- intervali
18
SLIDE 82
Algorithm: Achieving Fair Share
if perf < recent perf BACK-OFF else ACCELERATE (1 + α) ∗ intervali (1 − β) ∗ intervali + β ∗
- intervali
Time (s) interval
18
SLIDE 83
Outline
- 1. Introduction
- 2. Application Structure
- 3. Adaptive Batching
- 4. Evaluation
19
SLIDE 84
Evaluation
◮ Baseline Storage System Performance
◮ Benefits of batching ◮ Benefits of write-collapsing
◮ Stout
◮ Versus fixed batching intervals ◮ Workload variation 20
SLIDE 85
Evaluation
!"#$%&$'(%
21
SLIDE 86
Evaluation
!"#$%&$'(%
Sectioned Document Store
21
SLIDE 87
Evaluation
!"#$%&$'(%
Sectioned Document Store Our Workload
◮ 256-byte documents: IOPS dominated ◮ 50% read, 50% write
21
SLIDE 88
Evaluation: Configuration
Evaluation Platform
◮ 50 machines
◮ 1 Experiment Controller ◮ 1 Lease Manager ◮ 12 Frontends ◮ 32 Middle Tiers ◮ 4 Storage (Partitioned Key-Value w/MSSQL as
storage)
www app store 12× 32× 4×
22
SLIDE 89
Baseline: Importance of Batching
2k 4k 6k 8k 10k 12k 14k 16k 18k Load (requests/s) 50 100 150 200 250 300 End-to-end Latency (ms) no-batching
23
SLIDE 90
Baseline: Importance of Batching
2k 4k 6k 8k 10k 12k 14k 16k 18k Load (requests/s) 50 100 150 200 250 300 End-to-end Latency (ms) no-batching 10ms
23
SLIDE 91
Baseline: Importance of Batching
2k 4k 6k 8k 10k 12k 14k 16k 18k Load (requests/s) 50 100 150 200 250 300 End-to-end Latency (ms) no-batching 10ms 20ms
◮ Batching improves performance
23
SLIDE 92
Baseline: Importance of Write-Collapsing
4k 6k 8k 10k 12k 14k 16k 18k 20k Load (requests/s) 50 100 150 200 250 300 End-to-end Latency (ms) 10ms low collapsing
Low collapsing 10k Documents High collapsing 100 Documents
24
SLIDE 93
Baseline: Importance of Write-Collapsing
4k 6k 8k 10k 12k 14k 16k 18k 20k Load (requests/s) 50 100 150 200 250 300 End-to-end Latency (ms) 10ms low collapsing 20ms low collapsing
Low collapsing 10k Documents High collapsing 100 Documents
24
SLIDE 94
Baseline: Importance of Write-Collapsing
4k 6k 8k 10k 12k 14k 16k 18k 20k Load (requests/s) 50 100 150 200 250 300 End-to-end Latency (ms) 10ms low collapsing 20ms low collapsing 10ms high collapsing
Low collapsing 10k Documents High collapsing 100 Documents
24
SLIDE 95
Baseline: Importance of Write-Collapsing
4k 6k 8k 10k 12k 14k 16k 18k 20k Load (requests/s) 50 100 150 200 250 300 End-to-end Latency (ms) 10ms low collapsing 20ms low collapsing 10ms high collapsing 20ms high collapsing
Low collapsing 10k Documents High collapsing 100 Documents
◮ Improvement dependent on workload
24
SLIDE 96
Evaluation: Stout vs. Fixed Intervals
5k 10k 15k 20k 25k 30k 35k 40k 45k Load (requests/s) 100 200 300 400 500 600 700 800 End-to-end Latency (ms) 20ms
25
SLIDE 97
Evaluation: Stout vs. Fixed Intervals
5k 10k 15k 20k 25k 30k 35k 40k 45k Load (requests/s) 100 200 300 400 500 600 700 800 End-to-end Latency (ms) 20ms 40ms
25
SLIDE 98
Evaluation: Stout vs. Fixed Intervals
5k 10k 15k 20k 25k 30k 35k 40k 45k Load (requests/s) 100 200 300 400 500 600 700 800 End-to-end Latency (ms) 20ms 40ms 80ms
25
SLIDE 99
Evaluation: Stout vs. Fixed Intervals
5k 10k 15k 20k 25k 30k 35k 40k 45k Load (requests/s) 100 200 300 400 500 600 700 800 End-to-end Latency (ms) 20ms 40ms 80ms 160ms
25
SLIDE 100
Evaluation: Stout vs. Fixed Intervals
5k 10k 15k 20k 25k 30k 35k 40k 45k Load (requests/s) 100 200 300 400 500 600 700 800 End-to-end Latency (ms) 20ms 40ms 80ms 160ms Stout
◮ Stout better than any fixed interval across
wide range of workloads
25
SLIDE 101
Evaluation: Workload Variation
60 70 80 90 100 110 120 Time (s) 50 100 150 200 250 End-to-end Latency (ms) 20ms decrease
Decrease 12k requests/s → 8k requests/s Increase 12k requests/s → 18k requests/s
26
SLIDE 102
Evaluation: Workload Variation
60 70 80 90 100 110 120 Time (s) 50 100 150 200 250 End-to-end Latency (ms) 20ms decrease Stout decrease
Decrease 12k requests/s → 8k requests/s Increase 12k requests/s → 18k requests/s
26
SLIDE 103
Evaluation: Workload Variation
60 70 80 90 100 110 120 Time (s) 50 100 150 200 250 End-to-end Latency (ms) 20ms decrease Stout decrease 20ms increase
Decrease 12k requests/s → 8k requests/s Increase 12k requests/s → 18k requests/s
26
SLIDE 104
Evaluation: Workload Variation
60 70 80 90 100 110 120 Time (s) 50 100 150 200 250 End-to-end Latency (ms) 20ms decrease Stout decrease 20ms increase Stout increase
Decrease 12k requests/s → 8k requests/s Increase 12k requests/s → 18k requests/s
26
SLIDE 105
Additional Evaluation
◮ Fairness (Jain’s Fairness index of 0.96) ◮ Stout achieves similar performance with:
◮ PacificA ◮ SQL Data Services 27
SLIDE 106
Conclusion
◮ Batching improves storage performance ◮ Current practice is fixed latency/throughput
tradeoff
◮ Stout introduces distributed adaptation
technique
◮ Achieve 3× higher throughput over
low-latency fixed interval for modified Live Mesh service
28
SLIDE 107
Questions?
29
