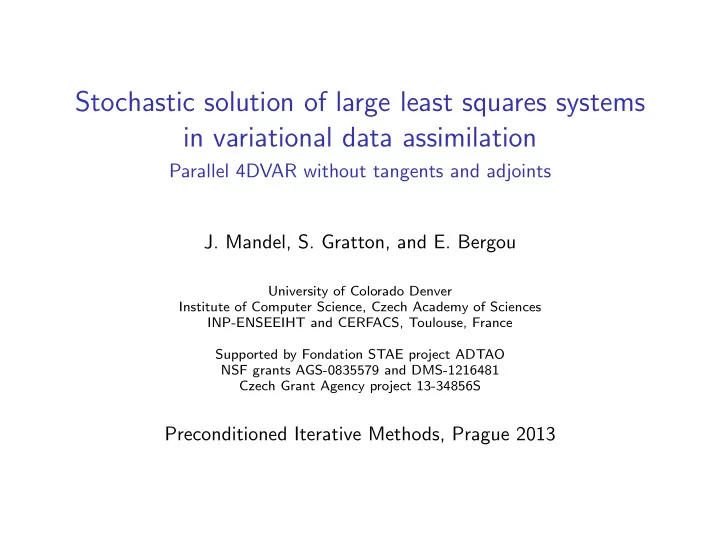

Stochastic solution of large least squares systems in variational data assimilation

Parallel 4DVAR without tangents and adjoints

• J. Mandel, S. Gratton, and E. Bergou

University of Colorado Denver Institute of Computer Science, Czech Academy of Sciences INP-ENSEEIHT and CERFACS, Toulouse, France Supported by Fondation STAE project ADTAO NSF grants AGS-0835579 and DMS-1216481 Czech Grant Agency project 13-34856S

Preconditioned Iterative Methods, Prague 2013

Data assimilation

◮ Standard computing: data in, results out ◮ Not much changed in principle since we were taking punched cards

and magnetic tapes to the mainframe

◮ Data assimilation: combine data with a running model ◮ Cast as Bayesian update or least squares ◮ Used already in Apollo 11 navigation, now in GPS, standard in

numerical weather prediction

Weak Constraint 4DVAR

◮ We want to determine x0, . . . , xk (xi = state at time i)

approximately from model and observations (data) x0 ≈ xb state at time 0 ≈ the background xi ≈ Mi (xi−1) state evolution ≈ by the model Hi (xi) ≈ yi value of observation operator ≈ the data

◮ quantify “≈” by covariances

x0 ≈ xb ⇔ x0 − xb2

B−1 = (x0 − xb)T B−1 (x0 − xb) ≈ 0 etc.

◮ ⇒ nonlinear least squares problem

x0 − xb2

B−1 + k

∑

i=1

xi − Mi (xi−1)2

Q−1

i

+

k

∑

i=1

yi − Hi (xi)2

R−1

i

→ min

x0:k

.

Incremental 4DVAR

◮ linearization at [x0, . . . , xk] = x0:k

Mi (xi−1 + zi−1) ≈ Mi (xi−1) + M′

i (xi−1) zi−1

Hi (xi + zi) ≈ Hi (xi) + H′

i (xi) zi

◮ Gauss-Newton method (Bell, 1994; Courtier et al., 1994) consists

• f the iterations

x0:k ← x0:k + z0:k with the increments z0:k solving the linear least squares problem x0 + z0 − xb2

B−1 + k

∑

i=1

• xi + zi − Mi (xi−1) − M′

i (xi−1) zi−1

• 2

Q−1

i

+

k

∑

i=1

• yi − Hi (xi) − H′

i (xi) zi

• 2

R−1

i

→ min

z0:k

Linearized 4DVAR as Kalman smoother

◮ Write the linear least squares problem for the increments z0:k as

z0 − zb2

B−1 + k

∑

i=1

zi − Mizi−1 − mi2

Q−1

i

+

k

∑

i=1

di − Hizi2

R−1

i

→ min

z0:k

◮ Theorem The least squares solution z0:k is the mean of the random

vectors Z0:k satisfying the stochastic equations Z0 = zb +V0, V0 ∼ N (0, B) Zi = MiZi−1 + mi +Vi, Vi ∼ N (0, Qi) , i = 1, . . . , k di = HiZi +Wi, Wi ∼ N (0, Ri) i = 1, . . . , k

◮ This is the Kalman smoother (Rauch et al., 1965; Bell, 1994). ◮ Simulate by Monte-Carlo =

⇒ Ensemble Kalman Smoother (EnKS) (Evensen and van Leeuwen, 2000).

Kalman smoother

◮ To solve the stochastic Kalman smoother equations (Rauch et al.,

1965; Bell, 1994) Z0 = zb +V0, V0 ∼ N (0, B) Zi = MiZi−1 + mi +Vi, Vi ∼ N (0, Qi) , i = 1, . . . , k di = HiZi +Wi, Wi ∼ N (0, Ri) i = 1, . . . , k

◮ Build the solution recursively: Zi|j incorporates the data d1:j only,

need Zi = Zi|k

◮ Kalman filter is the recursion Zi−1|i−1 → Zi|i. ◮ Kalman smoother applies the same update to previous times to get

Z0:i|i−1 → Z0:i|i

◮ Eventually, we obtain Z0:k as Z0:k|k

Kalman filter and smoother recursions

◮ Recall notation: Zstep number | data incorporated up to ◮ Kalman filter incorporates data di in the latest state:

Zi|i−1

data di − → Zi|i

Z0|0

M1 − →

Z1|0

data d1 − →

Z1|1

M2 − →

Z2|1

data d2 − →

Z2|2

◮ Kalman smoother incorporates data di also in all previous states

Z0:i|i−1

data di − → Z0:i|i

Z0|0 →

M1 − →

Z0|0 Z1|0

• d1

− →

Z0|1 Z1|1 → →

M2 − →

  Z0|1 Z1|1 Z2|1  

d2 − →

  Z0|2 Z1|2 Z2|2  

Ensemble Kalman filter (EnKF)

Represent random vector Zi|j by an ensemble of realizations Z N

i|j =

• z1

i|j, . . . , zN i|j

• 1. Initialize by sampling background distribution

zℓ

0|0 ∼ N (zb, B) ,

ℓ = 1, . . . , N.

• 2. For i = 1, . . . , k:

2.1 Advance in time and randomize by sampling model error zℓ

i|i−1 = Mizℓ i−1|i−1 + mi + vℓ i ,

vℓ

i ∼ N (0, Qi)

2.2 Incorporate data di zℓ

i|i =zℓ i|i−1 − PN i HT i (HiPN i HT i + Ri)−1

· (Hizℓ

i|i−1 − di − wℓ i ),

wℓ

i ∼ N (0, Ri) ,

where PN

i

is the sample covariance from the ensemble Z N

i|i−1

Approximate solution: the ensemble mean: zi|i ≈ 1

N

• z1

i|i + · · · + zN i|i

Ensemble Kalman smoother (EnKS)

◮ Run the Ensemble Kalman filter (EnKF). Turns out incorporating

the data di replaces the ensemble by linear combinations (transformation by a TN

i ): ZN i|i = ZN i|i−1TN i ,

TN

i ∈ RN×N.

◮ EnKS = EnKF + transform the history exactly the same way:

ZN

0:i|i = ZN 0:i|i−1TN i .

Approximate solution: the ensemble mean: zi|k ≈ 1

N

• z1

i|k + · · · + zN i|k

Convergence of the EnKF and EnKS

Definition (Stochastic Lp norm) For random vector X : Ω → Rn, Xp = E |X|p1/p Theorem (Mandel et al. (2011); Le Gland et al. (2011)) zℓ

i|i → Zi|i in all

Lp, 1 ≤ p < ∞, as the ensemble size N → ∞ Corollary The EnKF ensemble mean

1 N

• z1

i|i + · · · + zN i|i

• → zi|i = E
• Zi|i
• in all Lp, 1 ≤ p < ∞, as N → ∞

Corollary The EnKS ensemble mean converges to the solution of the linear least squares problem: 1 N

• z1

i|k + · · · + zN i|k

• → zi = zi|k = E(Zi|k)

in all Lp, 1 ≤ p < ∞, as N → ∞.

Model operator

The linearized model Mi = M′

i (xi−1) occurs only in advancing the time

as the action on the ensemble of the increments Mi

• xi−1 + zℓ

i−1

• − xi ≈ Mi (xi−1) + M′

i (xi−1) zℓ i−1 − xi = Mizℓ i−1 + mi

Approximating by finite differences with a parameter τ > 0: Mizℓ

i−1 + mi ≈

Mi

• xi−1 + τzℓ

i−1

• − Mi (xi−1)

τ + Mi (xi−1) − xi Needs N + 1 evaluations of Mi, at xi−1 and xi−1 + τzℓ

i−1, ℓ = 1, . . . , N

Accurate in the limit τ → 0. For τ = 1, recover the nonlinear model: Mi

• xi−1 + zℓ

i−1

• − xi

Observation operator

The observation matrix occurs only in the action on the ensemble, HiZN =

• Hiz1, . . . , HizN

. Approximating by finite differences with a parameter τ > 0: Hizℓ

i−1 ≈

Hi

• xi + τzℓ

i

• − Hi (xi)

τ Needs N + 1 evaluations of Hi, at xi−1 and xi−1 + τzn

i−1.

Accurate in the limit τ → 0. τ = 1 ⇒ becomes exactly the EnKS run on the nonlinear problem ⇒ EnKS independent of the point of linearization ⇒ no convergence of the 4DVAR iterations. In our tests, τ = 0.1 seems to work well enough.

Tikhonov regularization and Levenberg-Marquardt method

◮ Gauss-Newton may not converge, even locally. Add a penalty

(Tikhonov regularization) to control the size of the increments zi : z0 − zb2

B−1 + k

∑

i=1

zi − Mizi−1 − mi2

Q−1

i

+

k

∑

i=1

di − Hizi2

R−1

i

+ γ

k

∑

i=0

zi2

S−1

i

→ min

z0:k

◮ Becomes the Levenberg-Marquardt method, which is guaranteed to

converge for large enough γ.

◮ Implement the regularization as independent observations zi ≈ 0

with error covariance Si: simply run the analysis step the second time (Johns and Mandel, 2008). Here, this is statistically exact because the distributions in the Kalman smoother are gaussian.

Convergence

• Theorem. Every iteration of the Levenberg-Marquardt or the

Gauss-Newton method with the stochastic linear solver by the EnKS converges in all Lp, 1 ≤ p < ∞ as N → ∞, and τ → 0, to the same iteration with the exact linear solver.

Functional interface

No matrices needed explicitly. Only certain matrix-vector operations.

◮ Evaluation of the model operator Mi (xi−1) for a given state xi−1. ◮ Evaluation of the observation operator Hi (xi) for a given state xi. ◮ Multiplication of a vector u0 by square root V of the background

covariance B: B = VV T . Similarly, multiplication of a vector ui by a square roots of the model error covariance Qi, and a data-dimensioned vector vi by a square root of the data error covariance Ri.These matrix roots are used only to generate samples from N (0, B), N (0, Qi), and N (0, Ri).

◮ Solving a system with matrix Ri.

Computational results

Lorenz 63 model dx dt = −σ(x − y) dy dt = ρx − y − xz dz dt = xy − βz

EnKS-4DVAR for Lorenz 63 model

Twin experiment - one solution chosen as the truth B = σ2

b diag

• 1, 1

4, 1 9

• ,

Ri = σ2

r I,

Hi (x, y, z) =

• x2, y2, z2

. Root mean square error of EnKS-4DVAR iterations over 50 timesteps, ensemble size 100, model error covariances Qi ≈ 0. Iteration 1 2 3 4 5 6 RMSE 20.16 15.37 3.73 2.53 0.09 0.09

Lorenz 96 model

dxj dt = 1 κ (xj−1(xj+1 − xj−2) − xj + F), j = 1, . . . , 40 cyclic b.c. x−1 = x39, x0 = x40, x41 = x1 (Lorenz, 2006)

◮ behaves chaotically in the case of κ = 1 and F = 8 ◮ model of time evolution on a constant latitude circle

10 20 30 40 50 60 70 80 90 100 −10 −5 5 10 15 x(20) time steps

EnKS-4DVAR for Lorenz 96 model

◮ Twin experiment - one solution chosen as the truth. The whole

state is observed.

◮ Background covariance B = σ2

bdiag(1, 1 4, 1 9, . . .)

◮ Data error covariance Ri = σ2

r I, observation operator

Hi (Xi) = Xi + X 2

i

◮ Model error covariance Qi = 0.1C, Cmn = exp(−5|m − n|),

ensemble size N = 40.

5 10 15 20 25 30 35 40 45 50 0.16 0.18 0.2 0.22 0.24 0.26 0.28 0.3 0.32 time rmse

RMSE of EnKS-4DVAR solution remains bounded over 50 time steps, max cca 5%

An example where Gauss-Newton does not converge

(x0 − 2)2 + (3 + x2

1)2 + 106(x0 − x1)2 → min

4DVAR with xb = 2, B = I, M1 = I, H1(x) = x2, y1 = 3, Q1 = 10−6 Thus, γ > 0 (regularization) is sometimes required.

Properties

4DVAR sets up a large nonlinear least squares problem. Classical methods

◮ In each iteration, sequential evaluations of the model, tangent and

adjoint operators, and solving large linear least squares

◮ Extra code for tangent and adjoint operators. ◮ Gauss-Newton iterations may not converge, not even locally. ◮ Difficult to parallelize - only inside the model.

The new method

◮ Solve the linear least squares from 4DVAR by EnKS, naturally

parallel over the ensemble members.

◮ Linear algebra glue is cheap, use parallel dense libraries. ◮ Finite differences ⇒ no tangent and adjoint operators needed. ◮ Add Tikhonov regularization to the linear least squares ⇒

Levelberg-Marquardt method with guaranteed convergence.

◮ Cheap and simple implementation of Tikhonov regularization within

EnKS as an additional observation.

To do

◮ Testing on large, realistic problems ◮ Localization in the EnKS (the standard sample covariance is low

rank..., with spurious terms)

◮ Adaptive control of initial ensemble spread in each iteration ◮ Adaptive control of the regularization (the Levenberg-Marquardt

parameter γ)

◮ More theory, esp. nonlinear and Levenberg-Marquardt convergence

Related work

◮ The equivalence between weak constraint 4DVAR and Kalman

smoothing is approximate for nonlinear problems, but still useful (Fisher et al., 2005).

◮ Hamill and Snyder (2000) estimated background covariance from

ensemble for 4DVAR.

◮ Gradient methods in the span of the ensemble for one analysis cycle

(i.e., 3DVAR) include Zupanski (2005), Sakov et al. (2012) (with square root EnKF as a linear solver in Newton method), and Bocquet and Sakov (2012), who added regularization and use LETKF-like approach to minimize the nonlinear cost function over linear combinations of the ensemble.

◮ Liu et al. (2008, 2009) combine ensembles with (strong constraint)

4DVAR and minimize in the observation space.

◮ Zhang et al. (2009) use EnKF to obtain the covariance for 4DVAR,

and 4DVAR to feed the mean analysis into EnKF.
