Cervical Spine Stingers and Transient Quadriparesis Stanley A. Herring, MD Director of Sports, Spine and Orthopaedic Health UW Medicine Health System Co-Medical Director Seattle Sports Concussion Program Harborview Medical Center/Seattle

slide-1
SLIDE 1

UW

Spine

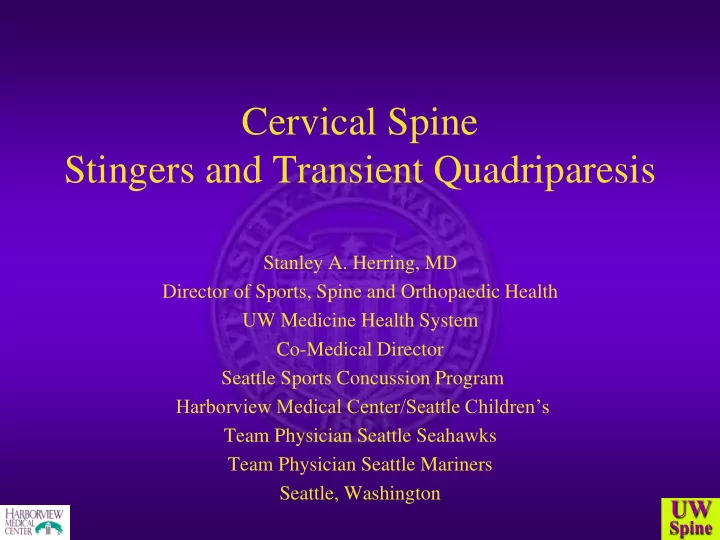

Cervical Spine Stingers and Transient Quadriparesis

Stanley A. Herring, MD Director of Sports, Spine and Orthopaedic Health UW Medicine Health System Co-Medical Director Seattle Sports Concussion Program Harborview Medical Center/Seattle Children’s Team Physician Seattle Seahawks Team Physician Seattle Mariners Seattle, Washington

slide-2
SLIDE 2

UW

Spine

Disclosures

I, Stanley A. Herring MD, nor any family member(s), have any relevant financial relationships to be discussed, directly or indirectly, referred to or illustrated with or without recognition within the presentation

slide-3
SLIDE 3

UW

Spine

Stingers

slide-4
SLIDE 4

UW

Spine

Stingers

Common

  • 50 to 65% of

college players – Clancy 1977 – Sallis 1992

slide-5
SLIDE 5

UW

Spine

Stingers

Weinstein and Herring 2000

slide-6
SLIDE 6

UW

Spine

Pathomechanics

  • Tensile injury to brachial plexus or cervical

nerve root/spinal nerve complex

  • Compression injury to brachial plexus or

cervical nerve root/spinal nerve complex

– Chrisman 1965,Bateman 1967,Clancy 1977,Rockett 1982, DiBenedetto 1984,Watkins 1986

slide-7
SLIDE 7

UW

Spine

Pathomechanics

  • May be dependent upon skill level of athlete
  • Watkins 1986
slide-8
SLIDE 8

UW

Spine

Neuroanatomy

  • Resistance to

tensile force – Number of funiculi

  • Sunderland

1978

slide-9
SLIDE 9

UW

Spine

Neuroanatomy

  • Resistance to

tensile force – Number of funiculi – Amount of perineural tissue

  • Sunderland

1978

slide-10
SLIDE 10

UW

Spine

Neuroanatomy

  • Resistance to tensile

force – Number of funiculi – Amount of perineural tissue – Structure of dorsal & ventral roots

  • Sunderland 1978
slide-11
SLIDE 11

UW

Spine

Neuroanatomy

  • Resistance to tensile

force

– Number of funiculi – Amount of perineural tissue – Structure of dorsal & ventral roots – Linear vs. plexiform archtecture

  • Sunderland 1978
slide-12
SLIDE 12

UW

Spine

Neuroanatomy

  • Resistance to

compressive force – Neuroforaminal narrowing – Epineural tissue of the brachial plexus

  • Sunderland 1978
slide-13
SLIDE 13

UW

Spine

Neuroanatomy

  • The nerve root/ spinal nerve complex is the

most susceptible area to tensile or compressive injury

  • C5 – C7 (especially motor fibers) most

vulnerable

– Shortest – Direct alignment with upper trunk of plexus

  • Sunderland 1978
slide-14
SLIDE 14

UW

Spine

Persistent stingers

  • Case study – 55

football players – 11 professional, 37 collegiate, 7 scholastic – Levitz 1997

slide-15
SLIDE 15

UW

Spine

Persistent stingers

  • 83% extension/

compression mechanism

  • 70% Spurling’s sign

– Levitz 1997

slide-16
SLIDE 16

UW

Spine

Persistent stingers

  • 87% disc disease by MRI
  • 93% disc disease or foraminal narrowing by

MRI

  • 53% Torg ratio <0.8

– Levitz 1997

slide-17
SLIDE 17

UW

Spine

Persistent stingers

  • 266 collegiate football

players

  • 40 problematic

stingers – Meyer 1994

slide-18
SLIDE 18

UW

Spine

Persistent stingers

  • 85% extension/

compression

  • 15% brachial plexus

stretch – Meyer 1994

slide-19
SLIDE 19

UW

Spine

Persistent stingers

  • Pre-participation C-Spine X-rays
  • 10 cervical MRI’s – normal
  • 5 myelogram/ CT’s – normal
  • 8 electrodiagnostic studies – 6 normal

– Meyer 1994

slide-20
SLIDE 20

UW

Spine

Persistent stingers

  • 47.5% of stinger group had Torg ratio <0.8
  • 25.1% of asymptomatic group had Torg

ratio <0.8 – p-value = 0.02 – Meyer 1994

slide-21
SLIDE 21

UW

Spine

Stingers

Torg ratio Foramen/ vertebral body ratio

slide-22
SLIDE 22

UW

Spine

Stingers

  • Torg ratio

– <0.8 scholastic – <0.7 collegiate

  • Foramen/ vertebral body ratio

– <0.73 (average) scholastic

  • Castro 1997 Kelly 2000
slide-23
SLIDE 23

UW

Spine

Persistent stingers – Work- up

  • Cervical spine x-rays

– A/P & lateral – Obliques – Flexion/ extension

  • MRI
  • Myelogram /CT
  • EMG
slide-24
SLIDE 24

UW

Spine

Persistent Stingers- Treatment

  • Rest
slide-25
SLIDE 25

UW

Spine

Persistent Stingers- Treatment

  • Rest
  • Rehabilitation
slide-26
SLIDE 26

UW

Spine

Persistent Stingers- Treatment

slide-27
SLIDE 27

UW

Spine

Persistent Stingers- Treatment

slide-28
SLIDE 28

UW

Spine

Persistent Stingers- Treatment

slide-29
SLIDE 29

UW

Spine

Persistent Stingers- Treatment

  • Rest
  • Rehabilitation
  • Medications

– Oral – Selective injections

slide-30
SLIDE 30

UW

Spine

Persistent Stingers- Treatment

  • Rest
  • Rehabilitation
  • Medications

– Oral – Selective injections

slide-31
SLIDE 31

UW

Spine

Persistent Stingers- Treatment

  • Rest
  • Rehabilitation
  • Medications

– Oral – Selective injections

slide-32
SLIDE 32

UW

Spine

Persistent Stingers- Treatment

  • Rest
  • Rehabilitation
  • Medications

– Oral – Selective injections

  • Equipment

modifications

slide-33
SLIDE 33

UW

Spine

Persistent Stingers- Treatment

  • Rest
  • Rehabilitation
  • Medications

– Oral – Selective injections

  • Equipment

modifications

  • Surgery

– Foraminotomy – Fusion

slide-34
SLIDE 34

UW

Spine

  • 23 year old professional football player
  • 9/29/02 made tackle on special teams
  • Extension/rotation of head to right
  • Cervical and shoulder girdle region pain

and burning

Case Report Stinger

slide-35
SLIDE 35

UW

Spine

slide-36
SLIDE 36

UW

Spine

Case Report Stinger

  • Physical examination (09/29/02)

– + Spurling’s maneuver to the right side – C5 verses upper trunk weakness (4+/5) on right side – Subtle diminished sensation lateral deltoid on right side – Normal reflexes

slide-37
SLIDE 37

UW

Spine

Case Report Stinger

  • 10/09/02

– - Spurling’s maneuver – External rotation and isolated supraspinatus testing 4+ to 5-/5 – Normal sensation

slide-38
SLIDE 38

UW

Spine

Case Report Stinger

What to do?

slide-39
SLIDE 39

UW

Spine

Case Report Stinger

  • Rehabilitation
  • Equipment

modificaton

  • Return to play

decision

– 10/14/02 – No recurrent stingers – 1/03 normal strength – Pro Bowl

slide-40
SLIDE 40

UW

Spine

Persistent Stingers

  • Time to resolution of 1st stinger
  • Recurrences
  • Spurling’s vs. painless weakness
  • Imaging studies-compression vs “battered

nerve”

slide-41
SLIDE 41

UW

Spine

Transient Quadriparesis

slide-42
SLIDE 42

UW

Spine

Transient Quadriparesis

High Stakes Decision

slide-43
SLIDE 43

UW

Spine

Cervical Spinal Cord Injury

Types

  • “Neurapraxia”

– transient motor and/or sensory loss – 2-4 limbs affected – duration up to 36 hrs.

  • Contusion

– permanent injury – various patterns

slide-44
SLIDE 44

UW

Spine

Transient Quadriparesis

Mechanisms

  • Metabolic
  • Vascular
  • Structural

– Instability – Spinal stenosis

  • Congenital
  • Acquired
slide-45
SLIDE 45

UW

Spine

Cervical Spinal Stenosis

Controversies

  • How to define

– bony dimensions – other factors

  • How to measure

– sensitivity – specificity

slide-46
SLIDE 46

UW

Spine

Cervical Spinal Stenosis

  • Direct Measurement

– lateral c-spine x-ray with known magnification – cross sectional imaging with CT or MRI

  • Values for canal

diameters (bony)

– normal >15 mm (C2- C7) – narrow < 12mm

slide-47
SLIDE 47

UW

Spine

Cervical Spinal Stenosis

  • Torg (Pavlov) ratio,

1986

– indirect measure – avoids magnification error – positive if <0.8 – high sensitivity, >90%

slide-48
SLIDE 48

UW

Spine

Cervical Spinal Stenosis

Subsequent Studies

  • Herzog et al, Spine

1991

– 49% of professional football players had a Torg ratio <0.8 at one

  • r more levels

– only 13% had true spinal stenosis by advanced imaging

  • Odor et al, AJSM

1990

– 32% professional and 34% rookie football players had Torg ratio <0.8 at one or more levels

slide-49
SLIDE 49

UW

Spine

Torg Ratio

Pitfalls

  • Athletes have large

vertebral bodies

  • Ratio is skewed

toward stenosis

  • Anatomic relationship
  • f spinal cord and

canal varies

slide-50
SLIDE 50

UW

Spine

Functional Reserve of Spinal Canal

  • Amount of CSF

surrounding spinal cord

  • Shape of spinal cord
slide-51
SLIDE 51

UW

Spine

slide-52
SLIDE 52

UW

Spine

Return to Play

Torg & Glasgow, CJSM 1991

  • No restriction

– no hx of TQ; Torg ratio <0.8

  • Relative restriction

– one episode TQ; Torg ratio <0.8

  • Absolute contraindication

– TQ with instability, hard disc, cord compression, symptoms > 36 hrs., more than

  • ne episode
slide-53
SLIDE 53

UW

Spine

Return to Play

Cantu, Exercise and Sports Sciences Reviews 1995

  • No restriction

– one episode of TQ with full recovery and normal work-up

  • Relative restriction

– one episode of TQ as a result of minimal contact; minimal or mild disc herniation

  • Absolute contraindication

– TQ with functional spinal stenosis

slide-54
SLIDE 54

UW

Spine

Cervical Cord Neurapraxia

Torg et al, J Neurosurg 1997

  • 110 athletes with CCN
  • 63 (57%) RTP
  • 35 (56%) 2nd episode of CCN

– 3.1 +/- 4.0 episodes (range 2-25)

  • Imaging (105 x-rays, 53 MRIs)

– only 7% nl x-ray, 8% nl MRI – 34% spinal cord compression

slide-55
SLIDE 55

UW

Spine

Cervical Cord Neurapraxia

Torg et al, J Neurosurg 1997

  • Risk of recurrence ~ spinal stenosis

– smaller Torg ratio

  • (0.65 vs 0.72mm)

– smaller disc level canal diameter

  • (8.7 vs 10.1mm)

– less space available for the cord

  • (1.1 vs 2.0mm)
  • No permanent neurological injuries
slide-56
SLIDE 56

UW

Spine

Cervical Cord Neurapraxia

Torg et al, J Neurosurg 1997

  • Correlation

– Canal stenosis – Recurrence

slide-57
SLIDE 57

UW

Spine

Cervical Cord Neurapraxia

Torg et al, J Neurosurg 1997

  • “May be advised not at increased risk of

permanent neurologic injury with return”

  • “Presence of stenosis does not result in

irreversible cord injury”

slide-58
SLIDE 58

UW

Spine

Cervical Cord Neurapraxia

Torg et al, J Neurosurg 1997

  • Uncontrolled case studies
  • No physical exam data
  • Imaging

– 110 athletes, 53 MRI’s

  • Follow-up

– 15- 228 months

slide-59
SLIDE 59

UW

Spine

Cervical Cord Neurapraxia

Torg et al, J Neurosurg 1997

  • 10 players with cord compression
  • Repeat assessment over time
  • Subgroup susceptible?
  • Outcome was return to play
slide-60
SLIDE 60

UW

Spine

Return to Play

Torg et. al. JBJS 2002

  • No restriction

– no hx of CNN; Torg ratio <0.8

  • Relative restriction

– one episode CNN; Torg ratio <0.8 – one episode CNN with DDD or DJD – one episode CNN with cord deformation

slide-61
SLIDE 61

UW

Spine

Return to Play

Torg et. al. JBJS 2002

  • Absolute contraindication

– CNN with instability, symptoms > 36 hrs., and/or more than one episode – CNN with cord defect or cord edema

slide-62
SLIDE 62

UW

Spine

Transient Quadriparesis

Return to Play

  • Is there a risk of permanent spinal cord

injury following TQ?

  • How should a team physician counsel a

player:

– with TQ and normal work-up? – with TQ and cervical disc herniation? – with TQ and spinal stenosis? – with TQ who is a high school athlete?

slide-63
SLIDE 63

UW

Spine

If this was your son or daughter?

slide-64
SLIDE 64

UW

Spine

Return to Sport After Cervical Injury Brigham 2003

  • Professional football

player -1998

– Lhermitte’s sign – Neck flexion – Spear tackle

slide-65
SLIDE 65

UW

Spine

slide-66
SLIDE 66

UW

Spine

slide-67
SLIDE 67

UW

Spine

Return to Sport After Cervical Injury Brigham 2003

  • Tackling 2000

– Burning 4 extremities – Persistent upper extremity dysesthesias – C6 Radiculopathy

slide-68
SLIDE 68

UW

Spine

slide-69
SLIDE 69

UW

Spine

Return to Sport After Cervical Injury Brigham 2003

  • 3 Months

– Burning C6 – LE parasthesias

slide-70
SLIDE 70

UW

Spine
