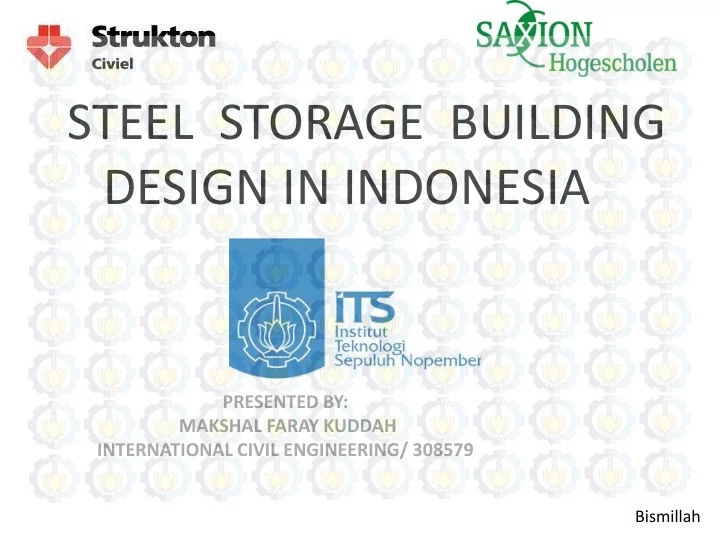

STEEL STORAGE BUILDING DESIGN IN INDONESIA

PRESENTED BY: MAKSHAL FARAY KUDDAH INTERNATIONAL CIVIL ENGINEERING/ 308579

Bismillah

Contents

• Introduction
• Overview Earthquake Situation in Indonesia

Different type of design building in Indonesia

• The objective of the final project
• General information of the steel storage building
• Calculation for the structure by hand
• Check the calculation for the structure by SAP 2000, SCIA

ENGINEER

• Connection
• Conclusion
• Drawing the building plan by AUTOCAD 2011
• References

Bismillah

INTRODUCTION

Overview Earthquake Situation in Indonesia Location of Indonesia which is the confluence of three plates the Indo-Australian plate, Pacific plate and the Eurasian plate

• Bismillah

The impact of earthquake in Aceh, 2004 The impact of the earthquake in Padang, 2012

INTRODUCTION

Bismillah

Types of building structure in Indonesia

Concrete building structure

• Building with the concrete structure

usuallly for house and high building

• Concrete is able to withstand the

compression force and anti corrosion

• The construction of concrete structure is

low

• The concrete can be modified easily in

construction Bismillah

Types of building structure in Indonesia

Steel building structure

• Building with the steel structure usually

for the storage building or the high rise building which is good for high earthquake zone

• The construction of the steel structure

is fast because it has uniform structure

• The ductility of the steel can avoid the

building from collapse suddenly cause

• f the earthquake
• Cost construction is expensive

Bismillah

Design framework

• Project Objective.

Design the steel storage building 2 floors, which the length is 60 m, the width is 22 m and the height is 9,5 m by considering the earthquake zone 2 but I change into the earthquake zone 6 in Jakarta, the Capital city of Indonesia.

• Main Research Question

How are the design and the calculation of the steel storage building construction in Jakarta Indonesia, which is considering earthquake zone 6?

Bismillah

General information

General information of the steel storage building

Location : Jakarta, Indonesia Storey : First floor covered (h=5,5 m) Second floor covered (h=4 m) Wall in first floor : Brick Wall in the second floor : Brick Regulation for calculation : SNI 03-1726-2002 for steel building SNI 03-1729-2002 for Earthquake

Bismillah

General information

• Jakarta is located in earthquake zone 2, for the modification I

change into the earthquake zone 6

• The earthquake can reach 8,6 SR in Jakarta

Bismillah

Start Preliminary design Plan for secondary structure Calculation for loading Analysis the structure by use SAP 2000 and Scia Engineer Analysis for the main structure Plan for the connection Draw the design by use AUTOCAD 2011 Finish

Steps Design for the steel storage building

Bismillah

Plan for the first floor

Bismillah

Plan for the second floor

Bismillah

60 m 22 m

The Dimension of the Beam and Column

Bismillah

Wide Flange (WF) Steel Control

WF control : Sectional profile : Flange - bf

2t f

lp = 170 fy

• }
• f

f

t 2 b ´

• <
• lp

(OK)

Web -

h tw

lp =

y

f 1680

• w

t h

• <
• lp

(OK)

• }

Lateral Buckling :

Lp = 1,76 × iy ×

y

f E

Deflection control f = L

360

f = 5 384 ´ qu ´ L

4

E´ Ix

f £ f ............ OK!

H steel bf : length of the flange (mm) tf : thick of the flange (mm) h :Height of the H steel (mm) tw : thick of the web H steel fy : Melt tension (2400 kg/cm2) lp: Lateral buckling (cm ) iy : Radius of Gyration of Area (cm) ix : Radius of Gyration of Area (cm) E : Modulus of elasticity steel (kg/cm2) f : Deflection cause of the load (cm) : Permit deflection

f

Bismillah

Steel Plan for the Structure

Bismillah

Load Calculation

Portal Load P1 = 14529,5 kg P2 = 16010 kg P3 = 16160,5 kg

P4 = 8000 kg P5 = 16080,8 kg

Roof load: Dead load = 161,22 kg Live load = 169,62 kg

Transverse Beam Longitudinal Beam Bismillah

Earthquake Load Calculation

T = 0,085´ H3/4 = 0,085´9,53/4 = 0,478 second

T : Time for the natural vibration that determines the magnitude of the earthquake response factor for structure of the building H : Total height of the building V : Shear load Ct : The seismic response factor ( for earthquake zone 6,Ct is 0,9) I : Main safety factor ( for the earthquake zone 6, I is 1) Wt : Total weight of the building R : Reduction earthquake factor ( for the earthquake zone 6, R is 8,5 ) Fi : Earthquake load for the structure of the building Zi : Height of each floor start from first floor

V = Ct ´ I R Wt = 0,9´1 8,5 ´117808,798 kg =12473,872 kg

F

i =

Wi ´ Zi Wi ´ Zi

i=1 n

å

´ V

Earthquake pressure in each floor T1 = 0,478 second

Floor zi (m) Wi (kg) Fi (kg) 2 1 9,5 5,5 5557,998 112250,8 1223,114 12351,077 Σ 117808,798

Bismillah

Connection A

Roof Connection

• Φbolt = 10 mm
• 2 bolts for each beam
• For beam: 60x60x10

Connection B

• Lattice Beam Connection
• Φbolt = 10 mm
• 2 bolts for each beam
• For beam: 60x60x10

Connection C

• Φbolt = 10 mm
• For roof beam I used 8

bolts

• For botttom beam I used 7

bolts

• For beam : 60x60x10

Connection D

• Φbolt = 16 mm
• Angle profile for the connection is 200x200x16
• Angle profile in the middle for the connection is 150x150x14

Connection between Beam and Column

Connection E

• Φbolt = 22 mm
• Angle profile for the connection is

200x200x16

• Angle profile in the middle for the

connection is 150x150x14

Beam and Column connection

Conclusion The steel storage building with two floors can be built in Jakarta which is located in earthquake zone 6 by using : Column which is used WF 400x400x15x15 Beam which is used WF 350x250x9x14 Joist which is used WF 350x175x7x11 The structure which mention above are the main structure that I used in the steel storage building design

Bismillah

Cross Section from AUTOCAD 2011

Bismillah

Longitudinal part of the storage building

Bismillah

Map of the Roof

Bismillah

References

Indonesian references:

• Indonesian National Standard of Regulations for Earthquake (

SNI 03-1726-2002)

• Indonesian National Standard of Regulations for Steel Building (

SNI 03-1729-2002)

• Indonesian National Standard of Regulation for loading in

Building (PPIUG 1983)

• LRFD ( Load and resistance factor design )
• Indonesian guidelines to plan the loading for building (PPPURG

1987)

• Indonesian Steel Profile Table

Bismillah

Bismillah
