Outline Describing One Categorical Variable Relationships Between Categorical Variables STAT 113 Describing Categorical Data I Colin Reimer Dawson Oberlin College September 11, 2020 1 / 25 Outline Describing One Categorical Variable

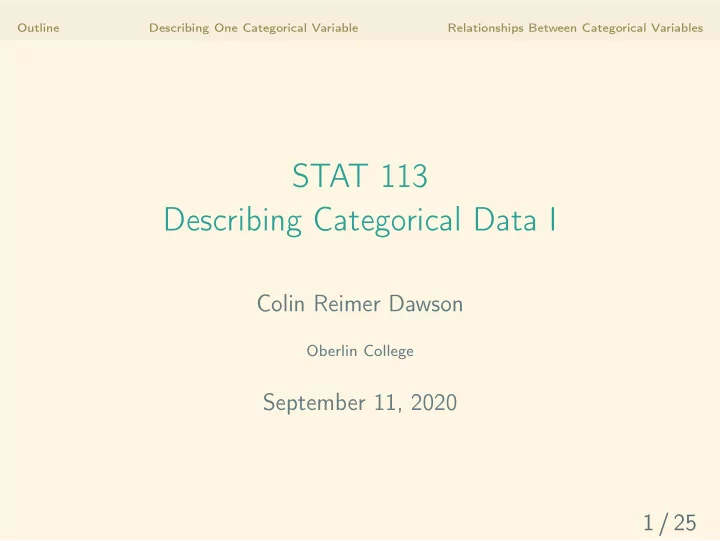

SLIDE 1

Outline Describing One Categorical Variable Relationships Between Categorical Variables

STAT 113 Describing Categorical Data I

Colin Reimer Dawson

Oberlin College

September 11, 2020 1 / 25

SLIDE 2

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Outline

Describing One Categorical Variable Relationships Between Categorical Variables Contingency Tables Conditional Proportions 2 / 25

SLIDE 3

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Outline

Describing One Categorical Variable Relationships Between Categorical Variables Contingency Tables Conditional Proportions 3 / 25

SLIDE 4

Outline Describing One Categorical Variable Relationships Between Categorical Variables

A data frame with a single categorical variable

Frequency 49 N/R 65 Daily 25 N/R 74 Weekly 18 Monthly 91 Monthly 47 Weekly 24 N/R 71 Monthly 37 Monthly

Table: Partial Results of a Survey of College Students on Frequency

f Video Game Playing (via Nolan and Speed, 2000)

4 / 25

SLIDE 5

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Frequency Tables

How can we summarize a categorical variable? One option is simply a frequency table. Daily Weekly Monthly Semesterly N/R Total 9 28 18 23 13 91

Table: Results of a Survey of College Studentson Frequency of Video Game Playing (via Nolan and Speed, 2000)

5 / 25

SLIDE 6

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Relative Frequency Tables

If we use proportions or percentages, we have a relative frequency table. Daily Weekly Monthly Semesterly N/R Total 0.100 0.310 0.200 0.250 0.140 1.000

Table: Results of a Survey of College Students on Frequency of Video Game Playing (via Nolan and Speed, 2000)

6 / 25

SLIDE 7

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Pie Charts

The pie chart is a popular choice for proportion data...

Daily ( 10%) Weekly ( 31%) Monthly ( 20%) Semesterly ( 25%) N/R ( 14%)

Figure: Results of a Survey of College Students on Frequency of Video Game Playing (via Nolan and Speed, 2000)

7 / 25

SLIDE 8

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Pie Charts...

Figure: http://www.businessinsider.com/ pie-charts-are-the-worst-2013-6

8 / 25

SLIDE 9

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Pie Charts...

Figure: http://www.businessinsider.com/ pie-charts-are-the-worst-2013-6

“Pie charts are the Nickelback of data visualization.”

8 / 25

SLIDE 10

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Pie Charts...

Figure: http://www.businessinsider.com/ pie-charts-are-the-worst-2013-6

“Pie charts are the Nickelback of data visualization.”
“Pie charts are the Aquaman of data visualization.”

8 / 25

SLIDE 11

Outline Describing One Categorical Variable Relationships Between Categorical Variables

The One Exception

9 / 25

SLIDE 12

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Bar Charts

Much easier to see differences between categories.

Daily Weekly Monthly Semesterly N/R # of respondents 10 20 30 40 Daily Weekly Monthly Semesterly N/R % of respondents 10 20 30 40

Figure: Two bar plots of Video Game data showing frequency (left) and percentages (right)

10 / 25

SLIDE 13

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Bar Charts

What’s this bar chart telling us?

Figure: A Fair and Balanced Bar Chart (from FOX News, 8/9/12)

11 / 25

SLIDE 14

Outline Describing One Categorical Variable Relationships Between Categorical Variables

The Cardinal Rule of Bar Charts

The cardinal rule of bar charts

Ratios in area must correspond to ratios in value

The y-axis must start at 0!
Equal visual space for equal numerical differences

12 / 25

SLIDE 15

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Outline

Describing One Categorical Variable Relationships Between Categorical Variables Contingency Tables Conditional Proportions 13 / 25

SLIDE 16

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Outline

Describing One Categorical Variable Relationships Between Categorical Variables Contingency Tables Conditional Proportions 14 / 25

SLIDE 17

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Contingency Tables

With one categorical variable, summarize by counting

the observations in each category 15 / 25

SLIDE 18

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Contingency Tables

With one categorical variable, summarize by counting

the observations in each category

With more than one variable, count combinations.

15 / 25

SLIDE 19

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Contingency Tables

With one categorical variable, summarize by counting

the observations in each category

With more than one variable, count combinations.
With two variables, we can store the counts in a two-way

table (also known as a contingency table). 15 / 25

SLIDE 20

Outline Describing One Categorical Variable Relationships Between Categorical Variables

A Simple Contingency Table

Student Year Computer 1 2nd PC 2 3rd Mac 3 3rd PC 4 1st PC 5 2nd PC 6 1st Mac 7 4th Mac 8 2nd PC = ⇒ Computer PC Mac Year 1st 1 1 2nd 3 3rd 1 1 4th 1 16 / 25

SLIDE 21

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Outline

Describing One Categorical Variable Relationships Between Categorical Variables Contingency Tables Conditional Proportions 17 / 25

SLIDE 22

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Proportions within a Context

Example: Driving While Black/Brown

Armentrout, et al. (2007)1 reports data on traffic stops by the Los Angeles Police Department (LAPD). Two of the variables recorded are race of the driver and whether or not the vehicle was searched. Question of interest: Of stops, is the proportion that result in a search different for different races of driver?

1Armentrout, M., Goodrich, A., Nguyen, J., Ortega, L., Smith, L., &

Khadjavi, L.S. (2007). Cops and stops: Racial profiling and a preliminary statistics analysis of Los Angeles police department traffic stops and

searches. Retrieved from

http://www.public.asu.edu/ etcamach/AMSSI/reports/copsnstops.pdf

18 / 25

SLIDE 23

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Proportions in a Context

Question of interest: Of stops, is the proportion that result in a search different for different races of driver?

Hisp./Lat. White Black Asian Others Total Searched 510 109 240 16 7 882 Not Searched 1826 2081 1008 486 104 5505 Total 2336 2190 1248 502 111 6387

On Your Own (3 min.):

Identify the cases and the population the cases are

drawn from.

How would you address this question using this

data? 19 / 25

SLIDE 24

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Conditional Proportions

Hisp./Lat. White Black Asian Others Total Searched 510 109 240 16 7 882 Not Searched 1826 2081 1008 486 104 5505 Total 2336 2190 1248 502 111 6387

We can group the cases according to one variable

(e.g., driver race), and look at the distribution of the

ther (searched or not) within each group.

20 / 25

SLIDE 25

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Conditional Proportions

Hisp./Lat. White Black Asian Others Total Searched 510 109 240 16 7 882 Not Searched 1826 2081 1008 486 104 5505 Total 2336 2190 1248 502 111 6387

We can group the cases according to one variable

(e.g., driver race), and look at the distribution of the

ther (searched or not) within each group.
The resulting proportions are called conditional

proportions: proportions are computed within a context, i.e., cases that satisfy a certain condition. 20 / 25

SLIDE 26

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Conditional Proportions

Searched Yes No Total Driver Race Hisp./Lat. 510/2336 1826/2336 2336 White 109/2190 2081/2190 2190 Black 240/1248 1008/1248 1248 Asian 15/502 486/502 502 Others 7/111 104/111 111 Total 882/6387 5505/6387 6387

21 / 25

SLIDE 27

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Conditional Proportions

Searched Yes No Total Driver Race Hisp./Lat 0.218 0.782 2336 White 0.050 0.950 2190 Black 0.192 0.808 1248 Asian 0.032 0.968 502 Others 0.063 0.937 111 Total 0.138 0.862 6387

22 / 25

SLIDE 28

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Vietnam War Opinions

From an October 2001 article in The Economist entitled “Treason of the Intellectuals?”

“Back in Vietnam days, the anti-war movement spread from the intelligentsia into the rest of the population, eventually paralysing the country’s will to fight.” Source http://www.economist.com/node/806289 23 / 25

SLIDE 29

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Vietnam War Opinions

January 1971 Gallup Poll

“A proposal has been made in Congress to require the U.S. government to bring home all U.S. troops before the end of this year. Would you like to have your congressman vote for or against this proposal?” 24 / 25

SLIDE 30

Outline Describing One Categorical Variable Relationships Between Categorical Variables

Vietnam War Opinions

Opinion proportions about Vietnam withdrawal, within

education levels, based on a January 1971 Gallup poll. Education Level Grade High College Overall Opinion “Dove” 0.73 “Hawk” 0.27

Table: Source: Gelman & Nolan, 2002

To Ponder: What would you expect the proportions to
