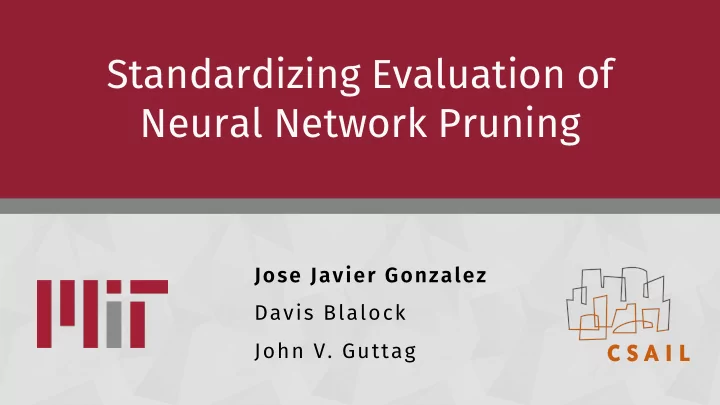

Standardizing Evaluation of Neural Network Pruning

Jose Javier Gonzalez Davis Blalock John V. Guttag

1

Overview

Sh Shri rinkBench: Open source library to facilitate development and standardized evaluation of neural network pruning methods

• Rapid prototyping of NN pruning methods
• Makes it easy to use standardized datasets, pretrained

models and finetuning setups

• Controls for potential confounding factors

• Pretrained networks are often quite accurate but large
• Pr

Pruning: Systematically remove parameters from a network

2

Neural Network Pruning

• Go

Goal: Reduce size of network as much as possible with minimal drop in accuracy

• Often requires finetuning

afterwards

3

Neural Network Pruning

1 2 4 8 16

Compression Ratio

0.40 0.45 0.50 0.55 0.60 0.65 0.70

Accuracy

Accuracy of Pruned Networks

4

Traditional Pipeline

Need a whole pipeline for performing experiments

Data Model Pruning Algorithm Finetuning Evaluation

5

Traditional Pipeline

Data Model Pruning Algorithm Finetuning Evaluation

But only the pruning algorithm usually changes

But only the pruning algorithm usually changes

6

Traditional Pipeline

Data Model Pruning Algorithm Finetuning Evaluation

Duplicate effort & confounding variables

7

ShrinkBench

Library to facilitate standardized evaluation of pruning methods

Data Model Pruning Algorithm Finetuning Evaluation

shrinkbench

Utils

8

ShrinkBench

• Provides standardized datasets, pretrained models,

and evaluation metrics

• Simple and generic parameter masking API
• Measures nonzero parameters, activations, and FLOPs
• Controlled experiments show the need for

standardized evaluation

9

T

• wards Standardization

But how do we standardize?

• Standardized datasets.

Larger datasets (ImageNet) will be more insightful than smaller ones (CIFAR10)

• Standardized architectures

Crucial to match complexity of the network with complexity of dataset/task

• Pretrained models

This can be a confounding factor so it’s important to use the same

• Finetuning setup

We want improvement coming from pruning not just better hyperparameters

But how do we standardize?

• Standardized datasets.

Widely adopted datasets, representative of real-world tasks

• Standardized architectures

With reproducibility record, matched in complexity to the chosen dataset

• Pretrained models

Even for a fixed architecture and dataset, exact weights may affect results

• Finetuning setup

We want improvement from pruning, not from better hyperparameters

10

T

• wards Standardization

11

T

• wards Standardization

But how do we standardize?

• Standardized datasets.

Widely adopted datasets, representative of real-world tasks

• Standardized architectures

With reproducibility record, matched in complexity to the chosen dataset

• Pretrained models

Even for a fixed architecture and dataset, exact weights may affect results

• Finetuning setup

We want improvement from pruning, not from better hyperparameters

12

Masking API

We can capture an arbitrary removal pattern using binary masks Model (+ Data) Pruning Masks

• 2.1

4.6 0.8

• 0.1

0.2 1.5

• 4.9

2.3

• 2.5

2.7 4.2

• 1.1
• 0.3

5.0 3.1 4.7 1 1 1 1 1 1 1

• 2.1

4.6 0.8

• 0.1

0.2 1.5

• 4.9

2.3

• 2.5

2.7 4.2

• 1.1
• 0.3

5.0 3.1 4.7

• 2.1

4.6 0.8

• 0.1

0.2 1.5

• 4.9

2.3

• 2.5

2.7 4.2

• 1.1
• 0.3

5.0 3.1 4.7 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

13

Masks → Accuracy

Given a pruning method in terms of masks, ShrinkBench finetunes the model and systematically evaluates it

Pruning Masks

1 2 4 8 16

Compression Ratio

0.40 0.45 0.50 0.55 0.60 0.65 0.70

Accuracy

Accuracy Curve

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

14

ShrinkBench Results I

• ShrinkBench returns both compression & speedup

since they interact differently with pruning

Model Compression Speedup

15

ShrinkBench Results II

• ShrinkBench evaluates with varying compression and

with several (dataset, architecture) combinations

16

ShrinkBench Results II

• ShrinkBench evaluates with varying compression and

with several (dataset, architecture) combinations

17

ShrinkBench Results III

• ShrinkBench controls for confounding factors such as

pretrained weights or finetuning hyperparemeters

• ShrinkBench – an open source library to facilitate

development and standardized evaluation of neural network pruning methods

• Our controlled experiments across hundreds of models

demonstrate the need for standardized evaluation.

18

Summary

https://shrinkbench.github.io
