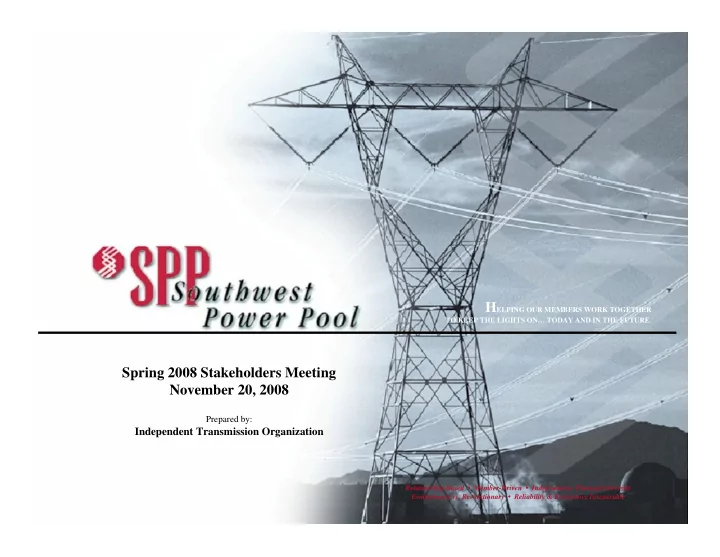

SPP Presentation - ITO Spring 2008 Stakeholders Meeting November 20, 2008

Prepared by:

Independent Transmission Organization

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

HELPING OUR MEMBERS WORK TOGETHER

TO KEEP THE LIGHTS ON… TODAY AND IN THE FUTURE

slide-2
SLIDE 2

2

Katherine Prewitt November 20, 2008

Introductions & Overview s

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-3
SLIDE 3

3

Introductions & Overview s

Logistics

♦

Safety

♦

Breaks/Lunch

♦

Restrooms

♦

Silence Cell Phones and Blackberries

♦

Introductions

Overview of Meeting

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-4
SLIDE 4

4

Katherine Prewitt November 20, 2008

Open Action Items from Spring 2008 Stakeholder Meeting

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-5
SLIDE 5

5

Open Action Items

  • Darrin Adams (EKPC): Has there been any curtailment in relation to

these TLRs? (Stuart Goza -TVA)) The only curtailments resulting from these TLRs have been the curtailments of scheduled transmission services.

♦

TLRs are listed at the NERC website at the following link. (http://www.nerc.com/~filez/Logs/tlrlogs.html).

♦

The website posts the TLRs as called by the RC and not by the Control Area.

♦

Filter the data by RC (TVA) and then compare it to a list of E.ON flowgates IDs from their OASIS website.

♦

TLR specific information can be requested from the RC by contacting Stuart Goza with the date and time of the TLR event.

  • Daryn Barker (E.ON-US): Maybe we can limit the data that is presented

to only those elements that limit AFC to zero and include monthly’s

  • also. (Jonathan Hayes – SPP) After reviewing the data that was

presented, only those limiting elements that went to zero were included in the data posted.

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-6
SLIDE 6

6

Open Action Items

  • Darrin Adams (EKPC): Has there been any curtailment in

relation to these TLRs? TVA suggests that anyone interested in this information can use the following link to search curtailment

  • logs. http://www.nerc.com/~filez/Logs/tlrlogs.html
  • Daryn Barker (E.ON-US): Follow up with TVA on the actual

process to do this during energy emergency events. TVA is not a party to the CRSG events. The NERC EEA process is defined in NERC Standard EOP-002. See link. ftp://www.nerc.com/pub/sys/all_updl/standards/rs/EOP-002- 2.pdf

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-7
SLIDE 7

7

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

Questions?

slide-8
SLIDE 8

8

Contact SPPITO

kprewitt@spp.org http://www.spp.org/ito

General Inquiries: 501-614-3200

Independent Transmission Organization

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

slide-9
SLIDE 9

9

Chris Lax November 20, 2008

ITO – Operations

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-10
SLIDE 10

10

ITO Operations

  • Operational Data

♦

Tariff Administration

♦

Scheduling

♦

TLR Statistics

  • Available Transfer Capacity

♦

Daily Firm Statistics

♦

Hourly Non-firm Statistics

  • Stakeholder Questions

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-11
SLIDE 11

11

Tariff Administration

  • Reservations

♦ 6608 Total Reservations processed ♦ 5749 TSRs Confirmed ♦ 6 TSRs in Study ♦ 455 TSRs Refused or Declined ♦ 398 TSRs Withdrawn, Retracted, Annulled, Invalid or

Superseded

Additional Analysis of Reservations can be found at

http://www.spp.org/publications/TSR_Stats_200811.xls

Independent Transmission Organization

slide-12
SLIDE 12

12

Scheduling

  • The ITO processed 8299 e-Tags from May 2008

through September 2008.

Independent Transmission Organization

slide-13
SLIDE 13

13

TLR Statistics

  • Additional TLR information can be found at

♦ http://www.spp.org/publications/TLR_Stats_200811.xls

slide-14
SLIDE 14

14

Daily Firm (Day Ahead) ATC Metrics

  • Analysis of the Daily Firm ATC Metrics can be found at

http://www.spp.org/publications/DF_ATC_Stats_200811.xls

Independent Transmission Organization

slide-15
SLIDE 15

15

Hourly Non-Firm ATC Metrics

  • Analysis of the Hourly Non-Firm ATC Metrics can be found at

http://www.spp.org/publications/HNF_ATC_200811.xls

Independent Transmission Organization

slide-16
SLIDE 16

16

Questions

Independent Transmission Organization

slide-17
SLIDE 17

Contact SPPITO

Email: clax@spp.org http://www.spp.org/ito

General Inquiries: 501-614-3200

Independent Transmission Organization

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

slide-18
SLIDE 18

18

Scott Jordan November 20, 2008

ITO – Tariff Studies

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-19
SLIDE 19

19

Outline

SIS Metrics FS Metrics DNR/NITS Study Process

Change

Questions

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-20
SLIDE 20

20

SIS Metrics – 2008 Q2 and 2008 Q3

New SISA delivered – 8 New SISA executed – 8 SIS Completed – 9 SIS Completed Late – 0 SIS Avg. Completion time – 52

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-21
SLIDE 21

21

FS Metrics – 2008 Q2 and 2008 Q3

New FSA delivered – 6 New FSA executed – 6 FS Withdrawn - 1 FS Completed – 7 FS Completed Late – 1 FS Avg. Completion time – 59

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-22
SLIDE 22

22

DNR/NITS Study Process Change

Current Study Process

♦

OASIS TSRs are currently being used for DNRs and Load Additions and are accompanied by NITS Applications sent via e-mail.

♦

These TSRs have service times beyond the 18 month planning horizon.

♦

The TSRs have to be evaluated in the SIS/Long Term Planning Process due to the service time being beyond the 18 month window.

♦

The TSR Queue date is used as the study queue.

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-23
SLIDE 23

23

DNR/NITS Study Process Change Cont.’

  • Study Process Change

♦

OASIS TSRs will still be used for DNRs

♦

NITS Applications will be used for Load Additions but do not have to have an associated TSR.

♦

The Study queues will be decided by the following criteria:

The queue date from OASIS on the TSR for DNRs The received date from the e-mail containing the NITS application

for the Load additions

Study parameters for each study will be decided by the

information from both the DNR and Load addition requests at the time of the submission of either the TSR in OASIS for the DNR or

  • f the NITS application for the Load addition.

♦

Propose to start this new process

January 1, 2009

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-24
SLIDE 24

24

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

Questions?

slide-25
SLIDE 25

25

Contact SPPITO

sjordan@spp.org http://www.spp.org/ito

General Inquiries: 501-614-3200

Independent Transmission Organization

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

slide-26
SLIDE 26

26 26

Jonathan Hayes November 20, 2008

ITO – LGI Studies

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-27
SLIDE 27

27

Topics

Update Achievements New goals

27

Independent Transmission Organization

slide-28
SLIDE 28

28 28

Update / Coordination

♦ 3 Active requests (end of 3rd

Quarter)

♦ Public info (Oasis) ♦ Process Overview

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-29
SLIDE 29

29

Public Info Update

Generation Interconnectio n Number Nearest Town

  • r County

State CA In-Service Date (proposed) CAPACITY (MW) Type STATUS LGE-LGI-2007- 002 Central City KY LGEE 6/1/2014 610.0 Combined Cycle SYSTEM IMPACT STUDY COMPLETE/ LGE-LGI-2007- 004 Henderson County KY LGEE 3/31/2011 640.0 Combined Cycle IMPACT STUDY BEING REVIEWED LGE-LGI-2008- 001 Wise County VA 12/1/2011 150.0 Wind FEASIBILITY STUDY SET TO BEGIN

29

Independent Transmission Organization

slide-30
SLIDE 30

30

GI Process Overview

  • Agreements/Bids (triplicate) New templates
  • Scoping Meeting(s) Changes
  • Prepare Models
  • Perform Feasibility Analysis (Power Flow/ Short

Circuit)

  • Perform System Impact Analysis (Power Flow, Short

Circuit, and Dynamic)

  • Review/Prepare/Post Results and Report
  • Coordinate data transfer

30

Independent Transmission Organization

slide-31
SLIDE 31

31

Achievements

  • Will be executing power flow study for BP wind.
  • New templates posted on oasis
  • Identified and resolved issues to make the process

better.

31

Independent Transmission Organization

slide-32
SLIDE 32

32 32

New Goals

Training to bring short circuit and dynamic

parts of analysis in house

Streamline Application Look for ways to improve Communication /

Coordination.

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-33
SLIDE 33

33

Questions ?

33

Independent Transmission Organization

slide-34
SLIDE 34

34

Contact SPPITO

Email: jhayes@spp.org http://www.spp.org/ito

General Inquiries: 501-614-3200

Independent Transmission Organization

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

slide-35
SLIDE 35

35 35

David Kelley November 20, 2008

ITO – 2007 Transmission Expansion Plan

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-36
SLIDE 36

36 36 36

ITO’s Assessment of E.ON’s 2007 TEP

2007 TEP based on summer and winter peak

models for 2008, 2011, and 2016

ITO Assessment Includes:

♦ Planning Guidelines ♦ Model Validation ♦ Powerflow Analysis ♦ Operating Guidelines Assessment ♦ Planned Project Assessment

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-37
SLIDE 37

37 37 37

Planning Guidelines Review

2007 TEP based on September 2007 revision

  • f planning guidelines

♦ ITO validated that 2007 TEP consistently adhered to

the criteria in the planning guidelines and good utility practice

♦ Subsequent revisions of the planning guidelines

were also reviewed and the most recent version is posted on OASIS

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-38
SLIDE 38

38 38 38

Model Validation

  • Accuracy

♦ ITO compared first tier control area generation dispatch

and facility characteristics from E.ON’s models with those included in MMWG models

♦ Reviewed 2007 TEP and ensured that the unit generation

simulated in the models is what was expected

Performance

♦ E.ON’s generation was verified to be operating within

minimum and maximum operating limits

♦ Compared models that included planned projects against

models that did not to ensure projects properly incorporated into the models

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-39
SLIDE 39

39 39

Pow erflow Analysis

Identified potential thermal and voltage

issues in the models

Results analyzed against criteria provided in

planning guidelines

♦

Thermal issues: Flow above 100 percent of applicable normal or contingency rating

♦

Voltage issues: Voltage below 94 percent or above 105 percent nominal during normal conditions and below 90 percent and above 105 percent nominal during contingency conditions

Independent Transmission Organization

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

slide-40
SLIDE 40

40 40

Pow erflow Analysis Results

3 contingency situations created

potential thermal and/or voltage issues affecting 12 monitored elements

♦ 2 need projects to be expedited ♦ 1 requires coordination between E.ON

and EKPC

Independent Transmission Organization

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

slide-41
SLIDE 41

41 41

Operating Guidelines Assessment

Each operating guideline identified by E.ON

as a solution to a violation in the Powerflow Analysis was independently verified.

♦ Does it satisfactorily mitigate the violation? ♦ Does it cause issues on neighboring systems? ♦ Does it require coordination with neighboring

systems?

Independent Transmission Organization

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

slide-42
SLIDE 42

42 42

Planned Project Assessment

Each project identified by E.ON as solutions

to Powerflow violations was independently evaluated.

♦ Is it properly modeled? ♦ Is the project adequately timed? ♦ Does the project resolve the violation?

Independent Transmission Organization

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

slide-43
SLIDE 43

43 43 43

Dynamic Study Assessment

The dynamic models and studies were

provided to the ITO in Apr 08.

The ITO reviewed the analysis for adherence

to applicable NERC stability standards.

The dynamic study has been included in the

ITO’s independent assessment report.

Relationship-Based • Member-Driven • Independence Through Diversity Evolutionary vs. Revolutionary • Reliability & Economics Inseparable

Independent Transmission Organization

slide-44
SLIDE 44

44 44 44

TEP Coordination

RC Coordination

♦ TEP presented to TVA as the RC in March 2008 ♦ RC comments included as part of the ITO’s

independent assessment report

Stakeholder Meeting Presentation

♦ Any additional stakeholder questions or concerns

will be considered for the next 30 days

♦ Final report will be posted on OASIS by Dec. 31
