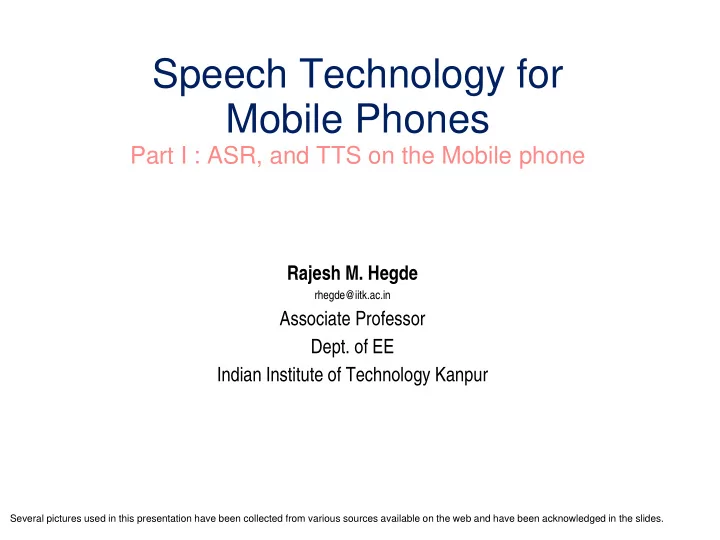

Speech Technology for Mobile Phones

Part I : ASR, and TTS on the Mobile phone

Rajesh M. Hegde

rhegde@iitk.ac.in

Associate Professor

• Dept. of EE

Indian Institute of Technology Kanpur

Several pictures used in this presentation have been collected from various sources available on the web and have been acknowledged in the slides.

Topics Covered

• How can speech technology be used for

developing applications on a mobile phone ?

• What is Automatic speech recognition (ASR)

and text to speech synthesis (TTS) ?

• What are the challenges in implementing

ASR and TTS systems on a mobile phone ?

• What are the potential applications of

speech technology in delivering personalized services on a mobile phone ?

Broad Objectives of Speech Technology for Machines

Speech to Text (ASR) Text to Speech (TTS) Source : Reynolds et. al, Apple developer page

Speech Recognition for Mobile Phones

• Speech recognition converts a speech signal,

acquired by a mobile phone, to a sequence of words.

• The recognition output can be used in command

and control, email, search, and communication.

• This output can also be used in dialog

management and natural language understanding.

• What you can do with it : Dictation, Call

routing, Directory assistance, Travel planning, and Logistics.

Overview of the Automatic Speech Recognition (ASR) Technology

Open Source Tools : HTK and CMU Sphinx Source : Google Image Search

Popular Commercial Applications : Siri, Google Voice

Source : Google, Apple

Client and Server Based Speech Recognition on the Mobile Phone

Source : Pearce et. al. ETSI

Speech Recognition at the Client Mobile Phone Server based Speech Recognition on the Mobile Phone

Speech Recognition in a little bit

• f detail

Source : MIT OC, Reynolds et. al

Speech Recognition on Mobile Phones

Source : Rose et. al

ASR Issues on Mobile Phone

• Memory Crunching
• Computational Complexity
• Power Requirement
• Floating Point Support

“Their Car” =

ASR Issues on Mobile Phones : Search Complexity

DH EH R [word] K AA R

DH

P(“DH”)

Source : Slides Krishna et.al, from U Michigan

DH

DH EH R [word] K AA R

Source : Slides from Krishna et.al, U Michigan

ASR Issues on Mobile Phones : Search Complexity

DH

DH EH R [word] K AA R

Source : Slides from Krishna et. al, U Michigan

ASR Issues on Mobile Phones : Search Complexity

DH EH R AH AX “The” IH IY [word] “Ear” “Their”

DH EH R [word] K AA R

Source : Slides from Krishna et. al, U Michigan

ASR Issues on Mobile Phones : Search Complexity

DH EH R [word] K AA R

DH EH R AH AX “The” IH IY [word] “Ear” “Their”

Source : Slides from Krishna et. al, U Michigan

ASR Issues on Mobile Phones : Search Complexity

“Their” “Car” “The” [word] “Ear” DH EH R AH AX IH IY K AA R [word] P AE T “Cat” “Cap”

DH EH R [word] K AA R

Source : Slides from Krishna et. al, U Michigan

ASR Issues on Mobile Phones : Search Complexity

DH EH R AH AX IH IY K AA R P AE T NH F S N L EH OY

DH EH R [word] K AA R

Source : Slides from Krishna et. al, U Michigan

ASR Issues on Mobile Phones : Search Complexity

DH EH R AH AX IH IY K AA R P AE T NH F S N L EH OY TH SH T IY OW G

DH EH R [word] K AA R

Source : Slides from Krishna et. al, U Michigan

ASR Issues on Mobile Phones : Search Complexity

DH EH R AH AX IH IY K AA R P AE T NH F S N L EH OY TH SH T IY OW G DK CH ER IY IH F K DUH OW IH Z OW JH V ZH AX G SH GH

DH EH R [word] K AA R

Source : Slides from Krishna et. al, U Michigan

ASR Issues on Mobile Phones : Search Complexity

SEARCH – Computing Requirements on the Mobile Phone

• 1. Search
• Roughly 50% of total time for Speech Recognition is taken away by search
• Even More for Large Vocabulary Recognition
• Considerably less for Small vocabulary tasks
• 2. Solutions
• Network optimization
• Efficient search techniques
• Pruning methods

i) Look-ahead based strategy ii) Pruning threshold dependent on the grammar

• Multi-pass methods

i) A fast first pass to produce a short list of candidates or a lattice, followed by second pass rescoring with larger acoustic and language models Source : Rose et. al

Exploiting Task Constraints on the Mobile Phone

Form Filling Example (Rose et, al)

• Recognize first and last names

independently

• Switch between pre compiled grammars
• Generate Dynamic grammars

What is Text to Speech Synthesis (TTS)

• Process of converting a given text in a specific language

to human like speech

• Software or Hardware based methods
• Software based methods are preferred
• Involves Text Analysis, Automatic Phonetization,

Dictionary or Rule based synthesis.

• Types : Concatenative, Unit Selection, Diphone based,

Formant based, Articulatory, and HMM based Synthesis.

• What you can do with it : E-Learning, Screen Readers,

Audio Books, ATM Banking, Call Centers, Interactive Kiosks

Overview of Text to Speech Speech Synthesis (TTS) Technology

Open Source Tool : Festival speech synthesis system from CSTR Source : Google image search, Wikipedia

Network PSTN

SMS Gateway Web/Database Server Asterisk Server

Cell Phone based Applications using Speech Inputs

Cell Phone based Agriculture Information Systems

Crop Advisory Weather Advisory Source : Digital Mandi for the Indian Kisan

Questions

rhegde@iitk.ac.in URL : http://202.3.77.107/mips/

?
