Sparse and Low-Rank Optimization for Dense Wireless Networks Part I: Models Jun Zhang Yuanming Shi HKUST ShanghaiT ech University 1 GLOBECOM 2017 TUTORIAL Outline of Part I Motivations T woVignettes Structured Sparse Models

slide-1
SLIDE 1

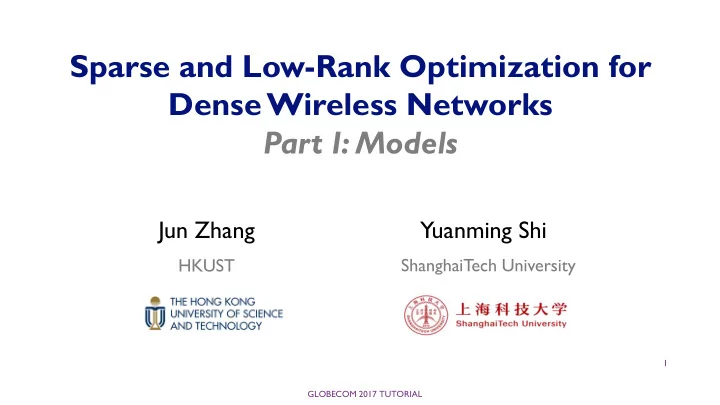

Sparse and Low-Rank Optimization for Dense Wireless Networks Part I: Models

1 GLOBECOM 2017 TUTORIAL

Yuanming Shi

ShanghaiT ech University

Jun Zhang

HKUST

slide-2
SLIDE 2

Outline of Part I

 Motivations  T

woVignettes

Structured Sparse Models

Group Sparse Beamforming for Network Power Minimization

Sparsity Control for Massive Device Connectivity

Generalized Low-Rank Models

Low-Rank Matrix Completion for T

  • pological Interference Management

Extensions

 Future Directions

2 GLOBECOM 2017 TUTORIAL

slide-3
SLIDE 3

Motivations: Dense Wireless Networks

3 GLOBECOM 2017 TUTORIAL

slide-4
SLIDE 4

Challenge: Ultra mobile broadband

 Era of mobile data deluge

4

Source: Cisco VNI Mobile, 2017

18 x

Over past 5 years

60 %

in 2016

429 M

Mobile devices added in 2016

GLOBECOM 2017 TUTORIAL

slide-5
SLIDE 5

Cooper’s Law

5 GLOBECOM 2017 TUTORIAL

25 5 5 1600

Factor of Capacity Increase since 1950 Network densification is a dominant theme!

slide-6
SLIDE 6

Solution: cloud radio access networks

 Dense

Cloud-RAN: a cost-effective way for wireless network densification and cooperation

6

Baseband Unit Pool

S uperCompute r SuperCom puter S uperComput er S uperComput er SuperCom puter

Remote Radio Head (RRH) Fronthaul Network

Cloud-RAN

4 Cs

Centralization Resource Pooling Improved Coordination

Cloud-RAN

Cost and Energy Optimization Cloud Virtualized Functions

GLOBECOM 2017 TUTORIAL

slide-7
SLIDE 7

Dense Cloud-RAN

 Higher network capacity

 Denser deployment

 Scalable connectivity

 Flexible resource management

 Higher energy efficiency

 Low-power RRHs, flexible energy management

 Higher cost efficiency

Low-cost RRHs, efficient resource utilization

7 GLOBECOM 2017 TUTORIAL

Baseband Unit Pool

S uperCompute r S uperComput er SuperCom puter SuperCom puter SuperCom puter

RRH Fronthaul Network Cloud-RAN

slide-8
SLIDE 8

Intelligent things for smart city

 A smart city highly depends on intelligent technology: connected sensors,

intelligent devices and IoT networks become wholly integrated

8 GLOBECOM 2017 TUTORIAL

slide-9
SLIDE 9

Challenge: Intelligent IoT

9

Internet of Things

People to People

Mobile Internet

Tactile Internet

Fundamental shift: from content- delivery to skillset-delivery networks

  • Low Latency
  • High Computation Intensity
  • Massive Connectivity
  • …

(internet of skills)

GLOBECOM 2017 TUTORIAL

slide-10
SLIDE 10

Grid Power Local Processing Power Supply Discharge Wireless Network

Active Servers Inactive Servers

Fog center Cloud Center User Devices Edge device

Charge

Solution: fog radio access networks

 Dense Fog-RANs: push computation and storage resources to

network edge – Overcome the long distance problem

Caching at the edge

Computing at the edge

10

share computation, storage, communication resources across the whole network

GLOBECOM 2017 TUTORIAL

slide-11
SLIDE 11

A new paradigm for wireless networking

 Goal: support ultra-low latency, reliable, Gbps communications, massive

device connectivity, massive data analytics, edge-AI…

11 GLOBECOM 2017 TUTORIAL

slide-12
SLIDE 12

Difficulties

 Networking issues:

Huge network power consumption

Massive device connectivity

Severe network interference  Computing issues:

Complicated (non-convex) problem structures

Limited computational resources

12

Source: Alcatel-Lucent, 2013

slide-13
SLIDE 13

Sparse and low-rank optimization

 Successful Stories

Compressed sensing/matrix completion: Collect random measurements; reconstruct via optimization

Statistical machine learning: Random data models; fit model via

  • ptimization

 Advantages

Modeling flexibility: Low-dimensional structures in high-dimensional data

Fundamental bounds: Computational and statistical tradeoffs

13 GLOBECOM 2017 TUTORIAL

slide-14
SLIDE 14

Sparse and low-rank optimization

 Emerging examples in wireless

Structured sparse models: Group sparse beamforming, user admission control, massive device connectivity…

Generalized low-rank models: T

  • pological interference management,

mobile edge caching, wireless distributed computing, index coding…  Motivations

Modeling flexibility: Structured models in dense and complex networks

Computational scalability: Convex optimization, manifold optimization…

Theoretical guarantees: Convex geometry, differential geometry…

14 GLOBECOM 2017 TUTORIAL

slide-15
SLIDE 15

Vignette A: Structured Sparse Models

15 GLOBECOM 2017 TUTORIAL

Case I: Group Sparse Beamforming for Network Power Minimization Case II: Sparsity Control for Massive Device Connectivity

slide-16
SLIDE 16

Case I: Group Sparse Beamforming for Network Power Minimization

16 GLOBECOM 2017 TUTORIAL

slide-17
SLIDE 17

Network power consumption

 Goal: Design green dense Cloud-RANs  Prior works: Physical-layer transmit power consumption

Wireless power control: [Chiang, et al., FT 08], [Qian, et al., TWC 09], [Sorooshyari, et al.,TON 12], …

Transmit beamforming: [Sidiropoulos and Luo, TSP 2006], [Yu and Lan, TSP 07], [Gershman, et al., SPMag 10],…  Challenge:

Network power consumption:

Radio access units, fronthaul links, etc.

17 GLOBECOM 2017 TUTORIAL Baseband Unit Pool

SuperCo mputer Super Comp uter Super Comp uter Super Comp uter Super Comp uter

RRH Fronthaul Network Cloud-RAN

slide-18
SLIDE 18

Network adaptation

 Goal: Provide

a holistic approach to minimize network power consumption (including RRHs, fronthaul links, etc.)

 Key observation: Spatial and temporal mobile data traffic variation

18

Network adaptation: adaptively switch off network entities to save power

GLOBECOM 2017 TUTORIAL

slide-19
SLIDE 19

System model

 The received signal at the k-th MU is given by

: channel propagation between MU and RRH

: transmit beamforming vector from the -th RRH to

  • th MU

Per-RRH transmit power constraint:  The signal-to-interference-plus-noise ratio (SINR) for MU

19 GLOBECOM 2017 TUTORIAL

slide-20
SLIDE 20

Network power consumption

 Continuous function: Transmit power consumption

: Drain inefficiency coefficient of the radio frequency power amplifier  Combinatorial function: Relative fronthaul link power consumption

: a partition of

: relative fronthaul link power consumption, i.e., the static power saving when both the fronthaul link and the corresponding RRH are switched off

Aggregative beamformer:

20 GLOBECOM 2017 TUTORIAL

slide-21
SLIDE 21

Problem formulation

 Goal: Minimize network power consumption in Cloud-RAN

Simultaneously control both the combinatorial function and the continuous function

Challenges: Non-convex, high-dimensional  Prior algorithms: heuristic or computationally expensive [Philipp, et. al,

TSP 13], [Luo, et. al, JSAC 13], [Quek, et. al,TWC 13],…

21

combinatorial composite function

GLOBECOM 2017 TUTORIAL

slide-22
SLIDE 22

Finding structured solutions

 Proposal: group sparse beamforming

Switch off the

  • th RRH

, i.e., group sparsity structure in

22

Beamforming coefficients of the first RRH, forming a group

Baseband Unit Pool

SuperComputer Super Comp u ter Super Comp u ter Super Comp u ter Super Comp u ter

RRH Fronthaul Network Cloud-RAN [Ref]

  • Y. Shi, J. Zhang, and K. B. Letaief, “Group sparse beamforming for green Cloud-RAN,” IEEE

Trans. Wireless Commun., vol. 13,

  • no. 5, pp. 2809-2823, May 2014. 2014. (The 2016 Marconi Prize Paper Award)

GLOBECOM 2017 TUTORIAL

slide-23
SLIDE 23

Group sparse beamforming algorithm

 Adaptive RRH selection: Switch off the RRHs with small coefficients in

the aggregative beamformers

 Stage I: The tightest convex positively homogeneous lower bound of the

combinatorial composite objective function (network power)

23 GLOBECOM 2017 TUTORIAL

mixed -norm induce group sparsity RRH ordering

slide-24
SLIDE 24

Group sparse beamforming algorithm

 Stage II: Find the optimal active RRHs via solving a sequence of

following feasibility detection problems (e.g., bi-section search)

 Stage III: Transmit power minimization via coordinated beamforming

24 GLOBECOM 2017 TUTORIAL

Active RRH set

slide-25
SLIDE 25

Summary of group sparse beamforming

 SINR constraints can be reformulated as second-order cone constraints

Key observation: phases of ’s do not change objective and constraints 

Group sparse beamforming via convex programming

Stage I: Group sparsity inducing via solving one convex program

Stage II: A sequence of convex feasibility problems need to be solved

Stage III: Coordinated beamforming via solving one convex program

25 GLOBECOM 2017 TUTORIAL

convex

slide-26
SLIDE 26

The power of group sparse beamforming

 Group spare beamforming for green Cloud-RAN (10 RRHs, 15 MUs)

26

Conclusions:

1) Enabling flexible network adaptation; 2) Offering efficient algorithm design via convex programming 3) Empowering wide applications

GLOBECOM 2017 TUTORIAL

slide-27
SLIDE 27

Extension: Wireless cooperative networks

 A comprehensive consideration: 1) Active BS selection; 2) Transmit

beamforming; 3) Backhaul data assignment

27 GLOBECOM 2017 TUTORIAL

Network power consumption: 1) Static power consumption at BSs 2) Transmit power consumption from BSs 3) Traffic-dependent backhaul power consumption

slide-28
SLIDE 28

Layered group sparse beamforming

 Proposal: A generalized layered group sparse beamforming (LGSBF)

modeling framework

T

  • induce the layered sparsity structure in the beamformers

28 GLOBECOM 2017 TUTORIAL

Active BS selection Backhaul data assignment

[Ref] X. Peng, Y. Shi, J. Zhang, and K. B. Letaief, “Layered group sparse beamforming for cache-enabled wireless networks,” IEEE Trans. Commun., to appear.

slide-29
SLIDE 29

Case II: Sparsity Control for Massive Device Connectivity

29 GLOBECOM 2017 TUTORIAL

slide-30
SLIDE 30

Motivation

 Downlink transmission with massive devices: user admission control  Uplink machine-type communication (e.g., IoT devices) with sporadic

traffic: massive device connectivity

30 GLOBECOM 2017 TUTORIAL

Sporadic traffic: only a small fraction of potentially large number of devices are active

slide-31
SLIDE 31

Downlink user admission control

 Coordinated beamforming for transmission power minimization  SINR constraints can be reformulated as second-order cone constraints

Key observation: phases of ’s do not change objective and constraints

31 GLOBECOM 2017 TUTORIAL

slide-32
SLIDE 32

Infeasibility

 Set of convex inequalities:  Power minimization problem is generally infeasible: large number of

users, unfavorable channel conditions, high data rate requirements,…

 Goal: Maximize the user capacity, i.e., the number of admitted users  Solution: Choose

to minimize the number of violated inequalities

32 GLOBECOM 2017 TUTORIAL

slide-33
SLIDE 33

Sparse optimization for user admission control

 Average number of admitted mobile users versus target SINR

33 GLOBECOM 2017 TUTORIAL

MDR: membership deflation by convex relaxation ( ) IR2A: iterative reweighted -algorithm

slide-34
SLIDE 34

Massive device connectivity in uplink

 Cellular network with a massive number of devices

Single-cell uplink with a BS with antennas; Block-fading channel with coherence time ; T

  • tal

single-antenna devices, devices are active (sporadic traffic)  Define diagonal activity matrix

with non-zero diagonals

denotes the received signal across antennas

: channel matrix from all devices to the BS

: known transmit pilot matrix from devices

34 GLOBECOM 2017 TUTORIAL

slide-35
SLIDE 35

Challenges of massive connectivity

 Sporadic traffic

User activity detection is a key requirement

Massive number of devices mean pilot sequences cannot be orthogonal

Device identification is a sparse optimization problem  Prior works on compressed sensing for massive connectivity: 1) Without

channel estimation [Zhang-Luo-Guo’13]; 2) Joint user activity detection and channel estimation [Xu-Rao-Lau’15]; 3) Approximate Message Passing (AMP) [Wei’16]

 Proposal: User activity detection and channel estimation based on the

compressed sensing techniques (without channel distribution prior)

35 GLOBECOM 2017 TUTORIAL

slide-36
SLIDE 36

Group sparsity estimation

 Let

(unknown): group sparsity in rows

  • f matrix

Simultaneous user activity detection and channel estimation  Let

be a known measurement operator (pilot matrix)

 Observe  Find estimate

by solving a convex program

is mixed

  • norm to reflect group sparsity structure

 Hope:

36 GLOBECOM 2017 TUTORIAL

slide-37
SLIDE 37

Sparse estimation for massive connectivity

 Normalized MSE versus pilot matrix length

37 GLOBECOM 2017 TUTORIAL

slide-38
SLIDE 38

Summary: structured sparse models

 Generalized structured sparse optimization for dense networks

is the index set of non-zero coefficients of a vector

: combinatorial positive-valued set-function to control sparsity in

: continuous convex function to represent the system performance

: to model system constraints, e.g., QoS constraints

38

group-structured sparsity layered group sparsity

GLOBECOM 2017 TUTORIAL

slide-39
SLIDE 39

Vignette B: Generalized Low-Rank Models

39

1 1 1 1 1

GLOBECOM 2017 TUTORIAL

Case I: Low-Rank Matrix Completion for T

  • pological

Interference Management Case II: Extensions to Mobile Edge Caching, Distributed Computing and Index Coding

slide-40
SLIDE 40

Case I: Topological Interference Management

40 GLOBECOM 2017 TUTORIAL

slide-41
SLIDE 41

Interference channel

 Channel model:  Degrees-of-freedom: simplify the analysis; lead to physical insights

41 GLOBECOM 2017 TUTORIAL

capacity is unknown

slide-42
SLIDE 42

Interference alignment

 Assume the channel coefficients change over time:  Consider

channel uses:

 Transmitter

sends information symbols across channel uses

 The -th interference term

lives in the range space of matrix

42 GLOBECOM 2017 TUTORIAL

represents the precoding matrix

slide-43
SLIDE 43

Interference alignment

 Interference alignment condition: find precoding matrices and

decoding matrices such that

 Each user can send

symbols: interference free across channel uses

 Intuition: The interference has aligned onto

a dimensional subspace at each receiver.

43 GLOBECOM 2017 TUTORIAL

slide-44
SLIDE 44

Interference alignment

 Everyone gets half the cake [Cadambe-Jafar’08]:

Diagonal are time-varying and generic, , is almost surely asymptotically achievable  Remarks:

Require very long block lengths

Require the channels to vary generically over time

Require full knowledge of the channel coefficients of every link in the network, at each transmitter and for all times!

44 GLOBECOM 2017 TUTORIAL

Can we exploit the interference alignment principle in practical systems?

slide-45
SLIDE 45

Practical interference management

 Goal: Exploit the IA principle under realistic assumptions on CSIT  Prior works: Abundant CSIT

relaxed CSIT

Perfect CSIT [Cadambe and Jafar,TIT 08]

Delayed CSIT [Maddah-Ali andTse,TIT 12]

Alternating CSIT [Tandon, et al., TIT 13], partial and imperfect CSIT [Shi, et al.,TSP 14],…  Curses: CSIT is rarely abundant (due to training & feedback overhead)

45

No CSIT Perfect CSIT CSIT Prior works Applicable? Start here?

slide-46
SLIDE 46

T

  • pological interference alignment

 Blessings: partial connectivity in dense wireless networks  Approach: topological interference management (TIM) [Jafar,TIT 14]

Maximize the achievable DoF: only based on the network topology information (no CSIT)

46

path-loss shadowing

transmitter receiver transmitter receiver

Degrees of Freedom?

GLOBECOM 2017 TUTORIAL

slide-47
SLIDE 47

Index coding approach

 Theorem [Jafar, TIT 14]: under linear (vector space) solutions, TIM

problem and index coding problem are equivalent

47

transformation

TIM problem

complements

Bottleneck: the only finite-capacity link

Antidotes

Index coding problem

Only a few index coding problems have been solved! wireless wired

GLOBECOM 2017 TUTORIAL

slide-48
SLIDE 48

Low-rank matrix completion approach

 Goal: Deliver one data stream per user over

time slots

Transmitter transmits , receiver receives

Receiver decodes symbol by projecting

  • nto the space

 T

  • pological interference alignment condition

48 GLOBECOM 2017 TUTORIAL

: network connectivity pattern

slide-49
SLIDE 49

Generalized low-rank model

 Generalized low-rank optimization with network side information

: precoding vectors and decoding vectors

equals the inverse of achievable degrees-of-freedom (DoF)

49

topological interference alignment condition

side information

GLOBECOM 2017 TUTORIAL

slide-50
SLIDE 50

Nuclear norm fails

 Convex relaxation fails: always returns the identity matrix!

Fact:  Proposal: Solve the nonconvex problems directly with rank adaptivity

50

Riemannian manifold

  • ptimization problem

manifold constraint

GLOBECOM 2017 TUTORIAL

slide-51
SLIDE 51

Numerical results

51 GLOBECOM 2017 TUTORIAL

1 1 1 1 1 1 .1 9.5 6.8 1 64 .1 1

  • 1
  • .1
  • 1

1 .1

  • .1

.1 1

Recover all the optimal DoF results for the special TIM problems in [Jafar ’14] Provide numerical insights (optimal/lower- bound) for the general TIM problems

slide-52
SLIDE 52

Phase transitions for topological IA

52

The heat map indicates the empirical probability of success (blue=0%; yellow=100%)

slide-53
SLIDE 53

Extension to cache networks

 Cache

gains: load balancing, interference cancellation/alignment, cooperative transmission, …

 Placement phase: populate caches (prefetching)  Delivery phase: reveal request, deliver content

53

wired cache network wireless cache network

GLOBECOM 2017 TUTORIAL

slide-54
SLIDE 54

Caching at receivers

 Cached receivers: topological interference alignment

54

Side information: 1) Cached files 2) Network topology

GLOBECOM 2017 TUTORIAL

slide-55
SLIDE 55

When index coding meets low-rank matrices

55 GLOBECOM 2017 TUTORIAL

Index Coding

[Birk, Kol, INFOCOM’98] [Maddah-Ali & Niesen ’13] [Jafar ’14] [Rouayheb et al. ’10, ’15] Li-Maddah-Ali-Avestimehr’14

Caching Network Coding Interference Alignment Distributed Computing

Low-rank model offers a new way to investigate these problems!

slide-56
SLIDE 56

Summary: generalized low-rank models

 Generalized low-rank optimization for dense edge networks

encodes network side information, e.g., cached files, network topology, computed intermediate values for data shuffling

56 GLOBECOM 2017 TUTORIAL

slide-57
SLIDE 57

Concluding remarks

 Structured sparse models

Group sparse optimization offers a principled way for network adaptation, e.g., to minimize network power consumption

Sparsity control and estimation is powerful to support massive device connectivity  Future directions:

More application scenarios: IoTs,V2X …

57

slide-58
SLIDE 58

Concluding remarks

 Generalized low-rank models

Low-rank matrix completion provides a systematic approach to investigate the topological interference alignment problem

Low-rank model is powerful for performance optimization in mobile edge caching and distributed computing systems  Future directions:

More applications: blind deconvolution for IoT, big data analytics (e.g., ranking)

58

slide-59
SLIDE 59

T

  • learn more...

Web: http://shiyuanming.github.io/sparserank.html

Papers:

  • Y. Shi, J. Zhang, and K. B. Letaief, “Group sparse beamforming for green Cloud-RAN,”

IEEE Trans. Wireless Commun., vol. 13, no. 5, pp. 2809-2823, May 2014. (The 2016 Marconi Prize Paper Award)

  • Y. Shi, J. Zhang, B. O’Donoghue, and K. B. Letaief, “Large-scale convex optimization for

dense wireless cooperative networks,” IEEE Trans. Signal Process., vol. 63, no. 18, pp. 4729-4743, Sept. 2015. t. 2015. (The 2016 IEEE Signal Processing Society Young Author Best Paper Award)

  • Y. Shi, J. Zhang, K. B. Letaief, B. Bai and W. Chen,“Large-scale convex optimization for

ultra-dense Cloud-RAN,” IEEEWireless Commun. Mag., pp. 84-91, Jun. 2015.

  • Y. Shi, J. Zhang, W. Chen, and K. B. Letaief, “Generalized sparse and low-rank optimization

for ultra-dense networks,” IEEE Commun. Mag., to appear.

59

slide-60
SLIDE 60

T

  • learn more...

  • Y. Shi, J. Zhang, and K. B. Letaief, “Optimal stochastic coordinated beamforming for wireless

cooperative networks with CSI uncertainty,” IEEE Trans. Signal Process., vol. 63,, no. 4, pp. 960-973,

  • Feb. 2015.

  • Y. Shi, J. Zhang, and K. B. Letaief, “Robust group sparse beamforming for multicast green Cloud-

RAN with imperfect CSI,” IEEETrans. Signal Process., vol. 63, no. 17, pp. 4647-4659, Sept. 2015.

  • Y. Shi, J. Cheng, J. Zhang, B. Bai, W. Chen and K. B. Letaief, “Smoothed -minimization for green

Cloud-RAN with user admission control,” IEEE J. Select.Areas Commun., vol. 34, no. 4,Apr. 2016.

  • Y. Shi, J. Zhang, and K. B. Letaief, “Low-rank matrix completion for topological interference

management by Riemannian pursuit,” IEEETrans.Wireless Commun., vol. 15, no. 7, Jul. 2016.

  • Y. Shi, B. Mishra, and W. Chen, “T
  • pological interference management with user admission control

via Riemannian optimization,” IEEETrans.Wireless Commun., to appear.

  • X. Peng, Y. Shi, J. Zhang, and K. B. Letaief, “Layered group sparse beamforming for cache-enabled

wireless networks,” IEEETrans. Commun., to appear.

60
