REJUVENATING THE FORMER GRAPHITE MINE AT AMITSOQ SOUTHERN GREENLAND March 2017 Update PDAC Convention, Toronto 1 Disclaimer This presentation is being made on behalf of Alba Mineral Resources Plc (the Company) . This presentation has not


slide-1
SLIDE 1

1

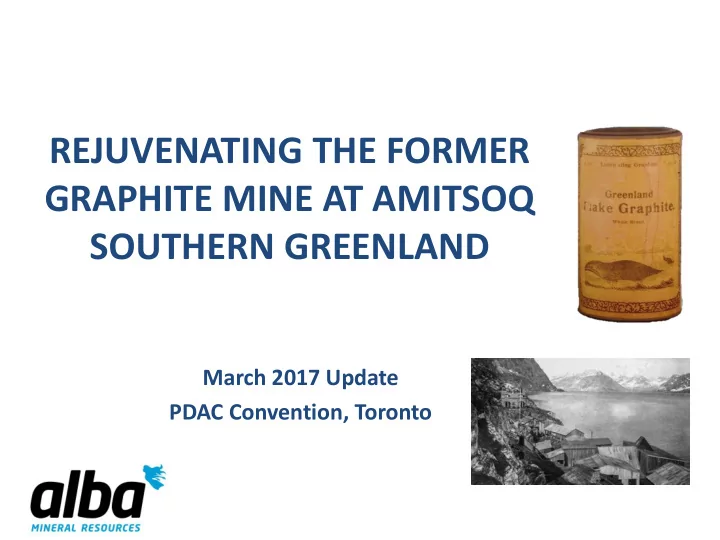

REJUVENATING THE FORMER GRAPHITE MINE AT AMITSOQ SOUTHERN GREENLAND

March 2017 Update PDAC Convention, Toronto
