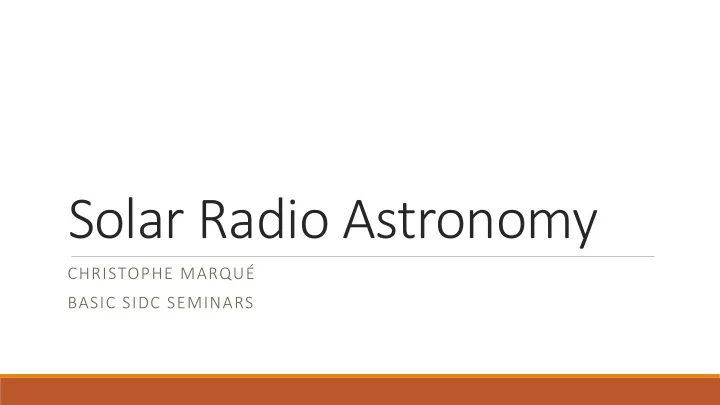

Solar Radio Astronomy

CHRISTOPHE MARQUÉ BASIC SIDC SEMINARS

slide-2
SLIDE 2

source: NASA

slide-3
SLIDE 3

History

slide-4
SLIDE 4

The beginning

  • 1902 : First (failed) attempt to observe radio

waves from the Sun by Charles Nordmann (1902) in the French Alps, near Chamonix

  • 1933: Discovery of cosmic radio emission by

Karl Jansky

  • 1944: First mention of solar radio emissions by
  • G. Reber (ApJ 1944) & first mention of

interferences!

  • 1946: First report of radar jamming by the Sun

(Hey, Nature)

slide-5
SLIDE 5

The beginning

  • 1902 : First (failed) attempt to observe radio

waves from the Sun by Charles Nordmann (1902) in the French Alps, near Chamonix

  • 1933: Discovery of cosmic radio emission by

Karl Jansky

  • 1944: First mention of solar radio emissions by
  • G. Reber (ApJ 1944) & first mention of

interferences!

  • 1946: First report of radar jamming by the Sun

(Hey, Nature)

slide-6
SLIDE 6

Grote Reber

source: NRAO

slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9

The radio sun

slide-10
SLIDE 10

Solar imaging

❖Essentially interferometric imaging for having enough resolution ❖Sampling of the Fourier transform of the source ❖Imaging possible between ~ 60 MHz and a few 100s of GHz ❖Difficulties:

  • Large source
  • High temporal and intensity variability
  • Ionosphere at low frequency

Thompson et al.

slide-11
SLIDE 11

Solar imaging

❖Essentially interferometric imaging for having enough resolution ❖Sampling of the Fourier transform of the source ❖Imaging possible between ~ 60 MHz and a few 100s of GHz ❖Difficulties:

  • Large source
  • High temporal and intensity variability
  • Ionosphere at low frequency

Thompson et al.

slide-12
SLIDE 12

Solar imaging

❖Essentially interferometric imaging for having enough resolution ❖Sampling of the Fourier transform of the source ❖Imaging possible between ~ 60 MHz and a few 100s of GHz ❖Difficulties:

  • Large source
  • High temporal and intensity variability
  • Ionosphere at low frequency

Thompson et al.

slide-13
SLIDE 13

Solar imaging

❖Essentially interferometric imaging for having enough resolution ❖Sampling of the Fourier transform of the source ❖Imaging possible between ~ 60 MHz and a few 100s of GHz ❖Difficulties:

  • Large source
  • High temporal and intensity variability
  • Ionosphere at low frequency

Thompson et al.

slide-14
SLIDE 14

Nançay 150 – 450 MHz

151 MHz 445 MHz

slide-15
SLIDE 15

VLA 50 MHz – 50 GHz (non solar dedicated)

NRAO & S. White NRAO 4.6 GHz

slide-16
SLIDE 16

Nobeyama 17 & 34 GHz

slide-17
SLIDE 17

LOFAR 20 – 240 MHz (non solar dedicated)

slide-18
SLIDE 18

LOFAR 20 – 240 MHz (non solar dedicated)

slide-19
SLIDE 19

LOFAR 20 – 240 MHz (non solar dedicated)

slide-20
SLIDE 20

Dynamic spectra

  • Solar emission outside flaring events evolve

slowly (timescale of days)

  • Energy release can occur on timescales of

milliseconds

  • Accelerated electrons emits radio waves

through different mechanisms

  • Spectral signatures give access to the flaring

scenario

Source: P. Lantos type III

slide-21
SLIDE 21

Group of type III/type U bursts

slide-22
SLIDE 22

Type IIIs, type II and type IV linked to M flare

slide-23
SLIDE 23

Type II, high freq. counterpart with M flare

slide-24
SLIDE 24

Variabilility of the quiet solar emission

  • Continuum emission: no lines
  • Thermal emission (hot coronal gas)
  • Gyro emission (in AR)
  • Slow variation from day to day
  • Measurements since WWII in several

bands (1000 – 4000 MHz)

“The excitement of the eclipse observations [at 10.7 cm] was soon followed by the sobering thoughts that solar radio emission from sunspots would be variable…”

  • A. Covington, Proc. NRAO Workshop, 1983
slide-25
SLIDE 25

Solar Flux radio Observatories

slide-26
SLIDE 26

Solar Flux radio Observatories

2800 MHz 1000 MHz 2000 MHz 3750 MHz 9400 MHz 17000 MHz 245 MHz 410 MHz 610 MHz 1415 MHz 2695 MHz 4995 MHz 8800 MHz 15400 MHz

slide-27
SLIDE 27
slide-28
SLIDE 28

Antenna & telescopes

slide-29
SLIDE 29

Gain and radiation patterns

SPADE gain pattern; A. Martinez

slide-30
SLIDE 30

Dipole antenna

  • Detection of the Electric component of the

E.M Wave

  • Half-wave dipole : tuned to a given frequency
  • Resonant element

source: wikipedia source: Schwarzbeck

slide-31
SLIDE 31

Dipole antenna

  • Detection of the Electric component of the

E.M Wave

  • Half-wave dipole : tuned to a given frequency
  • Resonant element

source: wikipedia source: Schwarzbeck

slide-32
SLIDE 32

Antenna derived from dipoles

YAGI SIMULATED RADIATION PATTERN

  • One “active”

element

  • Passive

elements drive waves interfering additively forward and destructively backward

  • Tuned for one

frequency

source: A. Martinez source: BRAMS - BISA

slide-33
SLIDE 33

Antenna derived from dipoles

YAGI SIMULATED RADIATION PATTERN

director reflector radiator

  • One “active”

element

  • Passive

elements drive waves interfering additively forward and destructively backward

  • Tuned for one

frequency

source: A. Martinez source: BRAMS - BISA

slide-34
SLIDE 34

Antenna derived from dipoles

YAGI SIMULATED RADIATION PATTERN

director reflector radiator improved gain

  • One “active”

element

  • Passive

elements drive waves interfering additively forward and destructively backward

  • Tuned for one

frequency

source: A. Martinez source: BRAMS - BISA

slide-35
SLIDE 35

Antenna derived from dipoles

LOG PERIODIC ANTENNA

  • All elements “actives”
  • successive elements

connected out-of-phase

  • Constructive

interferences forward

  • “Flat” gain &

broadband

source: A. Martinez

slide-36
SLIDE 36

Antenna derived from dipoles

LOG PERIODIC ANTENNA

  • All elements “actives”
  • successive elements

connected out-of-phase

  • Constructive

interferences forward

  • “Flat” gain &

broadband

source: A. Martinez

slide-37
SLIDE 37

Antenna derived from dipoles

LOG PERIODIC ANTENNA

  • All elements “actives”
  • successive elements

connected out-of-phase

  • Constructive

interferences forward

  • “Flat” gain &

broadband

source: A. Martinez

slide-38
SLIDE 38

Fat dipoles

  • Broadband (here 10 – 80 MHz)
  • Mismatch in electrical properties is

compensated by an active element (active balun with amplifier)

source: LWA – NENUFAR for SPADE source: LWA – NENUFAR / LONAMOS

slide-39
SLIDE 39

Horn antenna

  • No resonant element (broadband)
  • Provide a “soft” transition between free-space

electrical conditions to the ones of wave guide and electronics

  • Radiation characteristics can be easily

(analytically) calculated

  • High gain and lower side lobes
  • Used as feed systems and absolute calibration

system

slide-40
SLIDE 40

Horn antenna

  • No resonant element (broadband)
  • Provide a “soft” transition between free-space

electrical conditions to the ones of wave guide and electronics

  • Radiation characteristics can be easily

(analytically) calculated

  • High gain and lower side lobes
  • Used as feed systems and absolute calibration

system

slide-41
SLIDE 41

Horn antenna

slide-42
SLIDE 42

Horn antenna

slide-43
SLIDE 43

Solar radio telescopes

LEARMONTH, source: Kennewell, 2008

slide-44
SLIDE 44

Solar radio telescopes

LEARMONTH, source: Kennewell, 2008 source: Nobeyama observatory

slide-45
SLIDE 45

Solar radio telescopes

Analytical calculation of ANT34 radiation field

slide-46
SLIDE 46

Receiving systems

slide-47
SLIDE 47

What do we measure?

slide-48
SLIDE 48

Flux density

ΔΩ ΔΩsun

slide-49
SLIDE 49

Flux density

ΔΩ ΔΩsun

slide-50
SLIDE 50

Flux density

ΔΩ ΔΩsun

slide-51
SLIDE 51

Different external noise contributions

Antenna temperature Sun dominates, but here beam size=solar diameter

slide-52
SLIDE 52

System noise

Freq [MHz] T_Rx [K] 611 360 1060 470 1415 1090 Best is to put first in the chain element with hi gain and low noise 1: cable 3: cable 4: receiver 2: LNA

slide-53
SLIDE 53

Example

slide-54
SLIDE 54

Receivers

slide-55
SLIDE 55

Spectrographs

Wide band solar emissions High dynamic range Fast temporal evolution Multi channel receivers Sweep frequency instruments Wide band FFT spectrometer

slide-56
SLIDE 56

Multichannel

Dumas et al, 1982

slide-57
SLIDE 57

Sweep frequency

  • Made from consumer electronics

hardware PC-controlled hardware with RS232 connection

  • Software for automatic observations

(frequency program, schedule…)

  • Programmable frequencies

Parameter Specification Frequency range 45-870 MHz Frequency resolution 62.5 kHz Bandwidth 300 kHz (-3dB) Dynamic range ~50 dB Sensitivity 25±1 mV/dB Noise figure <10dB Sampling rate 800-1000 samp/s Weight 800g Dimensions 11x8x20.5 cm http://www.e-callisto.org CALLISTO

slide-58
SLIDE 58

Multi band FFT spectrographs

Korean Solar Radio Burst Locator, Dou et al. 2009 0,5 -18 GHz

slide-59
SLIDE 59

Multi band FFT spectrographs

Korean Solar Radio Burst Locator, Dou et al. 2009 0,5 -18 GHz

slide-60
SLIDE 60

Multi band FFT spectrographs

Korean Solar Radio Burst Locator, Dou et al. 2009 0,5 -18 GHz

slide-61
SLIDE 61

CESRA SUMMER SCHOOL 2015

“Cheap” digital spectrographs

41

In the spirit of the Callisto instrument “cheap” digital receivers can be turned into solar spectrographs Software Define Radio Gnuradio Python, C Sweep/FFT spectrometer Steps of 25 MHz BW Fully programmable Open source

slide-62
SLIDE 62

Humain

slide-63
SLIDE 63

The Humain station

slide-64
SLIDE 64

The Humain station

slide-65
SLIDE 65

The Humain station

Weather station (RMI) Meteor & whistler radio antenna (BISA) Stellar optical telescopes (ROB) Solar radio spectrographs (ROB)

slide-66
SLIDE 66

Humain: Solar instruments

6-m dish Automated operations, Sun tracking ~7h30 – 16h00 UT VHF antenna (piggy back) UHF antenna at focus

  • VHF antenna (45 – 450 MHz)
  • Callisto receiver
  • ARCAS receiver
  • UHF antenna (275 – 1495 MHz)
  • HSRS receiver
slide-67
SLIDE 67

Humain: Solar instruments

Callisto ARCAS HSRS Type Analog receiver Digital Digital Frequency band 45 – 447 MHz 45 – 450 MHz 275 – 1495 MHz Frequency resolution 63 kHz 98 kHz 98 kHz Time resolution 250 ms ~ 84 ms ~ 250 ms # of frequencies 200 ~ 4.2 k ~ 12.5 k

Data available in near realtime http://sidc.be/humain

slide-68
SLIDE 68

New project: code name ANT34

slide-69
SLIDE 69

New project: code name ANT34

slide-70
SLIDE 70

New project: code name ANT34

slide-71
SLIDE 71

New project: code name ANT34

slide-72
SLIDE 72

New project: code name ANT34

slide-73
SLIDE 73

SPADE

slide-74
SLIDE 74

Interferences and spectrum management

slide-75
SLIDE 75

CESRA SUMMER SCHOOL 2015

Interferences

  • Radio spectrum usage is regulated at national & international levels
  • Radio astronomy is protected by ITU (recommendation ITU-R RA. 769)
  • Protected and shared bands for RA

49

slide-76
SLIDE 76

Interferences

3MHz 30 MHz 300 MHz 3 GHz 30 GHz

slide-77
SLIDE 77

Interferences

3MHz 30 MHz 300 MHz 3 GHz 30 GHz

slide-78
SLIDE 78

RFI level from the e-Callisto network

slide-79
SLIDE 79

Zebra burst during type IV Bouratzis et al. 2014

slide-80
SLIDE 80

Zebra burst during type IV Bouratzis et al. 2014

slide-81
SLIDE 81

Zebra burst during type IV Bouratzis et al. 2014 Electronics of LED lamp Lawn cutter Monstein, 2013
