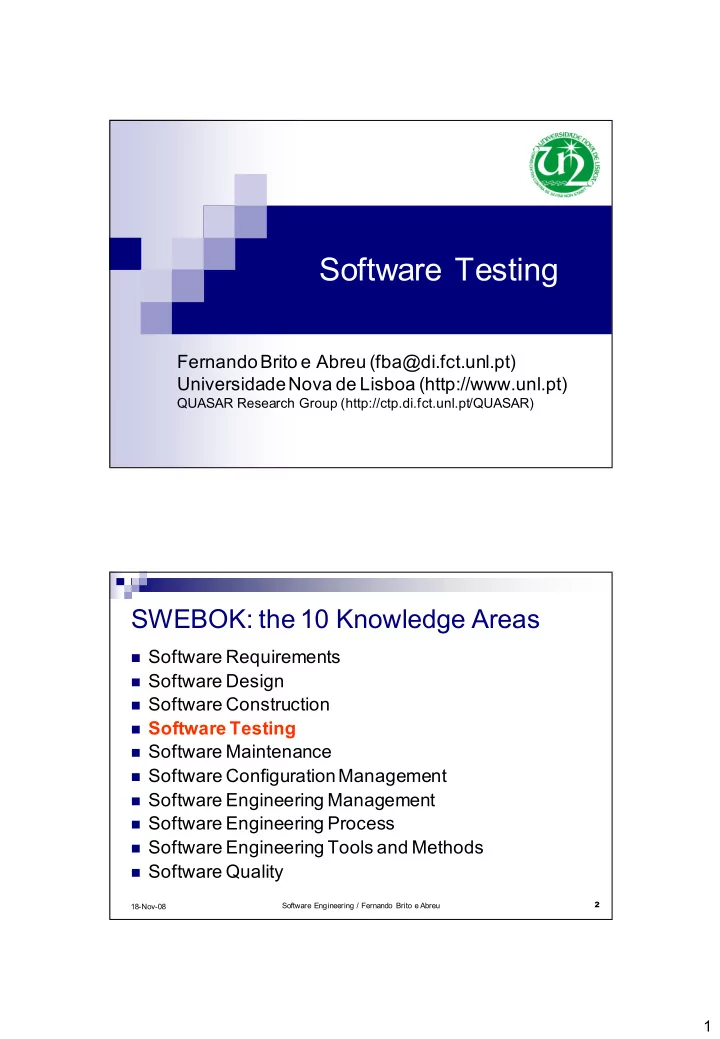

Software Testing

Fernando Brito e Abreu (fba@di.fct.unl.pt) Universidade Nova de Lisboa (http://www.unl.pt)

QUASAR Research Group (http://ctp.di.fct.unl.pt/QUASAR)

Software Engineering / Fernando Brito e Abreu 2 18-Nov-08

SWEBOK: the 10 Knowledge Areas

 Software Requirements  Software Design  Software Construction  Software Testing  Software Maintenance  Software Configuration Management  Software Engineering Management  Software Engineering Process  Software Engineering Tools and Methods  Software Quality

2

Software Engineering / Fernando Brito e Abreu 3 18-Nov-08

Motivation - The Bad News ...

 Software bugs cost the U.S. economy an

estimated $59.5 billion annually, or about 0.6%

• f the gross domestic product.

 Sw users shoulder more than half of the costs  Sw developers and vendors bear the remainder

• f the costs.

Source:The Economic Impacts of Inadequate Infrastructure for Software Testing, Technical Report, National Institute of Standards and Technology, USA, May 2002

http://www.nist.gov/director/prog-ofc/report02-3.pdf

Software Engineering / Fernando Brito e Abreu 4 18-Nov-08

Motivation - The GOOD News!

According to the same report:

 More than 1/3 of the costs (an estimated $22.2

billion) can be eliminated with earlier and more effective identification and removal of software defects.

 Savings can mainly occur in the development

stage, when errors are introduced.

More than half of these errors aren't detected until

later in the development process or during post-sale software use.

3

Software Engineering / Fernando Brito e Abreu 5 18-Nov-08

Motivation

 Reliability is one of the most important software

quality characteristics

 Reliability has a strong financial impact:

better image of producer reduction of maintenance costs celebration or revalidation of maintenance contracts,

new developments, etc.

 The quest for Reliability is the aim of V&V !

Software Engineering / Fernando Brito e Abreu 6 18-Nov-08

Verification and Validation (V&V)

 Verification - product correctness and

consistency in a given development phase, face to products and standards used as input to that phase - "Do the Job Right"

 Validation - product conformity with specified

requirements - "Do the Right Job"

 Basically two complementary V&V techniques :

Reviews (Walkthroughs, Inspections, ...) Tests

4

Software Engineering / Fernando Brito e Abreu 7 18-Nov-08

Summary

 Software Testing Fundamentals  Test Levels  Test Techniques  Test-related Measures  Test Process

Software Engineering / Fernando Brito e Abreu 8 18-Nov-08

Summary

 Software Testing Fundamentals  Test Levels

Test Levels Test Levels

 Test Techniques

Test Techniques Test Techniques

 Test

Test Test-related Measures related Measures related Measures

 Test Process

Test Process Test Process

5

Software Engineering / Fernando Brito e Abreu 9 18-Nov-08

Testing is …

 … an activity performed for evaluating product

quality, and for improving it, by identifying defects and problems.

 … the dynamic verification of the behavior of a

program on a finite set of test cases, suitably selected from the usually infinite executions domain, against the expected behavior.

Software Engineering / Fernando Brito e Abreu 10 18-Nov-08

Dynamic versus static verification

 Testing always implies executing the program on

(valued) inputs; therefore is a dynamic technique

 The input value alone is not always sufficient to determine a

test, since a complex, nondeterministic system might react to the same input with different behaviors, depending on its state

 Different from testing and complementary to it are static

techniques (described in the Software Quality KA)

6

Software Engineering / Fernando Brito e Abreu 11 18-Nov-08

Terminology issues

 Error

 the human cause for defect existence (although bugs walk …)

 Fault or defect (aka bug)

 incorrectness, omission or undesirable characteristic in a deliverable  the cause of a failure

 Failure

 Undesired effect (malfunction) observed in the system’s delivered service  Incorrectness in the functioning of a system

 See: IEEE Standard for SE Terminology (IEEE610-90)

Software Engineering / Fernando Brito e Abreu 12 18-Nov-08

Testing views

 Testing for defect identification

 A successful test is one which causes a system to fail  Testing can reveal failures, but it is the faults that must be

removed

 Testing to demonstrate (that the software meets its

specifications or other desired properties)

 A successful test is one where no failures are observed  Fault detection (e.g. in code) is often hard through failure

exposure

 Identifying all failure-causing input sets (i.e. those sets of inputs that

cause a failure to appear) may not be feasible

7

Software Engineering / Fernando Brito e Abreu 13 18-Nov-08

Summary

 Software Testing Fundamentals  Test Levels  Test Techniques

Test Techniques Test Techniques

 Test

Test Test-related Measures related Measures related Measures

 Test Process

Test Process Test Process

Software Engineering / Fernando Brito e Abreu 14 18-Nov-08

Test Levels

Objectives of testing

 Testing can be aimed at verifying different properties:

 Checking if functional specifications are implemented right

 aka conformance testing, correctness testing, or functional testing

 Checking nonfunctional properties

 E.g. performance, reliability evaluation, reliability measurement,

usability evaluation, etc

 Stating the objective in precise, quantitative terms

allows control to be established over the test process

 Often objectives are qualitative or not even stated explicitly

8

Software Engineering / Fernando Brito e Abreu 15 18-Nov-08

Test Levels

Objectives of testing

 Acceptance /

Qualification testing

 Installation testing  Alpha and beta testing  Conformance /

Functional / Correctness testing

 Reliability achievement

and evaluation

 Regression testing  Performance testing  Stress testing  Back-to-back testing  Recovery testing  Configuration testing  Usability testing

Software Engineering / Fernando Brito e Abreu 16 18-Nov-08

Test Levels – Objectives of testing

Acceptance / Qualification testing

 Checks the system behavior against the

customer’s requirements

The customer may not exist yet, so someone has to

forecast his intended requirements

 This testing activity may or may not involve the

developers of the system

9

Software Engineering / Fernando Brito e Abreu 17 18-Nov-08

Test Levels – Objectives of testing

Installation testing

 Installation testing can be viewed as system

testing conducted once again according to hardware configuration requirements

Usually performed in the target environment at the

customer’s premises

 Installation procedures may also be verified

e.g. is the customer local expert able to add a new

user in the developed system?

Software Engineering / Fernando Brito e Abreu 18 18-Nov-08

Test Levels – Objectives of testing

Alpha and beta testing

 Before the software is released, it is sometimes

given to a small, representative set of potential users for trial use. Those users may be:

in-house (alpha testing) external (beta testing)

 These users report problems with the product

Alpha and beta use is often uncontrolled, and is not

always referred to in a test plan

10

Software Engineering / Fernando Brito e Abreu 19 18-Nov-08

Test Levels – Objectives of testing

Conformance / Functional / Correctness testing

 Conformance testing is aimed at validating

whether or not the observed behavior of the tested software conforms to its specifications

Software Engineering / Fernando Brito e Abreu 20 18-Nov-08

Test Levels – Objectives of testing

Reliability achievement and evaluation

 Testing is a means to improve reliability  By randomly generating test cases according to

the operational profile, statistical measures of reliability can be derived

 Reliability growth models allow to express this

reality

11

Software Engineering / Fernando Brito e Abreu 21 18-Nov-08

Reliability growth models

 Provide a prediction of reliability based on the

failures observed under reliability achievement and evaluation

 They assume, in general, that:

a growing number of well-succeeded tests increases

• ur confidence on the system’s reliability

the faults that caused the observed failures are fixed

after being found (thus, on average, product’s reliability has an increasing trend)

Software Engineering / Fernando Brito e Abreu 22 18-Nov-08

Reliability growth models

 Many models were published, which are divided

into:

failure-count models time-between failure models

12

Software Engineering / Fernando Brito e Abreu 23 18-Nov-08

Test Levels – Objectives of testing

Regression testing (1/2)

 Regression testing is:

 The “selective retesting of a system or component to verify

that modifications have not caused unintended effects.” (IEEE610.12-90)

 Any repetition of tests intended to show that the software’s

behavior is unchanged, except insofar as required

 A technique to combat side-effects!

 In practice, the idea is to show that software which

previously passed the tests still does

Software Engineering / Fernando Brito e Abreu 24 18-Nov-08

Test Levels – Objectives of testing

Regression testing (2/2)

 A trade-off must be made between:

 the assurance given by regression every time a change is made  … and the resources required to do that

 To allow regression tests we must build, incrementally, a

test battery

 Regression testing is more feasible if we have tools to

record and playback test cases

 Several commercial user interface event-caption tools (black-

box testing) exist

13

Case study:

Tool to capture GUI events (functional test cases)

Software Engineering / Fernando Brito e Abreu 26 18-Nov-08

Functional Test Tools - Visual Test

14

Software Engineering / Fernando Brito e Abreu 27 18-Nov-08

Grouping of test cases Test cases Test battery (test suite) Reusable test code

Functional Test Tools

Software Engineering / Fernando Brito e Abreu 28 18-Nov-08

Functional Test Tools

15

Software Engineering / Fernando Brito e Abreu 29 18-Nov-08

Integration with other Rational tools

Functional Test Tools

Software Engineering / Fernando Brito e Abreu 30 18-Nov-08

Functional Test Tools

Reported failures Test cases to execute in this suite Integration with other Rational tools

16

Software Engineering / Fernando Brito e Abreu 31 18-Nov-08 Software Engineering / Fernando Brito e Abreu 32 18-Nov-08

Assessing Functional Test Coverage

 The ReModeler tool from the

QUASAR team takes an innovative model-based approach to represent this kind of testing coverage

 The color represents the

percentage of the scenarios of each use case that were executed by a given test suite

17

Software Engineering / Fernando Brito e Abreu 33 18-Nov-08

Test Levels – Objectives of testing

Performance testing / Stress testing

 Aimed at verifying that the software meets the

specified performance requirements:

e.g. volume testing and response time The performance degradation under increasingly

exigent scenarios should be plotted

 If we exercise software at the maximum design

load (or beyond it), we call it stress testing

Software Engineering / Fernando Brito e Abreu 34 18-Nov-08

Test Levels – Objectives of testing

Back-to-back testing

 A single test set is performed on two

implemented versions of a software product

 The results are compared

Whenever a mismatch occurs, then one of the two

versions (at least) is probably evidencing failure

18

Software Engineering / Fernando Brito e Abreu 35 18-Nov-08

Test Levels – Objectives of testing

Recovery testing

 Aimed at verifying software restart capabilities

after a “disaster”

 Recovery testing is a fundamental step in

building a contingency plan

Software Engineering / Fernando Brito e Abreu 36 18-Nov-08

Test Levels – Objectives of testing

Configuration testing

 When software is built to serve different users,

configuration testing analyzes the software under the various specified configurations

The problem is similar when the hardware of software

platform varies somehow (e.g. different mobile phone versions, different browsers)

 This is one of the main issues in software

product lines development

See: http://www.sei.cmu.edu/plp/framework.html

19

Software Engineering / Fernando Brito e Abreu 37 18-Nov-08

Test Levels – Objectives of testing

Usability testing

 This process evaluates how easy it is for end-

users to use and learn the software, including:

user documentation initial installation and extension through add-ons effectively support in user tasks …

Software Engineering / Fernando Brito e Abreu 38 18-Nov-08

Test Levels

The target of the test

 Unit testing

 the target is a single module

 Integration testing

 the target is a group of modules (related by purpose, use,

behavior, or structure)

 System testing

 the target is a whole system

20

Software Engineering / Fernando Brito e Abreu 39 18-Nov-08

Test Levels – The target of the test

Unit testing

 Verifies the functioning in isolation of software pieces

which are separately testable

 Depending on the context, they can be individual subprograms

• r a larger component made of tightly related units

 Typically, unit testing occurs with:

 access to the code being tested  support of debugging tools  the programmers who wrote the code

Software Engineering / Fernando Brito e Abreu 40 18-Nov-08

Test Levels – The target of the test

Integration testing

 Is the process of verifying the interaction between

software components

 Classical integration testing strategies

 top-down or bottom-up, are used with hierarchically structured sw

 Modern systematic integration strategies

 architecture-driven, which implies integrating the software

components or subsystems based on identified functional threads

 Except for small, simple software, systematic,

incremental integration testing strategies are usually preferred to putting all the components together at once

 The latter is called “big bang” testing

21

Software Engineering / Fernando Brito e Abreu 41 18-Nov-08

Test Levels – The target of the test

System testing

 The majority of functionalfailures should already have

been identified during unit and integration testing

 Main concerns:

 Assessing if the system complies to the non-functional

requirements, such as security, speed, accuracy, and reliability

 Assess if the external interfaces to other applications,

utilities, hardware devices, or the operating environment are performed well

Software Engineering / Fernando Brito e Abreu 42 18-Nov-08

Test Levels

Identifying the test set

 Test adequacy criteria

Is the test set consistent? How much testing is enough? How many test cases should be selected?

 Test selection criteria

How is the test set composed? Which test cases should be selected?

22

Software Engineering / Fernando Brito e Abreu 43 18-Nov-08

Test case selection

 Proposed test techniques differ essentially in

how they select the test set, which may yield vastly different degrees of effectiveness

 In practice, risk analysis techniques and test

engineering expertise are applied to identify the most suitable selection criterion under given conditions

Software Engineering / Fernando Brito e Abreu 44 18-Nov-08

How large should a test battery be?

 Even in simple programs, so many test cases are

theoretically possible that exhaustive testing could require months or years to execute

In practice the whole test set can generally be

considered infinite

 Testing always implies a trade-off:

limited resources and schedules on the one hand inherently unlimited test requirements on the other

23

Software Engineering / Fernando Brito e Abreu 45 18-Nov-08

After testing …

 Even after successful completion of extensive

testing, the software could still contain faults

 The remedy for sw failures found after delivery is

provided by corrective maintenance actions

This will be covered in the Software Maintenance KA

Software Engineering / Fernando Brito e Abreu 46 18-Nov-08

Summary

 Software Testing Fundamentals  Test Levels  Test Techniques  Test

Test Test-related Measures related Measures related Measures

 Test Process

Test Process Test Process

24

Software Engineering / Fernando Brito e Abreu 47 18-Nov-08

Test Techniques

 Based on tester's intuition and experience  Specification-based  Code-based  Usage-based  Fault-based  Based on nature of application  Selecting and combining techniques

Software Engineering / Fernando Brito e Abreu 48 18-Nov-08

Test Techniques

Based on tester's intuition and experience

 Ad hoc testing

Perhaps the most widely practiced technique remains

ad hoc testing

Tests are derived relying on the software engineer’s

skill, intuition, and experience with similar programs

Ad hoc testing might be useful for identifying special

tests, those not easily captured by formalized techniques

25

Software Engineering / Fernando Brito e Abreu 49 18-Nov-08

Test Techniques

Based on tester's intuition and experience

 Exploratory testing

Simultaneous learning, test design and execution

 The tests are not defined in advance in an established test

plan, but are dynamically designed, executed, and modified

The effectiveness of this approach relies on the tester

knowledge, which can be derived from many sources:

 observed product behavior during previous version testing  familiarity with the application, platform, failure process  type of possible faults and failures  the risk associated with a particular product  …

Software Engineering / Fernando Brito e Abreu 50 18-Nov-08

Test Techniques

Specification-based

 Equivalence partitioning  Boundary-value analysis  Decision table  Finite-state machine-based  Testing from formal specifications  Random testing

26

Software Engineering / Fernando Brito e Abreu 51 18-Nov-08

Test Techniques – Specification-based

Equivalence partitioning

 The input domain is subdivided into a collection

• f subsets, or equivalent classes, which are

deemed equivalent according to a specified relation, and a representative set of tests (sometimes only one) is taken from each class.

Software Engineering / Fernando Brito e Abreu 52 18-Nov-08

Test Techniques – Specification-based

Boundary-value analysis

 Test cases are chosen on and near the boundaries of

the input domain of variables, with the underlying rationale that many faults tend to concentrate near the extreme values of inputs

 An extension of this technique is robustness testing,

wherein test cases are also chosen outside the input domain of variables, to test program robustness to unexpected or erroneous inputs

27

Case study:

Equivalence partitioning and boundary-value analysis

Software Engineering / Fernando Brito e Abreu 54 18-Nov-08

Triangle Classifier

 Classic problem proposed in [Myers79] and

[Hetzel84]:

 Distinct classification criteria:

dimension of sides - equilateral, isosceles or scalene bigger angle - acute, rectangle or obtuse

28

Software Engineering / Fernando Brito e Abreu 55 18-Nov-08

Triangle Classifier: specification

 Input:

dimensions of the three sides: three numbers,

separated by commas (or two angles instead).

 Algorithm:

If the dimension of one side is superior to the sum

• f the other two, then write ”Not a triangle!"

If it is a valid triangle, then write its classification:

 according to the biggest angle - obtuse, rectangle or

acute

 according to the side dimension - scalene, isosceles or

equilateral

Software Engineering / Fernando Brito e Abreu 56 18-Nov-08

Triangle Classifier: specification

 Output: Write a test case battery for the triangle

classifier

 For each test case, specify:

input values (including invalid or unexpected

conditions)

corresponding expected output values Example: 3,4,5 -> scalene, rectangle

29

Software Engineering / Fernando Brito e Abreu 57 18-Nov-08

Triangle Classifier

equivalence partitioning

 For a complete test battery, we need to:

divide the solution space in partitions identify typical cases for each partition identify frontier cases identify extreme cases identify invalid cases.

 Now it is your time to work ...

Don’t turn the page until you finished!

Software Engineering / Fernando Brito e Abreu 58 18-Nov-08

Triangle Classifier

partitions and typical cases

SCALENE ISOSCELES EQUILATERAL OBTUSE 10, 6, 5 12, 7, 7 Impossible RECTANGLE 5, 4, 3

18 , 3, 3

Impossible ACUTE 6, 5, 2 7,7,4 6, 6, 6 SCALENE ISOSCELES EQUILATERAL OBTUSE 120º, 40º (20º) 120º, 30º (30º) Impossible RECTANGLE 90º, 40º (50º) 90º, 45º (45º) Impossible ACUTE 30º, 70º (80º) 30º, 75º (75º) 60º, 60º (60º)

30

Software Engineering / Fernando Brito e Abreu 59 18-Nov-08

Triangle Classifier

boundary values

4.001, 4, 3.999 almost equilateral (scalene acute) 4.0001, 4, 4 almost equilateral (isosceles acute) 3, 4.9999, 5 almost isosceles (scalene acute) 9, 4.9999, 5 almost isosceles (scalene obtuse) 5, 3.9999, 3 almost rectangle (scalene acute) 5.0001, 4, 3 almost rectangle (scalene obtuse) 1, 1, 1.4141 almost rectangle (isosceles acute) 1, 1, 1.4143 almost rectangle (isosceles obtuse)

Software Engineering / Fernando Brito e Abreu 60 18-Nov-08

Triangle Classifier

extreme cases

 1, 2, 3

line segment!

 0, 0, 0

point! Note: extreme cases are not invalid!

31

Software Engineering / Fernando Brito e Abreu 61 18-Nov-08

Triangle Classifier:

invalid cases

6, 4, 0

null side!

12, 4, 3

not a triangle!

5, 3, 2, 5

four sides!

2, 5

• ne side missing!

3.45

• nly one side!



No value!

3, , 4, 6

incorrect format

4A, 3, 7

invalid value

6, -1, 4

negative value

Software Engineering / Fernando Brito e Abreu 62 18-Nov-08

Triangle Classifier

invalid cases

 As we saw, apparently simple problems, often

have some subtleties that make testing more complex than expected!

 Frontier values and invalid input state spaces are

the most likely situations producing failures

32

Software Engineering / Fernando Brito e Abreu 63 18-Nov-08

Functional Tests (Black-Box) actors

 A relevant aspect of black-

box testing is that it is not compulsory to use programming experts to produce a test battery

 Extensive invalid input

characterization heavily relies on tester experience

Software Engineering / Fernando Brito e Abreu 64 18-Nov-08

Test Techniques – Specification-based

Decision table

 Decision tables represent logical relationships between

conditions (roughly, inputs) and actions (roughly,

• utputs)

 Test cases are systematically derived by considering

every possible combination of conditions and actions

 A related technique is cause-effect graphing

33

Software Engineering / Fernando Brito e Abreu 65 18-Nov-08

Test Techniques – Specification-based

Finite-state machine-based

 By modeling a program as a finite state machine,

tests can be selected in order to cover states and transitions on it

Software Engineering / Fernando Brito e Abreu 66 18-Nov-08

Test Techniques – Specification-based

Testing from formal specifications

 Giving the specifications in a formal language

allows for automatic derivation of functional test cases

At the same time, provides a reference output, an

• racle, for checking test results

This is an active research topic

34

Software Engineering / Fernando Brito e Abreu 67 18-Nov-08

Automatic Construction of Test Cases

 Test generation is possible from:

model-based specifications algebraic (formal) specifications

 Segmentation (“slicing”) and ramification

(“branch analysis”) techniques are used to identify partitions

Software Engineering / Fernando Brito e Abreu 68 18-Nov-08

Automatic Construction of Test Cases

TTCN (Tree and Tabular Combined Notation)

 1983: ISO TC 97/SC 16 and later in ISO/IEC JTC 1/SC

21 and in CCITT SG VII as part of the work on OSI conformance testing methodology and framework

 Has been widely used since then for describing protocol

conformance test suites in standardization organizations such as ITU-T, ISO/IEC, ATM Forum, ETSI and industry

 1998: TTCN-2, in ISO/IEC and in ITU-T

 New features: concurrency mechanism, concepts of module and package,

manipulation of ASN.1 encoding

 TTCN-3

35

Software Engineering / Fernando Brito e Abreu 69 18-Nov-08

Automatic Construction of Test Cases

TTCN (Tree and Tabular Combined Notation)

 TTCN is a standardized test case format

 The main characteristics of TTCN are that:

 its Tabular Notation allows its user to describe easily and

naturally in a tree form all possible scenarios of stimulus and various reactions to it between the tester and the target

 its verdict system is designed such that to facilitate

conformance judgment on the test result agrees against the test purpose, and

 it provides a mechanism to describe appropriate constraints on

received messages so that conformance of the received messages can be automatically evaluated against the test purpose

TTCN-3 example

 The following is an example of an

Abstract Test Suite (ATS) where we are trying to test a weather service

 The tester sends a request

consisting of a location, a date and a kind of report to some on- line weather service and receives a response with confirmation of the location and date along with the temperature, the wind velocity and the weather conditions at this location

Software Engineering / Fernando Brito e Abreu 70 18-Nov-08

36

TTCN-3 example

 A TTCN-3 ATS is always composed of four sections:

1.

type definitions: data structures like in C but also an easy to use concept of lists and sets

2.

template definitions: A TTCN-3 template consists of two separate concepts merged into one:



test data definition



test data matching rules 3.

test cases definitions: specifies the sequences and alternatives of sequences of messages sent and received to and from the System Under Test (SUT)

4.

test control definitions: defines the order of execution of various test cases

Software Engineering / Fernando Brito e Abreu 71 18-Nov-08

Sample TTCN-3 Abstract Test Suite

module SimpleWeather { type record weatherRequest { charstring location, charstring date, charstring kind } template weatherRequest ParisWeekendWeatherRequest:= { location := "Paris", date := "15/06/2006", kind := "actual" } type record weatherResponse{ charstring location, charstring date, charstring kind, integer temperature, integer windVelocity, charstring conditions } template weatherResponse ParisResponse := { location := "Paris", date := "15/06/2006", kind := "actual", temperature := (15..30), windVelocity:= (0..20), conditions := "sunny" }

Software Engineering / Fernando Brito e Abreu 72 18-Nov-08

37

Sample TTCN-3 Abstract Test Suite

type port weatherPort message { in weatherResponse;

• ut weatherRequest;

} type component MTCType { port weatherPort weatherOffice; } testcase testWeather() runs on MTCType { weatherOffice.send(ParisWeekendWeatherRequest); alt { [] weatherOffice.receive(ParisResponse) { setverdict(pass) } [] weatherOffice.receive { setverdict(fail) } } } control { execute (testWeather()) } }

Software Engineering / Fernando Brito e Abreu 73 18-Nov-08 Software Engineering / Fernando Brito e Abreu 74 18-Nov-08

Automatic Construction of Test Cases

 Implies the resolution of several problems:

 program decomposition (slicing)  classification of partitions found  selection of test paths  test case generation to exercise those paths  validation of generated cases

 Last problem is solved by the construction of an oracle

(software) whose function is to find if, for a given test, the program responds according to its specification.

38

Software Engineering / Fernando Brito e Abreu 75 18-Nov-08

Automatic Construction of Test Cases

An example

Who? » Siemens + Swiss PTT What? » SAMSTAG (Sdl And Msc

baSed Test cAse Generation)

How to model system & tests?

 Target system (SDL)  Test scenarios (MSC)

SDL - Specification and Description Language [ITU Z.100] MSC - Message Sequence Chart [ITU Z.120] TTCN (Tree and Tabular Combined Notation) [ISO/IEC JTC1/SC21]

Software Engineering / Fernando Brito e Abreu 76 18-Nov-08

Automatic Construction of Test Cases

Some tools

Validator (Aonix) SoftTest (?) ObjectGEODE TestComposer (Verilog) TestFactory (Rational)

39

Software Engineering / Fernando Brito e Abreu 77 18-Nov-08

Test Techniques – Specification-based

Random testing

 Tests are generated in a stochastic (non-deterministic)

way

 This form of testing falls under the heading of the

specification-based entry, since at least the input domain must be known, to be able to pick random points within it

Software Engineering / Fernando Brito e Abreu 78 18-Nov-08

Test Techniques – Specification-based

Random testing

 We simulate the data input by generating sequences

• f values that may occur in practice

 This process must be repeated on and on because, in the

long term, we can generate all possible input combinations

 This approach is only feasible with a tool, a case test

generator- its input is some sort of description of possible input values input, their sequence and probability of occurrence

40

Software Engineering / Fernando Brito e Abreu 79 18-Nov-08

Test Techniques – Specification-based

Random testing

 Random tests are often used to test compilers,

through the generation of random programs

 The description of possible input sequences can be made

with BNF (Backus Naur Form)

 Random testing can also be used in testing

communications protocol software

 The description of possible input sequences can be made

• ut of the state machines that describe each of the involved

parties

Software Engineering / Fernando Brito e Abreu 80 18-Nov-08

Test Techniques

Code-based (aka white box)

 Control-flow-based criteria  Data flow-based criteria

41

Software Engineering / Fernando Brito e Abreu 81 18-Nov-08

Test Techniques – Code-based

Control-flow-based criteria

 Several testing tools allow the generation of

Control Flow Graphs from source code.

 By instrumenting source code these tools allow to

verify graphically the execution of each edge and node in the network

Software Engineering / Fernando Brito e Abreu 82 18-Nov-08

Test Techniques – Code-based

Control-flow-based criteria

 The strongest control-flow-based criteria is path

testing, which aims executing all entry-to-exit control flow paths in the flowgraph

Full path testing is generally not feasible because of

loops

42

Software Engineering / Fernando Brito e Abreu 83 18-Nov-08

Test Techniques – Code-based

Control-flow-based criteria

 Control-flow-based coverage criteria is aimed at

covering all the statements or blocks of statements in a program

 Several coverage criteria have been proposed, like

condition/decision coverage

 A test battery coverage is the percentage of the total code (e.g.

statements or branches/decisions coverage) which is exercised by that battery

 Code coverage is a much less stringent criteria than path

coverage

Case study:

Graph-based control flow testing techniques

43

Software Engineering / Fernando Brito e Abreu 85 18-Nov-08

Control flow graphs

 Are a graphical representation of programs that

traduces the ways they can be transversed during execution

nodes represent decisions oriented edges represent sets of sequential

instructions

In more complex code segments, the graph looks like

spaghetti - more tests are needed

Software Engineering / Fernando Brito e Abreu 86 18-Nov-08

Control flow graphs

44

Software Engineering / Fernando Brito e Abreu 87 18-Nov-08

Example: tax calculation

 Consider an IRS tax system that reads annual

income revenues and determines the corresponding tax due:

If the total income is less than 25K EUROS no tax is

deducted

If it is above that, but less than 100K EUROS, the tax

is 7%

otherwise is 15%

Software Engineering / Fernando Brito e Abreu 88 18-Nov-08

Example: tax calculation

Function Calculates_Tax ( Int n) Array of Int income; Int total,tax;

• 1. total, tax = 0;
• 2. for i=1 to n
• 3. {read(income[i]);
• 4. total = total + income[i]};
• 5. if total >= 25000 then

6. tax = total * 0.07

• 7. else if total >= 100000 then

8. tax = total * 0.15;

• 9. return( tax)

1 2 3 4 5 6 7 8 9

2 5 7 9

 Note: the problem solution is wrong,

because the condition for the 100K EURO limit should be tested first. This defect would be caught by structural testing.

45

Software Engineering / Fernando Brito e Abreu 89 18-Nov-08

Example: how many test cases?

 Based on graph theory, Tom McCabe proposed

the cyclomatic complexity metric that expresses the minimum number of test cases for 100% test coverage:

v(G) = # edges - # nodes + # inputs and outputs

In the current case we obtain:

11 - 9 + 2 = 4 (complete graph) 6 - 4 + 2 = 4 (reduced graph)

Therefore we should be able to produce 4 test cases that when applied would lead to a 100% coverage.

Software Engineering / Fernando Brito e Abreu 90 18-Nov-08

Call graphs

 Are a graphical representation of the

dependences of functions, procedures or methods on each other

nodes (boxes) represent functions, methods, etc oriented edges represent invocations made

 This kind of white box testing is often used for

profiling execution snapshots

46

Software Engineering / Fernando Brito e Abreu 91 18-Nov-08

Call graph based testing

Software Engineering / Fernando Brito e Abreu 92 18-Nov-08

Call graph based testing

47

Software Engineering / Fernando Brito e Abreu 93 18-Nov-08

Call graph based testing

 Colors are often used to

represent coverage percentages

Software Engineering / Fernando Brito e Abreu 94 18-Nov-08

Assessing structural test coverage

 The ReModelertool from

the QUASAR team uses a model-based approach to represent this kind of testing coverage

 Each class or package is

colored according to the percentage of executed methods

48

Software Engineering / Fernando Brito e Abreu 95 18-Nov-08

Test Techniques – Code-based

Data-flow-based criteria

 In data-flow-based testing, the control flowgraph is

annotated with information about how the program variables are defined, used, and killed (undefined)

 The strongest criterion, all definition-use paths, requires

that, for each variable, every control flow path segment from a definition of that variable to a use of that definition is executed

 In order to reduce the number of paths required, weaker

strategies such as all-definitions and all-uses are employed

Software Engineering / Fernando Brito e Abreu 96 18-Nov-08

Test Techniques

Fault-based

 With different degrees of formalization, fault-

based testing techniques devise test cases specifically aimed at revealing categories of likely

• r predefined faults

 Two main techniques exist:

Error guessing Mutation testing

49

Software Engineering / Fernando Brito e Abreu 97 18-Nov-08

Test Techniques – Fault-based

Error guessing

 In error guessing, test cases are specifically

designed by software engineers trying to figure

• ut the most plausible faults in a given program

  A good source of information is the history of

faults discovered in earlier projects, as well as the software engineer’s expertise

Software Engineering / Fernando Brito e Abreu 98 18-Nov-08

Test Techniques – Fault-based

Mutation testing



A mutant is a slightly modified version of the program under test, differing from it by a small, syntactic change



Every test case exercises both the original and all generated mutants: if a test case is successful in identifying the difference between the program and a mutant, the latter is said to be “killed”



Originally conceived as a technique to evaluate a test set, mutation testing is also a testing criterion in itself: either tests are randomly generated until enough mutants have been killed, or tests are specifically designed to kill surviving mutants

 In the latter case, mutation testing can also be categorized as a code-based technique 

The underlying assumption of mutation testing, the coupling effect, is that by looking for simple syntactic faults, more complex but real faults will be found



For the technique to be effective, a large number of mutants must be automatically derived in a systematic way.

50

Software Engineering / Fernando Brito e Abreu 99 18-Nov-08

Test Techniques

Usage-based

 Operational profile  Software Reliability Engineered Testing

Software Engineering / Fernando Brito e Abreu 100 18-Nov-08

Test Techniques – Usage-based

Operational profile

 In testing for reliability evaluation, the test

environment must reproduce the operational environment of the software as closely as possible

 The idea is to infer, from the observed test

results, the future reliability of the software when in actual use

 To do this, inputs are assigned a probability

distribution, or profile, according to their

• ccurrence in actual operation

51

Software Engineering / Fernando Brito e Abreu 101 18-Nov-08

Test Techniques – Usage-based

Software Reliability Engineered Testing

 Software Reliability Engineered Testing (SRET)

is a testing method encompassing the whole development process, whereby testing is “designed and guided by reliability objectives and expected relative usage and criticality of different functions in the field.”

Software Engineering / Fernando Brito e Abreu 102 18-Nov-08

Test Techniques

Based on nature of application

 Object-oriented testing  Component-based testing  Web-based testing  GUI testing  Testing of concurrent programs  Protocol conformance testing  Testing of real-time systems  Testing of safety-critical systems

52

Software Engineering / Fernando Brito e Abreu 103 18-Nov-08

Test Techniques

Selecting and combining techniques

 Specification-based and code-based test

techniques are often contrasted as functional vs. structural testing

 These two approaches to test selection are not to

be seen as alternative but rather complementary

in fact, they use different sources of information and

have proved to highlight different kinds of problems

they should be used in combination, depending on

budgetary considerations

Software Engineering / Fernando Brito e Abreu 104 18-Nov-08

Summary

 Software Testing Fundamentals  Test Levels  Test Techniques  Test-related Measures  Test Process

Test Process Test Process

53

Software Engineering / Fernando Brito e Abreu 105 18-Nov-08

Test-related Measures

Evaluation of the program under test

Program measurements to aid in planning and designing testing

 To guide testing we may use measures based

• n:

program size

 E.g. SLOC or function points

program structure

 E.g. McCabe’s metrics or frequency with which modules

call each other

Software Engineering / Fernando Brito e Abreu 106 18-Nov-08

Test-related Measures

Evaluation of the program under test

Fault types, classification, and statistics

 Testing literature is rich in classifications and

taxonomies of faults

 To make testing more effective, it is important to know:

 which types of faults could be found in the software under test  the relative frequency with which these faults have occurred in

the past

 This information can be very useful in making quality

predictions, as well as for process improvement

54

Software Engineering / Fernando Brito e Abreu 107 18-Nov-08

Test-related Measures

Evaluation of the program under test

Fault density

 A program under test can be assessed by counting and

classifying the discovered faults by their types

 For each fault class, fault density is measured as the

ratio between the number of faults found and the size of the program

Software Engineering / Fernando Brito e Abreu 108 18-Nov-08

Test-related Measures

Evaluation of the tests performed

Coverage/thoroughness measures

 Several test adequacy criteria require that the test cases

systematically exercise a set of elements identified in the program

• r in the specifications

 To evaluate the thoroughness of the executed tests, testers can

monitor the elements covered, so that they can dynamically measure the ratio between covered elements and their total number

 For example, it is possible to measure the percentage of covered branches

in the program flowgraph, or that of the functional requirements exercised among those listed in the specifications document

 Code-based adequacy criteria require appropriate

instrumentation of the program under test

55

Example:

Static and dynamic metrics used to guide white-box testing

Software Engineering / Fernando Brito e Abreu 110 18-Nov-08

Static Metrics Collection

Some examples collected by White-box tools:

– Number of private, protect and public attributes – Overloading, overriding and visibility of operations – Comments density (eg. JavaDoc comments per class) – Inheritance metrics (ex: depth,width,inherited features) – MOOSE metrics (Chidamber and Kemerer) – MOOD metrics (Brito e Abreu) – QMOOD metrics (Jagdish Bansiya)

56

Software Engineering / Fernando Brito e Abreu 111 18-Nov-08

Static Metrics - ex: Cantata++

Software Engineering / Fernando Brito e Abreu 112 18-Nov-08

Dynamic Metrics Collection

 Class, Operation, Branch, Exceptionclause coverage  Example:Multiple Condition Coverage  Measures

whether each combination

• f

condition

• utcomes for a decision has been exercised; are f() and

g() called in the following code extract?

if ((a == b || f()) && (c == d || g())) x(); else y();

Note that the expression can be evaluated to true without

calling f() or g().

57

Software Engineering / Fernando Brito e Abreu 113 18-Nov-08

Test-related Measures

Evaluation of the tests performed

Fault seeding

 Some faults are artificially introduced into the program before test  When the tests are executed, some of these seeded faults will be

revealed, and possibly some faults which were already there will be as well

 depending on which of the artificial faults are discovered, and how many,

testing effectiveness can be evaluated, and the remaining number of genuine faults can be estimated

 Problems:

 distribution and representativeness of seeded faults relative to original ones  small sample size on which any extrapolations are based  inserting faults into software involves the obvious risk of leaving them there

Software Engineering / Fernando Brito e Abreu 114 18-Nov-08

Test-related Measures

Evaluation of the tests performed

Mutation score

 In mutation testing, the ratio of killed mutants to

the total number of generated mutants can be a measure of the effectiveness of the executed test set

58

Software Engineering / Fernando Brito e Abreu 115 18-Nov-08

Summary

 Software Testing Fundamentals  Test Levels  Test Techniques  Test-related Measures  Test Process

Software Engineering / Fernando Brito e Abreu 116 18-Nov-08

Test Process – Practical Considerations

Attitudes / Egoless programming

 A very important component of successful testing is a

collaborative attitude towards testing and quality assurance activities

 Managers have a key role in fostering a generally

favorable reception towards failure discovery during development and maintenance

 for instance, by preventing a mindset of code ownership

among programmers, so that they will not feel responsible for failures revealed by their code

59

Software Engineering / Fernando Brito e Abreu 117 18-Nov-08

Test Process – Practical Considerations

Test guides

 The testing phases could be guided by various

aims:

in risk-based testing, which uses the product risks

to prioritize and focus the test strategy

in scenario-based testing, in which test cases are

defined based on specified software scenarios

Software Engineering / Fernando Brito e Abreu 118 18-Nov-08

Test Process – Practical Considerations

Test documentation and work products

 Documentation is an integral part of the formalization of

the test process

 Test documents may include:

 Test Plan  Test Design Specification  Test Procedure Specification  Test Case Specification  Test Log  Test Incident or Problem Report

60

Software Engineering / Fernando Brito e Abreu 119 18-Nov-08

Test Process – Practical Considerations

Internal vs. independent test team

 External members, may bring an unbiased, independent

perspective

 Decision on internal, external or a blend of teams,

should be based upon considerations of:

 cost  schedule  maturity levels of the involved organizations  criticality of the application

Case study:

ISV&V at Critical Software

61

Software Engineering / Fernando Brito e Abreu 121 18-Nov-08

Test Process – Practical Considerations

Cost/effort estimation and other process measures

 Several measures related to the resources spent

• n testing, as well as to the relative fault-finding

effectiveness of the various test phases, are used by managers to control and improve the test process, such as:

number of test cases specified number of test cases executed number of test cases passed number of test cases failed

Software Engineering / Fernando Brito e Abreu 122 18-Nov-08

Test Process – Practical Considerations

Cost/effort estimation and other process measures

 Evaluation of test phase reports can be combined with

root cause analysis to evaluate test process effectiveness in finding faults as early as possible

 Such an evaluation could be associated with the analysis of

risks

 Moreover, the resources that are worth spending on

testing should be commensurate with the use/criticality

• f the application:

 different techniques have different costs and yield different

levels of confidence in product reliability

62

Software Engineering / Fernando Brito e Abreu 123 18-Nov-08

Test Process – Practical Considerations

Termination

 A decision must be made as to how much testing is

enough and when a test stage can be terminated

 Thoroughness measures, such as …

 achieved code coverage  functional completeness  estimates of fault density or of operational reliability

 … provide useful support, but are not sufficient in

themselves

Software Engineering / Fernando Brito e Abreu 124 18-Nov-08

Test Process – Practical Considerations

Termination

 The decision also involves considerations about the

costs and risks incurred by the potential for remaining failures, as opposed to the costs implied by continuing to test

 There are two possible approaches to this problem

 Termination based on test efficiency  Termination based on test effectiveness

63

Software Engineering / Fernando Brito e Abreu 125 18-Nov-08

Test efficiency-based termination

 To decide on test termination or to compare

distinct V&V procedures and tools we need to know their Efficiency

walkthroughs, inspections, black-box, white-box ?

 Efficiency = work produced / resources spent

» Testefficiency= defects found / effort spent = benefit / cost

Software Engineering / Fernando Brito e Abreu 126 18-Nov-08

Test efficiency-based termination

 As testing proceeds …

defect density decreases test efficiency decreases - more and more

effort is spent (cost) to find new defects (benefit)

reliability grows - probability that users

experience defect effects (failures) reduces

64

Software Engineering / Fernando Brito e Abreu 127 18-Nov-08

Case Study

Testing Effort

Testing effort spent per week 500 1000 1500 2000 2500 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Week Cumulative Effort (Cost) 5000 10000 15000 20000 25000 30000 35000 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Week

Software Engineering / Fernando Brito e Abreu 128 18-Nov-08

Case Study

Defects Found

Defects found per week 50 100 150 200 250 300 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Week Cumulative Defects (Benefit) 500 1000 1500 2000 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Week

65

Software Engineering / Fernando Brito e Abreu 129 18-Nov-08

Benefit / Cost Ratio (Test Efficiency)

20 40 60 80 100 120 140

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Week

Cost / Benefit Ratio

500 1000 1500 2000 2500

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Week

Case Study

Test Efficiency

These ratios can be used to set test stopping thresholds

Software Engineering / Fernando Brito e Abreu 130 18-Nov-08

Test effectiveness-based termination

"Testing can only show the presence of bugs but never their absence"

Dijkstra

Is this statement correct ?

66

Software Engineering / Fernando Brito e Abreu 131 18-Nov-08

Test effectiveness-based termination

 Test effectiveness allows to decide when tests

should be stopped

test plan should indicate that level (e.g. 90%)

 Effectiveness = achieved effect / desired effect

» Test effectiveness = percentage of total defects found

Software Engineering / Fernando Brito e Abreu 132 18-Nov-08

Weekly % of Defects Found (Weekly Test Effectiveness) 0% 2% 4% 6% 8% 10% 12% 14% 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Week Cumulative % of Defects Found (Cumulative Test Effectiveness) 0% 20% 40% 60% 80% 100% 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Week

Test Effectiveness - Case Study

Conclusion: it is not worth testing beyond a certain point; that point can be based on a given effectiveness threshold

67

Software Engineering / Fernando Brito e Abreu 133 18-Nov-08

Test Effectiveness

 To calculate it we need to know:

the total number of defects or the number of remaining defects

 total = found + remaining

 Remaining defects can be known à posteriori

Simply wait by user action (not a good choice ...) Even then, we have to set an observation period

 Obs. period = f (system complexity, transaction rate)  some defects may only cause failures after intensive use

Software Engineering / Fernando Brito e Abreu 134 18-Nov-08

Defect Injection Technique

This technique allows to estimate remaining defects and therefore obtain test effectiveness

• 1. A member of the development team (not necessarily the

producer) includes deliberately some defects in the target system, neither condensed nor in a captious way.

• 2. He documents and describes the localization of injected

defects and delivers that information to the project leader.

• 3. The target system is passed on to the testing team.
• 4. Test process efficiency is verified through the percentage of

injected defects that were found.

• 5. Remaining defects (not injected) are then estimated

68

Software Engineering / Fernando Brito e Abreu 135 18-Nov-08

Defect Injection (continued)

 Before the beginning of the test we have:

DOi Original Defects (unknown !) DIi Injected Defects (known)

 At all moments after the beginning of the test we have:

DOe Original defects found DIe Injected defects found DOr = DOi - Doe Original defects remaining (not found) DIr = DIi - DIe Injected defects remaining (not found)

Software Engineering / Fernando Brito e Abreu 136 18-Nov-08

Defect Injection (continued)

Let: ERO = DOe / DOi Effectiveness in Original Defects Removal (unknown !) ERI = DIe / DIi Effectiveness in Injected Defects Removal (known !)

 Considering ERO  ERI which will be close to truth if the

number of injected defects is sufficiently large:

DOi = DOe / ERO  DOe / ERI DOr = DOi ( 1 - ERO ) = DOe ( 1 / ERO - 1 )  DOe ( 1 / ERI - 1 )

69

Software Engineering / Fernando Brito e Abreu 148 18-Nov-08

Test Process – Test activities

Defect tracking

 Detected defects can be analyzed to determine:

when they were introduced into the software what kind of error caused them to be created

 E.g. poorly defined requirements, incorrect variable

declaration, memory leak, programming syntax error, …

when they could have been first observed in the

software

Software Engineering / Fernando Brito e Abreu 149 18-Nov-08

Test Process – Test activities

Defect tracking

 Defect-tracking information is used to determine

what aspects of software engineering need improvement and how effective previous analyses and testing have been

This causal analysis allows introducing prevention

actions

Prevention is better than the cure  and is a typical

characteristic of higher levels of maturity in the software development process

70

Software Engineering / Fernando Brito e Abreu 150 18-Nov-08

Defect prevention in CMMI

Software Engineering / Fernando Brito e Abreu 151 18-Nov-08

Bibliography

[Bec02] K. Beck, Test-Driven Development by Example, Addison- Wesley, 2002. [Bei90] B. Beizer, Software Testing Techniques, International Thomson Press, 1990, Chap. 1-3, 5, 7s4, 10s3, 11, 13. [Jor02] P. C. Jorgensen, Software Testing: A Craftsman's Approach, second edition, CRC Press, 2004,

• Chap. 2, 5-10, 12-15, 17, 20.

[Kan99] C. Kaner, J. Falk, and H.Q. Nguyen, Testing Computer Software, 2nd ed., John Wiley & Sons, 1999,

• Chaps. 1, 2, 5-8, 11-13, 15.

[Kan01] C. Kaner, J. Bach, and B. Pettichord, Lessons Learned in Software Testing, Wiley Computer Publishing, 2001. [Lyu96] M.R. Lyu, Handbook of Software Reliability Engineering, Mc-Graw- Hill/IEEE, 1996, Chap. 2s2.2, 5-7. [Per95] W. Perry, Effective Methods for Software Testing, John Wiley & Sons, 1995, Chap. 1-4, 9, 10-12, 17, 19-21. [Pfl01] S. L. Pfleeger, Software Engineering: Theory and Practice, 2nd ed., Prentice Hall, 2001, Chap. 8, 9. [Zhu97] H. Zhu, P.A.V. Hall and J.H.R. May, “Software Unit Test Coverage and Adequacy,” ACM Computing Surveys, vol. 29, iss. 4 (Sections 1, 2.2, 3.2, 3.3), Dec. 1997, pp. 366- 427.

71

Software Engineering / Fernando Brito e Abreu 152 18-Nov-08

Applicable standards

(IEEE610.12-90) IEEE Std 610.12- 1990 (R2002), IEEE Standard Glossary of Software Engineering Terminology, IEEE, 1990. (IEEE829-98) IEEE Std 829-1998, Standard for Software Test Documentation, IEEE, 1998. (IEEE982.1-88) IEEE Std 982.1-1988, IEEE Standard Dictionary of Measures to Produce Reliable Software, IEEE, 1988. (IEEE1008-87) IEEE Std 1008-1987 (R2003), IEEE Standard for Software Unit Testing, IEEE, 1987. (IEEE1044-93) IEEE Std 1044-1993 (R2002), IEEE Standard for the Classification of Software Anomalies, IEEE, 1993. (IEEE1228-94) IEEE Std 1228-1994, Standard for Software Safety Plans, IEEE, 1994. (IEEE12207.0-96) IEEE/EIA 12207.0-1996 // ISO/IEC12207:1995, Industry Implementation of Int. Std. ISO/IEC 12207:95, Standard for Information Technology- Software Life Cycle Processes, IEEE, 1996.

Software Engineering / Fernando Brito e Abreu 153 18-Nov-08

Black-Box Tools - Web Links



JavaStar ( http://www.sun.com/workshop/testingtools/javastar.html )

 JavaLoad ( http://www.sun.com/workshop/testingtools/javaload.html )  VisualTest,

Scenario Recorder, Test Suite Manager ( http://www.rational.com/ )



SoftTest ( http://www.softtest.com/pages/prod_st.htm )



AutoTester ( http://www.autotester.com/ )



WinRunner ( http://www.merc-int.com/products/winrunguide.html )

 LoadRunner ( http://www.merc-int.com/products/loadrunguide.html )  QuickTest (http://www.mercury.com)  TestComplete (http://www.automatedqa.com)  S-Unit test framework (http://sunit.sourceforge.net)

72

Software Engineering / Fernando Brito e Abreu 154 18-Nov-08

White-Box Tools - Web Links



JavaScope (http://www.sun.com/workshop/testingtools/javascope.html)

 JavaSpec ( http://www.sun.com/workshop/testingtools/javaspec.html )  Cantata++ ( http://www.iplbath.com/ )  PureCoverage, Quantify, Purify ( http://www.rational.com/ )  LDRA ( http://www.luna.co.uk/~elverex/ldratb.htm )  McCabe Test (http://www.mccabe.com/?file=./prod/test/data.html )  ATTOL Coverage ( http://www.attol-testware.com/coverage.htm )  Quality Works ( http://www.segue.com )  Panorama (http://www.softwareautomation.com/)
