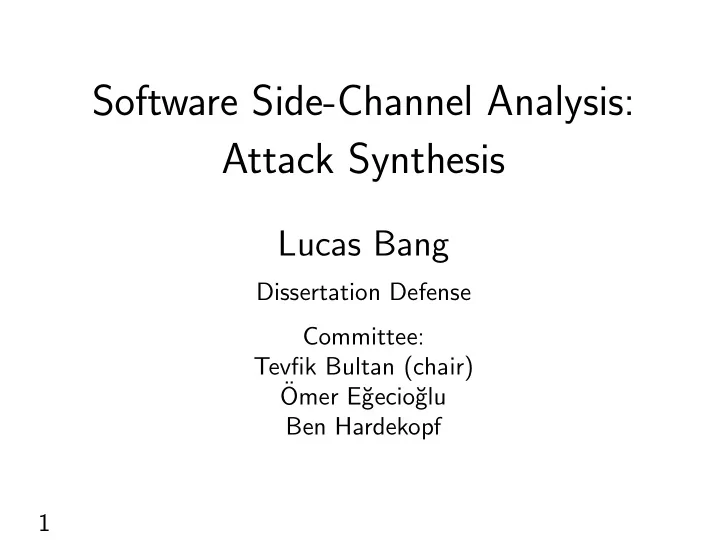

Software Side-Channel Analysis: Attack Synthesis

Lucas Bang

Dissertation Defense Committee: Tevfik Bultan (chair) ¨ Omer E˘ gecio˘ glu Ben Hardekopf

2 - 1

Publications during PhD

Bang, Aydin, Phan, Pasareanu, Bultan. [FSE 2016] “String Analysis for Side Channels with Segmented Oracles.” Bang, Rosner, Bultan. [Euro S&P 2018] “Online Synthesis of Adaptive Side-Channel Attacks Based On Noisy Observations.” Bang, Aydin, Bultan. [FSE 2015] “Automatically Computing Path Complexity of Programs.” Aydin, Eiers, Bang, Brennan, Gavrilov, Yu, Bultan. [FSE 2018 (accepted)] “Parameterized Model Counting for String and Numeric Constraints.”

Submitted papers

Saha, Kadron, Eiers, Bang, Bultan. “Attack Synthesis for Strings via Incremental Model Counting and Meta-Heuristics.” Tsiskaridze, Bang, McMahan, Bultan, Sherwood. “Information Leakage in Arbiter Protocols.” Phan, Bang, Pasareanu, Malacaria, Bultan. [CSF 17] “Synthesis of Adaptive Side-Channel Attacks.” Aydin, Bang, Bultan. [CAV 2015] “Automata-Based Model Counting for String Constraints.”

2 - 2

Publications during PhD

Bang, Aydin, Phan, Pasareanu, Bultan. [FSE 2016] “String Analysis for Side Channels with Segmented Oracles.” Bang, Rosner, Bultan. [Euro S&P 2018] “Online Synthesis of Adaptive Side-Channel Attacks Based On Noisy Observations.” Bang, Aydin, Bultan. [FSE 2015] “Automatically Computing Path Complexity of Programs.” Aydin, Eiers, Bang, Brennan, Gavrilov, Yu, Bultan. [FSE 2018 (accepted)] “Parameterized Model Counting for String and Numeric Constraints.”

Submitted papers

Saha, Kadron, Eiers, Bang, Bultan. “Attack Synthesis for Strings via Incremental Model Counting and Meta-Heuristics.” Tsiskaridze, Bang, McMahan, Bultan, Sherwood. “Information Leakage in Arbiter Protocols.” Phan, Bang, Pasareanu, Malacaria, Bultan. [CSF 17] “Synthesis of Adaptive Side-Channel Attacks.” Aydin, Bang, Bultan. [CAV 2015] “Automata-Based Model Counting for String Constraints.”

2 - 3

Publications during PhD

Bang, Aydin, Phan, Pasareanu, Bultan. [FSE 2016] “String Analysis for Side Channels with Segmented Oracles.” Bang, Rosner, Bultan. [Euro S&P 2018] “Online Synthesis of Adaptive Side-Channel Attacks Based On Noisy Observations.” Bang, Aydin, Bultan. [FSE 2015] “Automatically Computing Path Complexity of Programs.” Aydin, Eiers, Bang, Brennan, Gavrilov, Yu, Bultan. [FSE 2018 (accepted)] “Parameterized Model Counting for String and Numeric Constraints.”

Submitted papers

Saha, Kadron, Eiers, Bang, Bultan. “Attack Synthesis for Strings via Incremental Model Counting and Meta-Heuristics.” Tsiskaridze, Bang, McMahan, Bultan, Sherwood. “Information Leakage in Arbiter Protocols.” Phan, Bang, Pasareanu, Malacaria, Bultan. [CSF 17] “Synthesis of Adaptive Side-Channel Attacks.” Aydin, Bang, Bultan. [CAV 2015] “Automata-Based Model Counting for String Constraints.”

3

Side-Channel Attacks

4 - 1

4 - 2

4 - 3

4 - 4 Side channel: learn secrets through indirect observation. Time P i z z a s Panama Granada Kuwait

5 - 1

5 - 2

Secret Data

Program

5 - 3

1 private s = getBufferSize();

Program

5 - 4

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

input, i

5 - 5

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

input, i s ≤ i ⇒ o = 1

5 - 6

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

input, i s ≤ i ⇒ o = 1 s > i ⇒ o = 2

5 - 7

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

input, i s ≤ i ⇒ o = 1 s > i ⇒ o = 2

s? 1 ≤ s ≤ 8

5 - 8

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

input, i s ≤ i ⇒ o = 1 s > i ⇒ o = 2

s?

• utput, 0

1 ≤ s ≤ 8

5 - 9

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

input, i s ≤ i ⇒ o = 1 s > i ⇒ o = 2

s?

• utput, 0

1 ≤ s ≤ 8

5 - 10

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

input, i s ≤ i ⇒ o = 1 s > i ⇒ o = 2

s? 1 ≤ s ≤ 8

5 - 11

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

input, i s ≤ i ⇒ o = 1 s > i ⇒ o = 2

s? 1 ≤ s ≤ 8

5 - 12

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

input, i s ≤ i ⇒ o = 1 s > i ⇒ o = 2

s? 1 ≤ s ≤ 8

5 - 13

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

input, i

s?

• = 1 ⇒ s ≤ i
• = 2 ⇒ s > i

1 ≤ s ≤ 8

5 - 14

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

s?

• = 1 ⇒ s ≤ i
• = 2 ⇒ s > i

input, 4

1 ≤ s ≤ 8

5 - 15

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

s?

input, 4

• = 1 ⇒ s ≤ 4
• = 2 ⇒ s > 4

1 ≤ s ≤ 8

5 - 16

1 private s = getBufferSize(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 log.write("too large"); // 1 s 7 else 8 some computation; // 2 s 9 return 0; 10 } 1 private s = getBufferSize();

s?

input, 4

• = 1 ⇒ s ≤ 4
• = 2 ⇒ s > 4

1 ≤ s ≤ 8

Attacker can binary search on s using i and o.

6

7 - 1

Boolean compare(pw, input){ for(int i = 0; i < pw.length(), i++) if(pw[i] != input[i]) return false; return true; }

Is my code vulnerable to side-channel attacks?

7 - 2

Boolean compare(pw, input){ for(int i = 0; i < pw.length(), i++) if(pw[i] != input[i]) return false; return true; }

Automated Analysis Synthesized Attack

Is my code vulnerable to side-channel attacks?

7 - 3

Boolean compare(pw, input){ for(int i = 0; i < pw.length(), i++) if(pw[i] != input[i]) return false; return true; }

Automated Analysis Synthesized Attack

Is my code vulnerable to side-channel attacks?

• 1. Static Offline Analysis

7 - 4

Boolean compare(pw, input){ for(int i = 0; i < pw.length(), i++) if(pw[i] != input[i]) return false; return true; }

Automated Analysis Synthesized Attack

Is my code vulnerable to side-channel attacks?

• 1. Static Offline Analysis
• 2. Static Offline + Dynamic + Online Analysis

7 - 5

Boolean compare(pw, input){ for(int i = 0; i < pw.length(), i++) if(pw[i] != input[i]) return false; return true; }

Automated Analysis Synthesized Attack

Is my code vulnerable to side-channel attacks?

• 1. Static Offline Analysis
• 2. Static Offline + Dynamic + Online Analysis

8 - 1

Side Channels and Searching: Entropy

8 - 2 secret s ∈ S i ∈ I

Side Channels and Searching: Entropy

S

8 - 3 secret s ∈ S i ∈ I

Side Channels and Searching: Entropy

S

8 - 4 secret s ∈ S i ∈ I

• 1
• 2

Side Channels and Searching: Entropy

S

8 - 5 secret s ∈ S i ∈ I

• 1
• 2

Side Channels and Searching: Entropy

S

8 - 6 secret s ∈ S i ∈ I

• 1
• 2

Side Channels and Searching: Entropy

S

8 - 7 secret s ∈ S i ∈ I

s

Good outcome, very unlikely.

• 1
• 2

Side Channels and Searching: Entropy

S

8 - 8 secret s ∈ S i ∈ I

s

Bad outcome, very likely.

• 1
• 2

Side Channels and Searching: Entropy

S

8 - 9 secret s ∈ S i ∈ I

Side Channels and Searching: Entropy

S

8 - 10 secret s ∈ S i ∈ I s

Side Channels and Searching: Entropy

S

8 - 11 secret s ∈ S i ∈ I s

Side Channels and Searching: Entropy

S

8 - 12 secret s ∈ S i ∈ I s p(s ∈ )

Side Channels and Searching: Entropy

S

8 - 13 secret s ∈ S i ∈ I s p(s ∈ ) =

Side Channels and Searching: Entropy

S

8 - 14 secret s ∈ S i ∈ I

p1 p2 p3 p4 Side Channels and Searching: Entropy

S

8 - 15 secret s ∈ S i ∈ I

p1 p2 p3 p4

Quantify expected information gain measured in bits.

Side Channels and Searching: Entropy

S

8 - 16 secret s ∈ S i ∈ I

p1 p2 p3 p4

Quantify expected information gain measured in bits.

1 pj Side Channels and Searching: Entropy

S

8 - 17 secret s ∈ S i ∈ I

p1 p2 p3 p4

Quantify expected information gain measured in bits.

1 pj

log2

Side Channels and Searching: Entropy

S

8 - 18 secret s ∈ S i ∈ I

p1 p2 p3 p4

Quantify expected information gain measured in bits.

1 pj

log2 pj n

j=1 Side Channels and Searching: Entropy

S

8 - 19 secret s ∈ S i ∈ I

p1 p2 p3 p4

Quantify expected information gain measured in bits.

1 pj

log2 pj n

j=1

H =

Side Channels and Searching: Entropy

S

8 - 20 secret s ∈ S i ∈ I Quantify expected information gain measured in bits.

1 pj

log2 pj n

j=1

i

H(i) =

Side Channels and Searching: Entropy

S

9 - 1

max H(i) ⇒Binary Search

• = 1 ⇒ s ≤ i
• = 2 ⇒ s > i

9 - 2

max H(i) ⇒Binary Search

• = 1 ⇒ s ≤ i
• = 2 ⇒ s > i

9 - 3

max H(i) ⇒Binary Search

• = 1 ⇒ s ≤ i
• = 2 ⇒ s > i

Password Checker Constraints

9 - 4

max H(i) ⇒Binary Search

• = 1 ⇒ s ≤ i
• = 2 ⇒ s > i

9 - 5

max H(i) ⇒Binary Search

• = 1 ⇒ s ≤ i
• = 2 ⇒ s > i

max H(i) ⇒Optimal Search

any program constraints

9 - 6

max H(i) ⇒Binary Search

• = 1 ⇒ s ≤ i
• = 2 ⇒ s > i

max H(i) ⇒Optimal Search

any program constraints

H(i) ???

10 - 1

Symbolic Execution

Execute program on symbolic rather than concrete inputs. Maintain path constraints, PCs, φj over symbolic inputs. if(c) then s1; else s2;

c φ φ ← φ ∧ c T F φ ← φ ∧ ¬c

For branch instructions: φj(s, i) characterizes the relation between s, i, and oj

10 - 2

Symbolic Execution

Execute program on symbolic rather than concrete inputs. Maintain path constraints, PCs, φj over symbolic inputs. if(c) then s1; else s2;

c φ φ ← φ ∧ c T F φ ← φ ∧ ¬c

Maintain path constraints, PCs, φj over symbolic inputs. For branch instructions: φ1 φ2 φ3 φ4 φj(s, i) characterizes the relation between s, i, and oj

11 - 1

)= p(s ∈

11 - 2 φ

)= p(s ∈

φ = #φ (i)

11 - 3 {φj (s, i )}

Model Counter

{#φj (i)} φ

)= p(s ∈

φ = #φ (i)

11 - 4 {φj (s, i )}

Model Counter

{#φj (i)} φ #φ (i) is the number of satisfying solutions (models) for φ (s, i) for a given i.

)= p(s ∈

φ = #φ (i)

11 - 5 {φj (s, i )}

Model Counter

{#φj (i)} φ #φ (i) is the number of satisfying solutions (models) for φ (s, i) for a given i.

p (i) = #φ(i)

|S|

)= p(s ∈

φ = #φ (i)

11 - 6 {φj (s, i )}

Model Counter

{#φj (i)} φ #φ (i) is the number of satisfying solutions (models) for φ (s, i) for a given i.

p (i) = #φ(i)

|S|

H(i) = n

j=1 pj(i) log2 1 pj(i) )= p(s ∈

φ = #φ (i)

12 - 1 Symbolic Execution Model Counting Information Theory

H(i)

H(i) is a symbolic expression that measures the expected information an attacker gains when making input i.

12 - 2 Maximize

H(i)

i∗ Symbolic Execution Model Counting Information Theory

H(i)

H(i) is a symbolic expression that measures the expected information an attacker gains when making input i. Maximizing H(i) gives an optimal side-channel attack. [IEEE Computer Security Foundations 2017]

13 - 1

• 1. Fully Static Offline Approach

Assumes an ideal observation model (i.e. instruction counts). Does not account for actual runtime behavior.

13 - 2

• 1. Fully Static Offline Approach

Assumes an ideal observation model (i.e. instruction counts). Does not account for actual runtime behavior.

• 2. Static / Dynamic + Offline / Online Approach

Automatically, dynamically estimates runtime observations. Uses Bayesian inference and weighted model counting to account for noise.

14 - 1

Side-Channel Attack Synthesis Under Noisy Conditions

[IEEE European Security & Privacy 2018]

14 - 2

1 private s = getMaxBytes(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 some computation; // 1 s 7 else 8 log.write("too many bytes");// 2s 9 return 0; 10 }

14 - 3

1 private s = getMaxBytes(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 some computation; // 1 s 7 else 8 log.write("too many bytes");// 2s 9 return 0; 10 }

Hardware + OS

14 - 4

1 private s = getMaxBytes(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 some computation; // 1 s 7 else 8 log.write("too many bytes");// 2s 9 return 0; 10 }

Hardware + OS Network

14 - 5

1 private s = getMaxBytes(); 2 3 4 public int compare(int i){ 5 if(s <= i) 6 some computation; // 1 s 7 else 8 log.write("too many bytes");// 2s 9 return 0; 10 }

s? Hardware + OS Network
