SmartMat Real-Time Squatting Feedback Customer Need Squatting improperly leads to injury Athletes dont always have feedback about their squatting form while exercising

SLIDE 1

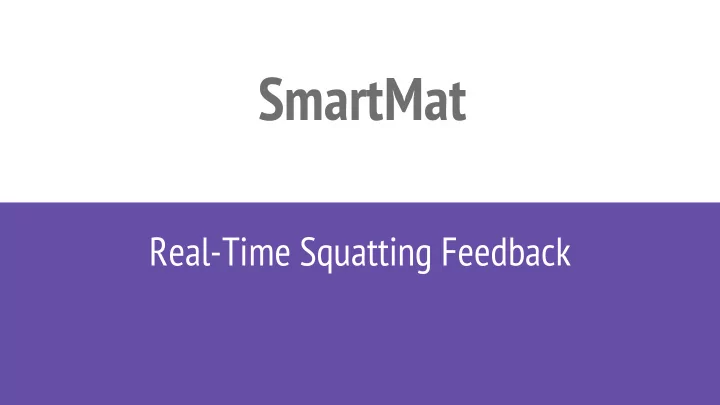

SmartMat

Real-Time Squatting Feedback

SLIDE 2

Customer Need

Squatting improperly leads to injury Athletes don’t always have feedback about their squatting form while exercising

https://www.google.com/imgres?imgurl=http%3A%2F%2Fwww.dr-abbie.com%2Fwp-content%2Fuploads%2F2017%2F08%2Fsquatting-1.jpg&imgrefurl=https%3A%2F%2Fdr-abbie.com%2Ffactsheets%2Fsquatting-with-

rthotics%2F&docid=Px_95bXhgGn2cM&tbnid=WvzSR-

T1rB3BUM%3A&vet=10ahUKEwjRsdj5tpzlAhVDp1kKHfWtC_cQMwhUKA0wDQ..i&w=404&h=234&bih=578&biw=1280&q=pronated%20vs%20normal%20squat&ved=0ahUKEwjRsdj5tpzlAhVDp1kKHfWtC_cQMwhUKA0wDQ&iact=mrc&uact=8

SLIDE 3

Customer Needs Product Attributes Engineering Specifications

Alert user to improper squat form while squatting Real time feedback Provides feedback at 50Hz or more No interference with normal squat Non-intrusive Normal range of motion of limbs Can be set up and used easily Ease of use Time to calibrate < 5 seconds Used by different people Universal use Fits a squat stance as large as 6 feet Withstand repeated use Repeatability Number of cycles > 1 million Withstand weight associated with squatting Durability Can withstand 1000lbs

SmartMat

Product Description: Fitness device that gives real time feedback while squatting Intended Customers: High schools; colleges; gyms Market: Smart Fitness Market

SLIDE 4

SmartMat

Alerts user of squat quality by tracking weight distribution

Captures: Knee pronation, Uneven weight distribution, Knee foot alignment

Force Sensor Matrix

SLIDE 5

Heatmap

User Interface

Name

Welcome

Continue as guest

Calibrate

Begin Squatting in 3...2...1

Feedback

Pronating left

SLIDE 6

Price: around $1000 from user interviews Market: Smart Fitness, $29.4 Billion by 2025 Buyer: Commercial gyms and college/high school athletics programs User: Recreational squatters

https://www.grandviewresearch.com/press-release/global-smart-fitness-devices-market

SLIDE 7

Key Questions

What problems in squatting form can we detect from force sensors? How consistent is detection across different users? Can we provide accurate real time feedback on squatting form?

SLIDE 8

Key Findings

Squatting form correlates with foot force distribution Knee pronation and uneven weight distribution detected Calibration provides more accurate data Real time feedback using ROS and Arduino

SLIDE 9

Going Forward

Need to incorporate force sensor matrix

Implementation Detecting placement of feet among matrix

Further user testing Longevity testing Improvement of UI
