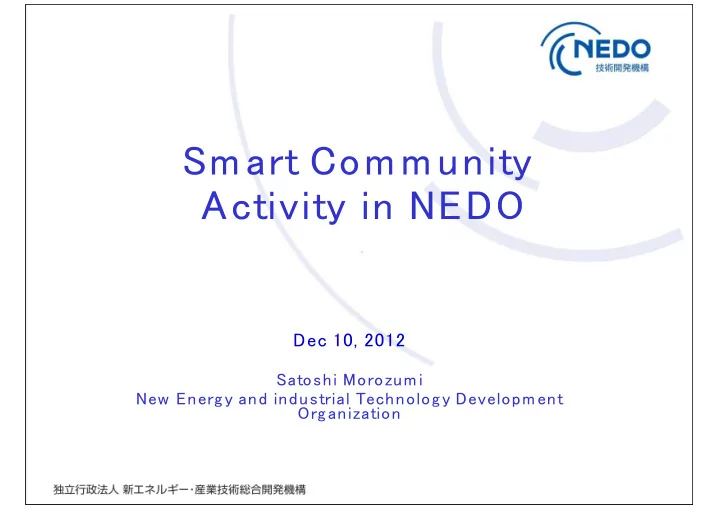

Sm art Com m unity Activity in NEDO

Dec 10, 2012

Satoshi Morozum i New Energy and industrial Technology Developm ent Org anization

Sm art com m unity in NEDO

History of NEDO dem onstration projects

Before year 2000

Grid connecting technology development for one renewable energy

Year 2000 – Year 2010

Multiple or large scale renewable grid connecting demonstration

After Year 2010 Smart community demonstration considering social needs

Role of organizations

METI: Minister of Economy,

Trade and Industry

NEPC: New Energy

Promotion Council

NEDO: New Energy and

Industrial Technology Development Organization

Domestic Domestic Smart Smart Community Community projects projects International International Smart Smart grid grid and and Community Community projects projects

Dom estic Sm art Com m unity Dem onstration Projects

YOKOHAMA TOYOTA KEI-HANNA KITA-KYUSHU

Social System Demonstration sites (2/3 subsidy) Technology System Demonstration sites (1/2 subsidy)

Hitachi Kashiwa-no-ha Mie Univ. Oosaka Tottori Fukuyama

Nagasaki

MInamata

International Sm art Com m unity Dem onstration（ Dem o～FS）

New Mexico（ USA） Micro grid demonstration in Loa Alamos and Albuquerque Maui island（ USA） Direct control against EV, for absorbing sudden rump of renewable source. Lyon（ France） Zero energy building, EV car sharing and energy audit demonstration in re- dev eloped city Mannchester（ U K） Coming soon wind Power, Heat Pump, Aggregation ....

Gòngqīngchéng

（ China） Introducing energy conservation and renewable energy in development plan of planned city Indonesia Power quality management at industrial park Malaga（ Spain） EV charging infrastructure and driver navigation system

Sm art Grid Dem onstration Project in Hawaii

7

Direct control technology demonstration using EV/ PHEV 1. D- EMS demonstration by controlling demand and PVs under substation 2. Micro D- EMS demonstration by controlling demand and PVs under Pole transformer 3.

The direct control technology is hired for keeping balance between supply and demand when

• utput from renewable are

suddenly dropped.

Sm art Com m unity Project in Lyon, France

Demonstration of Zero Emission Building technologies at P- plot building 1. Energy use monitoring and management for PV and EVs 2. Energy audit program using AMI 3. CEMS (Community EMS) 4.

Sm art Com m unity project in Malaga, Spain

EV charging infrastructure demonstration (CHAdeMO) 1) EV driver navigation system ICT infrastructure for charging demonstration 2) Business model development using ICT infrastructure 3)

Sm art Com m unity Project in Gòngqīngchéng, CHINA

23

Power quality management using renewable energy at industry park 1. Energy conservation at commercial and residential area 2. Electric bus demonstration 3. Area energy management system demonstration 4. Gòngqīngchéng Shanghai

Started “ New Mexico Project”

Micro- grid dem onstration in Los Alam os

2～5MW 程度の実際の配電線において 、 集中型太陽光発電、 蓄電池を 導入 ü 系統構成を 切換え る こ と によ り Ｐ Ｖ 導入比率を 変え て 、 Ｐ Ｖ 出力の変動吸収実験を 実施 ü ス マ ート 配電機器（ 情報通信機能を 持っ た配電機器） を 導入し 、 高い操作性を 有する 配電系統 を 構築・ 実証 ü

12

LOS ALAMOS 1MW PV

Cd/ Tr Solar cell Multi Cristal Si Solar cell 10 difference types of PV cells are tested in this demonstration in this Mega- solar.

Battery Storage in LAC

NAS battery and lead- acid battery 2 difference types of battery are operated. Lead- Acid battery absorbs rapid fluctuation and NAS battery absorbs slow fluctuation

Micro- EMS in LAC

This EMS control battery operation looking PV generation and day ahead weather

• condition. Also, this system prepare TOU rate for demand response.

Sm art House in LAC

2 HEMS and PLC circuit breaker are tested in this demonstration house.

Sm art Meter and HEMS

Smart Meter and Interface HEMS High Speed PLC, Switching element for islanding

Dem onstration Micro grid system in Albuquerqu e

18

Albuquerque Site

19

Mesa Del Sol Center Building 500kV PV generation

Demonstration site building and PV system installed on the same feeder.

ABQ Distributed generators

Demonstration facility installed beside of the building.

PV system of shade on parking

PV system installed beside of demonstration building.

Gas Engine and Fuel Cell

Gas engine generator operated on the one mile height . Capacity on the sea level is 300kW . However, 20 % reduced in Albuquerque (one mile height). PAFC fuel cell operated on the one mile height. Capacity on the sea level is 100kW . However, 20 % reduced in Albuquerque (one mile height).

Therm al Storage and Battery Storage

Ice thermal storage Battery storage managing power quality.

BEMS

2 BENS are tested. Independent operation by plug in and out without any interaction was demonstrated .
