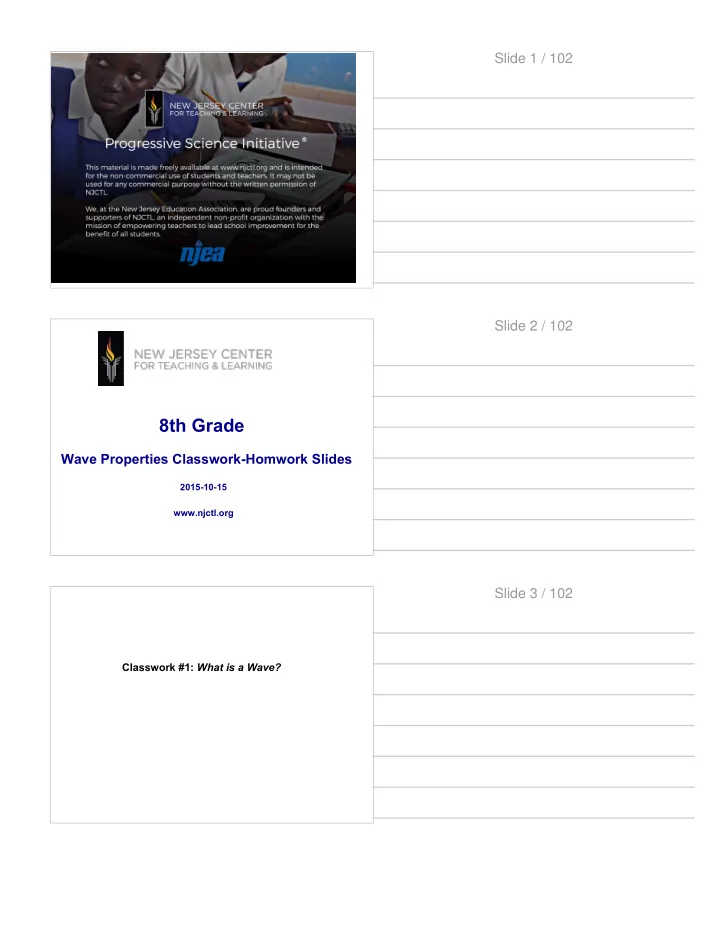

Slide 1 / 102 Slide 2 / 102 8th Grade Wave Properties Classwork-Homwork Slides 2015-10-15 www.njctl.org Slide 3 / 102 Classwork #1: What is a Wave? Slide 4 / 102 1 What causes a wave? Slide 5 / 102 2 In terms of wave motion, define
SLIDE 2
SLIDE 3
4 Compare/Contrast Pulse and Wave.
Slide 7 / 102
5 In a transverse wave, compare the direction of vibration of the particles in the medium to the direction that the wave is moving.
Slide 8 / 102
6 List at least 3 examples of wave motion as witnessed in your daily life.
Slide 9 / 102
SLIDE 4
Homework: What is a Wave?
Slide 10 / 102
7 Explain how a disturbance in a medium causes a wave to form.
Slide 11 / 102
8 List 3 examples of wave motion. List the medium for each type of wave.
Slide 12 / 102
SLIDE 5
9 Make a sketch that shows the difference between a pulse and a wave.
Slide 13 / 102
10 Make a sketch of a transverse wave. Include directions of particle vibration and direction of wave motion.
Slide 14 / 102
11 Define the concept of equilibrium/rest position and explain what causes matter in the medium to move away from this position during wave motion.
Slide 15 / 102
SLIDE 6
Classwork #2: Parts of a Wave
Slide 16 / 102
12 Label the parts of a wave seen below including Crests, Troughs, Equilibrium/Rest position, Amplitude, and wavelength. Crests Troughs Equilibrium/ Rest position Amplitude Wavelength
Slide 17 / 102
13 Define the following terms: Crest- Trough- Equilibrium/Rest Position- Amplitude- Wavelength-
Slide 18 / 102
SLIDE 7
14 Define/Compare Frequency and Period.
Slide 19 / 102
15 If a wave has a period of 0.5 s, what is its frequency?
Slide 20 / 102
16 If a wave has a frequency of 100 Hz, What is its period?
Slide 21 / 102
SLIDE 8
17 What happens to the frequency of a wave as the period of the wave INCREASES?
Slide 22 / 102
Homework: Parts of a Wave
Slide 23 / 102
18 Produce a sketch of a wave that labels the wave’s crests, troughs, amplitude, wavelength, and equilibrium position.
Slide 24 / 102
SLIDE 9
19 What is the SI unit for frequency?
Slide 25 / 102
20 What is the equation for calculating frequency when we know the wave period?
Slide 26 / 102
21 What is the wave period when the frequency is 250 Hz?
Slide 27 / 102
SLIDE 10
22 What the wave frequency when the period is 0.2 s?
Slide 28 / 102
Classwork #3: The Wave Equation
Slide 29 / 102
23 Write the wave equation and list the units for each variable in this equation.
Slide 30 / 102
SLIDE 11
24 What is the wave velocity when a water wave has a wavelength of 2 m and a frequency of 2 Hz?
Slide 31 / 102
25 What is the wave velocity when a sound wave has a frequency of 512 Hz and a wavelength of 0.67 m?
Slide 32 / 102
26 What is the wavelength of a sound wave that has a frequency of 800 Hz, and a velocity of 340 m/s?
Slide 33 / 102
SLIDE 12
27 What is the wavelength of a slinky wave that travels at 35 m/s and has a frequency of 7 Hz?
Slide 34 / 102
28 What is the frequency of a wave that tidal wave that travels at a velocity of 100 m/s and has a wavelength of 33.33 m?
Slide 35 / 102
Homework: The Wave Equation
Slide 36 / 102
SLIDE 13
29 This is the wave equation, define each symbol & list the unit for each variable.
Slide 37 / 102
30 What is the velocity of a sound wave with a frequency of 300 Hz and a wavelength of 1.14 m?
Slide 38 / 102
31 What is the wavelength of a water wave that travels at a velocity of 33 m/s with a frequency of 11 Hz?
Slide 39 / 102
SLIDE 14
32 What is the velocity of a seismic wave that has a wavelength of 3m and a frequency of 500 m/s?
Slide 40 / 102
33 What is the frequency of a vibration that travels at a velocity of 99 m/s with a wavelength of 9 m?
Slide 41 / 102
Classwork #4: Properties of Waves
Slide 42 / 102
SLIDE 15
34 Draw and describe what happens to a reflected wave and the energy is transports.
Slide 43 / 102
35 Compare and contrast free end and fixed end reflection for a wave in a string.
Slide 44 / 102
36 Describe what wave transmission is an give an example.
Slide 45 / 102
SLIDE 16
37 Why is it hard to hear someone that is yelling from far away?
Slide 46 / 102
38 Define refraction and describe what happens to a wave's velocity and wavelength as it moved from a) a less dense to a denser medium (example: air to water) and b) a denser to less dense medium (example: diamond to air).
Slide 47 / 102
39 Draw a diagram of diffraction and list a basic definition of the phenomenon.
Slide 48 / 102
SLIDE 17
40 Define Constructive and Destructive Interference.
Slide 49 / 102
Homework: Properties of Waves
Slide 50 / 102
41 Explain why you might be able to hear a television that is playing in the next room through the walls. Why might the sound be muffled?
Slide 51 / 102
SLIDE 18
42 What is diffraction? What factors increase the amount of diffraction?
Slide 52 / 102
43 What is refraction? What happens to the a) velocity, b) frequency, and c) wavelength of a wave as it changes medium?
Slide 53 / 102
44 Draw a sketch of 2 wave pulses in a string that are undergoing constructive interference a) before they collide, b) during the collision, and c) after the collision. Before During After
Slide 54 / 102
SLIDE 19
45 Draw a sketch of 2 wave pulses in a string that are undergoing destructive interference a) before they collide, b) during the collision, and c) after the collision. Before During After
Slide 55 / 102
Classwork #5: Sound as a Wave
Slide 56 / 102
46 What is the source of any sound wave?
Slide 57 / 102
SLIDE 20
47 Compare the sound waves produced by longer/shorter vibrating objects.
Slide 58 / 102
48 Relate the terms frequency and pitch in terms of sound waves.
Slide 59 / 102
49 Relate the terms amplitude and loudness in terms of sound waves.
Slide 60 / 102
SLIDE 21
50 What is the hearing frequency range for most human beings?
Slide 61 / 102
Homework: Sound as a Wave
Slide 62 / 102
51 How do vibrating objects create sound waves?
Slide 63 / 102
SLIDE 22
52 What is the unit for wave amplitude? How does the ear interpret amplitude of sound waves?
Slide 64 / 102
53 What is the unit for wave frequency? How does the ear interpret frequency of sound waves?
Slide 65 / 102
54 Explain how the length of a musical instrument affects the frequency/pitch of the sound waves it produces.
Slide 66 / 102
SLIDE 23
55 Speculate on the effect of aging on the frequency range that is detectible by the human ear. (use the internet as a research tool if necessary)
Slide 67 / 102
Classwork #6: Sound as a Mechanical Wave
Slide 68 / 102
56 What is a mechanical wave?
Slide 69 / 102
SLIDE 24
57 Why can you hear in space?
Slide 70 / 102
58 Define a longitudinal wave. Draw a diagram to illustrate the compressions and rarefactions.
Slide 71 / 102
59 Compare/Contrast Compressions and rarefactions.
Slide 72 / 102
SLIDE 25
60 Compare vibrational direction of a medium to wave direction for a longitudinal wave.
Slide 73 / 102
Homework: Sound as a Mechanical Wave
Slide 74 / 102
61 How are longitudinal waves similar and different to transverse waves?
Slide 75 / 102
SLIDE 26
62 Draw a diagram that makes the analogy of a longitudinal wave into a transverse drawing.
Slide 76 / 102
63 Why does a vibrating object require a medium to produce sound?
Slide 77 / 102
64 Where is pressure greatest? In a compression or
- rarefaction. Explain.
Slide 78 / 102
SLIDE 27
65 Write a paragraph on how the ear detects sound waves during hearing.
Slide 79 / 102
Classwork #7: Properties of Sound Waves
Slide 80 / 102
66 How is the wave property of reflection used in SONAR?
Slide 81 / 102
SLIDE 28
67 What is the speed of sound in air if it travels a distance of 3740 m in 11 seconds?
Slide 82 / 102
68 Explain the effect of increasing air temperature on the speed of sound in air.
Slide 83 / 102
69 How far are we away from a mountain if an echo returns in 15 seconds if the speed of sound in air is 340 m/s?
Slide 84 / 102
SLIDE 29
70 Explain the concept of “echolocation” as used by dolphins and bats.
Slide 85 / 102
Homework: Properties of Sound Waves
Slide 86 / 102
71 When would you hear thunder the sooner, on a hot day or a cold day?
Slide 87 / 102
SLIDE 30
72 What is an echo? How do animals utilize echoes in feeding?
Slide 88 / 102
73 What is the speed of sound in air if it travels a distance of 5610 m in 12 seconds?
Slide 89 / 102
74 How far are we away from a mountain if an echo returns in 9 seconds if the speed of sound in air is 340 m/s?
Slide 90 / 102
SLIDE 31
Classwork #8: The Doppler Effect
Slide 91 / 102
75 Define the Doppler Effect.
Slide 92 / 102
76 Explain an example of the Doppler Effect that you have observed in your daily life.
Slide 93 / 102
SLIDE 32
77 This is a diagram of the Doppler Effect. In your
- wn terms, explain what happens in front/In back
- f the moving sound source.
Slide 94 / 102
78 What happens to the frequency heard by an
- bserver that is moving toward a stationary sound
source?
Slide 95 / 102
79 What happens to the sound waves of a sound source that is moving at the speed of sound? Draw a diagram to illustrate this event.
Slide 96 / 102
SLIDE 33
Homework: The Doppler Effect
Slide 97 / 102
80 Draw a diagram of the Doppler Effect and explain it in your own terms.
Slide 98 / 102
81 What happens to the wavelength and frequency of sound waves: A in front of a moving sound source? B in back of a moving sound source?
Slide 99 / 102
