Skill assessment of the CSIRO multi-year Climate Analysis Forecast Ensemble (CAFE) system CSIRO decadal climate forecasting project Dougie Squire, James Risbey, Carly Tozer, Thomas Moore, James Munroe The CSIRO


slide-1
SLIDE 1

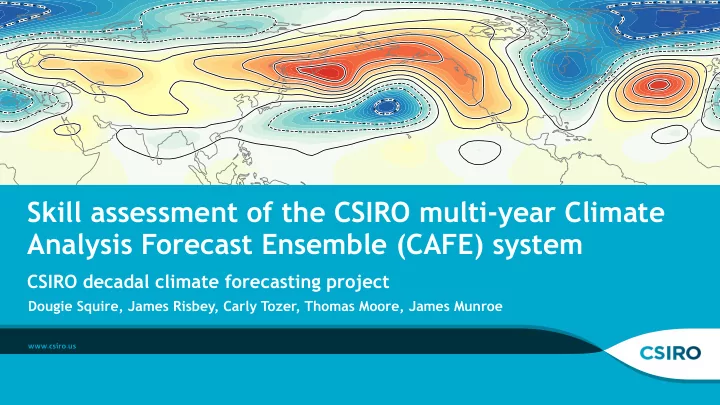

Skill assessment of the CSIRO multi-year Climate Analysis Forecast Ensemble (CAFE) system

CSIRO decadal climate forecasting project

Dougie Squire, James Risbey, Carly Tozer, Thomas Moore, James Munroe

slide-2
SLIDE 2
  • New project to understand and improve predictability on multi-year time scales
  • Use a variant of the GFDL CM2.1 ocean (MOM5) - atmosphere (AM2) - land (LM2)
  • sea ice (SIS) model
  • Focus on internal variability

The CSIRO system

Skill assessment of CSIRO’s CAFE system | Dougie Squire 2

slide-3
SLIDE 3
  • New project to understand and improve predictability on multi-year time scales
  • Use a variant of the GFDL CM2.1 ocean (MOM5) - atmosphere (AM2) - land (LM2)
  • sea ice (SIS) model
  • Focus on internal variability

The CSIRO system

3

See O’Kane C1-03 (tomorrow)

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-4
SLIDE 4

4

The CSIRO system

  • New project to understand and improve predictability on multi-year time scales
  • Use a variant of the GFDL CM2.1 ocean (MOM5) - atmosphere (AM2) - land (LM2)
  • sea ice (SIS) model
  • Focus on internal variability

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-5
SLIDE 5

Fractional in-band variances of SLA

  • New project to understand and improve predictability on multi-year time scales
  • Use a variant of the GFDL CM2.1 ocean (MOM5) - atmosphere (AM2) - land (LM2)
  • sea ice (SIS) model
  • Focus on internal variability

5

The CSIRO system

Monselesan et al. 2015 GRL

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-6
SLIDE 6

Fractional in-band variances of SLA

  • New project to understand and improve predictability on multi-year time scales
  • Use a variant of the GFDL CM2.1 ocean (MOM5) - atmosphere (AM2) - land (LM2)
  • sea ice (SIS) model
  • Focus on internal variability

6

The CSIRO system

Monselesan et al. 2015 GRL 1-2 years

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-7
SLIDE 7

Fractional in-band variances of SLA

  • New project to understand and improve predictability on multi-year time scales
  • Use a variant of the GFDL CM2.1 ocean (MOM5) - atmosphere (AM2) - land (LM2)
  • sea ice (SIS) model
  • Focus on internal variability

7

The CSIRO system

Monselesan et al. 2015 GRL 5-10 years

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-8
SLIDE 8

8

diagnostics/verification software

  • Leverage emerging efforts towards best practices in big data and reproducibility
  • Towards a community effort
  • Dataset/filetype agnostic

+ James Munroe

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-9
SLIDE 9

9

diagnostics/verification software

  • Leverage emerging efforts towards best practices in big data and reproducibility
  • Towards a community effort
  • Dataset/filetype agnostic

+ James Munroe

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-10
SLIDE 10

10

diagnostics/verification software

  • Leverage emerging efforts towards best practices in big data and reproducibility
  • Towards a community effort
  • Dataset/filetype agnostic

+ James Munroe

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-11
SLIDE 11

11

diagnostics/verification software

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-12
SLIDE 12

12

diagnostics/verification software

5 x 32 CPU, 256 Gb VMs

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-13
SLIDE 13

Skill assessment of CSIRO’s CAFÉ system | Dougie Squire 13

diagnostics/verification software

slide-14
SLIDE 14
  • 2-year, 11-member hindcasts started monthly over 2002-2016
  • Only ocean observations assimilated
  • Bred-vector-initialised on sub-surface ocean temperature isosurface

corresponding to high in-band variance on 1-2 month time scales

  • Mean bias corrected (Stockdale 1997 MWR)

14

CAFE-f1 hindcasts (today’s data)

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-15
SLIDE 15
  • 2-year, 11-member hindcasts started monthly over 2002-2016
  • Only ocean observations assimilated
  • Bred-vector-initialised on sub-surface ocean temperature isosurface

corresponding to high in-band variance on 1-2 month time scales

  • Mean bias corrected (Stockdale 1997 MWR)

15 Skill assessment of CSIRO’s CAFE system | Dougie Squire

CAFE-f1 hindcasts (today’s data)

slide-16
SLIDE 16
  • 2-year, 11-member hindcasts started monthly over 2002-2016
  • Only ocean observations assimilated
  • Bred-vector-initialised on sub-surface ocean temperature isosurface

corresponding to high in-band variance on 1-2 month time scales

  • Mean bias corrected (Stockdale 1997 MWR)

See O’Kane C1-03 (tomorrow); and O’Kane et al. 2018 JC

16 Skill assessment of CSIRO’s CAFE system | Dougie Squire

CAFE-f1 hindcasts (today’s data)

slide-17
SLIDE 17
  • 2-year, 11-member hindcasts started monthly over 2002-2016
  • Only ocean observations assimilated
  • Bred-vector-initialised on sub-surface ocean temperature isosurface

corresponding to high in-band variance on 1-2 month time scales

  • Mean bias corrected (Stockdale 1997 MWR)

See O’Kane C1-03 (tomorrow); and O’Kane et al. 2018 JC

17 Skill assessment of CSIRO’s CAFE system | Dougie Squire

CAFE-f1 hindcasts (today’s data)

slide-18
SLIDE 18

18

Temporal anomaly correlations of monthly SST

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-19
SLIDE 19

19

Ranked probability skill score of tropical T2m

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-20
SLIDE 20

20

Ranked probability skill score of tropical T2m

Forecast skill is strongly related to ENSO variability

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-21
SLIDE 21

21

Ranked probability skill score of SE Australian T2m

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-22
SLIDE 22

22

Ranked probability skill score of SE Australian T2m

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-23
SLIDE 23

23

Ranked probability skill score of thermal wind

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-24
SLIDE 24

24

Ranked probability skill score of thermal wind

Positive correlation with MEI (O’Kane et al. 2017 MWR)

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-25
SLIDE 25

25

Conclusions

Skill assessment of CSIRO’s CAFE system | Dougie Squire

  • is a diagnostics/verification software package that we are building
  • Early CAFE system hindcasts indicate comparable skill to other systems
  • Prediction skill in Australia is strongly tied to the tropical ocean (ENSO) and to

the CAFE system’s ability to simulate relevant teleconnection processes Contact: Dougie.Squire@csiro.au

slide-26
SLIDE 26

26

Longitudinal WAF First two EOFs Longitudinal wave activity flux at 500hPa H500 EOFs

Free-running model diagnostics

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-27
SLIDE 27

27

h500 anomaly composites for heavy Tasmanian rainfall

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-28
SLIDE 28

28

Ensemble spread metrics

Talagrand of SE Australian T2m Goddard et al. ensemble spread metric, T2m

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-29
SLIDE 29

29

Ranked probability skill score of tropical T2m

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-30
SLIDE 30

30

Ranked probability skill score of tropical T2m

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-31
SLIDE 31

31

Uncorrected tropical Pacific SST

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-32
SLIDE 32

32

Uncorrected tropical Pacific SST

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-33
SLIDE 33

33

Uncorrected tropical Pacific SST

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-34
SLIDE 34

34

Uncorrected tropical Pacific SST

Skill assessment of CSIRO’s CAFE system | Dougie Squire

slide-35
SLIDE 35

35

Uncorrected tropical Pacific SST

Skill assessment of CSIRO’s CAFE system | Dougie Squire
