Skid Evaluation of Asphalt Mixes Status and Plans John Zaniewski Asphalt Technology Professor West Virginia University Asphalt Paving Conference February 2019 1-1 Need for new method for laboratory skid evaluation WVDOH currently test

slide-1
SLIDE 1

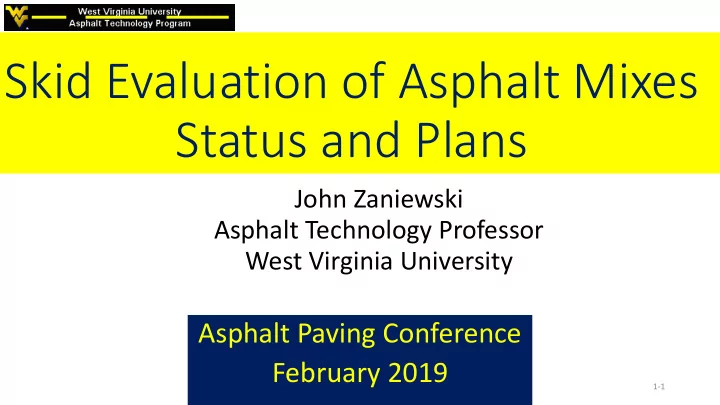

Skid Evaluation of Asphalt Mixes Status and Plans

John Zaniewski Asphalt Technology Professor West Virginia University

1-1

Asphalt Paving Conference February 2019

slide-2
SLIDE 2

Need for new method for laboratory skid evaluation

  • WVDOH currently test aggregate – not mixes
  • Method has been successful
  • Shortage of availability of aggregates that meet the skid requirements

1-2

slide-3
SLIDE 3

Requirements for skid testing in lab

  • a. Sample preparation
  • b. Polishing
  • c. Friction test

1-3

slide-4
SLIDE 4

Requirements for skid testing in lab

  • a. Sample preparation
  • Slabs
  • Cylinder
  • b. Polishing
  • c. Friction test

1-4

Simple

  • Lab
  • Field cores
slide-5
SLIDE 5

Requirements for skid testing in lab

  • a. Sample preparation
  • b. Polishing
  • “rub on the

surface to simulate traffic”

  • c. Friction test

1-5

  • a. Methods (US)
  • a. NCSU
  • b. NCAT
  • c. Ohio
slide-6
SLIDE 6

Requirements for skid testing in lab

1-6

  • a. Polishing Methods

(US)

  • a. NCSU
  • b. NCAT
  • c. Ohio

North Carolina State University Developed in 1970’s Only method with an ASTM standard Not currently used by other agencies

slide-7
SLIDE 7

Requirements for skid testing in lab

1-7

  • a. Polishing Methods

(US)

  • a. NCSU
  • b. NCAT
  • c. Ohio

National Center for Asphalt Tech.

  • Developed in 2000’s
  • Most commonly reported

method in current literature

  • Most agencies contract with

NCAT for testing

slide-8
SLIDE 8

Requirements for skid testing in lab

1-8

  • a. Polishing Methods

(US)

  • a. NCSU
  • b. NCAT
  • c. Ohio

Akron University for ODOT

  • Developed in 2000’s
  • Commercially available
  • ODOT is implementing
  • Five contractors have devices
slide-9
SLIDE 9

Requirements for skid testing in lab

1-9

  • a. Polishing Methods

(US)

  • a. NCSU
  • b. NCAT
  • c. Ohio

Selected by DOH

Cylindrical samples Polish 12 samples per run Not currently used by other agencies Custom fabrication

slide-10
SLIDE 10

1-10

Four applications of tire per revolution

slide-11
SLIDE 11

1-11

NCSU polisher in action

slide-12
SLIDE 12

Polishing Co. 1 SP 12.5 skid 8%

1-12

Cycles 2000 8000

slide-13
SLIDE 13

Requirements for skid testing in lab

  • a. Sample preparation
  • b. Polishing
  • c. Friction test

1-13

British Pendulum Dynamic Friction Meter Circular Track Meter

slide-14
SLIDE 14
  • NCSU
  • British Pendulum

1-14

Friction Test Texture Test

slide-15
SLIDE 15

BP in action

1-15

slide-16
SLIDE 16

Typical results

1-16

slide-17
SLIDE 17

Shake down testing

1-17

30 35 40 45 50 55 60 65 5000 10000 15000 20000 25000 30000 35000 40000 45000

BPN Number of Cycles Polished

Sample 2 Sample 3 Sample 5 Sample 6 Sample 8 Sample 9 Sample 11 Sample 12

British Pendulum Number

Number of cycles The polisher is operational. Hopefully more consistency can be achieved.

slide-18
SLIDE 18

Initial testing

1-18 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 2000 4000 6000 8000 10000 12000 14000 British Pendulum Number (BPN) Number of Polishing Cycles

Average BPN Trends per Mix Type and Air Void Content After 12000 Polishing Cycles

Co 1 12.5mm Skid-RAP 8% AC Co 1 12.5mm Skid-RAP 4% AC Co 2 W1-RAP 4% AC Co 2 W1-RAP 8% AC

Number of cycles

British Pendulum Number

Looks good 48,000 tire applications

slide-19
SLIDE 19

What does BPN mean?

1-19

British >65 Good >55 Satisfactory 45 Minimum all sites Virginia 47 Minimum NY 52 Minimum

slide-20
SLIDE 20

Original Research 1967

1-20

slide-21
SLIDE 21

How did we do?

1-21 40.0 45.0 50.0 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 2000 4000 6000 8000 10000 12000 14000 British Pendulum Number (BPN) Number of Polishing Cycles

Average BPN Trends per Mix Type and Air Void Content After 12000 Polishing Cycles

Co 1 12.5mm Skid-RAP 8% AC Co 1 12.5mm Skid-RAP 4% AC Co 2 W1-RAP 4% AC Co 2 W1-RAP 8% AC

Number of cycles

British Pendulum Number

VA min

slide-22
SLIDE 22

How did the “typical results” do?

1-22

VA min HMM

slide-23
SLIDE 23

Establish Protocol

Polishing

  • Tires
  • Pressure
  • Hardness
  • Tire toe in angle
  • Number of cycles
  • Air voids

1-23

  • Friction

measurements

  • Water application BP
  • Texture measurement?
slide-24
SLIDE 24

Testing program

  • Evaluation of existing

wearing mixes

  • i. Skid mixes vs nonskid mixes
  • ii. 9.5 vs 12.5
  • iii. 4.75???
  • Compare laboratory to field
  • i. Plant mixes vs lab mixes
  • ii. Lab results vs field results

1-24

Work with DOH and input from industry

slide-25
SLIDE 25

Next

  • More testing
  • Compare mix types
  • Compare aggregate

gradations

  • Compare aggregate types
  • What do the results

mean

  • Important to compare lab

and field results

  • Existing pavements
  • New construction

1-25

slide-26
SLIDE 26

You can ask questions but…

1-26
