[PPT] - SIS and DIS Neutrino Interactions 4. Conclusion Subscribe NuSTEC PowerPoint Presentation

SLIDE 1

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

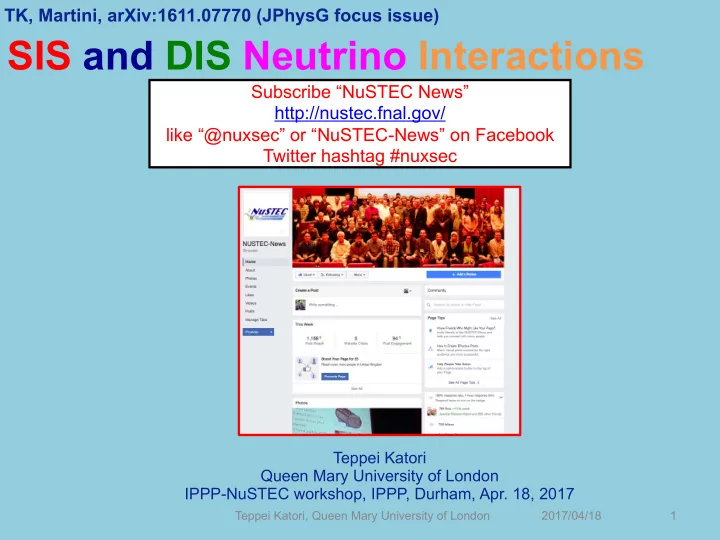

2017/04/18 1 Teppei Katori, Queen Mary University of London

Teppei Katori Queen Mary University of London IPPP-NuSTEC workshop, IPPP, Durham, Apr. 18, 2017

SIS and DIS Neutrino Interactions

TK, Martini, arXiv:1611.07770 (JPhysG focus issue) Subscribe “NuSTEC News” http://nustec.fnal.gov/ like “@nuxsec” or “NuSTEC-News” on Facebook Twitter hashtag #nuxsec

SLIDE 2

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18 2 Teppei Katori, Queen Mary University of London

Teppei Katori Queen Mary University of London IPPP-NuSTEC workshop, IPPP, Durham, Apr. 18, 2017

SIS and DIS Neutrino Interactions

TK, Martini, arXiv:1611.07770 (JPhysG focus issue)

utline
1. Beyond CCQE and 1 pion production
2. Shallow inelastic scattering (SIS) and DIS
3. Neutrino hadronization
4. Conclusion

Subscribe “NuSTEC News” http://nustec.fnal.gov/ like “@nuxsec” or “NuSTEC-News” on Facebook Twitter hashtag #nuxsec

SLIDE 3

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18

Bubble Chamber Cup 2017, April 9, Sheffield (IoP HEP annual meeting football match)

Teppei Katori, Queen Mary University of London 3

Queen Mary 0-2 Sheffield Queen Mary 0-1 Manchester B Queen Mary 0-∞ Birmingham A Queen Mary 2-2 Liverpool B Queen Mary 1-4 Manchester A Liverpool A (again) won the game

SLIDE 4

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion
1. Beyond CCQE and 1 pion production
2. Shallow inelastic scattering (SIS) and DIS
3. Neutrino hadronization
4. Conclusion

2017/04/18 4 Teppei Katori, Queen Mary University of London

SLIDE 5

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2015/11/30

1. Flux-integrated differential cross-section

5

We want to study the cross-section model, but we don’t want to implement every models in the world in our simulation… We want theorists to use our data, but flux-unfolding (model-dependent process) lose details of measurements… Now, all modern experiments publish flux-integrated differential cross-section à Detector efficiency corrected event rate à Flux and FSI are convoluted à Theorists can reproduce the data with neutrino flux tables from experimentalists à Minimum model dependent, useful for nuclear theorists These data play major roles to study/improve neutrino interaction models by theorists

Teppei Katori, Queen Mary University of London

SLIDE 6

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2015/11/30

1. Flux-integrated differential cross-section

6 PDG2016 Section 50 “Neutrino Cross-Section Measurements”

T2K ArgoNeuT MiniBooNE Various type of flux-integrated differential cross-section data are available from all modern neutrino experiments. à Now PDG has a summary of neutrino cross-section data! (since 2012) MINERvA

Teppei Katori, Queen Mary University of London

SLIDE 7

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2015/11/30

1. Flux-integrated differential cross-section

7 PDG2016 Section 50 “Neutrino Cross-Section Measurements” TK, Martini, arXiv:1611.07770

Theorists Experimentalists Various type of flux-integrated differential cross-section data are available from all modern neutrino experiments. à Now PDG has a summary of neutrino cross-section data! (since 2012)

Teppei Katori, Queen Mary University of London

flux-integrated differential cross-section data allow theorists and experimentalists talk first time in neutrino interaction physics history (cf, fiducial cross-section measurement in LHC) 𝑒𝜏 𝑒𝑌 = 1 Φ ( 𝑒)𝜏 𝑒𝑦𝑒𝑧 ⨂Φ(𝐹/)⨂𝐺𝑇𝐽

𝑒𝜏

𝑒𝑌 5 = ∑ 𝑉58

9:(𝑒8 − 𝑐 8)

8

Φ ⋅ 𝑈 ⋅ 𝜁5 ⋅ ∆𝑌5

SLIDE 8

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2015/11/30

1. Flux-integrated differential cross-section

8 PDG2016 Section 50 “Neutrino Cross-Section Measurements” TK, Martini, arXiv:1611.07770

Theorists Experimentalists Various type of flux-integrated differential cross-section data are available from all modern neutrino experiments. à Now PDG has a summary of neutrino cross-section data! (since 2012)

Teppei Katori, Queen Mary University of London

𝑒𝜏 𝑒𝑌 = 1 Φ ( 𝑒)𝜏 𝑒𝑦𝑒𝑧 ⨂Φ(𝐹/)⨂𝐺𝑇𝐽

𝑒𝜏

𝑒𝑌 5 = ∑ 𝑉58

9:(𝑒8 − 𝑐 8)

8

Φ ⋅ 𝑈 ⋅ 𝜁5 ⋅ ∆𝑌5 flux-integrated differential cross-section data allow theorists and experimentalists talk first time in neutrino interaction physics history (cf, fiducial cross-section measurement in LHC)

SLIDE 9

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

9 2016/04/18

1. Topology-based cross section

Teppei Katori, Queen Mary University of London

Flux-integrated differential cross section is based on final state topology e.g.) CC0p cross section definition

Complexity increase dramatically for multi-hadron final states

n p n

pion absorption in nuclei 4

µ n p n

pion absorption in detector media 3

µ n n

multi-nucleon interaction 5

µ p n p n

2

µ

pion production

n n

1

µ

genuine CCQE

n

any other kind

f interactions

6

µ ? Genuine CCQE = (1) CC0p = (1), (4), (5), (6)

SLIDE 10

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2015/11/30

1. FSI and pion data

10 MiniBooNE,PRD83(2011)052009 Lalakulich et al,PRC87(2013)014602

n n Z p µ po D

CC1po production pion scattering p+N à p+N pion absorption p+NàD+NàN+N

n N Z N µ p+ D

CC1p+ production charge exchange p++nàpo+p

Teppei Katori, Queen Mary University of London

Final state interaction

Cascade model as a standard of the community
Advanced models are not available for event-by-event simulation

Interpretation of 1 pion production data is already complicated. Multi-hadron final state data by higher energy processes (SIS, DIS) is the new world for neutrino oscillation community!

e.g.) Giessen BUU transport model

Developed for heavy ion collision,

and now used to calculate final state interactions of pions in nuclear media

SLIDE 11

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

nµCC1p+ data has better shape agreement with GENIE anti-nµCC1po data has better normalization agreement with GENIE

2015/11/30

1. FSI tuning from pion data

11 MINERvA,PRD94(2016)052005 Teppei Katori, Queen Mary University of London

FSI and MINERvA pion production data

this moment, there is no clear directionality to tune MC…

Interpretation of 1 pion production data is already complicated. Multi-hadron final state data by higher energy processes (SIS, DIS) is the new world for neutrino oscillation community!

SLIDE 12

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18

1. Next generation neutrino oscillation experiments

Teppei Katori, Queen Mary University of London 12

Neutrino oscillation experiments

Past to Present: K2K, MiniBooNE, MINOS, T2K, DeepCore, Reactors
Present to Future: T2K, NOvA, PINGU, ORCA, Hyper-Kamiokande, DUNE

Formaggio and Zeller, Rev.Mod.Phys.84(2012)1307

nµCC cross section per nucleon

P

µ→e(L / E) = sin2 2θ sin2 1.27Δm2(eV 2) L(km)

E(GeV) # $ % & ' (

SLIDE 13

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18

1. Next generation neutrino oscillation experiments

Teppei Katori, Queen Mary University of London 13

Neutrino oscillation experiments

Past to Present: K2K, MiniBooNE, MINOS, T2K, DeepCore, Reactors
Present to Future: T2K, NOvA, PINGU, ORCA, Hyper-Kamiokande, DUNE…

Formaggio and Zeller, Rev.Mod.Phys.84(2012)1307

P

µ→e(L / E) = sin2 2θ sin2 1.27Δm2(eV 2) L(km)

E(GeV) # $ % & ' (

T2K MINOS MiniBooNE SciBooNE K2K

nµCC cross section per nucleon

DeepCore

Reactors ~ 4MeV

SLIDE 14

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18

1. Next generation neutrino oscillation experiments

Teppei Katori, Queen Mary University of London 14 Formaggio and Zeller, Rev.Mod.Phys.84(2012)1307

Neutrino oscillation experiments

Past to Present: K2K, MiniBooNE, MINOS, T2K, DeepCore, Reactors
Present to Future: T2K, NOvA, PINGU, ORCA, Hyper-Kamiokande, DUNE…

P

µ→e(L / E) = sin2 2θ sin2 1.27Δm2(eV 2) L(km)

E(GeV) # $ % & ' (

MINOS+ T2K/Hyper-K NOvA

nµCC cross section per nucleon

DUNE

Reactors ~ 4MeV

MicroBooNE SBND ICARUS PINGU ORCA

SLIDE 15

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18

1. Next generation neutrino oscillation experiments

Teppei Katori, Queen Mary University of London 15 Formaggio and Zeller, Rev.Mod.Phys.84(2012)1307 TK and Martini, ArXiv:1611.07770

Energy > 2 GeV is important

T2K, NOvA, DUNE event rate per channel

NOvA, CCQE=28%, RES=40%, DIS=32% DUNE, CCQE=10%, RES=17%, DIS=73%

GENIE v2.8.6

SLIDE 16

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18

1. Next generation neutrino oscillation experiments

Teppei Katori, Queen Mary University of London 16 Formaggio and Zeller, Rev.Mod.Phys.84(2012)1307 TK and Martini, ArXiv:1611.07770

Energy > 2 GeV is important

T2K, NOvA, DUNE event rate per channel

NOvA, CCQE=28%, RES=40%, DIS=32% DUNE, CCQE=10%, RES=17%, DIS=73% In order to reconstruct the neutrino energy, we need to add all “bits”

Yun-Tse Tsai (SLAC), NuPhys16 GENIE v2.8.6

SLIDE 17

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

17 2017/04/18

1. Introduction, summary

Teppei Katori, Queen Mary University of London

Beyond CCQE and 1 pion production processes Current and future oscillation experiments have significant amount of higher energy processes with nuclear target

1. Flux-integrated differential cross-sections
Flux and FSI are integrated
topology-based cross-section
2. Final state interactions (FSIs)
In general, we cannot access to primary vertex processes directly
3. Multi-hadron final state measurements
Important for processes beyond CCQE and 1 pion production processes
Theory, simulation, and measurement are all very premature

SLIDE 18

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion
1. Beyond CCQE and 1 pion production
2. Shallow inelastic scattering (SIS) and DIS
3. Neutrino hadronization
4. Conclusion

2017/04/18 18 Teppei Katori, Queen Mary University of London

SLIDE 19

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

19 2017/04/18

2. SIS region physics

Teppei Katori, Queen Mary University of London

Basic ingredients

D(1232)-resonance
higher resonances
non-resonant background

Nakamura et al.,Rep.Prog.Phys.80(2017)056301

D(1232) higher resonances non-resonant background

GENIE v2.8.6

w, q0 (GeV)

SLIDE 20

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2015/11/30

2. Tuning SIS region model

20 MINERvA,PRD94(2016)052005 Teppei Katori, Queen Mary University of London

nµCC1p+ data has better shape agreement with GENIE anti-nµCC1po data has better normalization agreement with GENIE

Non-resonant background and MINERvA pion production data

this moment, there is no clear directionality to tune MC…
Tuning down non-resonant background may be a solution to satisfy 2 data sets (?)

SLIDE 21

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

21 2017/04/18

2. Tuning SIS region model

Teppei Katori, Queen Mary University of London

Bubble chamber data reanalysis

non-resonant background is tuned down

Rodrigues,Wilminson,McFarland,EPJC76(2016)474

SLIDE 22

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

22 2017/04/18

2. GENIE SIS model

Teppei Katori, Queen Mary University of London

Cross section W2<2.9 GeV2 : RES W2>2.9 GeV2 : DIS Hadronization W2<5.3GeV2 : KNO scaling based model 2.3GeV2<W2<9.0GeV2 : transition 9.0GeV2<W2 : PYTHIA6 W2 distribution for H2O target with atmospheric-n flux (GENIE)

Non-resonance background (low W DIS)

DIS

AGKY, EPJC63(2009)1 TK and Mandalia,JPhysG42(2015)115004

There are 2 kind of “transitions” in SIS region

cross-section
hadronization

GENIE v2.8.0

SLIDE 23

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

23 2017/04/18

2. NEUT SIS model

Teppei Katori, Queen Mary University of London

Cross section W2<4 GeV2 : RES W2>4 GeV2 : DIS Hadronization W2<4GeV2 : KNO scaling based model 4GeV2<W2 : PYTHIA5 There are 2 kind of “transitions” in SIS region

cross-section
hadronization

Christophe Bronner (IPMU)

W2 distribution for H2O target with atmospheric-n flux (NEUT)

RES DIS DIS

Non-resonance background (low W DIS)

KNO PYTHIA5

SLIDE 24

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

24 2017/04/18 Teppei Katori, Queen Mary University of London

RES DIS

KNO PYTHIA5

2. GENIE vs. NEUT

SLIDE 25

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

25 2017/04/18

2. SIS cross section model

Teppei Katori, Queen Mary University of London

Cross section

Higher resonances and hadron dynamics
low Q2, low W DIS
Nuclear dependent DIS

SLIDE 26

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

26 2017/04/18

2. SIS cross section model

Teppei Katori, Queen Mary University of London

Cross section

Higher resonances and hadron dynamics
low Q2, low W DIS
Nuclear dependent DIS

DCC model

Total amplitude is conserved
Channels are coupled (pN, ppN, etc)
2 pion productions ~10% at 2 GeV

Nakamura et al,Rep.Prog.Phys.80(2017)056301 DCC model vs. electro-pionproduction data

nµp nµn

SLIDE 27

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

27 2017/04/18

2. SIS cross section model

Teppei Katori, Queen Mary University of London Bodek and Yang, AIP.Conf.Proc.670(2003)110,Nucl.Phys.B(Proc.Suppl.)139(2005)11

𝐿BCDEFGE 𝑅) = [1 − 𝐻K

)(𝑅))] M 𝑅) + 𝐷B)

𝑅) + 𝐷B:

𝜊 = 2𝑦 1 + 1 + 4𝑦)𝑁) 𝑅)

Nachtmann

variable

𝐿TEC 𝑅) = 𝑅) 𝑅) + 𝐷T:

𝜊 → 𝜊V = 2𝑦 1 + 𝑁

W ) + 𝐶

𝑅) 1 + 1 + 4𝑦)𝑁) 𝑅)

+ 2𝐵𝑦

𝑅) Proton F2 function GRV98-BY correction vs. data

Cross section

Higher resonances and hadron dynamics
low Q2, low W DIS
Nuclear dependent DIS

GRV98 LO PDF + Bodek-Yang correction

GRV98 for low Q2 DIS
Bodek-Yang correction for QH-duality
20 years old, out-of-dated
not sure how to implement systematic errors

SLIDE 28

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

28 2017/04/18

2. SIS cross section model

Teppei Katori, Queen Mary University of London Bodek and Yang, AIP.Conf.Proc.670(2003)110,Nucl.Phys.B(Proc.Suppl.)139(2005)11 NuTeV, PRD74(2006)012008

150 GeV

NuTeV n-Fe and antin-Fe differential cross section (x, y, En)

GENIE-NuTeV comparison

GENIE use GRV98+BY correction
GENIE can describe NuTeV data except

very low x region

Impact of data-MC low x disagreement is

~2% on total cross section in 30<E<360 GeV

It seems to work for NuTeV data (Fe)

à How about other nuclear target?

Shivesh Mandalia (Queen Mary)

Cross section

Higher resonances and hadron dynamics
low Q2, low W DIS
Nuclear dependent DIS

GRV98 LO PDF + Bodek-Yang correction

GRV98 for low Q2 DIS
Bodek-Yang correction for QH-duality
20 years old, out-of-dated
not sure how to implement systematic errors

SLIDE 29

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

29 2017/04/18

2. SIS cross section model

Teppei Katori, Queen Mary University of London

Cross section

Higher resonances and hadron dynamics
low Q2, low W DIS
Nuclear dependent DIS

HKN,PRC76(2007)065207, EPS,JHEP04(2009)065, FSSZ,PRD85(2012)074028 nCTEQ, PRD80(2009)094004 Jorge Morfin (Fermilab) Sorry for my absence…

Nuclear PDF

Shadowing, EMC effect, Fermi motion
Theoretical origin is under debate
Various models describe charged lepton data
Neutrino data look very different

l

±-Fe nuclear correction factor

shadowing EMC effect Fermi motion anti-shadowing

SLIDE 30

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

n-Fe nuclear correction factor

30 2017/04/18

2. SIS cross section model

Teppei Katori, Queen Mary University of London

Cross section

Higher resonances and hadron dynamics
low Q2, low W DIS
Nuclear dependent DIS

Nuclear PDF

Shadowing, EMC effect, Fermi motion
Theoretical origin is under debate
Various models describe charged lepton data
Neutrino data look very different

no shadowing? EMC effect at x~0.1? HKN,PRC76(2007)065207, EPS,JHEP04(2009)065, FSSZ,PRD85(2012)074028 nCTEQ, PRD80(2009)094004

l

±-Fe nuclear correction factor

shadowing EMC effect Fermi motion anti-shadowing

SLIDE 31

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

31 2017/04/18

2. SIS cross section model

Teppei Katori, Queen Mary University of London

MINERvA DIS target ratio data (C, Fe, Pb)

MINERvA data reveal shadowing effect on

neutrino may be larger than expected We care all nuclear targets

Neutrino beam is like a “shower”, and it interacts

with all materials surrounding the vertex detector. MC needs to simulate neutrino interactions (and particle propagations) for all inactive materials.

MINERvA,PRD93(2016)071101

Cross section

Higher resonances and hadron dynamics
low Q2, low W DIS
Nuclear dependent DIS

12C 56Fe 208Pb neutrino detector Neutrino beam

n-Si n-Al n-Pb

SLIDE 32

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

32 2017/04/18

2. SIS cross section, summary

Teppei Katori, Queen Mary University of London

Three important physics beyond CCQE and 1 pion production

1. higher baryon resonance and how to compute the total amplitude
2. low Q2 DIS and how to model resonance à DIS transition
3. nuclear dependent DIS

SLIDE 33

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion
1. Beyond CCQE and 1 pion production
2. Shallow inelastic scattering (SIS) and DIS
3. Neutrino hadronization
4. Conclusion

2017/04/18 33 Teppei Katori, Queen Mary University of London

SLIDE 34

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2015/09/02

3. Neutrino low W hadronization model

Teppei Katori, Queen Mary University of London 34

Averaged charged hadron multiplicity <nch>

Parameters extracted from data are used to model hadronization process
The bubble chamber data are not consistent

AGKY, EPJC63(2009)1 Connolly, PhD thesis (U-Washington, Seattle, 2014)

< nch >= a+ bLog(W 2)

Averaged charged hadron multiplicity

n µ- p- p+ p

charged hadron multiplicity averaged charged hadron multiplicity

SLIDE 35

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2015/09/02

3. Neutrino low W hadronization model

Teppei Katori, Queen Mary University of London 35

Averaged charged hadron multiplicity <nch>

Parameters extracted from data are used to model hadronization process
The bubble chamber data are not consistent

AGKY, EPJC63(2009)1 Connolly, PhD thesis (U-Washington, Seattle, 2014)

Averaged charged hadron multiplicity KNO scaling law of charged hadron multiplicity

SLIDE 36

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2015/09/02

3. Neutrino high W hadronization model

Teppei Katori, Queen Mary University of London 36 Sjostrand, Lonnblad, and Mrenna, hep-ph/0108264 Gallmeister and Falter, PLB630(2005)40, TK and Mandalia,JPhysG42(2015)115004

)

4

/c

2

(GeV

2

W

1 10

2

10

>

ch

<n

2 4 6 8 10

(1983)

2

D ν 15’ (1981)

2

H ν BEBC Default Modified PYTHIA

++

X

µ

→ p ν )

4

/c

2

(GeV

2

W

1 10

2

10

>

ch

<n

2 4 6 8 10

(1983)

2

D ν 15’ (1984)

2

D ν BEBC Default Modified PYTHIA

+

X

µ

→ n ν

Neutrino average charged hadron multiplicity

KNO scaling PYTHIA6 transition

t x

Sketch of fragmentation from q-q string breaking

𝑔(𝑨) ∝ 𝑨9: 1 − 𝑨 C ⋅ 𝑓𝑦𝑞 −𝑐𝑛a

)

𝑨

hadron energy distribution from iterative process tunnelling probability

Lund string function

Averaged charged hadron multiplicity <nch>

PYTHIA6 with tuned Lund string function can

reproduce <nch> data both neutrino and antineutrino.

SLIDE 37

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

37 2017/04/18

3. Low W vs. high W hadron multiplicity

Teppei Katori, Queen Mary University of London

Bubble chamber topological cross section data Although averaged charged hadron multiplicity makes continuous curve, topological cross sections are discontinuous, because multiplicity dispersion by PYTHIA6 is much narrower than bubble chamber data. Impact of hadronization is small for experiments which only measure hadron shower (NOvA, PINGU, ORCA), but large for higher resolution detectors (MINERvA, T2K ND280, LArTPC) )

4

/c

2

(GeV

2

W

1 10

2

10

>

ch

<n

2 4 6 8 10

(1983)

2

D ν 15’ (1981)

2

H ν BEBC Default Modified PYTHIA

++

X

µ

→ p ν

Neutrino average charged hadron multiplicity

KNO scaling PYTHIA6 transition

n-p topological cross section (GENIE)

KNO scaling PYTHIA6 transition TK and Mandalia,JPhysG42(2015)115004 Zieminska et al (Fermilab 15’),PRD27(1993)47

SLIDE 38

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

38 2017/04/18

3. Hadronization, summary

Teppei Katori, Queen Mary University of London

Two important processes

1. Low W hadronization process based on empirical model (KNO scaling)
2. High W hadronization process from particle physics (PYTHIA, etc)

… and how to connect them

SLIDE 39

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion
1. Beyond CCQE and 1 pion production
2. Shallow inelastic scattering (SIS) and DIS
3. Neutrino hadronization
4. Conclusion

2017/04/18 39 Teppei Katori, Queen Mary University of London

SLIDE 40

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18

Physics of Neutrino Interactions

40

Neutrino Interaction Physics

Heavy ion collision Nucleon correlation Dark matter Neutrino

scillation

Weak interaction EMC effect electron scattering Tremendous amount of activities, new data, new theories…

Teppei Katori, Queen Mary University of London

nuclear many-body problem Spin physics

SLIDE 41

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18 41 Teppei Katori, Queen Mary University of London

NuSTEC (Neutrino Scattering Theory-Experiment Collaboration)

NuSTEC promotes the collaboration and coordinates efforts between

theorists, to study neutrino interaction problems
experimentalists, to understand nu-A and e-A scattering problems
generator builders, to implement, validate, tune, maintain models

The main goal is to improve our understanding of neutrino interactions with nucleons and nuclei

SLIDE 42

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18 42 Teppei Katori, Queen Mary University of London

NuSTEC school

NuSTEC school 17, Fermilab (Nov. 2017, TBA)

NuSTEC school is dedicated for students/postdocs

to learn physics of neutrino interactions, both for theorists, and experimentalists

Lectures of NuSTEC school 15, Okayama, Japan (Nov. 8-14, 2015)

SLIDE 43

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18 43 Teppei Katori, Queen Mary University of London

Conclusion

Flux-integrated differential cross-sections play a major role for model tuning

flux and FSI are integrated, topology-based cross-sections

Processes beyond CCQE and 1 pion production are important. We need to correctly connect and/or add correct models.

1. Higher resonances and hadron dynamics
2. low Q2 DIS
3. nuclear dependent DIS
4. low W hadronization
5. high W hadronization

Role of hadron simulation is getting more important. We need models working in all kinematic region. Neutrino experiment is always “inclusive” comparing with electron scattering (nuclear physics) and collider physics (particle physics). Cross-section and hadronization processes should make sense in any Q2 and W region. Subscribe “NuSTEC News” http://nustec.fnal.gov/ like “@nuxsec” or “NuSTEC-News” on Facebook Twitter hashtag #nuxsec

SLIDE 44

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18 44

Thank you for your attention!

Conclusion

Neutrino Interaction Physics

Heavy ion collision Nucleon correlation Dark matter Neutrino

scillation

Weak interaction EMC effect electron scattering

Teppei Katori, Queen Mary University of London

nuclear many-body problem Spin physics Subscribe “NuSTEC News” http://nustec.fnal.gov/ like “@nuxsec” or “NuSTEC-News” on Facebook Twitter hashtag #nuxsec

SLIDE 45

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18

Backup

45 Teppei Katori, Queen Mary University of London

SLIDE 46

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

46 2017/04/18

3. non-QE background

Teppei Katori, Queen Mary University of London

non-QE background à shift spectrum

n n

Signal

µ Typical neutrino detector

Big and dense, to maximize interaction rate
Coarsely instrumented, to minimize cost

(not great detector to measure hadrons)

SLIDE 47

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

47 2017/04/18

3. non-QE background

Teppei Katori, Queen Mary University of London

non-QE background à shift spectrum

n p n

Rejected (not background)

µ n n

Signal

µ Typical neutrino detector

Big and dense, to maximize interaction rate
Coarsely instrumented, to minimize cost

(not great detector to measure hadrons)

SLIDE 48

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

48 2017/04/18

3. non-QE background

Teppei Katori, Queen Mary University of London

non-QE background à shift spectrum

n p n

Rejected (not background)

µ n p n

pion absorption in nuclei Not rejected (background)

µ n n

Signal

µ Typical neutrino detector

Big and dense, to maximize interaction rate
Coarsely instrumented, to minimize cost

(not great detector to measure hadrons)

SLIDE 49

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

49 2017/04/18

3. non-QE background

Teppei Katori, Queen Mary University of London

non-QE background à shift spectrum

n p n

Rejected (not background)

µ n p n

pion absorption in nuclei Not rejected (background)

µ

QE assumption reconstructed neutrino energy (EnQE)

T2K collabo.

sin22q23 Dm2µt

Reconstructed neutrino energy (GeV)

T2K collabo.

n n

Signal

µ

SLIDE 50

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2017/04/18

3. non-QE background

50 Coloma et al,PRL111(2013)221802 Mosel et al,PRL112(2014)151802

Pion production for nµ disappearance search

Source of mis-reconstruction of

neutrino energy Neutral pion production in ne appearance search

Source of misID of electron

DUNE true vs. reconstructed En spectrum

Understanding of neutrino pion production is important for oscillation experiments n N Z N µ p D

pion absorption

n N Z N n po D

NCpo + asymmetric decay

g

Teppei Katori, Queen Mary University of London

dCP=+p/2 dCP=-p/2

SLIDE 51

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

51 2017/04/18

2. GENIE SIS model

Teppei Katori, Queen Mary University of London

Cross section W2<2.9 GeV2 : RES W2>2.9 GeV2 : DIS Hadronization W2<5.3GeV2 : KNO scaling based model 2.3GeV2<W2<9.0GeV2 : transition 9.0GeV2<W2 : PYTHIA6 W2recon distribution for H2O target with atmospheric-n flux (GENIE)

Non-resonance background (low W DIS)

DIS

AGKY, EPJC63(2009)1 TK and Mandalia,JPhysG42(2015)115004

There are 2 kind of “transitions” in SIS region

cross-section
hadronization

Reconstructed W spectrum à measurable W distribution with 100% efficiency detector GENIE v2.8.0

SLIDE 52

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2015/09/02

3. Neutrino high W hadronization model

Teppei Katori, Queen Mary University of London 52

Kuzmin-Naumov fit

They systematically analysed all bubble chamber data
Difference of hydrogen and deuterium data
Presence of kinematic cuts
Better parameterization

Kuzmin and Naumov, PRC88(2013)065501 NuWro GENIE GiBUU

All PYTHIA-based models underestimate averaged charged hadron multiplicity data (GiBUU, GENIE, NuWro, NEUT)

Average charged hadron multiplicity with function of W2

SLIDE 53

1. n-interaction
2. SIS and DIS
3. Hadronization
4. Conclusion

2015/09/02

3. HERMES tuned PYTHIA6

Teppei Katori, Queen Mary University of London 53

)

4

/c

2

(GeV

2

W

1 10

2

10

>

ch

<n

2 4 6 8 10

(1983)

2

D ν 15’ (1981)

2

H ν BEBC Default Modified PYTHIA

++

X

µ

→ p ν

Neutrino average charged hadron multiplicity

KNO scaling PYTHIA6 transition

Averaged charged hadron multiplicity <nch>

Lund-scan increases <nch> (à better

agreement with bubble chamber data) both neutrino and antineutrino. Red: PYTHIA default Blue: Lund-scan Making continuous curve is not easy at the transition region of models…

DIS

non-resonant background

RES

TK and Mandalia,JPhysG42(2015)115004
