Simulating Air Traffic Control Ground Operations: Preliminary Results from Project Modern Taxiing Zarrin Chua 1 , Mathieu Cousy 2 , Fabien Andre 2 , Mickal Causse 1 1 Institut Suprieur de lAronautique et de lEspace 2 cole Nationale de

slide-1
SLIDE 1

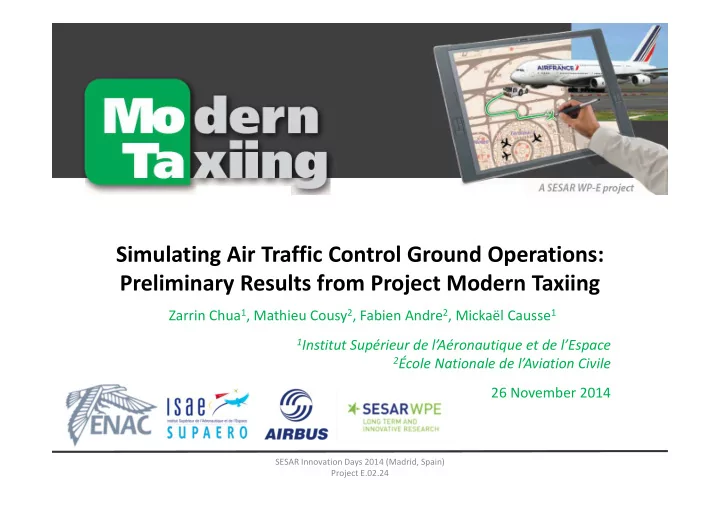

Simulating Air Traffic Control Ground Operations: Preliminary Results from Project Modern Taxiing

Zarrin Chua1, Mathieu Cousy2, Fabien Andre2, Mickaël Causse1

1Institut Supérieur de l’Aéronautique et de l’Espace 2École Nationale de l’Aviation Civile

26 November 2014

SESAR Innovation Days 2014 (Madrid, Spain) Project E.02.24

slide-2
SLIDE 2

26 Nov 2014 /28

Explore automated taxiing options that would enable varying levels of automated assistance and support the technology transition period in a non-intrusive manner

SESAR Innovation Days 2014 (Madrid, Spain) 2

Project Modern Taxiing

  • Current taxiing operations are expensive: e.g. fuel, time,

emissions

– Reliance on aircraft’s main engines – Average taxiing time of 20 minutes around Charles-de-Gaulle

  • Forecasted increases in traffic are a good opportunity to

introduce automation

– On-ground vehicles, automation for air traffic control officer (ATCO)

  • How can we effectively introduce this technology?
slide-3
SLIDE 3

26 Nov 2014 /28

  • Fleet of autonomous taxi robots (TaxiBots) at airport

– Tractors that can tow the aircraft to and from the runway

  • Percentage of aircraft equipped with DataLink

– eTaxi: electronic Taxiing, autopilot system in the cockpit

  • Intelligent ATCO interface

– Smart algorithms for TaxiBot management, conflict detection, path suggestion, etc

SESAR Innovation Days 2014 (Madrid, Spain) 3

Proposed Technology

slide-4
SLIDE 4

26 Nov 2014 /28

  • How many TaxiBots will be added to operations ?
  • How will the TaxiBots be managed by the ground ATCO ?

– Possibly doubling number of vehicles on taxiways

  • Where and what should we automate to help the ATCO?
  • What and how will this information be provided to the

controller?

  • How will this work evolve with changes to the aircraft fleet ?

SESAR Innovation Days 2014 (Madrid, Spain) 4

Questions to be answered

slide-5
SLIDE 5

26 Nov 2014 /28

  • Three human-in-the-loop experiments

1. Baseline/current technologies: paper flight strips, radio communication 2. Interface: with decision support system, conflict detection, etc 3. TaxiBot/eTaxi: Interface + technology for ground operations

Currently wrapping up Exp 1, towards end of development for Exp 2

  • Today’s talk

– Discussion of Validation Plan – Simulation Facility – Preliminary Results from first Experiment – Preview of Exp 2

SESAR Innovation Days 2014 (Madrid, Spain) 5

Where are we : Project-level

slide-6
SLIDE 6

26 Nov 2014 /28

  • South end of Roissy Charles de Gaulle Airport (Paris, France)
  • Ground controller only

– Local, Apron control, North ground are simulated

  • Evaluating current and futuristic air traffic levels

SESAR Innovation Days 2014 (Madrid, Spain) 6

Where are we : Context-level

slide-7
SLIDE 7

Validation Plan

Three experiments, several mini- experiments/workshops

SESAR Innovation Days 2014 (Madrid, Spain)

slide-8
SLIDE 8

26 Nov 2014 /28

  • 3 x 2 full factorial design
  • Automation: three levels (corresponding to three experiments)

– Baseline – Interface – TaxiBot/eTaxi

  • Scenario: two levels of difficulty

– Combination of traffic load and activity – Medium: traffic load of 50 movements/hr, standard activity – Hard: traffic load of 70 mvts/hr, standard activity + change in QFU

SESAR Innovation Days 2014 (Madrid, Spain) 8

Validation Plan

Exp 1: Baseline Exp 2: Interface Exp 3: Interface + Auto February 2015 October 2015 October 2014

slide-9
SLIDE 9

26 Nov 2014 /28

  • Solicit ideas and remarks on the platform and automation
  • Full experiment not required, <5 controllers, specialists

– Feb : Scenario definition, path suggestion improvements – July : Finalization of scenarios – Oct : MoTa workshop on taxibots, interaction, algorithm – Nov : Conflict detection, automation level modality

  • Ideas for future

– Finalization of parameters: timing of warning (and possible correlations with traffic load); managing taxibot return – Appropriateness of solutions proposed by algorithm – Maximum capacity of traffic managable by a singular CDG controller with MoTa

SESAR Innovation Days 2014 (Madrid, Spain) 9

Participatory Design

Exp 1: Baseline Exp 2: Interface Exp 3: Interface + Auto February 2015 October 2015 October 2014

slide-10
SLIDE 10

26 Nov 2014 /28

Medium Hard

West West East

QFU!

Restricted Zone Pilot Error Towed Aircraft Taxiway closure (aircraft breakdown) Each scenario takes about 35 minutes

Scenario Activity

10

slide-11
SLIDE 11

26 Nov 2014 /28

  • Idea is to compare operational and neurophysiological responses

to each event, with and without automation assistance

  • Other degrees of conflict are noted

– Assignment of Aircraft Priority – Localized optimization (e.g. shortcuts)

SESAR Innovation Days 2014 (Madrid, Spain) 11

Simulation Operations

slide-12
SLIDE 12

26 Nov 2014 /28 SESAR Innovation Days 2014 (Madrid, Spain) 12

Dependent Variables

Operational

  • Throughput
  • Fuel consumption
  • Taxi-in, taxi-out time
  • Number of bottlenecks

Behavioral

  • Number of actions
  • Clarity of commands
  • Deviation from ideal

trajectory

Subjective

  • Workload (TLX)
  • Situation awareness (SART)
  • Trust in technology (SATI)
  • Remarks on the technology

Neurophysiological

  • Occular (eyetracker)
  • Cardiographic (ECG)
  • Cerebral activity (EEG, CZ)

* Solutions for Human-Automation Partnership in European ATM (SHAPE) Automation Trust Index

slide-13
SLIDE 13

26 Nov 2014 /28

  • Pool of international ATCOs: active, retired, instructors

– Small and large airports, Charles-de-Gaulle

  • Twelve participants per experiment (36 individuals total)
  • Matched demographics between experiments

– Tests for CDG memory retention between experiments

  • Each session is 3 hours long

– Airport manuals/maps sent prior to each experiment – Practice: Open discussion about CDG layout – Calibration: eyetracker, electroencephalogram (EEG), electrocardiogram (ECG) – Run 1: Medium or Hard – Run 2: Medium or Hard – Subjective measures are collected after each run, overall comments at end

SESAR Innovation Days 2014 (Madrid, Spain) 13

Participants

slide-14
SLIDE 14

Simulation Facility

Ecole Nationale de l’Aviation Civile Toulouse, France

SESAR Innovation Days 2014 (Madrid, Spain)

slide-15
SLIDE 15

26 Nov 2014 /28 SESAR Innovation Days 2014 (Madrid, Spain) 15

ATC Tower simulator

  • External view is based on FlightGear
  • The MoTa platform centered around

ivy bus

slide-16
SLIDE 16

Preliminary Results

10 participants: 4 CDG, 6 non-CDG

SESAR Innovation Days 2014 (Madrid, Spain)

slide-17
SLIDE 17

26 Nov 2014 /28

  • Medium: max of 31 movements in 35 minutes
  • Hard: max of 41 movements in 35 minutes

– One ATCO handling all traffic, rather than splitting into two zones

  • Scenarios designed for higher rates, ATCOs can advance aircraft

SESAR Innovation Days 2014 (Madrid, Spain) 17

Operational: Throughput

Average Throughout

38 CDG 30 27 Non 27 29 Med. 33 Hard

By CDG/Non-CDG

slide-18
SLIDE 18

26 Nov 2014 /28

  • Results are shown for taxiing time through south ground sector
  • nly

– Taxiing from North usually adds another 7-10 minutes – Aircraft simulated to accelerate at max possible under velocity constraints at airport – Will likely normalize this time to shortest standard route

SESAR Innovation Days 2014 (Madrid, Spain) 18

Operational: Avg Taxiing Time

< 5 5 -10 10 -15 > 20 Taxiing time, minutes 50 15-20 % of Aircraft 40 10 20 30

Med-All Med-CDG Med-non Hard-All Hard-CDG Hard-non

slide-19
SLIDE 19

26 Nov 2014 /28 Less Workload Less Workload

  • Workload: NASA Task Load Index (TLX)

– 1 is low workload, 7 is high

SESAR Innovation Days 2014 (Madrid, Spain) 19

Subjective measures

Mental Req. Physical Req. Temporal Req. Effort Performance Frustration Med-All Med-CDG Med-non Hard-All Hard-CDG Hard-non Expected difference in scores

slide-20
SLIDE 20

26 Nov 2014 /28

  • Situation Awareness Rating Technique (SART)

– 1 is low situation awareness, 7 is high

SESAR Innovation Days 2014 (Madrid, Spain) 20

Subjective measures

Med-All Med-CDG Med-non Hard-All Hard-CDG Hard-non Instability Complexity Variability Excitation Concentration Att Division Att.

  • Avail. Mental Cap.

Info Quantity Info Quality Familiarity

slide-21
SLIDE 21

26 Nov 2014 /28 Less Trust in Auto

  • SHAPE (Solutions for Human Automation Partnerships in

European ATM) Automation Trust Index (SATI)

– 0 is little degree of trust, 6 is high degree

SESAR Innovation Days 2014 (Madrid, Spain) 21

Subjective measures

Useful Reliable Precise Comprehensible Robust I have confidence in the automation

slide-22
SLIDE 22

26 Nov 2014 /28

  • Evaluate participant response (heart rate, cerebral activity, pupil

dilation, reaction time) to each event (pilot error, restricted taxiway, taxiway closure, tractor, change in QFU)

  • Noting: # of aircraft affected, possible collisions, etc
  • In progress … !

SESAR Innovation Days 2014 (Madrid, Spain) 22

Neurophysiological

slide-23
SLIDE 23

Preview of Experiment 2

Interface with conflict detection algorithm, path suggestion

SESAR Innovation Days 2014 (Madrid, Spain)

slide-24
SLIDE 24

26 Nov 2014 /28

  • Automation

– Use of common A-SMGCS concepts

  • Clearance monitoring
  • Conflict detection (short-term and strategic)
  • Path suggestion based on airport rules
  • DataLink
  • Novelties

– Shared authority between algorithm and ATCOs – Exploration of Multi-Agent System (MAS) algorithm for conflict resolution proposal

SESAR Innovation Days 2014 (Madrid, Spain) 24

Interface designs

slide-25
SLIDE 25

26 Nov 2014 /28

  • Human-Machine Interface

– Label-based interactions (and an additional timeline) – Exploring multimodality: voice and gesture recognition, eye gaze

  • Path input

– Validate proposed route if it fits – Rapid interaction to allow user-defined route

  • Wide set of clearance types to match

actual controller methods (and to keep automation in the loop)

– Give way, follow this aircraft, hold short of, etc.

SESAR Innovation Days 2014 (Madrid, Spain) 25

Interface designs

slide-26
SLIDE 26

26 Nov 2014 /28

  • TaxiBot interaction

– Grouping TaxiBots to minimize radar footprint (match routes) – Exploring methods to communicate Aircraft priorities between:

  • TaxiBot with Aircraft + Aircraft
  • Taxibot + Aircraft
  • More workshops and interactive sessions planned for 2015

– Evaluating methods of information representation to ATCOs (e.g. events) – Possible parallel study regarding the integration of DMAN information

  • Further reflection on procedure evolutions required
  • Use of MAS modeling for taxibot simulation

SESAR Innovation Days 2014 (Madrid, Spain) 26

An even farther look …

slide-27
SLIDE 27

26 Nov 2014 /28

Project MoTa is exploring the usage of autonomous TaxiBots, eTaxi, and an intelligent interface to permit varying levels of automation that can transition and support the ground air traffic controller to future traffic loads. Three experiments are planned to evaluate the three stages of MoTa: baseline, interface, automation. We are between Experiments 1 and 2. Mini-experiments to iterate on and explore side concepts continue. Our Air Traffic Control Tower simulator is simulating two scenarios, Medium (current) and Hard (futuristic) and is capable of evaluating other

  • scenarios. In addition to operational and subjective measures, we are also

collecting behavioral and neurophysiological data.

SESAR Innovation Days 2014 (Madrid, Spain) 27

Summary

slide-28
SLIDE 28

Questions ?

Acknowledgements

  • F. Lancelot, R. Benhacène, G. Granger, M. Traoré and the rest of the Project MoTa team

Centre Aéronautique et Spatial (ISAE) Aeronautical Computer Human Interaction Laboratory (ENAC)

SESAR Innovation Days 2014 (Madrid, Spain) This work is co-financed by EUROCONTROL acting on behalf of the SESAR Joint Undertaking (the SJU) and the EUROPEAN UNION as part

  • f Work Package E in the SESAR Programme. Opinions expressed in this work reflect the authors’ views only and EUROCONTROL and/or

the SJU shall not be considered liable for them or for any use that may be made of the information contained herein.
