Live-Wire Segmentation with "shortest path" By Ilan Smoly What is segmentation? Approaches with graphs Intelligent scissors and Live wire - Optimal path (Dijkstra) Binary images posteriori estimation Min-cut/Max-flow

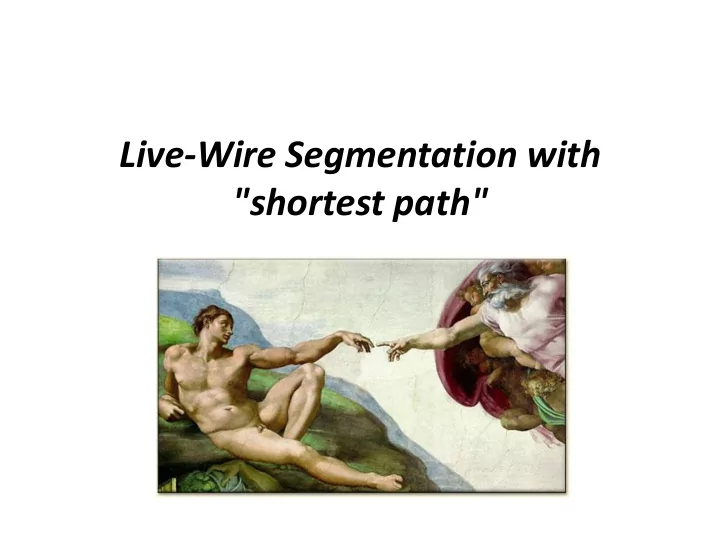

Live-Wire Segmentation with "shortest path" By Ilan Smoly
What is segmentation?
Approaches with graphs • Intelligent scissors and Live wire - Optimal path (Dijkstra) • Binary images posteriori estimation – Min-cut/Max-flow • Seeds – Min-cut/Max-flow with user inputs.
Live - Wire
The graph • Oriented Boundary • Intelligent Scissors
Oriented Boundary • Intensity • Various gradient magnitude • Orientation-sensitive
Intelligent Scissors • Laplacian Zero-Crossing • Magnitude: • Gradient Direction
Shortest path with Laplacian cost
Livewire on the Fly • A pruning of Dikstra • Stops when target is reached
Results
Results directionality Magnitude Power
• No magnitude • No Directionality • No Power
• Directionality = 13 • Power = 30 • Magnitude = 43
Discussion • powerful and efficient tool for image editing and analyzing. • Medical use • Not reliable for long distance pathways
Improvement • random long distance relations between pixels • Adopting the biological model

Download Presentation

Download Policy: The content available on the website is offered to you 'AS IS' for your personal information and use only. It cannot be commercialized, licensed, or distributed on other websites without prior consent from the author. To download a presentation, simply click this link. If you encounter any difficulties during the download process, it's possible that the publisher has removed the file from their server.

Recommend

4.4 Shortest Paths in a Graph shortest path from Princeton CS department to Einstein's house

4.4 Shortest Paths in a Graph shortest path from Princeton CS department to Einstein's house Shortest Path Problem Shortest path network. Directed graph G = (V, E). Source s, destination t. Length e = length of edge e. Shortest

226 views • 6 slides

TEDI: Efficient Shortest Path Query Answering on Graphs Fang Wei University of Freiburg SIGMOD

TEDI: Efficient Shortest Path Query Answering on Graphs Fang Wei University of Freiburg SIGMOD 2010 Applications Shortest Path Queries A shortest path query on a(n) (undirected) graph finds the shortest path for the given source and target

678 views • 33 slides

Outline and Reading Weighted graphs (7.1) Shortest Paths Shortest path problem Shortest

Outline and Reading Weighted graphs (7.1) Shortest Paths Shortest path problem Shortest path properties Dijkstras algorithm (7.1.1) 0 A 4 8 Algorithm 2 8 2 3 Edge relaxation 7 1 B C D The Bellman-Ford

348 views • 4 slides

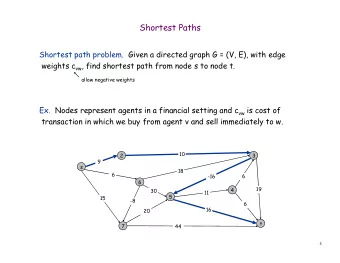

Shortest Paths Shortest path problem. Given a directed graph G = (V, E), with edge weights c vw ,

Shortest Paths Shortest path problem. Given a directed graph G = (V, E), with edge weights c vw , find shortest path from node s to node t. allow negative weights Ex. Nodes represent agents in a financial setting and c vw is cost of transaction

394 views • 11 slides

Finding Shortest Paths Shortest Path Problem Shortest Path Problem Given a graph G = ( V , E )

Finding Shortest Paths Shortest Path Problem Shortest Path Problem Given a graph G = ( V , E ) and an edge weight function : V R . Length of a Path The length or weight ( P ) of a path P = { v 1 , v 2 , . . . , v l } with at least two

347 views • 24 slides

Finding Shortest Paths Shortest Path Problem Shortest Path Problem We are given a graph G = ( V ,

Finding Shortest Paths Shortest Path Problem Shortest Path Problem We are given a graph G = ( V , E ) and an edge weight function : E R . Length of a Path The length or weight ( P ) of a path P = { v 1 , v 2 , . . . , v l } with at

495 views • 20 slides

ECE 242 Data Structures Lecture 31 Shortest Path Algorithms November 30, 2009 ECE242 L31:

ECE 242 Data Structures Lecture 31 Shortest Path Algorithms November 30, 2009 ECE242 L31: Shortest Path Algorithms Single Source Shortest Path Problem Single source shortest path problem Find the shortest path to all other nodes from a

216 views • 11 slides

Shortest Paths with Arbitrary Edge Weights Cormen et. al.24.1 Shortest Path Problem Shortest

Shortest Paths with Arbitrary Edge Weights Cormen et. al.24.1 Shortest Path Problem Shortest path problem. Given a directed graph G = (V, E), with edge weights c vw , find shortest path from node s to node t. Th This is t tim ime w we a

302 views • 13 slides

Shortest Paths Shortest Paths path between two given vertices path between two given vertices

Shortest Path Introduction to Algorithms Introduction to Algorithms Given a weighted directed graph one Given a weighted directed graph, one common problem is finding the shortest Shortest Paths Shortest Paths path between two given

431 views • 16 slides

Dijkstra s Algorithm Shortest Path Problem Directed graph G = (V , E) Source s l e = length

Dijkstra s Algorithm Shortest Path Problem Directed graph G = (V , E) Source s l e = length of edge e l e 0 for all edges e Shortest path problem: (Google Maps!) find shortest path from s to all other nodes 1 a c 2 3 1 1 1 e

882 views • 18 slides

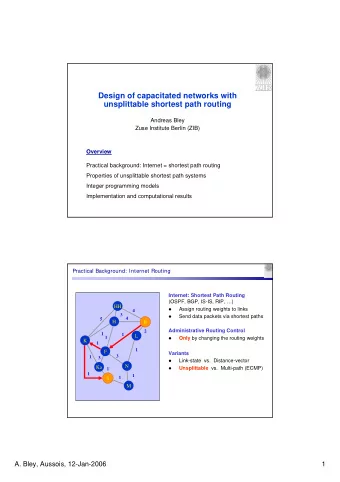

Design of capacitated networks with unsplittable shortest path routing Andreas Bley Zuse

Design of capacitated networks with unsplittable shortest path routing Andreas Bley Zuse Institute Berlin (ZIB) Overview Practical background: Internet = shortest path routing Properties of unsplittable shortest path systems Integer

460 views • 17 slides

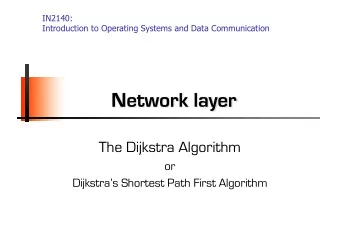

Network layer The Dijkstra Algorithm or Dijkstras Shortest Path First Algorithm Non-Adaptive

IN2140: Introduction to Operating Systems and Data Communication Network layer The Dijkstra Algorithm or Dijkstras Shortest Path First Algorithm Non-Adaptive Routing Shortest Path Routing Non-Adaptive Shortest Path Routing Static

393 views • 13 slides

Single Source Shortest Path A directed graph G = ( V, E ) and a pair of nodes s, d is given. The

Single Source Shortest Path A directed graph G = ( V, E ) and a pair of nodes s, d is given. The edges have a real-valued weight W i . This time we are looking for the weight and the shortest path from s to d . The weight of the shortest path

690 views • 22 slides

CMSC 132: Object-Oriented Programming II Single Source Shortest Path Algorithm Department of

CMSC 132: Object-Oriented Programming II Single Source Shortest Path Algorithm Department of Computer Science University of Maryland, College Park Single Source Shortest Path Common graph problems Problem1 Find path from X to Y with

225 views • 21 slides

CSE 421 Longest Path in a DAG, LIS, Shortest Path with Negative Weights Shayan Oveis Gharan 1

CSE 421 Longest Path in a DAG, LIS, Shortest Path with Negative Weights Shayan Oveis Gharan 1 Longest Path in a DAG Longest Path in a DAG Goal: Given a DAG G, find the longest path. Recall: A directed graph G is a DAG if it has no cycle.

571 views • 23 slides

Example Shortest Path Problems 8 6 2 1 1 3 3 1 16 7 5 Directed weighted graph. 6

Example Shortest Path Problems 8 6 2 1 1 3 3 1 16 7 5 Directed weighted graph. 6 4 10 4 Path length is sum of weights of edges on path. 2 4 7 7 5 3 The vertex at which the path begins is the source vertex. 14

237 views • 4 slides

Power Curve Measurements of Locally Manufactured Small Wind Turbines 8 th PhD Seminar on Wind

Department Of Mechanical Engineering. Power Curve Measurements of Locally Manufactured Small Wind Turbines 8 th PhD Seminar on Wind Energy in Europe Jon Sumanik-Leary & Hugh Piggott 12 th 14 th September 2012 Supervisors: Dr Rob

1.04k views • 21 slides

Custom Writing Service - Special Prices Organizing literature review presentation Educational

Custom Writing Service - Special Prices Organizing literature review presentation Educational literature review leadership health research paper about social media professional research paper about tardiness of students creative writing zinsser

631 views • 3 slides

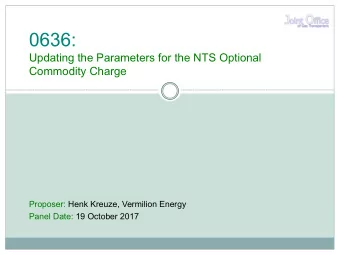

0636: Updating the Parameters for the NTS Optional Commodity Charge Proposer: Henk Kreuze,

0636: Updating the Parameters for the NTS Optional Commodity Charge Proposer: Henk Kreuze, Vermilion Energy Panel Date: 19 October 2017 Why change? There is an estimated cross-subsidy of about 146m per annum by sites unable to benefit

1.32k views • 5 slides

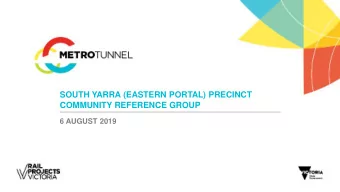

COMMUNITY REFERENCE GROUP 6 AUGUST 2019 DISCUSSION ITEMS 1. Construction program lookahead 2.

SOUTH YARRA (EASTERN PORTAL) PRECINCT COMMUNITY REFERENCE GROUP 6 AUGUST 2019 DISCUSSION ITEMS 1. Construction program lookahead 2. Contractors parking in local streets PROGRAM PROGRESS UPDATE CONSTRUCTION PROGRAM LONGER TERM CONSTRUCTION

603 views • 34 slides

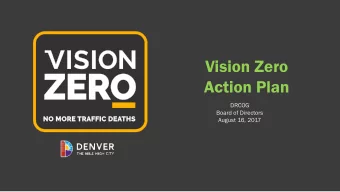

Vision Zero Action Plan DRCOG Board of Directors August 16, 2017 Vision Zero Eliminate
