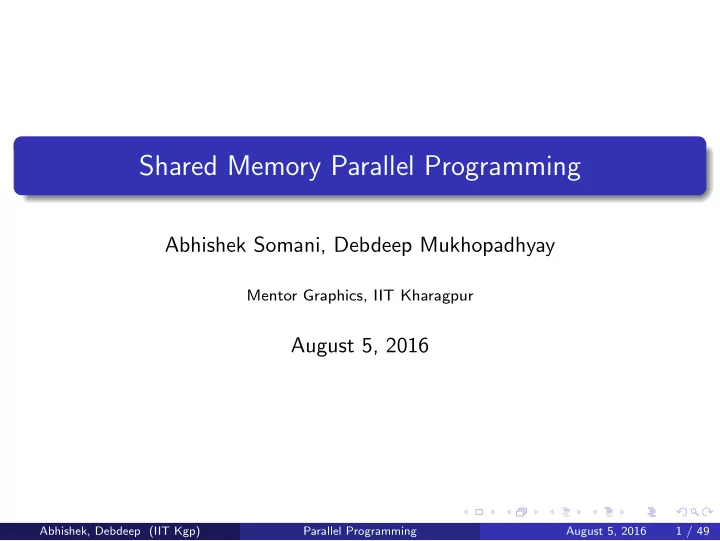

slide-1
SLIDE 1

Shared Memory Parallel Programming

Abhishek Somani, Debdeep Mukhopadhyay

Mentor Graphics, IIT Kharagpur

August 5, 2016

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 1 / 49

slide-2
SLIDE 2

Overview

1

Introduction

2

Programming with pthreads

3

Programming with OpenMP

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 2 / 49

slide-3
SLIDE 3

Outline

1

Introduction

2

Programming with pthreads

3

Programming with OpenMP

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 3 / 49

slide-4
SLIDE 4

Programming Model

CREW (Concurrent Read Exclusive Write) PRAM (Parallel Random Access Machine) Shared Memory Address Space

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 4 / 49

slide-5
SLIDE 5

Requirements for Shared Address Programming

Concurrency : Constructs to allow executing parallel streams of instructions Synchronization : Constructs to ensure program correctness

Mutual exclusion for shared variables Barriers

Software Portability : Across architectural platforms and number of processors Scheduling and Load balance : Efficiency Ease of programming : OpenMP versus pthreads

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 5 / 49

slide-6
SLIDE 6

Fork-Join Mechanism

Figure : Courtesy of Victor Eijkhout

Threads are dynamic Master thread is always active Other threads created by thread spawning Threads share data

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 6 / 49

slide-7
SLIDE 7

process and thread

process separate address space heavyweight; context switching is expensive can consist of multiple threads independent of other processes not very different from serial programming thread shared address space lightweight; hyperthreading support in modern hardware belongs to a process all threads of a process are interdependent requires careful programming for correctness and efficiency

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 7 / 49

slide-8
SLIDE 8

Outline

1

Introduction

2

Programming with pthreads

3

Programming with OpenMP

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 8 / 49

slide-9
SLIDE 9

POSIX threads or pthreads

// Necessary header #include "pthread.h" // Function to be called by each thread void * thread_function(void * arg); // Start Thread int pthread_create(pthread_t *thread, const pthread_attr_t *attr, void *(*thread_function) (void *), void *arg); // Stop Thread int pthread_join(pthread_t thread, void **retval);

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 9 / 49

slide-10
SLIDE 10

pthread example 1

#include <stdlib.h> #include <stdio.h> #include "pthread.h" int sum=0; //Global variable touched by all threads //Function to be called by each thread void * adder(void *) { sum = sum+1; return NULL; } int main() { const int numThreads=24; int i; pthread_t threads[numThreads]; for (i=0; i<numThreads; i++) //Start threads if (pthread_create(threads+i, NULL, adder, NULL) != 0) return i+1; for (i=0; i<numThreads; i++) //Stop threads if (pthread_join(threads[i], NULL) != 0) return numThreads+i+1; printf("Sum computed: %d\n",sum); return 0; Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 10 / 49

slide-11
SLIDE 11

pthread example 1 while sleeping

//Function to be called by each thread void * adder(void *) { int t = sum; sleep(1); sum = t + 1; return NULL; }

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 11 / 49

slide-12
SLIDE 12

pthread example 1 while sleeping ...

//Function to be called by each thread void * adder(void *) { sleep(1); sum = sum + 1; return NULL; }

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 12 / 49

slide-13
SLIDE 13

Critical Region

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 13 / 49

slide-14
SLIDE 14

Lock and Key

Mutual Exclusion Locks ⇐ ⇒ mutex locks

//The Lock int pthread_mutex_lock (pthread_mutex_t *mutex_lock); //The Key int pthread_mutex_unlock (pthread_mutex_t *mutex_lock); //Initialization of Lock int pthread_mutex_init (pthread_mutex_t *mutex_lock, const pthread_mutexattr_t *lock_attr);

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 14 / 49

slide-15
SLIDE 15

pthread example 1 with locks

#include <stdlib.h> #include <stdio.h> #include <unistd.h> #include "pthread.h" int sum=0; //Global variable touched by all threads pthread_mutex_t lock; //Mutex lock //Function to be called by each thread void * adder(void *) { pthread_mutex_lock(&lock); int t = sum; sleep(1); sum = t + 1; pthread_mutex_unlock(&lock); return NULL; } int main() { const int numThreads=24; int i; pthread_mutex_init(&lock, NULL); pthread_t threads[numThreads]; for (i=0; i<numThreads; i++) //Start threads if (pthread_create(threads+i, NULL, adder, NULL) != 0) return i+1; for (i=0; i<numThreads; i++) //Stop threads if (pthread_join(threads[i], NULL) != 0) return numThreads+i+1; printf("Sum computed: %d\n",sum); return 0; } Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 15 / 49

slide-16
SLIDE 16

Producer-Consumer work queues

pthread_mutex_t task_queue_lock; // Initialized in main int task_available; //Initialized to 0 in main

producer

while (!done()) { inserted = 0; create_task(&my_task); while (inserted == 0) { pthread_mutex_lock(&task_queue_lock); if (task_available == 0) { insert_into_queue(my_task); task_available = 1; inserted = 1; } pthread_mutex_unlock(&task_queue_lock); } }

consumer

while (!done()) { extracted = 0; while (extracted == 0) { pthread_mutex_lock(&task_queue_lock); if (task_available == 1) { extract_from_queue(&my_task); task_available = 0; extracted = 1; } pthread_mutex_unlock(&task_queue_lock); } process_task(my_task); } Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 16 / 49

slide-17
SLIDE 17

Mutex Efficiency

pthread_mutex_trylock

Faster than pthread_mutex_lock Allows thread to do other work if already locked

Condition Variables

Allows a thread to block itself until a pre-specified condition is satisfied Thread performing condition wait does not use any CPU cycles

Read-Write Locks

More frequent reads than writes on a data-structure Multiple simultaneous reads can be allowed but only one write

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 17 / 49

slide-18
SLIDE 18

Types of mutexes

//Initialization of Mutex Attribute int pthread_mutexattr_init (pthread_mutexattr_t *attr); //Set type of Mutex int pthread_mutexattr_settype_np (pthread_mutexattr_t *attr, int type);

PTHREAD_MUTEX_NORMAL_NP : default, deadlocks on trying a second lock PTHREAD_MUTEX_RECURSIVE_NP : allows locking multiple times PTHREAD_MUTEX_ERRORCHECK_NP : reports an error on trying a second lock

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 18 / 49

slide-19
SLIDE 19

Barriers

Can be implemented using a counter, mutex or condition variable Threads wait at the barrier till all threads have reached Last thread to reach barrier wakes up all the threads

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 19 / 49

slide-20
SLIDE 20

Famous words

A good way to stay flexible is to write less code – Pragmatic Programmer Simplicity is prerequisite for reliability – Dijkstra Any fool can write code that a computer can understand. Good programmers write code that humans can understand – Martin Fowler Programming can be fun, so can be cryptography; however they should not be combined – Kreitzberg and Shneiderman KISS - Keep It Simple, Stupid – Anonymous

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 20 / 49

slide-21
SLIDE 21

Outline

1

Introduction

2

Programming with pthreads

3

Programming with OpenMP

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 21 / 49

slide-22
SLIDE 22

OpenMP Example 1

#include <stdlib.h> #include <stdio.h> #include <unistd.h> #include <omp.h> int sum=0; //Global variable touched by all threads //Function to be called by each thread void adder() { #pragma omp critical { int t = sum; sleep(1); sum = t + 1; } return; } int main() { const int numThreads=24; int i;

  • mp_set_num_threads(numThreads);

#pragma omp parallel for shared(sum) for(i = 0; i < numThreads; ++i) adder(); printf("Sum computed: %d\n",sum); return 0; } Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 22 / 49

slide-23
SLIDE 23

OpenMP Programming in C/C++

Based on #pragma compiler directive Code added by compiler, NOT preprocessor Directive name followed by clauses

#pragma omp directive [clause list] #pragma omp parallel [clause list]

Serial execution till parallel directive is encountered.

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 23 / 49

slide-24
SLIDE 24

OpenMP clauses

Conditional Parallelization

bool doParallel = true; #pragma omp parallel if(doParallel)

Degree of Concurrency

#pragma omp parallel num_threads(8)

Data Handling

#pragma omp parallel default(none) private(x) shared(y) #pragma omp parallel private(x) lastprivate(y) #pragma omp parallel default(shared) firstprivate(x)

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 24 / 49

slide-25
SLIDE 25

More about Data Handling

Most variables are shared by default

Functions called from parallel regions are private; Think about thread-safety of functions Automatic variables within statement block are private

Default attributes

#pragma omp parallel default(private|shared|none)

firstprivate : private variables initialized to value at the end of the previous serial region lastprivate : Final value of a private variable inside a parallel loop transmitted outside the loop to the serial variable

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 25 / 49

slide-26
SLIDE 26

Data Quiz 1

  • mp_set_num_threads(8);

int x = -1; #pragma omp parallel { sleep(1); //Get thread number x = omp_get_thread_num(); } printf("The value of x = %d\n", x);

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 26 / 49

slide-27
SLIDE 27

Data Quiz 2

  • mp_set_num_threads(8);

int x = -1; #pragma omp parallel { sleep(1); int x = 6; } printf("The value of x = %d\n", x);

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 27 / 49

slide-28
SLIDE 28

Data Quiz 3

  • mp_set_num_threads(8);

int x = -1; #pragma omp parallel private(x) { sleep(1); x = 6; } printf("The value of x = %d\n", x);

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 28 / 49

slide-29
SLIDE 29

Data Quiz 4

  • mp_set_num_threads(8);

int x = 0; #pragma omp parallel { sleep(1); x = x + 1; } printf("The value of x = %d\n", x);

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 29 / 49

slide-30
SLIDE 30

Data Quiz 5

  • mp_set_num_threads(8);

int x = 2; #pragma omp parallel private(x) { sleep(1); const int threadId = omp_get_thread_num(); x += threadId; printf("Thread %d : x %d\n", threadId, x); } printf("Final value of x = %d\n", x);

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 30 / 49

slide-31
SLIDE 31

Data Quiz 6

  • mp_set_num_threads(8);

int x = 2; #pragma omp parallel firstprivate(x) { sleep(1); const int threadId = omp_get_thread_num(); x += threadId; printf("Thread %d : x %d\n", threadId, x); } printf("Final value of x = %d\n", x);

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 31 / 49

slide-32
SLIDE 32

Data Quiz 7

const int numThreads = 8;

  • mp_set_num_threads(numThreads);

int x = 2; #pragma omp parallel for firstprivate(x) lastprivate(x) for(int i = 0; i < numThreads; ++i) { sleep(1); const int threadId = omp_get_thread_num(); x += threadId; printf("Thread %d : x %d\n", threadId, x); } printf("Final value of x = %d\n", x);

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 32 / 49

slide-33
SLIDE 33

Remember this guy ?

π = 1 4 1 + x2 dx π ≈

n

  • i=0

4 1 + xi 2 △x where, △x = 1 n + 1 and xi =(i + 1 2)△x

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 33 / 49

slide-34
SLIDE 34

Serial program for π

#include <stdio.h> int main() { const int numPoints = 10000000; const double deltaX = 1.0/(double)numPoints; double pi = 0.0; for(int i = 0; i < numPoints; ++i) { double xi = (i + 0.5) * deltaX; pi += 4.0/(1 + xi * xi); } pi *= deltaX; printf("Value of pi: %.10g\n", pi); }

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 34 / 49

slide-35
SLIDE 35

Parallel program for π : Attempt 1

#include <stdio.h> #include <omp.h> int main() { const int numThreads = 24; const int numPoints = 10000000; const double deltaX = 1.0/(double)numPoints; double pi = 0.0;

  • mp_set_num_threads(numThreads);

double components[numThreads]; #pragma omp parallel shared(components) { const int nt = omp_get_num_threads(); const int pointsPerThread = numPoints/nt; const int threadId = omp_get_thread_num(); components[threadId] = 0.0; double xi = (0.5 + pointsPerThread * threadId) * deltaX; for(int i = 0; i < pointsPerThread; ++i) { components[threadId] += 4.0/(1 + xi * xi); xi += deltaX; } } for(int i = 0; i < numThreads; ++i) pi += components[i]; pi *= deltaX; printf("Value of pi: %.10g\n", pi); return 0; } Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 35 / 49

slide-36
SLIDE 36

Parallel program for π : Attempt 1 ...

double components[numThreads]; #pragma omp parallel shared(components) { const int nt = omp_get_num_threads(); const int pointsPerThread = numPoints/nt; const int threadId = omp_get_thread_num(); components[threadId] = 0.0; double xi = (0.5 + pointsPerThread * threadId) * deltaX; for(int i = 0; i < pointsPerThread; ++i) { components[threadId] += 4.0/(1 + xi * xi); xi += deltaX; } } for(int i = 0; i < numThreads; ++i) pi += components[i];

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 36 / 49

slide-37
SLIDE 37

Synchronization directives

critical : Only one thread can enter a critical region at any time atomic : Provides mutual exclusion in updates to a memory location

Applicable to a single variable at a time Limited to binary, increment, decrement operations

barrier : Each thread waits at a barrier until all threads arrive

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 37 / 49

slide-38
SLIDE 38

Parallel program for π : Attempt 2

#pragma omp parallel { const int nt = omp_get_num_threads(); const int pointsPerThread = numPoints/nt; const int threadId = omp_get_thread_num(); double xi = (0.5 + pointsPerThread * threadId) * deltaX; double component = 0.0; for(int i = 0; i < pointsPerThread; ++i) { component += 4.0/(1 + xi * xi); xi += deltaX; } #pragma omp critical { pi += component; } }

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 38 / 49

slide-39
SLIDE 39

Producer-Consumer revisited

int task_available; //Initialized to 0 in main

producer

while (!done()) { inserted = 0; create_task(&my_task); while (inserted == 0) { #pragma omp critical { if (task_available == 0) { insert_into_queue(my_task); task_available = 1; inserted = 1; } } } }

consumer

while (!done()) { extracted = 0; while (extracted == 0) { #pragma omp critical { if (task_available == 1) { extract_from_queue(&my_task); task_available = 0; extracted = 1; } } } process_task(my_task); } Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 39 / 49

slide-40
SLIDE 40

Loop worksharing

Figure : Courtesy of Victor Eijkhout

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 40 / 49

slide-41
SLIDE 41

Parallel program for π : Attempt 3

#pragma omp parallel { double component = 0.0; #pragma omp for schedule(static) for(int i = 0; i < numPoints; ++i) { double xi = (0.5 + i) * deltaX; component += 4.0/(1 + xi * xi); } #pragma omp critical { pi += component; } }

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 41 / 49

slide-42
SLIDE 42

Reduction clause

#pragma omp parallel for reduction(op:list)

In each thread, local copy of each variable in list is made and initialized Local copy is updated in each thread Operators supported : +, −, ∗, min, max, boolean operators All local copies are then reduced to a single value for the operator op

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 42 / 49

slide-43
SLIDE 43

Parallel program for π : Attempt 4

#pragma omp parallel for schedule(static) reduction(+: pi) for(int i = 0; i < numPoints; ++i) { double xi = (0.5 + i) * deltaX; pi += 4.0/(1 + xi * xi); }

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 43 / 49

slide-44
SLIDE 44

How about this ?

int main() { const int numThreads = 24; const int numPoints = 10000000; const double deltaX = 1.0/(double)numPoints; double pi = 0.0;

  • mp_set_num_threads(numThreads);

#pragma omp parallel for for(int i = 0; i < numPoints; ++i) { double xi = (i + 0.5) * deltaX; pi += 4.0/(1 + xi * xi); } pi *= deltaX; printf("Value of pi: %.10g\n", pi); return 0; }

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 44 / 49

slide-45
SLIDE 45

sections

#pragma omp parallel { //Inside the parallel region ... #pragma omp sections { #pragma omp section { //Independent Block 1 } #pragma omp section { //Independent Block 2 } ... #pragma omp section { //Independent Block n } } }

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 45 / 49

slide-46
SLIDE 46

single and master

#pragma omp single { //Executed by a single thread //Implicit barrier for other threads } #pragma omp master { //Executed by master thread //All other threads bypass this section }

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 46 / 49

slide-47
SLIDE 47

single quiz

  • mp_set_num_threads(8);

int x = 2; #pragma omp parallel { #pragma omp single { sleep(1); x = 12; } const int threadId = omp_get_thread_num(); printf("Thread %d : x %d\n", threadId, x); }

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 47 / 49

slide-48
SLIDE 48

master quiz

  • mp_set_num_threads(8);

int x = 2; #pragma omp parallel { #pragma omp master { sleep(1); x = 12; } const int threadId = omp_get_thread_num(); printf("Thread %d : x %d\n", threadId, x); }

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 48 / 49

slide-49
SLIDE 49

Further Reading

Introduction to Parallel Computing, Second Edition - Grama, Gupta, Karypis, Kumar : Chapter 7 Introduction to High Performance Computing for Scientists and Engineers - Hager, Wellein : Chapter 6 http://openmp.org/mp-documents/OpenMP-4.0-C.pdf http://openmp.org

Abhishek, Debdeep (IIT Kgp) Parallel Programming August 5, 2016 49 / 49
