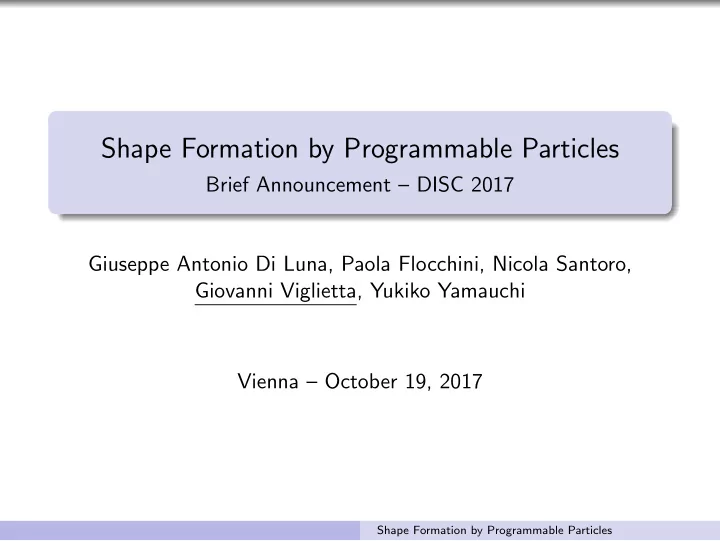

Shape Formation by Programmable Particles Brief Announcement DISC 2017 Giuseppe Antonio Di Luna, Paola Flocchini, Nicola Santoro, Giovanni Viglietta, Yukiko Yamauchi Vienna October 19, 2017 Shape Formation by Programmable Particles

SLIDE 1

Shape Formation by Programmable Particles

Brief Announcement – DISC 2017 Giuseppe Antonio Di Luna, Paola Flocchini, Nicola Santoro, Giovanni Viglietta, Yukiko Yamauchi Vienna – October 19, 2017

Shape Formation by Programmable Particles

SLIDE 2

Amoebots

/In this model, particles occupy nodes of a hexagonal grid./

Shape Formation by Programmable Particles

SLIDE 3

Amoebots

/A particle can move by expanding and contracting./

Shape Formation by Programmable Particles

SLIDE 4

Amoebots

/A particle can move by expanding and contracting./

Shape Formation by Programmable Particles

SLIDE 5

Amoebots

/A particle can move by expanding and contracting./

Shape Formation by Programmable Particles

SLIDE 6

Amoebots

/A particle can move by expanding and contracting./

Shape Formation by Programmable Particles

SLIDE 7

Amoebots

/A particle can move by expanding and contracting./

Shape Formation by Programmable Particles

SLIDE 8

Amoebots

/A system of particles is given./

Shape Formation by Programmable Particles

SLIDE 9

Amoebots

/Particles move asynchronously./

Shape Formation by Programmable Particles

SLIDE 10

Amoebots

/Particles move asynchronously./

Shape Formation by Programmable Particles

SLIDE 11

Amoebots

/At each step, any set of particles is activated by an adversary./

Shape Formation by Programmable Particles

SLIDE 12

Amoebots

/At each step, any set of particles is activated by an adversary./

Shape Formation by Programmable Particles

SLIDE 13

Shape Formation

final shape

/The goal is to form a shape that is given as input to all particles./

Shape Formation by Programmable Particles

SLIDE 14

Shape Formation

initial configuration final configuration deterministic algorithm

/The shape formation algorithm should be deterministic./

Shape Formation by Programmable Particles

SLIDE 15

Shape Formation

initial configuration final configuration deterministic algorithm

/The shape can be scaled up depending on the size of the system./

Shape Formation by Programmable Particles

SLIDE 16

Related Literature

Original Amoebot paper:

Z. Derakhshandeh, R. Gmyr, T. Strothmann, R.A. Bazzi,

A.W. Richa, and C. Scheideler Leader election and shape formation with self-organizing programmable matter In Proceedings of 21st International Conference on DNA Computing and Molecular Programming (DNA), 117–132, 2015

Randomized shape-formation algorithm for sequentially activated Amoebots starting from a triangular shape:

Z. Derakhshandeh, R. Gmyr, A.W. Richa, C. Scheideler, and
T. Strothmann

Universal shape formation for programmable matter In Proceedings of the 28th ACM Symposium on Parallelism in Algorithms and Architectures (SPAA), 289–299, 2016

Shape Formation by Programmable Particles

SLIDE 17

Our Particle Model

The n particles in the system: initially form any simply connected shape know the final shape but do not know n have a constant amount of internal memory are anonymous and start in the same state can only see and communicate with adjacent particles do not have a compass may not agree on a clockwise direction are activated asynchronously execute the same deterministic algorithm cannot occupy the same node

Shape Formation by Programmable Particles

SLIDE 18

Unbreakable Symmetry

/If the system has a center of symmetry not in a grid node.../

Shape Formation by Programmable Particles

SLIDE 19

Unbreakable Symmetry

/Then this symmetry is impossible to break./

Shape Formation by Programmable Particles

SLIDE 20

Unbreakable Symmetry

/The same holds for systems with a 3-fold rotational symmetry./

Shape Formation by Programmable Particles

SLIDE 21

Unbreakable Symmetry

/If the center is not in a grid node, the symmetry is unbreakable./

Shape Formation by Programmable Particles

SLIDE 22

Statement of Results

Theorem If the system initially has an unbreakable symmetry, it cannot form shapes that do not have the same symmetry. Theorem For all other cases, there is a universal shape-formation algorithm, provided that the system is sufficiently large. The particles perform O(n2) moves in total and terminate in O(n2) rounds.

Shape Formation by Programmable Particles

SLIDE 23

Universal Shape-Formation Algorithm

/Start with a sufficiently large simply connected system./

Shape Formation by Programmable Particles

SLIDE 24

Universal Shape-Formation Algorithm

/Phase 1: attempt to elect a leader./

Shape Formation by Programmable Particles

SLIDE 25

Universal Shape-Formation Algorithm

/Phase 2: construct a spanning forest./

Shape Formation by Programmable Particles

SLIDE 26

Universal Shape-Formation Algorithm

/Phase 3: agree on a clockwise direction./

Shape Formation by Programmable Particles

SLIDE 27

Universal Shape-Formation Algorithm

/Phase 4: form one line per leader./

Shape Formation by Programmable Particles

SLIDE 28

Universal Shape-Formation Algorithm

/Phase 5: determine the scale of the final shape and assign roles./

Shape Formation by Programmable Particles

SLIDE 29

Universal Shape-Formation Algorithm

/Phase 6: form the final shape./

Shape Formation by Programmable Particles

SLIDE 30

Universal Shape-Formation Algorithm

/Phase 6: form the final shape./

Shape Formation by Programmable Particles

SLIDE 31

Matching Lower Bound

/This example shows that O(n2) total moves are optimal./

Shape Formation by Programmable Particles

SLIDE 32

Matching Lower Bound

/Open problem: are O(n2) rounds optimal?/
