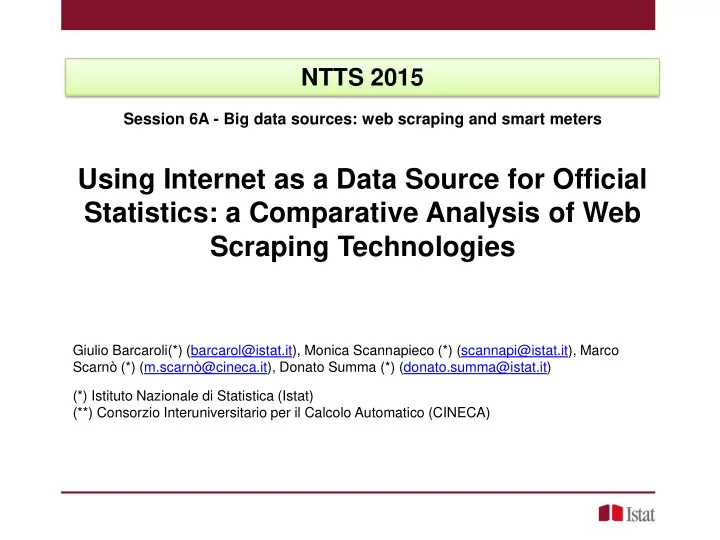

Session 6A - Big data sources: web scraping and smart meters

Using Internet as a Data Source for Official Statistics: a Comparative Analysis of Web Scraping Technologies

Giulio Barcaroli(*) (barcarol@istat.it), Monica Scannapieco (*) (scannapi@istat.it), Marco Scarnò (*) (m.scarnò@cineca.it), Donato Summa (*) (donato.summa@istat.it) (*) Istituto Nazionale di Statistica (Istat) (**) Consorzio Interuniversitario per il Calcolo Automatico (CINECA)

NTTS 2015

Web scraping is the process of automatically collecting information from the World Wide Web, based on tools (called scrapers, internet robots, crawlers, spiders etc.) that navigate, extract the content of websites and store scraped data in local data bases for subsequent elaboration purposes. We can distinguish two different kinds of web scraping:

• 1. specific web scraping, when both structure and content of websites to

be scraped are perfectly known, and crawlers just have to replicate the behaviour of a human being visiting the website and collecting the information of interest. Typical areas of application: data collection for price consumer indices (ONS, CBS, Istat);

• 2. generic web scraping, when no a priori knowledge on the content is

available, and the whole website is scraped and subsequently processed in order to infer information of interest.

NTTS 2015 Session 6A - Big data sources: web scraping and smart meters

Web scraping definition and types

Giulio Barcaroli, Monica Scannapieco, Marco Scarnò, Donato Summa

NTTS 2015 Session 6A - Big data sources: web scraping and smart meters

An application on «ICT in enterprises» survey

Giulio Barcaroli, Monica Scannapieco, Marco Scarnò, Donato Summa

Different solutions for the web scraping are being investigated, based on the use of (i) the Apache suite Nutch/Solr (https://nutch.apache.org) for crawling, content extraction, indexing and searching results is a highly extensible and scalable open source web crawler; it facilitates parsing, indexing, creating a search engine, customizing search according to needs, scalability, robustness, and scoring filter for custom implementations; (ii) HTTrack (http://www.httrack.com/), a free and open source software tool that permits to “mirror” locally a web site, by downloading each page that composes its structure. In technical terms it is a web crawler and an

• ffline browser;

(iii) JSOUP (http://jsoup.org) permits to parse and extract the structure of a HTML document. It has been integrated in a specific step of the ADaMSoft system (http://adamsoft.sourceforge.net), this latter selected as already including facilities that allow to handle huge data sets and textual information.

NTTS 2015 Session 6A - Big data sources: web scraping and smart meters

Web scraping different techniques and tools

Giulio Barcaroli, Monica Scannapieco, Marco Scarnò, Donato Summa

These techniques are evaluated by taking into account:

• 1. efficiency: number of websites actually scraped on the total and

execution performance;

• 2. effectiveness: completeness and richness of collected text that can

influence the quality levels of prediction.

NTTS 2015 Session 6A - Big data sources: web scraping and smart meters

Web scraping solutions evaluation

Giulio Barcaroli, Monica Scannapieco, Marco Scarnò, Donato Summa

NTTS 2015 Session 6A - Big data sources: web scraping and smart meters

Web scraping techniques evaluation: efficiency

Solution # websites reached Average number of webpages per site Time spent Type of Storage Storage dimensions Nutch 7020 / 8550=82,1% 15,2 32,5 hours Binary files

• n HDFS

2,3 GB (data) 5,6 GB (index) HTTrack 7710 / 8550=90,2% 43,5 6,7 days HTML files on file system 16, 1 GB JSOUP 7835/8550=91,6% 68 11 hours HTML ADaMSoft compressed binary files 500MB

Giulio Barcaroli, Monica Scannapieco, Marco Scarnò, Donato Summa

NTTS 2015 Session 6A - Big data sources: web scraping and smart meters

Web scraping techniques evaluation: effectiveness

The evaluation of the effectiveness of the different solutions is being based on the application of the steps of text and data mining to collected data in order to predict a subset

• f the target information of the

survey. The developed application is available on the Adamsoft website: http://adamsoft.sourceforge.net/ appscripts.html

Giulio Barcaroli, Monica Scannapieco, Marco Scarnò, Donato Summa

NTTS 2015 Session 6A - Big data sources: web scraping and smart meters

Prediction of survey information by text and data mining

Application of Naïve Bayes to predict all questions in section B8

Precision Sensitivity Specificity Observed proportion Predicted proportion a) Online ordering or reservation or booking (web sales functionality) 0.78 0.50 0.86 0.21 0.21 b) Tracking or status of orders placed 0.82 0.49 0.85 0.18 0.11 c) Description of goods or services, price lists 0.62 0.44 0.79 0.48 0.32 d) Personalized content in the website for regular/repeated visitors 0.74 0.41 0.78 0.09 0.23 e) Possibility for visitors to customize or design online goods or services 0.86 0.53 0.87 0.05 0.14 f) A privacy policy statement, a privacy seal

• r a website safety certificate

0.59 0.57 0.64 0.68 0.51 g) Advertisement of open job positions or

• nline job application

0.69 0.52 0.78 0.35 0.33 Question B8:"indicate if the Website have any of the following facilities" Performance of Naive Bayes

Giulio Barcaroli, Monica Scannapieco, Marco Scarnò, Donato Summa

So far, the three different solutions for web scraping have been applied to a limited number of websites (related to the subset of enterprises respondents in the sampling survey and declaring to have a website: 8,600). Next step is the scraping of all the websites owned by the enterprises included to the population of interest (212,000). Two problems:

• 1. URLs retrieval: how to individuate all the websites owned by the

212,000 (between 90,000 and 100,000 are expected to own one website);

• 2. massive scraping: how to increase efficiency when scaling a factor 10:

O(10^4)  O(10^5)

NTTS 2015 Session 6A - Big data sources: web scraping and smart meters

Web scraping: from sample to whole population

Giulio Barcaroli, Monica Scannapieco, Marco Scarnò, Donato Summa

NTTS 2015 Session 6A - Big data sources: web scraping and smart meters

Web scraping: URLs retrieval

General idea: for each enterprise:

• 1. Querying search engines with the enterprise denomination
• 2. Processing the first ten URLs retrieved in order to choose the right
• ne for the given enterprise

Processing: a) matching of the enterprises information (denomination, fiscal code, etc. available from administrative data) and the content of the first ten URLs retrieved; b) use of the subset of enterprises (from survey data) for which the correct URL is known, as a training set in order to maximise the precision of the choice function; c) application of the choice function to the whole set.

Giulio Barcaroli, Monica Scannapieco, Marco Scarnò, Donato Summa

Use of Nutch on top of MapReduce / Hadoop to harness parallelism Completed tasks:

 enhancement of Nutch by using the following plugins:

• HTML-Plugin (Nutch custom search) to retrieve HTML tags
• Metatag plugin (urlmeta) to add custom metatag information

 integration of Nutch with analysis activities in order to execute the whole process

Future task:

 deployment and execution of Adamsoft/JSOUP and Nutch (HTTrack is abandoned due to its scalability problems)

• n CINECA PICO platform (1,080 cores, 54 nodes, 6.9 TB RAM)

http://www.cineca.it/en/news/pico-cineca-new-platform-data- analytics-applications

NTTS 2015 Session 6A - Big data sources: web scraping and smart meters

Web scraping: mass scraping

Giulio Barcaroli, Monica Scannapieco, Marco Scarnò, Donato Summa

• 1. A first remark is that a scraping task can be carried out for different

purposes in an Official Statistics production environment, and the choice of a unique tool for all the purposes may not always be possible.

• 2. As for this specific case, the final evaluation of the different solutions will

depend on the evaluation of the results of their execution for massive scraping on an adequate platform (PICO).

• 3. Finally, we highlight that the scraping application here presented is a sort
• f “generalized” scraping task, as it does not require any specific assumption
• n the structure of the websites. In this sense it goes a step further with

respect to previous experiences.

NTTS 2015 Session 6A - Big data sources: web scraping and smart meters

Conclusions

Giulio Barcaroli, Monica Scannapieco, Marco Scarnò, Donato Summa
