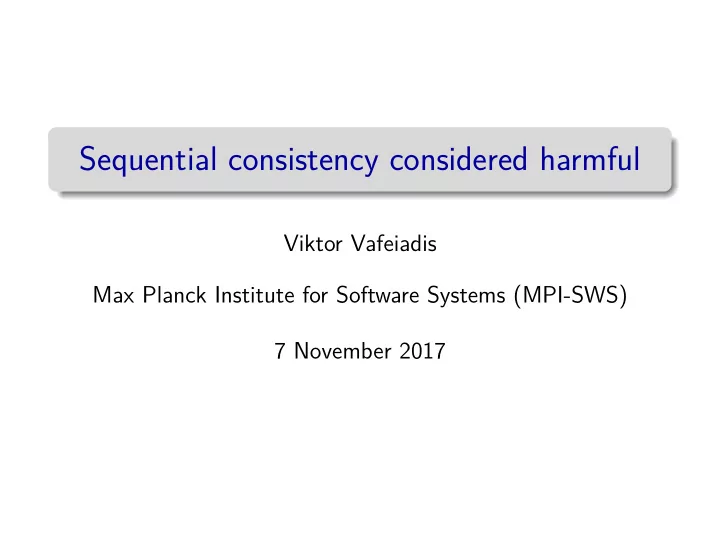

Sequential consistency considered harmful

Viktor Vafeiadis Max Planck Institute for Software Systems (MPI-SWS) 7 November 2017

The standard WMC talk

Sequential consistency (SC)

◮ Interleaving semantics ◮ Intuitive, isn’t it?

Weak memory consistency

◮ All the SC behaviours ◮ + Some weird behaviours ◮ Complicated. . .

CPU write read CPU . . . Memory CPU write write-back read CPU . . . . . . Memory

2

Release-acquire (RA) is not complicated

Message passing (MP) X = Y = 0 X := 1; Y := 1 a := Y ; / /1 b := X / / =0 Store buffering (SB) X := 1; a := Y ; / /0 Y := 1; b := X; / /0

◮ Messages delivered in order. ◮ But they take time to deliver!

3

What about the formal definition?

But isn’t the definition RA more complex than of SC?

◮ It largely depends on presentation. . .

But who cares about the MM definition?

◮ Theoreticians certainly care. ◮ Programmers do not understand programs by looking at

the MM definition, but at its properties. Key question

◮ Determine whether our program is correct. ◮ We want automation: a tool to answer this query. ◮ We also want manual proof techniques.

4

Automated verification

So, which model is best for automated verification?

◮ It depends on the exact question.

Two cases where WMC verification is easier than under SC.

• 1. Checking consistency of an execution
• 2. Bounded model checking

NB: There are other verification problems that are easy under SC and difficult under WM.

5

Checking consistency of an execution

Execution consistency problem Given a concurrent program P with instructions of the form:

◮ x := v

– write constant v to shared variable x

◮ r := x

– read value of x into register r such that no two instructions have the same v or r, and a register assignment R = [r1→v1, . . . rk→vk], determine whether R is a possible outcome of P. This problem is:

◮ NP-complete for SC; ◮ Polynomial for several weak memory models (e.g., RA).

6

Stateless model checking

◮ For SC, 10+ years of research on optimisations.

State of the art: Nidhugg “optimal” DPOR.

◮ For RC11, our first attempt . . . to appear at POPL’18.

Benchmark Nidhugg/SC RCMC/RC11 linuxrwlocks(2) 0.22 s 0.08 s linuxrwlocks(3) 37.65 s 7.58 s ms-queue(2) 0.45 s 0.13 s ms-queue(3) 21.21 s 4.34 s qspinlock(2) 0.11 s 0.06 s qspinlock(3) 15.78 s 3.34 s big0 18.26 s 2.65 s

7

Manual reasoning—program logics

Weak memory enforces local reasoning.

◮ Ownership-based reasoning. ◮ Proof of a thread mentions only variables accessed by it. ◮ Key underlying principle of separation logic.

RA allows causal reasoning.

◮ I have seen an update, so I have seen all previous updates. ◮ “Ownership transfer” in separation logic.

SC, in addition, allows global reasoning.

◮ Proof of a thread can mention local variables of other

threads.

◮ Global reason is complicated.

8

Message passing with the Owicki-Gries method (1976)

Prove that the MP program cannot have its weak behaviour:

• Y = 0
• X := 1;

Y := 1 a := Y ; b := X

• a = 0 ∨ b = 1
• 9

Message passing with the Owicki-Gries method (1976)

Prove that the MP program cannot have its weak behaviour:

• Y = 0
• ⊤
• X := 1;
• X = 1
• Y := 1
• ⊤
• Y = 0 ∨ X = 1
• a := Y ;
• a = 0 ∨ X = 1
• b := X
• a = 0 ∨ b = 1
• a = 0 ∨ b = 1
• ◮ A straightforward local proof.

◮ Sound also under RA.

9

Store buffering with the Owicki-Gries method (1976)

Prove that the SB program cannot have its weak behaviour:

• a = 0
• X := 1;

a := Y Y := 1; b := X

• a = 0 ∨ b = 0
• 10

Store buffering with the Owicki-Gries method (1976)

Prove that the SB program cannot have its weak behaviour:

• a = 0
• a = 0
• X := 1;
• X = 0
• a := Y
• X = 0
• ⊤
• Y := 1;
• Y = 0
• b := X
• Y = 0 ∧ (a = 0 ∨ b = X)
• a = 0 ∨ b = 0
• ◮ Requires a non-trivial global proof!

◮ This non-local reasoning is unsound under RA.

10

Program logics summary

RA supports local and causal reasoning.

◮ Local Owicki-Gries is sound. ◮ Separation logic and extensions (RSL, GPS) are sound.

Global reasoning is unsound under RA.

◮ It requires strong fences. ◮ Global reasoning is complicated to do anyway. ◮ Fences document when global reasoning is needed.

11

Scalability barrier: multi-copy atomicity?

Independent reads of independent writes (IRIW) Initially, X = Y = 0 X := 1 a := X; / /1 b := Y / /0 c := Y ; / /1 d := X / /0 Y := 1

◮ Threads 2 and 3 observe the

X := 1 and Y := 1 writes happen in different orders.

12

Summary

Sequential consistency (SC) is bad.

◮ Thinking about interleavings is considered harmful. ◮ Multi-copy atomicity is fundammentally not scalable. ◮ And it also seems useless in practice.

Release-acquire (RA) is good.

◮ Manual reasoning under RA is clearer.

◮ Fully supports local and causal reasoning. ◮ Fences document global reasoning.

◮ Automated reasoning under RA is easier.

◮ Checking consistency of an execution ◮ Bounded model checking

13
