Sept 25 Biochemical Networks Chemotaxis and Motility in E. coli Examples of Biochemical and Genetic Networks Background Chemotaxis- signal transduction network Bacterial Chemotaxis Flagellated bacteria swim using a reversible

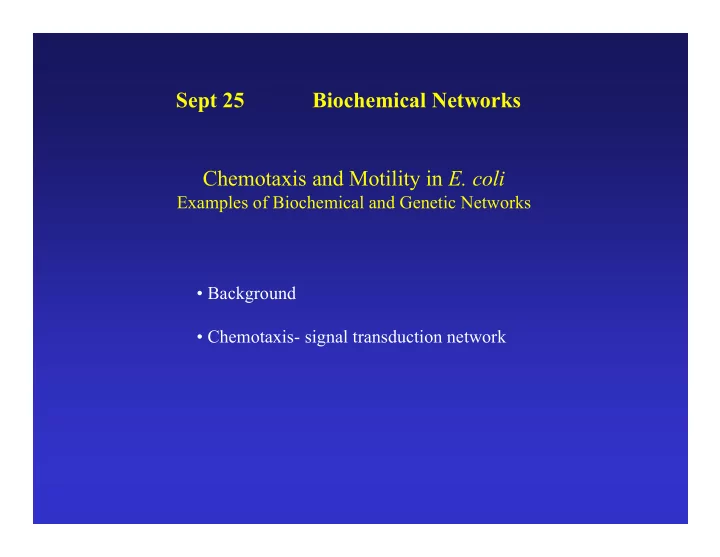

  1. Sept 25 Biochemical Networks Chemotaxis and Motility in E. coli Examples of Biochemical and Genetic Networks • Background • Chemotaxis- signal transduction network

  2. Bacterial Chemotaxis Flagellated bacteria “swim” using a reversible rotary motor linked by a flexible coupling (the hook) to a thin helical propeller (the flagellar filament). The motor derives its energy from protons driven into the cell by chemical gradients. The direction of the motor rotation depends in part on signals generated by sensory systems, of which the best studied analyzes chemical stimuli. Chemotaxis - is the directed movement of cells towards an “attractant” or away from a “repellent”. • For a series of QuickTime movies showing swimming bacteria with fluorescently stained flagella see: http://www.rowland.org/bacteria/movies.html • For a review of bacterial motility see Berg, H.C. "Motile behavior of bacteria". Physics Today, 53 (1), 24-29 (2000). (http://www.aip.org/pt/jan00/berg.htm)

  3. A photomicrograph of three cells showing the flagella filaments. Each filament forms an extend helix several cell lengths long. The filament is attached to the cell surface through a flexible ‘universal joint’ called the hook. Each filament is rotated by a reversible rotary motor, the direction of the motor is regulated in response to changing environmental conditions.

  4. The E. coli Flagellar Motor- a true rotary motor Rotationally averaged reconstruction of electron micrographs of purified hook-basal bodies. The rings seen in the image and labeled in the schematic diagram (right) are the L ring, P ring, MS ring, and C ring. ( Digital print courtesy of David DeRosier, Brandeis University .)

  5. Tumble (CW) Smooth Swimming or Run (CCW)

  6. Chemotactic Behavior of Free Swimming Bacteria No Gradient Increasing attractant Increasing repellent

  7. A ‘Soft Agar’ Chemotaxis Plate A mixture of growth media and a low concentration of agar are mixed in a Petri plate. The agar concentration is not high enough to solidify the media but sufficient to prevent mixing by convection. The agar forms a mesh like network making water filled channels that the bacteria can swim through.

  8. A ‘Soft Agar’ Chemotaxis Plate Bacteria are added to the center of the plate and allowed to grow.

  9. A ‘Soft Agar’ Chemotaxis Plate As the bacteria grow to higher densities, they generate a gradient of attractant as they consume it in the media. Attractant Concentration cells cells

  10. A ‘Soft Agar’ Chemotaxis Plate The bacteria swim up the gradients of attractants to form ‘chemotactic rings’ . This is a ‘macroscopic’ behavior. The chemotactic ring is the result of the ‘averaged” behavior of a population of cells. Each cell within the population behaves independently and they exhibit significant cell to cell variability (individuality).

  11. A ‘Soft Agar’ Chemotaxis Plate ‘Serine’ ring ‘Aspartate’ ring Each ‘ring’ consists of tens of millions of cells. The cells outside the rings are still chemotactic but are just not ‘experiencing’ a chemical gradient. Serine and aspartate are equally effective “attractants”, but in this assay the attractant gradient is generated by growth of the bacteria and serine is preferentially consumed before aspartate.

  12. Assays of Bacterial Motility Brownian Swimming Fluorescent Tethered Tracking Motion E. coli Flagella E. coli E. coli Latex Beads Bundle

  13. Assays of Bacterial Motility Flow Surface Swarming Pattern Laser Chamber Salmonella Formation Trap Assay

  14. The Molecular Machinery of Chemotaxis INPUT Attractant concentration Signal Transduction OUTPUT Direction of rotation

  15. The Molecular Machinery of Chemotaxis Attractants bind receptors at the cell INPUT surface changing their “state”. (methylated chemoreceptors MCPS). Tsr Tar Tap Trg Signal Transduction OUTPUT Direction of rotation

  16. The Molecular Machinery of Chemotaxis The MCPs regulate the activity of a INPUT histidine kinase - autophosphorylates Tsr on a histidine residue. Tar Tap Trg P~ CheA (CheW) OUTPUT Direction of rotation

  17. The Molecular Machinery of Chemotaxis CheA transfers its phosphate to a INPUT signaling protein CheY to form Tsr CheY~P. Tar Tap Trg CheA P~ (CheW) CheY P~ OUTPUT Direction of rotation

  18. The Molecular Machinery of Chemotaxis CheY~P binds to the “switch” and causes the motor to reverse direction. INPUT The signal is turned off by CheZ Tsr which dephosphorylates CheY. Tar Tap Trg CheA P~ (CheW) CheY CheZ P~ OUTPUT Direction of rotation

  19. Excitatory Pathway At ‘steady state’, CheY~P levels in the cell are constant and there is some probability of the cell tumbling. Binding of attractant of the receptor- kinase complex, results in decreased CheY~P levels and reduces the probability of tumbling and the bacteria will tend to continue in the same direction. MCP + attractant inactive CheA (CheW) CheY~P CheZ CheY Motor

  20. The Molecular Machinery of Chemotaxis Adaptation involves two proteins, CheR and CheB, that modify the receptor to INPUT counteract the effects of the attractant. Tsr Tar Tap Trg CheA P~ (CheW) CheY CheZ CheR P~ CheB OUTPUT Direction of rotation

  21. Adaptation Pathway CheR MCP MCP~CH 3 CheA CheA (CheW) (CheW) CheB~P Less active More active

  22. Adaptation Pathway CheR MCP -(CH3) 0 MCP -(CH3) 1 MCP -(CH3) 2 MCP -(CH3) 3 MCP -(CH3) 4 MCP -(CH3) 0 MCP -(CH3) 1 MCP -(CH3) 2 MCP -(CH3) 3 MCP -(CH3) 4 +Attractant +Attractant +Attractant +Attractant +Attractant CheB~P In a receptor dimer there will 65 possible states (5 methylation states and two occupancy states per monomer). If receptors function in receptor clusters, essentially a continuum of states may exist.

  23. Some Issues in Chemotaxis: • Sensing of Change in Concentration not absolute concentration i.e. temporal sensing • Exact Adaptation • Sensitivity and Amplification • Signal Integration from different Attractants/Repellents The range of concentration of attractants that will cause a chemotactic response is about 5 orders of magnitude (nM ‡ mM)

  24. References on Modeling Chemotaxis Barkai, N. & Leibler, S. (1997) Nature (London) 387: 913–917. Spiro, P. A., Parkinson, J. S. & Othmer, H. G. (1997) Proc. Natl. Acad. Sci. US 94: 7263–7268. Tau-Mu Yi, Yun Huang , Melvin I. Simon, and John Doyle (2000) Proc. Natl. Acad. Sci. USA 97: 4649–4653.* Bray, D., Levin, M. D. & Morton-Firth, C. J. (1998) Nature (London) 393: 85–88. * * - these models have incorporated the Barkai model.

  25. Robustness in simple biochemical networks N. Barkai & S. Leibler Departments of Physics and Molecular Biology, Princeton University, Princeton, New Jersey 08544, USA Simplified model of the chemotaxis system.

  26. Mechanism for robust adaptation E is transformed to a modified form, E m , by the enzyme R; enzyme B catalyses the reverse modification reaction. E m is active with a probability of a m ( l ), which depends on the input level l . Robust adaptation is achieved when R works at saturation and B acts only on the active form of E m . Note that the rate of reverse modification is determined by the system’s output and does not depend directly on the concentration of E m (vertical bar at the end of the arrow).

  27. Some parameters used to characterize the network. Tumble frequency Steady-State Tumble Frequency Adaptation Time Adaptation precision

  28. Chemotactic response and adaptation in the Model. The system activity, A , of a model system which was subject to a series of step-like changes in the attractant concentration, is plotted as a function of time. Attractant was repeatedly added to the system and removed after 20 min, with successive concentration steps of l of 1, 3, 5 and 7 m M. Note the asymmetry to addition compared with removal of ligand, both in the response magnitude and the adaptation time.

  29. How robust is the model with respect to variation in parameters? Adaptation precision Adaptation Time

  30. Adaptation precision (i.e. exact adaptation) is Robust

  31. Adaptation time is very sensitive to parameters

  32. Testing the predictions of the Barkai model Robustness in bacterial chemotaxis. U. Alon, M. G. Surette, N. Barkai & S. Leibler • The concentration of che proteins were altered as a simple method to vary network parameters. • The behavior of the cells were measured (adaptation precision, adaptation time and steady-state tumble frequency). • In each case the predictions of the model we observed.

  33. Data for CheR As predicted by the model the adaptation precision was robust while adaptation time and steady-state tumble frequency were very sensitive to conditions.
