SELWOOD SPIRAL SLIDE A24576 INSTALLATION AND OPERATING INSTRUCTIONS - - PDF document

SELWOOD SPIRAL SLIDE A24576 INSTALLATION AND OPERATING INSTRUCTIONS WARNING To reduce the risk of serious injury or death, you must read and 10'-0" follow these instructions. Keep and refer to these instructions often and give them to


slide-1
SLIDE 1

Apr.10-2014

Table of Contents

Warnings and Safe Play Instructions. . . . . . . . . . . . . . . pg. 2 Protective Surfacing Guidelines. . . . . . . . . . . . . . . . . . . pg. 3 Instructions for Proper Maintenance . . . . . . . . . . . . . . . pg. 4 About Our Wood – Limited Warranty . . . . . . . . . . . . . . pg. 5 Keys to Assembly Success . . . . . . . . . . . . . . . . . . . . . . pg. 6 Metric Conversion Sheets . . . . . . . . . . . . . . . . . . . . . pg. 7,8 Part ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 9

3404576

FR: Pour obtenir la notice de montage dans votre langue, cliquez sur www.selwoodproducts.com DE: Gehen Sie auf www.selwoodproducts.com um die Bauanleitung in thre Sprache zu bekommen.

www.selwoodproducts.com

Europe The Granary, Weathercock Hill Chevington, Bury St Edmunds, Suffolk IP29 5RG North America 375 Sligo Road West. P.O. Box 10 Mount Forest Ontario, Canada N0G 2L1 Australia Unit 6/168 - 180 Victoria Road Marrickville, Sydney NSW 2204

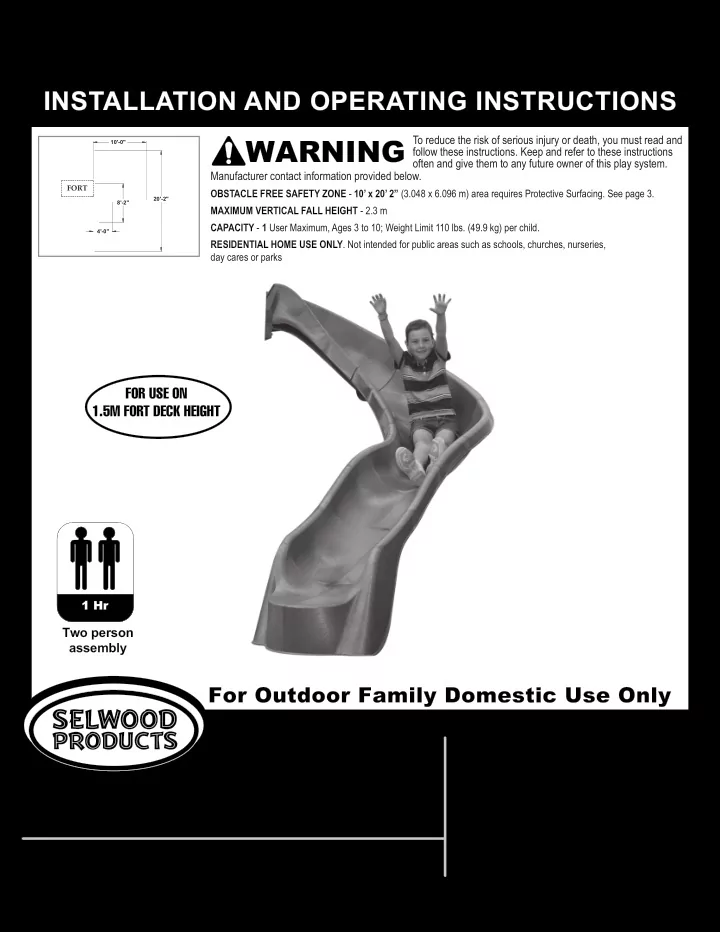

INSTALLATION AND OPERATING INSTRUCTIONS

SELWOOD SPIRAL SLIDE – A24576

10'-0"

FORT

20'-2" 4'-0" 8'-2"

To reduce the risk of serious injury or death, you must read and follow these instructions. Keep and refer to these instructions

  • ften and give them to any future owner of this play system.

Manufacturer contact information provided below.

OBSTACLE FREE SAFETY ZONE - 10’ x 20’ 2” (3.048 x 6.096 m) area requires Protective Surfacing. See page 3. MAXIMUM VERTICAL FALL HEIGHT - 2.3 m CAPACITY - 1 User Maximum, Ages 3 to 10; Weight Limit 110 lbs. (49.9 kg) per child. RESIDENTIAL HOME USE ONLY. Not intended for public areas such as schools, churches, nurseries, day cares or parks

WARNING

1 Hr

Two person assembly

FOR USE ON 1.5M FORT DECK HEIGHT

slide-2
SLIDE 2

Warnings and Safe Play Instructions

CONTINUOUS ADULT SUPERVISION REQUIRED. Most serious injuries and deaths on playground equipment have occurred while children were unsupervised! Our products are designed to meet mandatory and voluntary safety standards. Complying with all warnings and recommendations in these instructions will reduce the risk of serious or fatal injury to children using this play system. Go over the warnings and safe play instructions regularly with your children and make certain that they understand and follow them. Remember on-site adult supervision is required for children of all ages. Observe capacity limitations of your play-set. See front cover. Dress children with well fjtting and full foot enclosing footwear. Teach children to sit with their full weight in the center

  • f the swing seat to prevent erratic swing motion or

falling off. Check for splintered, broken or cracked wood; missing, loose, or sharp edged hardware. Replace, tighten and or sand smooth as required prior to playing. Verify that suspended climbing ropes, rope ladders, chain

  • r cable are secured at both ends and cannot be looped

back on itself as to create an entanglement hazard. On sunny and or hot days, check the slide and other plastic rides to assure that they are not very hot as to cause burns. Cool hot slide and rides with water and wipe dry prior to using. Do not allow children to wear open toe or heel footwear like sandals, fmip–fmops or clogs. Do not allow children to walk, in front, between, behind

  • r close to moving rides.

Do not let children twist swing chains or ropes or loop them over the top support bar. This may reduce the strength of the chain or rope and cause premature failure. Do not let children get off rides while they are in motion. Do not permit climbing on equipment when it is wet. Do not permit rough play or use of equipment in a manner for which it was not intended. Standing on or jumping from the roof, elevated platforms, swings, climbers, ladders or slide can be dangerous. Do not allow children to swing empty rides or seats. Do not allow children to go down slide head fjrst or run up slide. 2 SERIOUS HEAD INJURY HAZARD Installation over concrete, asphalt, dirt, grass, carpet and other hard surface creates a risk of serious injury

  • r death from falls to the ground. Install and maintain

shock absorbing material under and around play-set as recommended on page 3 of these instructions. COLLISION HAZARD Place play-set on level ground at least 6 feet from any

  • bstruction such as a garage or house, fences, poles,

trees, sidewalks, walls, landscape timbers, rocks, pavement, planters, garden borders, overhanging branches, laundry lines, and electrical wires. (See OBSTACLE FREE SAFETY ZONE on cover) CHOKING HAZARD/SHARP EDGES & POINTS Adult assembly required. This product contains small parts and parts with sharp edges and points. Keep parts away from children until fully assembled. WARNING LABEL Owners shall be responsible for maintaining the legibility

  • f the warning labels.

STRANGULATION HAZARD

  • NEVER allow children to play with ropes, clotheslines,

pet leashes, cables, chains or cord-like items when using this play-set or to attach these items to play-set.

  • NEVER allow children to wear loose fjtting clothing,

ponchos, hoods, scarves, capes, necklaces, items with draw-strings, cords or ties when using this play-set.

  • NEVER allow children to wear bike or sport helmets

when using this play-set. Failure to prohibit these items, even helmets with chin straps, increases the risk of serious injury and death to children from entanglement and strangulation. TIP OVER HAZARD Choose a level location for the equipment. This can reduce the likelihood of the play set tipping over and loose-fjll surfacing materials washing away during heavy rains. DO NOT allow children to play on the play-set until the assembly is complete and the unit is properly anchored.

WARNING WARNING – Safe Play Instructions

2

support@solowavedesign.com

slide-3
SLIDE 3

3

support@solowavedesign.com

slide-4
SLIDE 4

4

support@solowavedesign.com

slide-5
SLIDE 5

Selwood Products Limited Warranty

Selwood Products states that the product is free from defect in materials and workmanship for a period of one (1) year from the original date of purchase. This one (1) year warranty covers all parts including wood, hardware, and accessories. All wood carries a ten (10) year warranty against rot and decay. Refer to the schedule associated with replacement of parts under this Warranty. In addition, the manufacturer will replace any parts within the fjrst 60 days from date of purchase found to be missing from or damaged in the original

  • packaging. This warranty applies to the original owner and registrant and is non-transferable. Regular maintenance is required to

assure maximum life and performance of this product and failure by the owner to maintain the product according to the maintenance requirements may void this warranty. Maintenance guidelines are provided in the Owner’s Manual provided by Selwood Products. This Limited Warranty does not cover:

  • Labour for any inspection or Labour for replacement of any defective item(s)
  • Incidental or consequential damages
  • Cosmetic defects which do not affect performance or integrity of a part or the entire product
  • Vandalism, improper use, failure due to loading or use beyond the capacities stated in the Assembly Manual.
  • Acts of nature including but not limited to wind, storms, hail, fmoods, excessive water exposure
  • Improper installation including but not limited to installation on uneven, unlevel, or soft ground
  • Minor twisting, warping, checking, splitting, or any other natural occurring properties of wood that do not affect

performance or integrity. Selwood Products states that the product has been designed for safety and quality. Any modifjcations made to the original product could damage the structural integrity of the unit leading to failure and possible injury. Modifjcation voids any and all warranties and Selwood Products will accept no liability for any modifjed products or consequences resulting from failure of a modifjed product. This product is warranted for RESIDENTIAL USE ONLY. Under no circumstance should the product be used in public settings such as schools, churches, playgrounds, parks, daycares and the like. Such use may lead to product failure and potential injury. Any and all public use will void this warranty. Selwood disclaims all other representations and warranties of any kind, expressed or implied. Warranty Part Replacement Schedule: Plastic/Metal/Wood Components: 1 Year Warranty 0-60 days from date from purchase: Free Parts & Free Shipping | 61 days to 1 year from purchase: Free Parts + Shipping & Handling Wooden (Wood Rot and Decay Only): 10 Year Warranty 0-60 days from date from purchase: Free Parts & Free Shipping | 61 days -10 years from purchase: Free Parts + Shipping & Handling This Warranty gives you specifjc legal rights. You may have other rights as well which vary from state to state or province to

  • province. This warranty excludes all consequential damages, however, some states do not allow the limitation or exclusion of

consequential damages, and therefore this limitation may not apply to you. Complete the registration of your Selwood Product purchase online at: www.selwoodproducts.com/warranty-registration Please refer to the back of this instruction manual for details on how to register your Selwood Products purchase.

At the factory we have added water repellent to the stain. This water repellent decreases the amount of water absorption during rain or snow thus decreasing the tension in the wood. Sunlight will break down the water repellent, so we recommend applying a water repellent on a yearly basis (see your local stain and paint supplier for a recommended product). Failure to do so can affect

  • warranty. Also if storing the product before installation, make sure you store out of direct sunlight in a cool dry place.

5

support@solowavedesign.com

slide-6
SLIDE 6

Square Assembly

6

support@solowavedesign.com

slide-7
SLIDE 7

1 inch = 25.4mm

SOLO)WAVE DESIGN HARDWARE

For example: BOLT LENGTH 4½ (4.5) inches long 114mm long 1 inch = 25.4mm 25.4mm 4.5 inches x

DIAMETER CONVERSION LENGTH CONVERSION

= BOLT DIAMETER 5/16 (0.31) inches 0.31 inches x 25.4mm = 8mm For example: HARDWARE LENGTH CHART inches vs millimetres 6 152 5½ 140 5 127 4½ 114 4 102 3½ 89 3 76 2½ 64 2 51 1½ 38 1¼ 32 1-1/8 29 1 25.4 7/8 22 3/4 19 1/2 12.7

1/4" (6mm) Flat Washer 1/4" (6mm) Lock Washer

1/4"(0.25) = 6mm Hex Bolt

1/4" (6mm) T-Nut

5/16"(.31) = 8mm Lag Screw

5/16" (8mm) Flat Washer

1/4"(0.25) = 6mm Lag Screw

1/4" (6mm) Flat Washer 5/16" (8mm) Flat Washer 5/16" (8mm) Lock Washer

5/16"(.31) = 8mm Hex Bolt

5/16" (8mm) T-Nut

3/8"(.38) = 9.5mm Lag Screw

3/8" (9.5mm) Flat Washer

7

support@solowavedesign.com

slide-8
SLIDE 8

1 x 2 1 x 4 1 x 5 1 x 6 1 x 3

1/2 x 4

5/4 x 6

5 1/2" 139.7 1" 25.4 11.1 .44 82.6 3 1/4"

4 x 4

3 1/2" 88.9 3 1/2" 88.9 4 1/2" 114.3 5/8" 15.9 15.9 5/8" 1 3/8" 34.9

2 x 6

5 3/8" 136.5 1 1/2" 38.1 15.9 5/8" 3 3/8" 85.7 60.3 2 3/8" 15.9 5/8"

1505mm

SOLO)WAVE DESIGN WOOD PROFILES

LENGTH CONVERSION

For example: 1 inch = 25.4mm BOARD LENGTH 59¼ (59.25) inches 59.25 inches x 25.4mm = Dimensions in brackets [mm] represent millimetres.

5/4 x 4

3 1/2" 88.9 1" 25.4 5 3/8" 136.5 5/8" 15.9

2 x 4

3 3/8" 85.7 1 3/8" 34.9

5/4 x 5

4 1/2" 114.3 1" 25.4

2 x 3

2 1/2" 63.5 1 3/8" 34.9

5/4 x 3

63.5 2 1/2" 25.4 1"

2 x 2

1 1/2" 38.1 1 1/2" 38.1

8

support@solowavedesign.com

slide-9
SLIDE 9

(1) Lag Screw 1/4 x 3" (9262230)

LS3

Part Identification (Reduced Part Size) Part Identification (Actual Part Size)

S1

(2) Wood Screw #8 x 1 1/8" (9290514)

3640825 Box 1

(1) SL Upright 2 x 3 x 55"

SW3

3644909 Box 1

SW4

(2) SW Block 5/4 x 4 x 3-1/2"

3642455 Box 1

SW5

(1) SL Brace 2 x 3 x 38-1/4"

(1) 1/4" Flat Washer (9251200)

S3

(4) Wood Screw #8 x 2 1/2" (9290522)

S8

(4) Pan Screw #12 x 3/4" (9264603)

3640826 Box 1

SW1

(1) Short Upright 2 x 3 x 44-3/4"

(1) Spiral Wave - Top 3310101

S4

(6) Wood Screw #8 x 3" (9260530) 2" x 6" 5/4" x 6" 5/4" x 5" 5/4" x 4" 2" x 2" 2" x 4" Nominal Size

2" x 3" 1 1" x 5½" 1" x 4½" 1" x 3½" 1½" x 1½" " x 2½" Actual Size 1½" x 5⅜" 1⅜" x 3⅜"

H13 (3) Spiral Wave Bracket 9201500 (shown bent)

(2) Hex Bolt 1/4 x 3-1/2" (9277232)

(1) SL Support 5/4 x 4 x 47"

3641247 Box 1

SW2

(1) Spiral Wave - Bottom 3310103

S6

(10) Pan Screw #12 x 1" (9264610)

(1) Spiral Wave - Middle 3310102

S7

(4) Pan Screw #12 x 2" (9264620)

(2) Wall Back 1 x 4 x 46-3/4

SW7

(1) SL Block 2 x 4 x 4-1/4"

SW6

3642456 Box 1 9

support@solowavedesign.com

slide-10
SLIDE 10

PRODUCT NUMBER:

CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 1) CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 2) CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 3) CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 4) CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 5) CARTON I.D. STAMP: __ __ __ __ __ 14459 ___ (Box 6)

If you have missing, damaged or require replacement parts DO NOT contact your

  • retailer. Please visit www.selwoodproducts.com and select the Parts Centre.

You can then complete a quick online order form or make direct contact with the Selwood Products Part Team. www.selwoodproducts.com

A24576

10

support@solowavedesign.com

slide-11
SLIDE 11

THESE STEPS WILL APPLY IN COMBINATION WITH

OLYMPIA II, ORIANA II, BALMORAL II, ADMIRAL II ROOF INSTRUCTIONS

USE PREVIOUS STEPS AS REFERENCE ONLY:

  • STEP 2
  • STEP 6
  • STEP 14 - 16

11

support@solowavedesign.com

slide-12
SLIDE 12

A: To 2 (F13) Posts attach 1 (F8) SL Ground with 4 (H2) 1/4 x 2” Hex Bolts (with lock washer, fmat washer andt-nut) and in 1 (F17) End Floor in the top holes with 2 (H2) 1/4 x 2” Hex Bolts (with lock washer, fmat washer andt-nut). (fjg. 2.1) B: Make sure assembly is square and then in the bottom holes of the (F17) End Floor fasten to (F13) Posts using 2 (LS1) 1/4 x 1-1/2” Lag Screws (with fmat washer). (fjg. 2.2)

1 x End Floor 1 x 5 x 38-1/4” 1 x SL Ground 1 x 5 x 38-1/4” 2 x Post 2 x 4 x 94”

Hardware Wood Parts

F17 F8 F13

Step 2: Wall Assembly

This step replaces step 2 of the fort instruction. Continue with fort steps 3 to step 5, then on to step 6 from this instruction.

6 x 1/4 x 2” Hex Bolt (1/4” Lock Washer, 1/4” Flat Washer, 1/4” T-Nut)

H2

2 x 1/4 x 1-1/2” Lag Screw (1/4” Flat Washer)

LS1

12

support@solowavedesign.com

H2 H2 LS1

Notice Floor End is fmipped down F13 F13 F13 F13 F17 F17 F8

  • Fig. 1.1
  • Fig. 1.2
slide-13
SLIDE 13

A: From inside of assembly, measure 2-1/8” down from the top of (F17) End Floor on the Swing Wall side (fjg. 6.2)and 5/8” down from the top of (F17) End Floor on the Wall side (fjg. 6.3), then attach (OL7, OR7, AR11, BR5) Floor Joist using 2 (S4) #8 x 3” Wood Screws per end. (fjg. 6.1)

1 x Floor Joist 5/4 x 4 x 46-1/2”

Hardware Wood Parts

OL11

Step 6: Floor Frame Assembly

This step replaces step 6 of the fort instruction. Continue with fort steps 7 to step 13, then on to step 14 from this instruction.

  • Fig. 6.1
  • Fig. 6.2

4 x #8 x 3” Wood Screw

S4

13

support@solowavedesign.com

Notice top holes used in both (F17) End Floor F17 S4 F17 S4 OL7 OL7

  • Fig. 6.3

S4 S4

5/8” 2-1/8”

BR5 OR7 AR11 BR5 OR7 AR11 OL7

slide-14
SLIDE 14

21-1/4"

14

support@solowavedesign.com

E: Remove (F7) Wall Board as indicated in fjg. 14.1. This board will be re-attached in Step 15. Be sure to keep the board and the screws handy. F: Tight to the fmoor boards and fmush to the outside edges of the (F13) Posts attach 1 (SW7) Wall Back to each (F13) Post and to either (OR2,OL2,AR6) Front Divider or (BR8) Roof Upright, with 6 (S1) #8 x 1-1/8” Wood Screws (fjg. 14.1) E: Measure 21-1/4” up from the fmoor boards on each side of the fort and attach 1 (SW7) Wall Back to each (F13) Post with 2 (S7) #12 x 2” Pan Screws (with 3/16” fmat washer) in the top holes and 2 (S1) #8 x 1-1/8” Wood Screws in the bottom holes . (SW7) Wall Back should be tight to (F14) Wall Support. (fjg. 14.1)

2 x Wall Back 1 x 4 x 46-3/4”

Hardware Wood Parts

SW7

Step 14 Cont’d: Front Frame Assembly

This step is added to step 14 of the fort instruction. Complete and continue with step 15 from this instruction.

F13

  • Fig. 14.1

10 x #8 x 1-1/8” Wood Screw 2 x #12 x 2” Pan Screw (with 3/16” fmat washer)

S1

MESH F14 SW7 F7

Remove this (F7) Wall Board. Keep board and screws to re-attach in Step 15.

S7

F13 S7 S7 S1 S1

21-1/4”

AR6 OR2 BR8 F13 OL2

slide-15
SLIDE 15

15

support@solowavedesign.com

A: Tight to the fmoor boards with the bevelled edges facing out and to the top, attach 13 (F5) Cedar Wall against each (SW5) Wall Back using 4 (S0) #8 x 7/8” Truss Screws per (F5) Cedar Wall. The 2 outside boards should be fmush to outside edge of each (F13) Post. The boards should be evenly spaced with the gap between boards 1/4”, not exceeding 1/2”. (fjg. 15.1) B: Re-attached (F7) Wall Board from previous step tight to the last (F5) Cedar Wall. (fjg. 15.1)

13 x CE Wall Board 1/2 x 4 x 20”

Hardware Wood Parts

F5

Step 15: Front Wall Assembly

This step replaces step 15 of the fort instruction. Complete and continue with step 15 cont’d from this instruction.

  • Fig. 15.1

52 x #8 x 7/8” Truss Screw

S1

SW5 F7

Re-attach (F7) Wall Board.

S1 F13 F13

4 per board

F5

Bevelled edge faces out End board is fmush Gap between boards 1/4” not to exceed 1/2” Notice tight together

slide-16
SLIDE 16

16

support@solowavedesign.com

C: Attach mesh to (SW5) Wall Back using 3 (S5) #8 x 1/2” Pan Screws with #8 fmat washers, making sure to space evenly at 8” apart. (fjg. 15.2)

Hardware

Step 15 cont’d: Front Wall Assembly

Complete this step then continue on to step 16 from this instruction.

  • Fig. 15.2

3 x #8 x 1/2” Pan Screw (#8 fmat washer)

S5

Outside View 8” 8” 2” MESH

S5 S5

slide-17
SLIDE 17

Other Parts 17

support@solowavedesign.com

A: Use Step 16 of your fort specifjc roof instruction to install the SW Roof Side, Roof Side, Side Roof. B: Install 2 (PB1) 1/4 x 3/4” Pan Bolts (with lock washer, fmat washer and t-nut) into (F17) End Floor. The bolts are installed from the outside of the fort and t-nuts are installed from the inside of the fort. (fjg. 16.1) C: Install 2 Hole Plugs on each (F13) Post, 1 Hole Plug per side in each hole as shown in fjg. 16.1 Note: Keep the opening clear, do not install any other boards in this step and do not follow Step 16 cont. Proceed to Step 1 of this instruction.

Hardware

Step 16: Wall Assembly

This step works in combination with step 16 of the fort instruction.

F5

  • Fig. 16.1

2 x 1/4 x 3/4” Pan Bolt (1/4” lock washer, 1/4” fmat washer, 1/4” t-nut)

PB1

F13 F13

Hole Plugs Hole Plugs

OR14 AR18 BR9 OL18 PB1 4 x Hole Plugs

slide-18
SLIDE 18

Hex Bolt Assembly

Lock Washer T-Nut Flat Washer Hex Bolt

Step 1: Assemble SL Brace

A: Remove both (H2) 1/4 x 2” Hex Bolts from the fmoor end leaving the t-nut installed. (fjg. 1.1) B: Attach (SW5) SL Brace using 2 (H13) 1/4 x 3-1/2” Hex Bolts. (fjg. 1.2) C: Attach (SW5) SL Brace using 1 (S4) #8 x 3” Wood Screw. (fjg. 1.2)

  • Fig. 1.1

1 x SL Brace 2 x 3 x 38-1/4”

Hardware Wood Parts

2 x 1/4 x 3-1/2” Hex Bolt (1/4” Lock Washer, 1/4” Flat Washer)

SW5

H13

H2

S4 SW6

H13

  • Fig. 1.2

H13

1 x #8 x 3” Wood Screw

S4

Front Front Back Back

18

support@solowavedesign.com

SW5

Notice: Flush (SW5) SL Brace to the top of (F17) End Floor

slide-19
SLIDE 19

Step 2: Assemble Spiral Wave Slide

A: Assemble the top, middle and bottom sections using the tongue and groove as a guide. Push together until snaps engage. (fjg. 2.1 & 2.2) B: Complete subassembly by securing sections with 2 (S8) #12 x 3/4” Pan Screws per section in the middle holes and 2 (S6) #12 x 1” Pan Screws per section in the outside holes. See fjg. 2.2 for accurate screw placement.

Hardware

4 x #12 x 3/4” Pan Screw 4 x #12 x 1” Pan Screw

S8

  • Fig. 2.1

Other Parts

1 x Top Section 1 x Middle Section 1 x Bottom Section

Top Section

  • Fig. 2.2
  • Fig. 2.3

Middle Section B

  • t

t

  • m

S e c t i

  • n

S6 S8 Snaps

S6

19

support@solowavedesign.com

slide-20
SLIDE 20

Step 3: Assemble Slide Supports Part 1

50" 43½" 33" 8.00 50" 43½" 33"

A: Attach 1 (SW4) SW Block to each (SW3) SL Upright and (SW1) Short Upright using 2 (S3) #8 x 2-1/2” Wood Screws per block. (fjg. 3.1) B: Attach (SW2) SL Support to (SW3) SL Upright with 2 (S4) #8 x 3” Wood Screws. (fjg. 3.1)

Top view

  • Fig. 3.1

SW4 S3 S3 S4 SW1 SW4 SW2 SW3

1 x SL Upright 2 x 3 x 55” 1 x Short Upright 2 x 3 x 44-3/4” 1 x SL Support 5/4 x 4 x 47” 2 x SW Block 5/4 x 4 x 3-1/2”

Hardware Wood Parts

4 x #8 x 2-1/2” Wood Screw 2 x #8 x 3” Wood Screw

S3

SW3 SW1 SW2 SW4

S4

20

support@solowavedesign.com

slide-21
SLIDE 21
  • Fig. 3.2
  • Fig. 3.3

Step 3: Assemble Slide Supports Part 2

C: Dig two, fmat bottom, 8” wide by 6-1/2” deep holes as shown inf fjg. 3.2 and 3.3. Place Slide Support Assembly in hole #1, making sure that it is level and plumb to fort. (fjg. 3.2) D: Refjll hole #1 halfway with soil and compact making sure (SW2) SL Support stays level with fort. Finish fjlling and compacting. (fjg. 3.2) Note: (SW1) Short Upright will be placed in hole #2 after attaching the slide to the fort.

Warning! Digging can be dangerous if you do not check fjrst for underground wiring, cables or gas lines.

Hardware Hole1 Hole 2 SW2 Slide Support Assembly SW1 Fort Post

Notice angle

  • rientation

43” 50” 33”

SW3 21

support@solowavedesign.com

slide-22
SLIDE 22

Step 3: Assemble Slide Support Part 3

Pre-drill pilot hole using a 1/8” drill bit before installing lag screw.

  • Fig. 3.1

A: Place slide on slide supports and on (SW5) SL Brace making sure slide is 3” from SL Brace end. (fjg. 3.2) B: Refjll hole #2 halfway with soil and compact making sure (SW1) Short Upright stays plumb. Finish fjlling and compacting. (fjg. 3.1) C: Attach (SW2) SL Support to Post using (LS3) 1/4 x 3” Lag Screw (1/4” Flat Washer) (fjg. 3.1 & 3.3)

Hardware

Note: There must be a minimum

  • f 18” obstacle free clearance on

each side of the slide as the child goes down the slide.

1 x 1/4 x 3” Lag Screw (1/4” fmat washer)

LS3

LS3

  • Fig. 3.3
  • Fig. 3.2

3”

22

support@solowavedesign.com

Hole 2

slide-23
SLIDE 23

Step 4: Attach Slide Part 1

Pre-drill all pilot holes using a 1/8” drill bit before installing pan screws.

Hardware

4 x #12 x 2” Pan Screw

S7

A: Attach slide to (SW5) SL Brace using 4 (S7) #12 x 2” Pan Screws. (fjg. 4.1) B: Attach the bottom of the slide Mid Section to (SW2) SL Support with 1 Spiral Wave Bracket and 2 (S6) #12 x 1” Pan Screws as shown in fjg. 4.2 & 4.3.

  • Fig. 4.1

2 x #12 x 1 Pan Screw

S6

Other Parts

1 x Spiral Wave Brackets

Spiral Wave Bracket SW2 Slide Mid Section 23

support@solowavedesign.com

S7

  • Fig. 4.2
  • Fig. 4.3

S6 Underside of Slide SW5

slide-24
SLIDE 24
  • Fig. 4.4
  • Fig. 4.5

Bend bracket to fjt

B: Attach (SW1) Short Upright to the slide with 1 Spiral Wave Bracket and 2 (S6) #12 x 1” Pan Screws as shown in fjg. 4.4. C: Align (SW2) SL Upright between holes on underside of slide and attach using 1 Spiral Wave Bracket with 2 (S6) #12 x 1” Pan Screws as shown in fjg. 4.5.

  • Fig. 4.6

Step 4: Attach Slide Part 2

Hardware

4 x #12 x 1 Pan Screw

S6

Other Parts

2 x Spiral Wave Brackets

SW3 SW2 SW1 Bend bracket to fjt SW1 SW2 S6 S6 Spiral Wave Bracket Spiral Wave Bracket 24

support@solowavedesign.com

slide-25
SLIDE 25

Step : Attach Slide - Part 3

Complete this step then complete the rest of the steps in the fort instruction starting with Step 17.

E: Attach (SW6) SL Block to the post with 3 (S4) #8 x 3” Wood Screws, making sure the block rests tight to the slide. As shown in fjg. 4.7, 4.8 & 4.9.

Hardware

3 x #8 x 3 Wood Screw

S4

1 x SL Block 2 x 4 x 4-1/4”

Wood Parts

SW6

  • Fig. 4.8
  • Fig. 4.9

SW6 S4

Flush

SW6

Front View Inside View

25

support@solowavedesign.com

  • Fig. 4.7

A

slide-26
SLIDE 26

NOTES

26

support@solowavedesign.com

slide-27
SLIDE 27

NOTES

slide-28
SLIDE 28

Register your Product Online

To register yourself as the original purchaser of this Selwood Products Swingset / Climbing Frame, please take a few moments to complete the short registration form that will be found online at: www.selwoodproducts.com/warranty-registration

Rate and Review Your Product

Swingset review is an independent review site established to enable purchasers and users of swingsets, playsets, climbing frames, jungle gyms to review the products they buy. Your review can assist future purchasers to make an educated purchase based on your experiences. Enabling potential purchasers to benefjt from

  • ther peoples positive and negative experiences

in the swingset market is a key aim of Swingset

  • Review. Free communication, posting and

reading of reviews providing an easy to use platform to ensure the complication is taken away from purchasing a swingset wherever you live in the world. If you’ve got something great to shout about your Swingset then do it on our site, or if you’ve got a moan then make it known. Your Swingset purchase experience will assist others in making an informed choice.

www.swingsetreview.com
