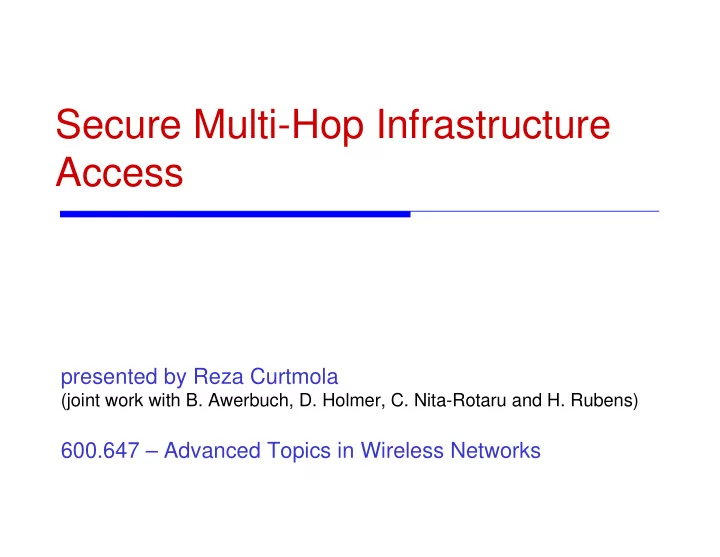

Secure Multi-Hop Infrastructure Access presented by Reza Curtmola - - PowerPoint PPT Presentation

Secure Multi-Hop Infrastructure Access

presented by Reza Curtmola

(joint work with B. Awerbuch, D. Holmer, C. Nita-Rotaru and H. Rubens)

600.647 – Advanced Topics in Wireless Networks

Wireless Infrastructure Access

• Few pure wireless peer to peer apps yet

(primarily emergency deployments)

• Un-tethered infrastructure access has been

the wireless killer app (countless variations)

– Voice communication – Internet access – Local area network access – Data gathering sensor networks – Peripherals (headphones, mice, keyboards)

Single-Hop vs. Multi-Hop

• Advantages

– Well established – Lower Complexity

• Issues

– Limited coverage

• Range
• Quality (gaps)
• Advantages

– Increased Coverage – Enhanced performance – Reduced Deployment Cost – Overall Flexibility

• Challenges

– Routing protocol – Mobility – Scalability

Infrastructure Access Security

• Single-Hop

– Many years to develop current state of the art

• 1997 – WEP
• 2003 – WPA
• 2004 – 802.11i / WPA2

– Still outstanding issues? (see NDSS 2004 paper)

• Multi-Hop

– Introduces a set of additional security concerns – Existing work focuses only on the security of the ad hoc scenario

Network Model

Gateway Authorized Node Adversary Revoked Node

Protocol Design Goals

• Security comparable to single-hop state of

the art protocols

• Additional protection against multi-hop

routing attacks

– Black Hole – Flood Rushing – Wormhole

• Efficient protocol operation

– Symmetric cryptography – Scalable user management

Adversarial Model

• Access Point

– is trusted – able to establish trust relationships with authorized nodes

• Authenticated nodes are trusted to perform

the protocol correctly

• Adversaries are unauthenticated nodes

– Perform arbitrary attacks (e.g. drop, inject or modify packets) – May collude to perform stronger attacks (e.g. tunnel packets)

Our Solution

• Take an existing solution: Pulse protocol

[Infocom ‘04, Milcom ‘04, WONS ‘05]

– Multi-hop routing protocol – Optimized for many-to-one communication pattern – High Scalability

• Mobility
• Number of nodes
• Number of flows
• Build security mechanisms into it

Pulse Protocol Example

Pro-active Spanning Tree

Node Wishes to Communicate

Sends Packet to Gateway

Cryptographic Protection

• Participating nodes share a network wide

symmetric key NSK

– Used to secure the routing service – Established and maintained using a broadcast encryption scheme (BES)

• Source and destination use per flow unicast

key (UK) to protect data payload

routing headers data payload seq number HMACNSK ENSK EUK

Secure Reliability Metric

• Secure ACKs are required for each data

packet traversing a link

• Protocol gathers history of ACK failures
• Link weights inversely proportional to

reliability

• Strategy is similar to ODSBR [WiSe ’02]

Network Model

Gateway Authorized Node Adversary Revoked Node

Adversarial Avoidance Example

Gateway

1 1 2 2 1 1 2 2 2 2 3 2 3 3 3 2

Adversarial Avoidance Example

Gateway

1 1 2 2 1 1 2 2 2 2 3 2 3 3 3 2

Adversarial Avoidance Example

Gateway

1 1 2 2 1 1 2 2 2 2 3 2 3 3 3 2 1

Adversarial Avoidance Example

Gateway

1 1 2 2 1 1 2 2 2 2 3 2 3 3 3 2 1

Adversarial Avoidance Example

Gateway

1 1 2 2 1 1 2 2 2 2 3 2 3 3 2 1.1 3

Adversarial Avoidance Example

Gateway

1 1 2 2 1 1 2 2 2 2 3 2 3 3 3 2 1.1 1

Wormhole Avoidance Example

Gateway

1 1 2 2 1 1 2 2 2 2 3 2 3 3 2 3

Wormhole Avoidance Example

Gateway

1 1 2 2 1 1 2 2 2 2 3 2 2 1 2 3 1

Wormhole Avoidance Example

Gateway

1 1 2 2 1 1 2 2 2 2 3 2 2 1 2 3 1.1 …

Wormhole Avoidance Example

Gateway

1 1 2 2 1 1 2 2 2 2 3 2 2 1 2 3 3.1

Wormhole Avoidance Example

Gateway

1 1 2 2 1 1 2 2 2 2 3 2 3 3 2 3 3.1

Attack mitigation

• Injecting, modifying packets – use of NSK
• Replay attack – use of nonces
• Flood rushing – protocol relies on the

metric, and not on timing information

• Black hole – unreliable links are avoided

using metric

• Wormhole – creation is not prevented, but it

is avoided using metric

Key Management

• Assumption: each node has a unique

pre-established shared key PSK with the gateway

• Goal: to efficiently manage the Network Shared

Key (NSK)

– Selected and maintained by the gateway – Add/revoke users – Periodically refreshed Manually entered as in WEP or WPA / WPA2 personal mode Automatically generated by interaction with an authentication server as in 802.1x / EAP

• r

Broadcast Encryption Scheme

• Center broadcasts a message
• Only a subset of privileged (non-revoked)

users can decrypt it

• Our requirements:

– Allows unbounded number of broadcasts – Any subset of users can be defined as privileged – A coalition of all revoked users cannot decrypt the broadcast

Subset Cover Framework

• CS or SD [Crypto ’01], LSD [Crypto ’02]
• The set of privileged users is represented as the

union of s subsets of users

• A long-term key is associated with each subset
• A user knows a long-term key only if he belongs

to the corresponding subset

• Center encrypts message s times under all the

keys associated with subsets in the union

• LSD Properties

– Each node stores O(log3/2(n)) keys – O(r) message size – O(log(n)) computation at each node

Node Management

• Node addition

– Using PSK, a node obtains from the gateway the current NSK and the set of secrets for the BES

• Node revocation / NSK refresh

– Gateway generates a new NSK – Gateway broadcasts encrypted NSK such that

• nly non-revoked nodes are able to decrypt it

– Scalability advantage over Group Key management in 802.11i which is O(n)

1 3 6

Complete Subtree

1 3 2 7 6 5 4 15 14 13 12 11 10 9 8

• Broadcast: EK2(KEK), EK7(KEK), EK12(KEK), EKEK(NSK’)

U1 U2 U3 U4 U5 U6 U7 U8 12 2 7

Conclusion

• Protocol provides multi-hop infrastructure

access

• Efficient, lightweight security

– Entirely based on symmetric cryptography – Prevents a wide variety of attacks – Leverages infrastructure for trust establishment

Real World Implementation

• Completed Features

– Linux Kernel Module with 2.4 and 2.6 compatibility

• Operates at layer 2
• Distributed virtual switch architecture provides seamless bridging

– Pulse Protocol

• Shortcuts and gratuitous reply
• Instantaneous loop freedom
• Fast parent switching (with loop freedom)
• Medium Time Metric route selection metric (WONS 2004)

– 50 Nodes deployed across JHU Campus

• Tested with Internet Access, Ad hoc Access Points, Voice over IP
• Mobility tested at automobile speeds
• In Progress

– Security – (NDSS Workshop 2005)

• Flood Rushing, Wormholes, Black holes, any NON-Byzantine attack
• In kernel crypto implementation

– Leader Election Algorithm

• Fault tolerance, switches pulse source to most accessed destination
• Handle merge and partition

– Efficient Tree Flooding

• Similar to expanding ring search but with no duplicates
