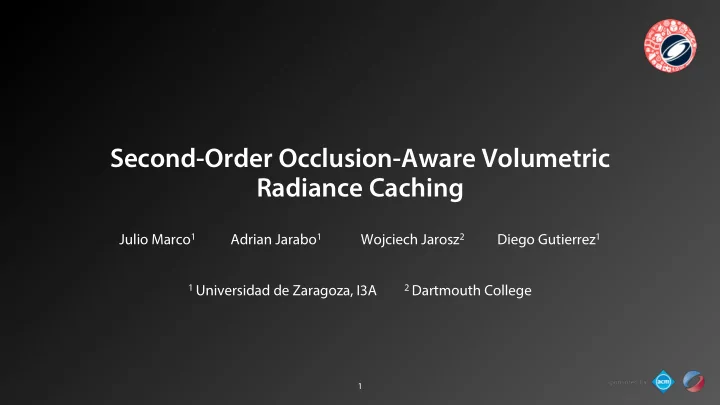

Second-Order Occlusion-Aware Volumetric Radiance Caching
Julio Marco1 Adrian Jarabo1 Wojciech Jarosz2 Diego Gutierrez1
1 Universidad de Zaragoza, I3A 2 Dartmouth College
1
2
Second-Order Occlusion-Aware Volumetric Radiance Caching Julio Marco - - PowerPoint PPT Presentation
Second-Order Occlusion-Aware Volumetric Radiance Caching Julio Marco - - PowerPoint PPT Presentation
Second-Order Occlusion-Aware Volumetric Radiance Caching Julio Marco 1 Adrian Jarabo 1 Wojciech Jarosz 2 Diego Gutierrez 1 1 Universidad de Zaragoza, I3A 2 Dartmouth College 1 2 3 4 5 [Schwarzhaupt et al. 2012] 6 OUR METHOD L +
SLIDE 2
SLIDE 3
3
SLIDE 4
4
SLIDE 5
≈
5
≈
SLIDE 6
6
[Schwarzhaupt et al. 2012]
SLIDE 7
OUR METHOD
7
?
L
L + ∆x · dL dx
SLIDE 8
Related Work
- Photon-based methods
POINTS [Jensen and Christensen 98] [Knaus and Zwicker 11]
8
[Jarosz et al. 11] [Jarosz et al. 11] BEAMS POINTS + BEAMS + PATHS [Krivanek et al. 14] [Bitterli and Jarosz 17] Higher-dimensional
SLIDE 9
Related Work
Frequency and gradient-domain
- Frequency and first-order analysis
[Durand et al. 2005, Ramamoorthi et al. 2007]
- Media frequency analysis
[Belcour et al. 2014]
- Image-space gradients for MLT
[Lehtinen et al. 2013, Manzi et al. 2014]
- Gradient-domain path tracing methods
[Kettunen et al. 2015, Manzi et al. 2015]
9
SLIDE 10
Related Work
- Irradiance/radiance caching methods
[Ward et al. 88] [Ward and Heckbert 91]
10
SLIDE 11
Related Work
- Irradiance/radiance caching methods
[Krivanek et al. 2005] [Krivanek et al. 2006]
11
SLIDE 12
Related Work
- Irradiance/radiance caching methods
[Jarosz et al. 2008]
- Media gradients
è YES
- Occlusions
è NO
- Higher-order
è NO
12
SLIDE 13
Related Work
[Jarosz et al. 2008]
13
SLIDE 14
Related Work
14
2nd order Occlusions
SURFACES MEDIA
[Jarosz et al. 2008] [Schwarzhaupt et al. 2012] [Jarosz et al. 2008]
✘
OURS
✘ ✘
SLIDE 15
Radiance extrapolation
15
SLIDE 16
Radiance extrapolation
Radiance value at x n-th translational derivative at x
TAYLOR EXPANSION
16
SLIDE 17
Radiance extrapolation
TRUNCATED TAYLOR EXPANSION
Extrapolated value at x’ (first order) Error Actual value
17
SLIDE 18
Radiance extrapolation
TRUNCATED TAYLOR EXPANSION
Extrapolated value at x’ (first order) Error Actual value
18
SLIDE 19
Radiance extrapolation
Eigenvalues
- f Hessian
19
Rλ1 Rλ2 Rλ3
Error threshold
SLIDE 20
20
? L + ∆x · dL
dx
How to compute them?
SLIDE 21
Derivative computation
21
PHASE FUNCTION TRANSMITTANCE FORESHORTENING VISIBILITY INCOMING RADIANCE
SLIDE 22
Derivative computation
22
Ignored in gradient computation
[Jarosz et al. 2008]
SLIDE 23
Derivative computation
23
?
[Jarosz et al. 2008]
Ignored in gradient computation
SLIDE 24
Derivative computation
24
[Jarosz et al. 2008]
Ignored in gradient computation
SLIDE 25
Derivative computation
25
[Jarosz et al. 2008]
Ignored in gradient computation
SLIDE 26
Derivative computation
26
Gone!
Our method
SLIDE 27
Derivative computation
27
Our method
RAY MARCHING
SLIDE 28
Derivative computation
28
Our method
Triangle-to-medium form factor
For a single triangle
SLIDE 29
Derivative computation
29
Our method
SLIDE 30
Derivative computation
30
SLIDE 31
2D visualization of derivatives
31
PENUMBRA OCCLUDER LIGHT SHADOW Ours SINGLE SCATTERING ROI
- Occ. Unaware
[Jarosz 2008] 1 0.1 Reference (finite diff.) Orientation Magnitude
SLIDE 32
2D visualization of derivatives
32
ROI Ours MULTIPLE SCATTERING PENUMBRA LIGHT OCCLUDER Magnitude 0.1 0.01
- Occ. Unaware
[Jarosz 2008] Reference (finite diff.) Orientation
SLIDE 33
Results
33
SLIDE 34
Statues – Render comparison
Reference [Jarosz et al. 2008] Ours
34
SLIDE 35
Statues – Render comparison
Reference [Jarosz et al. 2008] Ours
35
SLIDE 36
[Jarosz et al. 2008] Occlusion-unaware, 1st order metric Single scattering Multiple scattering
Statues – Cache distribution
36
(TOP VIEW) (TOP VIEW)
SLIDE 37
Statues – Cache distribution
Ours Occlusion-aware, 2nd-order metric Single scattering Multiple scattering
37
(TOP VIEW) (TOP VIEW)
SLIDE 38
38
Patio – Time performance
Our computational overhead
- Triangulation
- Hessian computation
+9%
SLIDE 39
39
Patio – Time performance
Our computational overhead
- Triangulation
- Hessian computation
+9%
Ours (iso. cache) 135 min., 32k points
Equal-time
SLIDE 40
40
Patio – Time performance
Our computational overhead
- Triangulation
- Hessian computation
+9%
[Jarosz et al. 2008] 136 min., 36k points
Equal-time
SLIDE 41
41
Patio – Time performance
Our computational overhead
- Triangulation
- Hessian computation
+9%
Ours (aniso. cache) 94 min., 21k points
30% faster Same error threshold
SLIDE 42
42
SLIDE 43
Equal-time comparison
Reference Path tracing [Jarosz et al. 2011] Progressive photon beams [Jarosz et al. 2008] Occlusion-unaware first-order Ours Second-order
- cclusion-aware
EQUAL TIME
43
SLIDE 44
Future work
- Extend to support scattering from glossy materials
- Limited to finite light sources
- Extend to anisotropic media and heterogeneous materials
44
SLIDE 45
Conclusions
- Computation of occlusion-aware media derivatives
- Second-order error metric for volumetric radiance caching
- … radiance derivatives useful for other applications!
45
SLIDE 46
