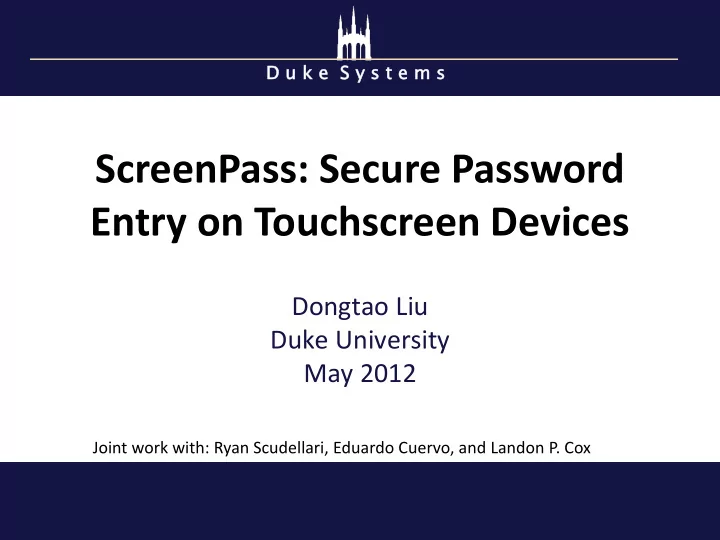

ScreenPass: Secure Password Entry on Touchscreen Devices

Dongtao Liu Duke University May 2012

Joint work with: Ryan Scudellari, Eduardo Cuervo, and Landon P. Cox

Passwords in smartphones

imo.com mint.com Real Sync FriendCaster

Buggy? Malicious?

Taint tracking

• TaintDroid [OSDI '10]
• Taint-tracking extension for Android
• Monitor propagation of tagged data
• Apply taint tracking to passwords?
• Properly tagged passwords
• Release policy for passwords

Challenges to tag passwords

• Data tracked in TaintDroid prototype
• API calls with well-defined semantics
• Password input
• Through character-stream interfaces
• A mix of sensitive & non-sensitive data
• How to tag password?
• Secure attestation sequence (SAS): ‘@@’
• Require TCB to handle all text inputs

Challenges to tag passwords

• Software keyboard spoofing
• Touchscreen devices
• Reserve area for trusted signal
• Screen real-estate is precious
• Signals are easy to ignore

ScreenPass

• To enforce all text input handled by TCB
• Apply OCR analysis to detect spoofed keyboard
• Restrict WHAT apps can write instead of WHERE
• To properly tag passwords
• Special secure input method
• Associate secure domain with password

OCR

Untrusted App Text-input widget Input Method Framework System service ScreenPass System service ScreenPass IME Android Window Manager Frame Checker Software Keyboard (9) <x, y>  ‘a’ Secure Domain Bar (7) taint=‘facebook’ (1) Get IME (2) Start IME (3) Set check=‘false’ Get check (4) Display Keyboard (5) Display Domain Bar (6) ‘facebook.com’ (8) <x, y> (10) ‘a’ tagged with ‘facebook.com’

ScreenPass IME UI

Detecting spoofed keyboards

• FrameChecker
• A separate thread within SurfaceFlinger
• Check frame buffer to recognize keyboard
• Optimizations
• Omit: pwd mode/no change/no touch
• Spatial: check bottom 320X480 screen
• Temporal: sleep for random intervals
• Code: NEON 128-bit SIMD instructions

Detecting spoofed keyboards

• Apply OCR to recognize keyboard
• Characters should be clear
• Sequence should be fixed
• Tesseract OCR
• Open source OCR project
• Port to Android platform

Detecting spoofed keyboards

RG BA RG BA

Stage 1 Frame Squash Stage 2 Frame Analysis Stage 3 Sleep

OCR Engine

Evaluation

• Is monitoring passwords useful?
• Android app study
• What attacks can ScreenPass detect?
• Attack tests
• How fast can ScreenPass check frames?
• Analyzing performance
• How often should ScreenPass check?
• Frame rate drop & energy overhead

Evaluation: App study

• Study 30 apps from:
• App pool of popular apps from all categories
• Top apps from search by keywords
• “password”, “dating”, and “online game”

Evaluation: App study

Application Type

Outside the domain Plaintext

• ver

network Plaintext to file

Pageonce Finance

√

MessengerWithYou Communication

√

Meebo IM Communication

√

Picassatools Social

√

Skout Social

√ √

Match.com "Dating"

√

Myyearbook.com "Dating"

√

Chess.com "Online Game"

√ √

Evaluation: Attacks

• Static Attacks
• Dynamic Attacks
• Alternating blocks of

1x1, 2x2, 4x4, and 8x8 pixels

Evaluation: Analysis time

50 100 150 200 250 300 General App Drawer Video Labyrinth Winds of Steel Run Time (ms)

Average time to analyze one frame

Evaluation: Frame rate

Average frame rate observed

10 20 30 40 50 60 App drawer Video Pinball Labyrinth Winds of Steel Frame Rate (frame/sec) stock 0ms 500ms 1000ms

Evaluation: Energy

10 20 30 40 50 60 70 80 90 General App Drawer Video Pinball Labyrinth Winds of Steel Power (Joules) stock 0ms 500ms 1000ms

Energy consumed over one minute

Related Work

• Taint tacking
• TaintDroid [OSDI '10]
• DTA++ [NDSS '11]
• Phishing & UI spoofing
• EGELMAN, S. et al [CHI '08]
• SCHECHTER, S. E. et all [SP '07]
• WU, M. et al [CHI '06]

Conclusion

• Minimize hardware assumptions
• Apply OCR/CV to solve UI spoofing
• Maximize display utilization
• Restrict what apps can write
• Minimize user burden
• Do not rely on user efforts to detect attacks
• ScreenPass is practical

– Useful/Robust to attacks/Fast – Acceptable overhead
