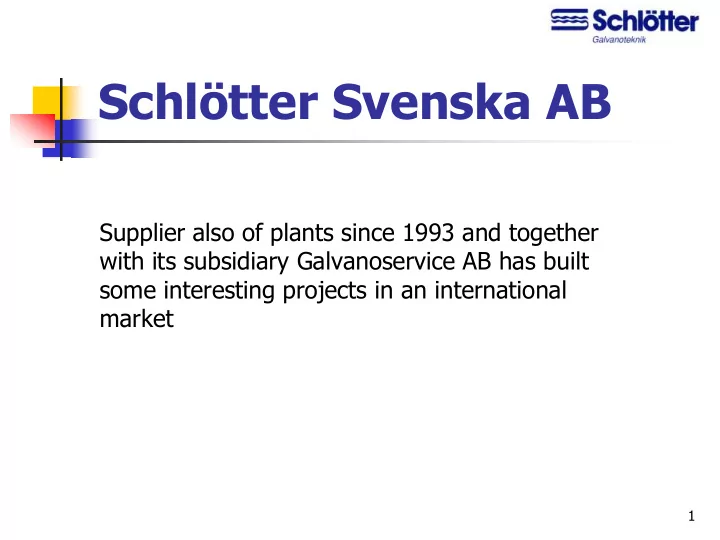

Schltter Svenska AB Supplier also of plants since 1993 and together with its subsidiary Galvanoservice AB has built some interesting projects in an international market 1 Typical plants as has been delivered by Schltter Sweden : Rack
1
2
Rack and/or barrel plating plants for all kind of process and sizes
Centrifuge systems integrated to the normal plating plant or as a independent plant
Robot integration for load/unload of rack articles
PoP plants
ED-laquer plant and also combined with Zn/Ni and phosphating
Waste Water Treatment Plants, traditional or closed
3
Electro polishing plant with robot load/unload
4
Electro polishing plant with robot load/unload
5
Zinc/Ni, Phosphating and ED-laquer plant for automotive parts
6
Combined rack/barrel plating plant for zinc/nickel with integrated centrifuge system and automatic load/unload for barrels
Automatic loading/unloding of barrels, design Schlötter Sweden
Centrifuge systems integrated to the plant for sealers and post dip, design Schlötter Sweden
Reloading from barrel to centrifuge basket in water, design Schlötter Sweden
Blow system before drier for rack parts, design Schlötter Sweden
Zinc dissolving tank design Schlötter Sweden
Transporters, 3 pc in main plant, 1 pc in centrifuge plant equipped with tilt and rotation system
Box handling system from KNAPP
Control system, SLOTRONIC PRO, from Schlötter Geislingen
7
Combined rack/barrel plating plant for zinc/nickel with integrated centrifuge system and automatic load/unload for barrels
8
Combined rack/barrel plating plant for zinc/nickel with integrated centrifuge system and automatic load/unload for barrels
9
Combined rack/barrel plating plant for zinc/nickel with integrated centrifuge system and automatic load/unload for barrels
10
Combined rack/barrel plating plant for zinc/nickel with integrated centrifuge system and automatic load/unload for barrels
The Deltalift 1100 series can be equipped with this lifting head to gain ability to grip baskets, spin them and tilt the baskets from 40 degrees forward to 15 degrees backwards.
Each basket can be spinned released and gripped independently.
A single basket tilt is also available.
11
RELOADING BARREL TO CENTRUGE BASKET LOADING BARREL AND COVER ROBOT BASKET EMPTYING AIRBLOWER FOR RACK ARTICLES
Combined rack/barrel plating plant for zinc/nickel with integrated centrifuge system and automatic load/unload for barrels
12
Big anodizing plant for automotive components
Loading/unloading station adjustable in vertical direction, design Schlötter Sweden
Transporters, 5 pc in main plant with lifting capacity of 1000 kg, 4 pc equipped with tilt system, design Schlötter Sweden
Tanks in polypropylene, 9m x 1m x 2m, design Schlötter Sweden
Oil separator for degreaser, design Schlötter Geislingen
Control system, SLOTRONIC PRO, from Schlötter Geislingen
13
Big anodizing plant for automotive components
14
Big anodizing plant for automotive components
15
Big anodizing plant for automotive components
Loading/ unloading station adjustable in vertical direction, with safety grid Rinse tank Drier, powered by gas burners
For all plants we also manufacture and install ventilation systems in plastics for demanding environments
