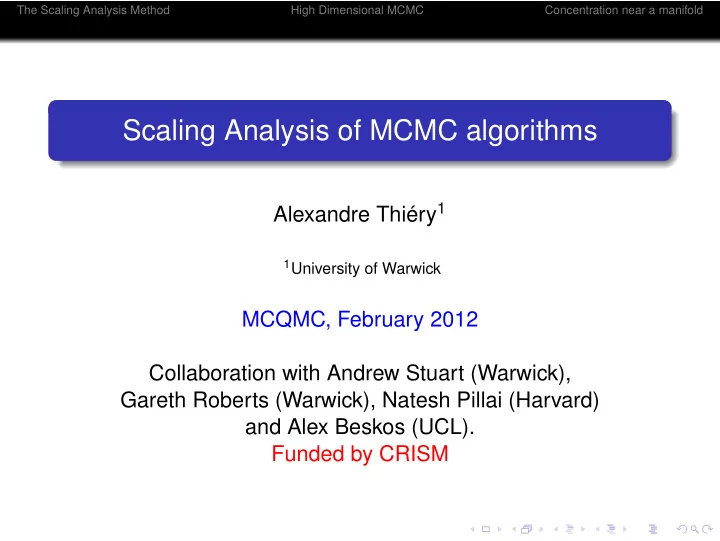

Scaling Analysis of MCMC algorithms

Alexandre Thiéry1

1University of Warwick

MCQMC, February 2012 Collaboration with Andrew Stuart (Warwick), Gareth Roberts (Warwick), Natesh Pillai (Harvard) and Alex Beskos (UCL). Funded by CRISM

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Outline

1

The Scaling Analysis Method

2

High Dimensional MCMC

3

Concentration near a manifold

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Outline

1

The Scaling Analysis Method

2

High Dimensional MCMC

3

Concentration near a manifold

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Purposes

Analysis of asymptotic complexity [Roberts and Co-workers, 1997] Avoid Spectral gaps, Log-Sobolev, etc ... Provide more intuition on behaviour of algorithms Easy-to-follow guidelines for tuning MCMC algorithms

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Sequence of MCMC algorithms

Sequence of target distributions πα index by parameter α Sequence of MCMC proposals. (Almost always) local proposals of the form x⋆ = a(α) x + σ(α) Z Sequence of MCMC chains indexed by parameter α, xα = x1,α, x2,α, x3,α, . . . We are interested in the limit α → α∞

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Example of Limiting Regime

α = dimension of the state space. Interest in α → α∞ = ∞. Consider target distribution with density of the form πα(x) ∝ exp

• − Ψ(x)

α

• Interest in α → α∞ = 0.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Interpolation

Choose a time discretisation parameter δ = δ(α) such that δ → 0 as α → α∞. Define the accelerated process zα by zα(t) = xt/δ(α),α

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Scaling Limit

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Scaling Limit

A scaling limit result is a theorem of the form Theorem (Scaling Limit) lim

α→α∞ zα = z

The convergence is on pathspace C([0, T], H). The limiting process is typically a non-trivial diffusion, jump or Levy process.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Interpretation

Limiting process z(t) takes Tmix to mix. Using the approximation xk,α = zα(kδ) ≈ z(kδ) it follows that x(·, α) takes roughly k ≈ Tmix/δ(α) steps to mix. Consequently, as α → α∞ the complexity of the MCMC algorithm grows as δ(α)−1.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Mixing

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Outline

1

The Scaling Analysis Method

2

High Dimensional MCMC

3

Concentration near a manifold

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Some motivations: Bayesian Inverse Problems

Consider an infinite dimensional Hilbert space H. Reconstruction of unknown data x ∈ H from noisy

• bservation

y = F(x) + (Noise) Suppose that the noise is Gaussian and put a Gaussian prior π0=N(0,C) on the data x to be estimated. Posterior probability distribution π (living on H) is given by dπ dπ0 (x) ∝ e−Φ(x) where Φ(x) = exp

• − 1

2F(x) − y2 Γ

• .

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Temperature Field Reconstruction

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Some motivations: Conditioned Diffusions

Consider a diffusion with constant volatility coefficient (see Lamperti) on the interval I = [0, T], dX = −∇U(X) dt + σ dW with X0 = x−, XT = x+ Call π the law of Xt∈I ∈ H = L2( I ). Law of diffusion X is absolutely continuous (Girsanov) w.r.t. to Wiener bridge measure π0 dY = σ dW with Y0 = x−, YT = x+ One can explicitly write down (without stoch. integral) the change of probability dπ dπ0 (x) ∝ e−Φ(x)

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Conditioned Diffusion

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Finite Dimensional Discretisation

Let ϕ1, ϕ2 . . . , ϕk, . . . be eigenfunctions of covariance

• perator C.

Let PN(·) denote orthogonal projection, in H, onto span(ϕ1, . . . , ϕN) and πN

D

∼ PN(π0). Finite dimensional (but living on H) posterior πN is given by dπN dπN (x) ∝ e−Φ( PNx ). One can implement all the algorithms in RN but analyse then in H. Other (more natural) discretisation possible.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Random Walk Metropolis (RWM) algorithm

RWM for target distribution πα = πN, x⋆ = x +

• δ(N) PN(ξ)

with ξ D ∼ π0 = N(0, C). Discretisation of Brownian motion with covariance PN(C) between t and t + δ(N). Diffusion Limit Take δ(N) = N−p for any p ≥ 1. The limit lim

N→∞ zN = z

exists and is a non-trivial ergodic diffusion process.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Scaling Analysis of RWM

• J. Mattingly, N. Pillai and A.M. Stuart, 2011

Theorem Consider RWM with increment δ(N) ≈ N−1. The limit zN ⇒ z holds weakly in C([0, T], Hs). The limit process z is a H-valued Langevin diffusion that is reversible with respect to π. For δ(N) ∝ N−1, limiting acceptance probability 0 < p < 1. For δ(N) ∝ N−(1+ε), limiting acceptance probability p = 1. For δ(N) ∝ N−(1−ε), acceptance probability is exponentially small. Complexity of RWM grows as O(N) as N → ∞.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Langevin Diffusion

Probability distribution with density π(x) ∝ e−L(x). dx = −∇L(x) dt + √ 2 dW is π-reversible. dx = −M∇L(x) dt + √ 2M dW is π-reversible. Case dπ

dπ0 (x) ∝ e−Φ(x) with π0 = N(0, C).

Informally π(x) ∝ e− 1

2x,C−1x−Φ(x).

Because ∇ 1

2x, C−1x + Φ(x)

• = C−1x + ∇Φ(x),

dx = −(x + C∇Φ(x)) dt + √ 2C dW = drift(x) dt + √ 2C dW is π-reversible. Notice diffusion term.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

MALA algorithm

MALA for target distribution πα = πN, x⋆ = x − drift(x) δ(N) +

• 2C δ(N) PN(ξ)

Euler Discretisation of Langevin Diffusion between t and t + δ(N). Diffusion Limit Take δ(N) = N−p for any p ≥ 1

• 3. The limit

lim

N→∞ zN = z

exists and is a non-trivial ergodic diffusion process.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Scaling Analysis of MALA

• N. Pillai,A.M. Stuart and A.T, 2011

Theorem Consider MALA with increment δ(N) ≈ N− 1

3 . The limit zN ⇒ z

holds weakly in C([0, T], Hs). The limit process z is a H-valued Langevin diffusion that is reversible with respect to π. For δ(N) ∝ N− 1

3 , limiting acceptance probability 0 < p < 1.

For δ(N) ∝ N−( 1

3 +ε), limiting acceptance probability p = 1.

For δ(N) ∝ N−( 1

3 −ε), acceptance probability is

exponentially small. Complexity of MALA grows as O(N

1 3 ) as N → ∞.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

What is going wrong?

Consider RWM and MALA for Gaussian targets π = π0 = N(0, C) and Φ ≡ 0. (RWM) x⋆ = x + √ δ ξ with ξ D ∼ N(0, C). (MALA) x⋆ = (1 − δ) x + √ 2δ ξ with ξ D ∼ N(0, C). Consequently, if x D ∼ π = N(0, C) we have (RWM) x⋆ D ∼ N(0, (1 + δ) C). (MALA) x⋆ D ∼ N(0, (1 + δ2) C). In infinite dimensional setting, Gaussian measures N(0, C) and N(0, (1 + ε)C) are singular. RWM and MALA are NOT well-defined on H.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

A Robust Algorithm

Target density dπ

dπ0 (x) ∝ e−Φ(x). The ’right’ proposal (called

pCN) should be x⋆ = √ 1 − δ x + √ δ PN(ξ). It is well-defined on H and preserve π0 = N(0, C). Theorem (N.Pillai, A.M. Stuart and A.T. (2011)) Under growth conditions on the potential Φ, the pCN algorithm is robust. For any fixed parameter δ > 0 the average acceptance probability stays bounded away fom 0. RWM complexity grows as O(N) MALA complexity grows as O(N

1 3 )

pCN complexity is O(1)

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Optimal Proposal Design Principle

Designing proposals which are well-defined on the infinite dimensional parameter space results in MCMC methods which do not suffer from the curse of dimensionality.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Outline

1

The Scaling Analysis Method

2

High Dimensional MCMC

3

Concentration near a manifold

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Low Dimensional Observation

y = F(x) + (noise). unknown data x ∈ RN noisy observation y ∈ Rd low dimension measurement d ≪ N

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

y = F(x) + (noise)

In the small noise limit, posterior distribution concentrated near the manifold M =

• x : y = F(x)
• In general dim M = N − d.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Scaling Analysis Framework

Gaussian Noise with variance ε2 × Id Prior measure π0(dx) Posterior measure πα = πε dπε dπ0 (x) ∝ exp

• − F(x) − y2

2ε2

• .

MCMC exploration with Random Walk proposals x⋆ = x +

• δ(ε) ξ

Behavior of MCMC when ε → 0 ?

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Concentration

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Limiting Manifold

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Scaling Limit

Theorem (Work in progress) Consider RWM with increment δ(ε) ≈ ε2. The limit zε ⇒ z holds weakly in C([0, T], RN). The limit process z is a M-valued Langevin diffusion. Rigorously proved for flat manifold M Complexity grows as ε−2 Proof: two-scales approach.

The Scaling Analysis Method High Dimensional MCMC Concentration near a manifold

Thank You!
