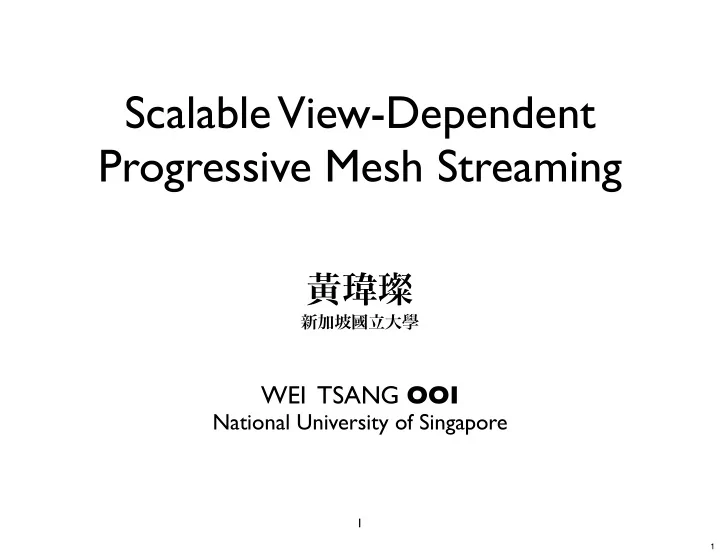

SLIDE 1
Scalable View-Dependent Progressive Mesh Streaming
WEI TSANG OOI
National University of Singapore
黃瑋璨
新加坡國立大學
1
1
joint work with
Cheng Wei
National University of Singapore
2
2
Scalable View-Dependent Progressive Mesh Streaming WEI TSANG OOI - - PowerPoint PPT Presentation
Scalable View-Dependent Progressive Mesh Streaming WEI TSANG OOI - - PowerPoint PPT Presentation
Scalable View-Dependent Progressive Mesh Streaming WEI TSANG OOI National University of Singapore 1 1 joint work with Cheng Wei National University of Singapore 2 2 3 3 4 4 5 5 10 MB 6 6 2 GB 7
SLIDE 2
SLIDE 3
3
3
SLIDE 4
4
4
SLIDE 5
5
5
SLIDE 6
10 MB
6
6
SLIDE 7
2 GB
7
7
SLIDE 8
8
8
SLIDE 9
Hoppe’s Progressive Mesh
Edge Collapse Vertex Split
9
9
SLIDE 10
+
v1 v2 v3 v4
... =
base model
At the sender
vk
10
10
SLIDE 11
base model v1 v2 v3 v4 ...
Transmission
TCP UDP
vk
11
11
SLIDE 12
... ...
base model v1 v2 v3 v4 ...
At the receiver
vk
12
12
SLIDE 13
Vertex Split
v2 v
13
v1
13
SLIDE 14
base mesh
14
SLIDE 15
15
SLIDE 16
16
SLIDE 17
17
SLIDE 18
complete mesh
18
SLIDE 19
view-dependent streaming:
- nly send what the receiver can see
19
19
SLIDE 20
20
SLIDE 21
21
SLIDE 22
what to send? in what order?
22
22
SLIDE 23
what to send? determined by view point in what order? determined by visual contributions
23
23
SLIDE 24
Existing Approach
view point what to split how to split
24
SLIDE 25
Existing Approach
view point view point what to split how to split
25
SLIDE 26
For each receiver, server needs to:
- compute visibility
- compute visual contribution of each
vertex split
- sort vertex splits
- remember what has been sent
26
26
SLIDE 27
“dumb client, smart server” does not scale
27
27
SLIDE 28
Receiver-driven Approach
what to split how to split
28
SLIDE 29
how to identify a vertex split?
29
29
SLIDE 30
7 2 6 3 8 4 5 1
Attempt 1
30
SLIDE 31
7 2 6
want to split vertex 2 here is how to split, and 2 splits into 6 and 7
31
SLIDE 32
001 00 000 011 01 010 101 10 100 111 11 110 1
Attempt 2
Kim, Lee, “Truly selective refinement of progressive meshes,” In Proceedings of Graphics Interface, pages 101–110, June 2001
32
SLIDE 33
001 00 000
want to split vertex 00 here is how to split 00
33
SLIDE 34
Receiver-driven Approach
what to split how to split
34
SLIDE 35
001 00 000 011 01 010 101 10 100 111 11 110 1
Encoding of vertex split IDs
001 000 10 110
35
SLIDE 36
proc encode(T) if no vertices to be split in T return 0 else return 1 + encode(T.left) + encode(T.right)
36
SLIDE 37
1
Encoding of vertex split IDs 11001000
1 10011000
37
SLIDE 38
how to compute visibility + visual contributions? (without possessing the complete mesh?)
38
38
SLIDE 39
V1 V2
Estimate with screen space area of vertices
39
SLIDE 40
Sender-driven Receiver-driven send base mesh 1.4 1.13 decode IDs
- 1.55
search vertex split 1.85 1.85 determine visibility 0.41
- update state
1.41
- encode IDs
0.94
- thers
0.16 0.16 total 6.17 4.69
40
SLIDE 41
41
SLIDE 42
receiver-driven protocol alleviates the computational bottleneck at the sender.
42
42
SLIDE 43
the other bottleneck is bandwidth.
43
43
SLIDE 44
goal: reduce server overhead by retrieving vertex splits from other clients if possible
44
44
SLIDE 45
difficulty: need to quickly and efficiently determine who to retrieve the vertex splits from
45
45
SLIDE 46
low server overhead low response time low message overhead
46
46
SLIDE 47
common P2P techniques:
- 1. build an overlay and push
- 2. use DHT to search for chunks
- 3. pull based on chunk availability
47
47
SLIDE 48
common P2P techniques:
- 1. build an overlay and push
- 2. use DHT to search for chunks
- 3. pull based on chunk availability
48
48
SLIDE 49
peer-to-peer file transfer: a needed chunk is likely to be available in any peer
49
49
SLIDE 50
peer-to-peer video streaming: a needed chunk is likely available from a peer that has watched the same segment earlier (temporal locality)
50
50
SLIDE 51
peer-to-peer mesh streaming a needed chunk is likely available from a peer that is viewing the same region (spatial locality)
51
51
SLIDE 52
idea: exploit spatial locality to reduce message overhead.
52
52
SLIDE 53
chunks
53
SLIDE 54
chunks (1 chunk = 240 vertex splits)
54
SLIDE 55
55
SLIDE 56
groups (1 group = 16 chunks)
56
SLIDE 57
57
Only exchange messages between peers that need chunks from the same group.
57
SLIDE 58
58
how the protocol works
58
SLIDE 59
59
server maintains a list of group members for each group, and who possesses which chunk.
(128.3.13.44, 100100) (123.44.121.99, 111111) .. (90.1.1.00, 0001001) (32.11.99.233, 101111) ..
: :
59
SLIDE 60
60
client: “I want to view mesh M” server sends : (i) base mesh (ii) group members of the highest group. (iii) what each member possess
60
SLIDE 61
61
client decides which vertex splits (chunk) to refine if some peer has that chunk, request from peer else request chunk from server
61
SLIDE 62
62
peers inform server when they received a chunk if a chunk in the next group can be decoded, server sends group members of the next group
62
SLIDE 63
groups
63
SLIDE 64
64
if too many group members, server sends only most recent subsets + some seeds
64
SLIDE 65
65
- n-going work:
- 1. evaluation using user traces and simulator
- 2. other design parameters
- 3. further reduce the role of server
65
SLIDE 66
66
summary receiver-driven design to reduce CPU cost peer-to-peer design to reduce bandwidth cost
66
SLIDE 67
