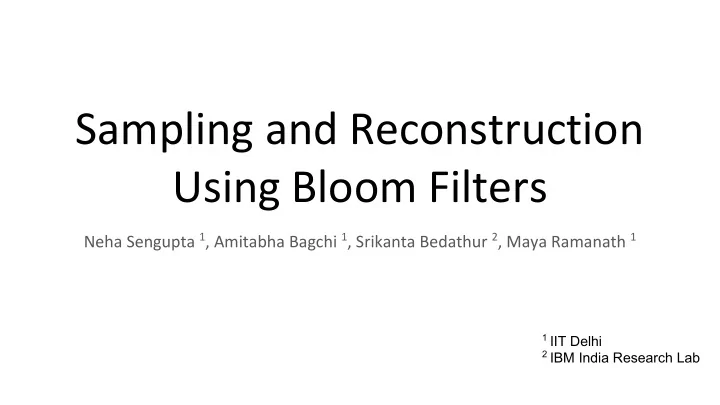

Sampling and Reconstruction Using Bloom Filters

Neha Sengupta 1, Amitabha Bagchi 1, Srikanta Bedathur 2, Maya Ramanath 1

1 IIT Delhi 2 IBM India Research Lab

Bloom Filters

• Compact storage
• m bits, k hash functions
• Set Membership
• Union
• Intersection
• Sampling
• Reconstruction

1 1 1 1 1 1 1 S = { A, B, C } Query: W

Sampling from a Bloom filter

Two Approaches:

N a m e s p a c e

Membership C a n d i d a t e S e t

0100010001011110

Slow

Invert Set Bit

Candidate Set 0100010001011110

Non-uniform Sample Invertible hash function

Dictionary Attack Hash Sample

Bloom Filter Sample

Membership

Sample

BloomSampleTree

(0..15) (0..7) (8..15)

(0..3) (4..7) (8..11) (12..15)

1111111110 1111111010 1100110010 0111011100 1101100010 0110011000

0100111000

Sampling from Bloom filters b1, b2, b3 storing sets S1, S2, S3 respectively. Set S contains elements in range [0,15] M = 16 S stored in Bloom filter b with 10 bits m = 10 Bloom filters use 2 hash functions k = 2 BloomSampleTree bT created using (M = 16, m = 10, k = 2) Can be used to sample from all 3 sets Bloom filter b1 S1 = {1,12}

0111000000

Bloom filter b2 S2 = {4,6}

1000010100

Bloom filter b3 S3 = {3,7}

BloomSampleTree bT:

BloomSampleTree

(0..15) (0..7) (8..15)

(0..3) (4..7) (8..11) (12..15)

1100110010 0111011100 1101100010 0110011000

Start at the root

Example: Sampling from Bloom filter b1 using BloomSampleTree bT Original Set S1 = {1, 12} b1 =

0100111000 1111111110 0100111000 0100111000

= .

1111111010 0100111000 0100111000

= .

BloomSampleTree

(0..15) (0..7) (8..15)

(0..3) (4..7) (8..11) (12..15)

1111111110 1111111010 1100110010 0111011100 1101100010 0110011000

Start at the root

0100111000 0100111000

=

0100111000 0100111000

= pL = 0.5 pR = 0.5

Example: Sampling from Bloom filter b1 using BloomSampleTree bT Original Set S1 = {1, 12} b1 =

0100111000

. .

BloomSampleTree

(0..15) (0..7) (8..15)

(0..3)

(4..7)

(8..11) (12..15)

1111111110 1111111010 1100110010 0111011100 1101100010 0110011000

Chosen subtree

0100111000

.

0100110000

= .

0100111000 0100011000

=

Example: Sampling from Bloom filter b1 using BloomSampleTree bT Original Set S1 = {1, 12} b1 =

pL = 0.52 pR = 0.48

0100111000

BloomSampleTree

(0..15) (0..7) (8..15) (0..3) (4..7)

(8..11) (12..15)

1111111110 1111111010 1100110010 0111011100 1101100010 0110011000

Chosen leaf

• Membership(4, b1) = false
• Membership(5, b1) = false
• Membership(6, b1) = false
• Membership(7, b1) = false

Example: Sampling from Bloom filter b1 using BloomSampleTree bT Original Set S1 = {1, 12} b1 =

0100111000

This path was a false positive

BloomSampleTree

(0..15) (0..7) (8..15) (0..3)

(4..7) (8..11) (12..15)

1111111110 1111111010 1100110010 0111011100 1101100010 0110011000

Chosen leaf

• Membership(0, b1) = false
• Membership(1, b1) = true
• Membership(2, b1) = false
• Membership(3, b1) = false

Example: Sampling from Bloom filter b1 using BloomSampleTree bT Original Set S1 = {1, 12} b1 =

0100111000

Sample = 1

BloomSampleTree - Sampling

Subtree not visited at all Subtree pruned from search

False Positive Path Empty Intersection Potential Path True Path

(1 ... 10M)

1 2 5 4 6 3 7 8 9 11 12 13 10 25 15 37 38 14

Setting:

BloomSampleTree - Sampling

BloomSampleTree - Sampling

Sample Quality: Setting:

Setting:

BloomSampleTree - Sampling

Running Time:

BloomSampleTree - Sampling

MD5/Murmur Hash Functions Algorithms:

• Dictionary Attack (DA)
• BloomSampleTree(BST)

Setting:

• M = 107
• k = 3
• m increases with desired Accuracy
• Size of set S, |S| varies from 100 to 50K

Simple Hash Functions

BloomSampleTree - Reconstruction

• Similar to Sampling
• Follow all positive paths
• Multi-threaded
• Challenge:

− Bloom filter intersections almost never empty − Every path is a “true path” − Follow path only if the size of intersection exceeds a threshold.

• False Positive of set S part of reconstructed

set S’

S = { 4, 6 }

0111000000

Bloom filter b BloomSampleTree bT Reconstruction

Reconstructed Set: S’ = { 4, 6, 13 }

BloomSampleTree - Reconstruction

Algorithms:

• Dictionary Attack (DA): test each element in

namespace for membership

• HashInvert (HI): Invert each set bit in the

bloom filter and prune using membership

• BloomSampleTree(BST)

Setting:

• M = 107
• k = 3
• m increases with desired Precision
• Size of set S, |S| varies from 100 to 50K

Simple Hash Functions MD5 Hash Functions

Pruned BloomSampleTree

Large range of possible values Actually used namespace much smaller

• Do not expand nodes corresponding to

‘unused’ regions

• Smaller BloomSampleTree, faster Sampling
• Add nodes to BloomSampleTree as

namespace changes

(0..15) (0..7) (8..15) (0..3) (4..7) (8..11) (12..15)

1111111110 1111111010 1100110010 0110011000

Pruned BloomSampleTree

• Sampling for smaller Namespace with Simple Hash Functions
• How large is the actually used section of the range = Namespace Fraction
• How are the actually used parts of namespace distributed within it?
• Uniform or Clustered
• Affects BST size, sampling time
