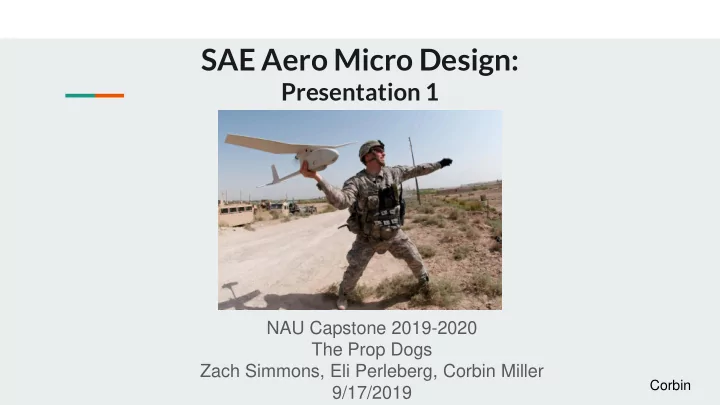

SAE Aero Micro Design:

Presentation 1

NAU Capstone 2019-2020 The Prop Dogs Zach Simmons, Eli Perleberg, Corbin Miller 9/17/2019

Corbin

Project Description: SAE Aero

• The SAE Aero Design competition provides Engineering students

with real life design problems.

• There are three different competitions within SAE Aero.

○ Advanced, Regular, and Micro

• Each design has different evaluations: Design, Presentation, and MP
• The Micro design consists of a small mobile plane that can

○ Carry the highest payload fraction possible ○ Pursue the lowest empty weight possible

• Faculty Advisor: Dr. John Tester

Eli

Literature Review

• Design, performance evaluation and optimization of a UAV [1]

This source evaluated aerodynamic characteristics and efficiency of the airfoil section, the wing, and the full configuration of a small uav. Provides many useful equations to be used when designing our system.

• Fox and McDonald's Introduction to Fluid Mechanics, 8th ed [2]

A study of the laws of fluid mechanics, more precisely, boundary conditions and air foils. Will be useful when comparing prototypes to our final product.

• Design and assembly of an experimental fixed wing remote controlled glider

plane [3]

This source developed an airframe and interfaced it with radio controlled remote, then embedded an on-board micro controller on the glider airframe.

Corbin

State of the Art Design (SOTA): 2019 SAE Aero Micro Winner

Xi'an Jiaotong University [4]

• 8th - Design
• 4th - Oral Presentation
• 1st - Mission Performance

Design Presentation Mission Performance Penalties Total

32.5943 44.9000 57.9746

• 0.0

135.469 Eli

State of the Art Design (SOTA): 2019 SAE Aero Micro American Winner

Wright State University [4]

• 1st in Design
• 11th in Presentation
• 6th in Mission Performance

Design Presentation Mission Performance Penalties Total

41.9185 36.9000 20.2716

• 0.5

98.5901 Eli

Customer Requirements (CRs)

Non-ER Competition Requirements Aircraft Identification Empty CG Marking and Drawing Req. Non-metal propeller No lead Battery-only stored energy Secure linkages Clevis keepers Servo load analysis Battery protection from protrusions Gearbox allowed Multiple motors, props, ducted fans allowed Payload included in gross weight

Zach

Engineering Requirements (ERs)

• Customer

Requirements

• Determine metric to

evaluate and measure each CR

• Each CR must be

measured by at least 1 ER

Zach

Quality Function Deployment (QFD): CRs vs. ERs

Zach

QFD: ERs vs. ERs

Zach

Competition Benchmarking

Eli

Budget

Expenses Cost Entry Fees $1050 Prototypes $200 Final Design Materials * $650 Travel $100 *Final Design Material Expenses include; Servo motor, propeller, fuselage, airfoil/ wings, wiring, etc. Corbin

Schedule

Corbin

References

[1]

• S. G. Kontogiannis and J. A. Ekaterinaris, “Design, performance evaluation and optimization of a UAV,” Aerospace

Science and Technology, vol. 29, no. 1, pp. 339–350, 2013.

[2]

• R. W. Fox, A. T. McDonald, and P. J. Pritchard, Introduction to fluid mechanics. New Delhi, India: J. Wiley,

2012.

[3]

• S. Khatoon and D. Gupta, “Design and Assembly of an Experimental Fixed Wing Remote Controlled Glider Plane,”

Applied Mechanics and Materials, vol. 110-116, pp. 1582–1588, 2011.

[4]

Sae.org. (2019). [online] Available at: https://www.sae.org/binaries/content/assets/cm/content/attend/2019/student- events/aero/west/2019_microclassresults---aerowest.pdf [Accessed 16 Sep. 2019].

Corbin
