Sa Pobla Social Housing Project INTERDISCIPLINARY PROJECT DESIGN Paula SEBASTIN / Sule Nur KOSE /Jianan DING 2019. Autumn Design Team : Jose Ripoll Vaquer Juan Miguel Tizon Gara Plot Area : 1.145 m2 Gross Area : 2.498 m2 Work started

slide-1
SLIDE 1

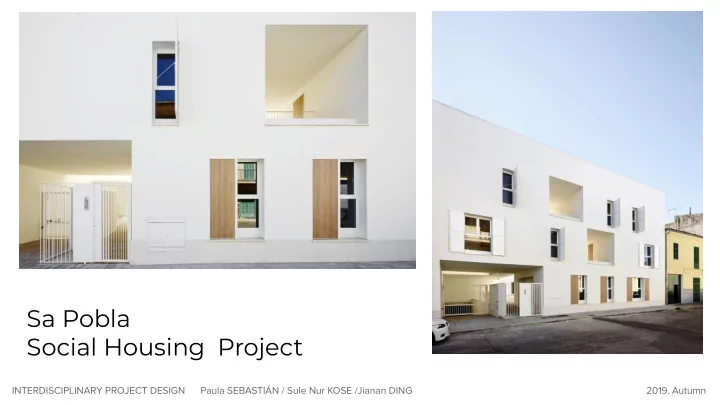

INTERDISCIPLINARY PROJECT DESIGN Paula SEBASTIÁN / Sule Nur KOSE /Jianan DING

  • 2019. Autumn

Sa Pobla Social Housing Project

slide-2
SLIDE 2

Design Team : Jose Ripoll Vaquer Juan Miguel Tizon Gara Plot Area : 1.145 m2 Gross Area : 2.498 m2 Work started on date : 16th June 2010 Work completion date : 11th September 2012

slide-3
SLIDE 3
slide-4
SLIDE 4
slide-5
SLIDE 5

Circulation

Ground floor First floor Second floor

slide-6
SLIDE 6

Typology 1

Ground floor First floor Second floor

1 floor

slide-7
SLIDE 7

Typology 2

Ground floor First floor Second floor

1 floor

slide-8
SLIDE 8

Typology 3

Ground floor First floor Second floor

2 floor

slide-9
SLIDE 9

Typology 4

Ground floor First floor Second floor

2 floor

slide-10
SLIDE 10

Typology 5

Ground floor First floor Second floor

2 floor

slide-11
SLIDE 11

Typology 6

Ground floor First floor Second floor

2 floor

slide-12
SLIDE 12

3D Geometry

Ground floor First floor Second floor

slide-13
SLIDE 13

perforated clay masonry brick

  • an artificial material mainly made
  • f clay
  • usually used in the construction

layer of outside and inside walls

  • relatively heavy, ideal for insulating

sound and storing heat energy thermal conductivity λ : 0,56 - 1,30W/(m*K) specific thermal capacity : 1kJ/(kg*K) density : 1200 - 2200 kg/m*3

slide-14
SLIDE 14

passive ventilation

circulation of air in and out of indoor space

  • energy saving
  • lower use of mechanical systems in

building

solar thermal collector

transfer of heat energy to tank through separate heat exchanger

  • provision of 70% hot water
  • free of charge
  • no emission of CO2
slide-15
SLIDE 15

hydraulic concrete tile paving

  • low cost
  • easy installation

high pressure compact laminate panels

  • excellent stability
  • durable & resistance

against impacts

slide-16
SLIDE 16

concrete structure infilled with perforated clay masonry bricks

beam beam slab perforated clay masonry brick

slide-17
SLIDE 17
slide-18
SLIDE 18

Conclusion

  • Circulations that make the

space interesting

  • Using local materials
  • Arrange the project in a way

that fits with the surroundings

  • Follow the same arrangements

as the existing buildings next to the plot
