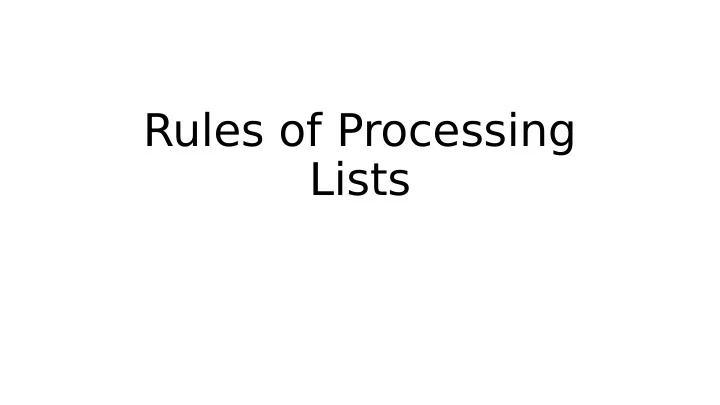

Rules of Processing Lists

Announcements

• HW3 is tougher than was HW2; plan to spend a little

more time on it.

• Monday was the last day that I’ll be sharing the lecture-

capture.

• It’ll be back near end of semester, for review, etc.
• End of class feedback: on a scrap of paper, feel free to

write down anything that left you confused/unhappy/whatever, and hand it to the TA at the door. (If class seemed OK, no need to do anything!)

Evaluation examples

• i. (last class)

(define (add1 x) (+ x 1)) (+ (add1 3) (add1 4))

• Why?
• T
• understand subtleties in material later today
• T
• make it easy to write the Rackette project

From the Rackette handout

• “Practice evaluating Rackette expressions by hand.

Specifjcally, write out your evaluations for the ``Practice on Paper'' section of this assignment and bring them to your Design Check.”

• “For practice, process the following programs in either

example's style, starting from the usual initial top-level environment:”

• i. (let ((x 19)) (+ x 32))
• ii. ((lambda (x) (/ x 10)) 100)

Evaluation examples

• ii. Today (quickly!)

(define (add1 x) (+ x 1))

QUIZ

• [Quiz contents deleted]

Name login <your answers here >

Quick additions: and and or

<and-expr> := ( and <expr> <expr> <expr>*)

• Idea: (and x y) is true only if x and y are both true
• Formalized a little (and x y) evaluates to true only if x and y

both evaluate to true

• Rule (the "and" rule) to evaluate (and b1 b2 b3 … bn) we
• Evaluate b1, whose value must be a boolean (or it's an error)
• If b1's value is false, then the and-expression's value is false and we

are done.

• Otherwise, we evaluate b2; if b2's value is false, then the and-

expression's value is false and we are done.

• Otherwise, we continue in this manner until bn; if all the expressions

have evaluated to true, then the and-expression's value is true.

Quick additions: and and or

<or-expr> := ( or <expr> <expr> <expr>*)

• Idea: (or x y) is true if either x or y or both are true
• Formalized a little (or x y) evaluates to true only if at least
• ne of x or y evaluates to true
• Rule (the "or" rule) to evaluate (or b1 b2 b3 … bn) we
• Evaluate b1, whose value must be a boolean (or it's an error)
• If b1's value is true, then the or-expression's value is true and we are

done.

• Otherwise, we evaluate b2; if b2's value is true, then the or-expression's

value is true and we are done.

• Otherwise, we continue in this manner until bn; if all the expressions

have evaluated to false, then the or-expression's value is false.

Notes

• and and or are keywords
• "and" and "or" are not procedures
• The procedure-application-expression rule says that you

"evaluate all the arguments", but the and- and or-rules say "evaluate them one at a time, and if you get a certain result, then don't evaluate any more of them!"

• Called short-circuiting
• You'll see later on why it's built in

Notes

• One more boolean thing: the "not" procedure:
• (not true) => false
• (not false) => true
• Activity: write “not

Design-recipe steps already done for you!

;; Data definition: ;; bool: true, false ;; ;; not : bool -> bool ;; input: ;; a boolean, b ;; output ;; a boolean; if b is true, output is false, and vice versa ;; (define (not b) … ) (check-expect (not true) false)

Solution

;; Data definition: ;; bool: true, false ;; ;; not : bool -> bool ;; input: ;; a boolean, b ;; output ;; a boolean; if b is true, output is false, and vice versa ;; (define (not b) (if b false true)) (check-expect (not true) false)

Last syntax piece for a while: if

<if-expr> := ( if <expr> <expr> <expr>)

• Idea: (if condition x y) is x if condition is true, y if it's false.
• Rule (the "if" rule) to evaluate (if condition yes-result

no-result) we

• Evaluate condition, whose value must be a boolean (or it's an error)
• If the value is true, we evaluate yes-result, whose value is the

value of the if-expression

• If the value is false, we evaluate no-result, whose value is the value
• f the if-expression
• NB for those familiar with other languages: An if-

expression is an expression, not a "statement"; it has a

Activity

Write an expression involving x and y which evaluates to 37 if x is larger than 5, or y is less than 10, and evaluates to -1 otherwise.

Activity

Write an expression involving x and y which evaluates to 37 if x is larger than 5, or y is less than 10, and evaluates to -1 otherwise. (if (or (> x 5) (< y 10)) 37 -1) (if (or (> x 5) (< y 10)) 37

• 1)

Lists

• Racket is derived from Scheme which is derived from

LISP

• LISP stands for “LISt Processing language”
• Abstraction of lists:
• A list can be empty (no items) or
• There’s a fjrst item, and the rest of the list
• You can add a new fjrst item (lengthening the list)

T erminology

• atomic data: num, bool, string
• compound data: lists!

Lists

• There are two ways to build a list, indeed, two difgerent

kinds of lists.

• First “constructor”: empty
• Builds a list that corresponds to the notion of a list with

no items in it.

• Along with this comes a predicate, empty?
• No surprises:

(empty? empty) => true

• Note: empty is a keyword; you cannot defjne “empty”!
• Also can’t use it as the name of an argument to a function… or

any kind of name!

Keywords so far

• define
• and
• or
• if
• cond
• else
• true
• false
• empty

The other way to create a list: cons

• “cons” is short for “construct”

cons: item * list -> list

• How could we use cons right now?

(cons 13 …)

• Need a list to fjll in for “…”
• We only have one choice: empty!

(cons 13 empty)

T ype-predicate?

• Yes, it’s called “cons?” as expected

(cons? empty) => false (cons? (cons 13 empty)) => true

First and rest – deconstructing a list

• (first empty) … error
• (rest empty) … error
• (first (cons 3 (cons 4 empty))) => 3
• (rest (cons 3 (cons 4 empty))) => (cons 4 empty)
• General rule:
• (first (cons a b)) => a
• (rest (cons a b)) => b

Activities

• Construct a list containing 2 and 3 in that order (so that

“fjrst” of the list is 2).

• What is (first (cons 4 (cons 3 empty))) ?
• What is (rest (cons 2 empty))?
• Build a list z containing (cons 2 empty) and (cons 3

empty), in that order

• What is (first (rest z))?
• What is (first (first z))?
