Rotor 67 average inlet/outlet data abs. total pressure : 101063. - PowerPoint PPT Presentation

Oct 24, 2022 •100 likes •203 views

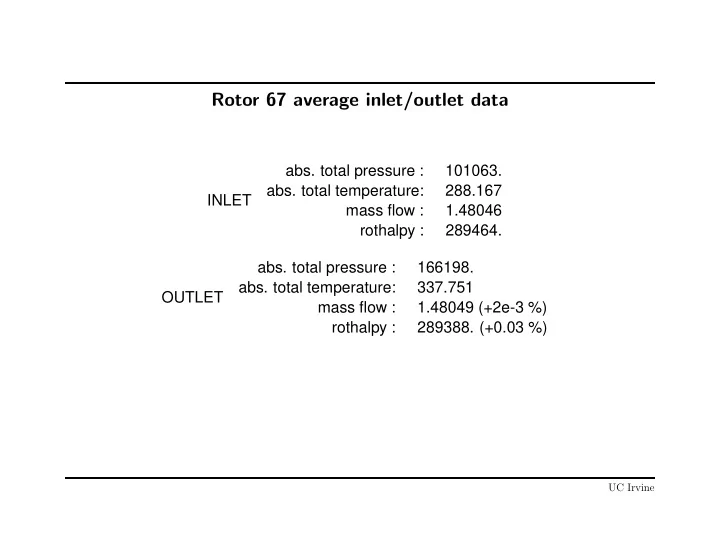

Rotor 67 average inlet/outlet data abs. total pressure : 101063. abs. total temperature: 288.167 INLET mass flow : 1.48046 rothalpy : 289464. abs. total pressure : 166198. abs. total temperature: 337.751 OUTLET mass flow : 1.48049

Rotor 67 average inlet/outlet data abs. total pressure : 101063. abs. total temperature: 288.167 INLET mass flow : 1.48046 rothalpy : 289464. abs. total pressure : 166198. abs. total temperature: 337.751 OUTLET mass flow : 1.48049 (+2e-3 %) rothalpy : 289388. (+0.03 %) UC Irvine
Comparison with experimental data total pressure ratio : 1.644 (+0.15%) total temperature ratio: 1.172 (+0.69%) ad. efficiency : 89% (-4.6%) mass flow : 1.48 (-5.7 %) UC Irvine
70 % span Mach 1.44 1.35 1.26 1.17 1.08 1.00 0.91 0.82 0.73 0.64 0.56 0.47 0.38 0.29 0.21 0.12 0.03 UC Irvine
90 % span Mach 1.44 1.35 1.26 1.17 1.08 1.00 0.91 0.82 0.73 0.64 0.56 0.47 0.38 0.29 0.21 0.12 0.03 UC Irvine
98 % span Mach 1.44 1.35 1.26 1.17 1.08 1.00 0.91 0.82 0.73 0.64 0.56 0.47 0.38 0.29 0.21 0.12 0.03 UC Irvine
99.5 % span Mach 1.44 1.35 1.26 1.17 1.08 1.00 0.91 0.82 0.73 0.64 0.56 0.47 0.38 0.29 0.21 0.12 0.03 UC Irvine
Mode 1 Z Y X UC Irvine
Mode 2 Z Y X UC Irvine
Mode 3 Y Z X UC Irvine
