Rostra: A Framework for Detecting Redundant Object-Oriented Unit Tests 1 2 Tao Xie Darko Marinov David Notkin 1 1 Dept. of Computer Science & Engineering, University of Washington, 2 MIT Computer Science and Artificial

slide-1
SLIDE 1

1

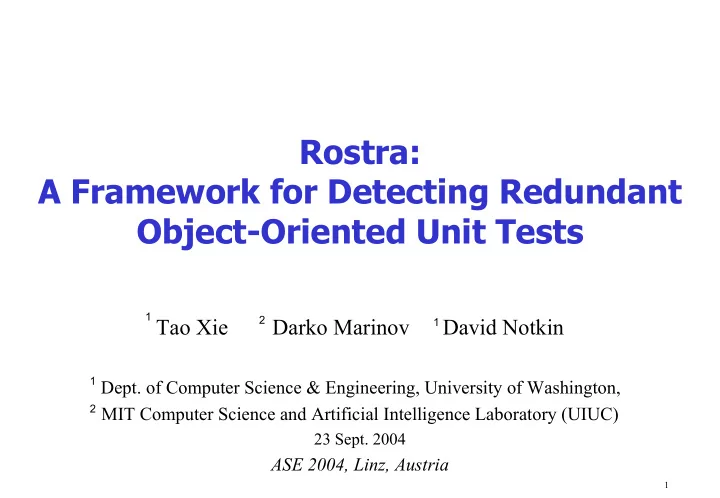

Rostra: A Framework for Detecting Redundant Object-Oriented Unit Tests

Tao Xie Darko Marinov David Notkin

  • Dept. of Computer Science & Engineering, University of Washington,

MIT Computer Science and Artificial Intelligence Laboratory (UIUC)

23 Sept. 2004

ASE 2004, Linz, Austria

1 1 2 2 1

slide-2
SLIDE 2

2

Motivation

  • Tool generated test cases
  • Many test cases
  • Important to reduce by eliminating “redundant” test cases
  • Need automation
  • Common approach
  • Identify “similar” test cases and eliminate
  • Without reducing “quality” of test suite*
  • Object-oriented programs
  • Test case is a sequence of method calls on an object
  • Note: Unit tests only

*Some reduction in fault detection may be tolerated!

*Some reduction in fault detection may be tolerated!

slide-3
SLIDE 3

3

Example Code

public class IntStack { private int[] store; private int size; public IntStack() { … } public void push(int value) { … } public int pop() { … } public boolean isEmpty() { … } public boolean equals(Object o) { … } } [Henkel&Diwan 03]

slide-4
SLIDE 4

4

Example Tests

Test 1 (T1): IntStack s1 = new IntStack(); s1.isEmpty(); s1.push(3); s1.push(2); s1.pop(); s1.push(5); Test 2 (T2): IntStack s2 = new IntStack(); s2.push(3); s2.push(5); Test 3 (T3): IntStack s3 = new IntStack(); s3.push(3); s3.push(2); s3.pop();

slide-5
SLIDE 5

5

Same inputs ⇒ Same behavior

Method Execution

  • bject state @entry
  • bject state @exit

Method arguments Method return Input = + Output = + Testing a method with the same inputs is unnecessary Assumption: deterministic method

How to represent object states?

slide-6
SLIDE 6

6

Redundant Test Cases Defined

  • Equivalent method executions
  • the same method names, signatures, and input

(equivalent object states @entry and arguments)

  • Redundant test case:
  • A test case is redundant for a test suite if the test suite

has exercised method executions equivalent to all method executions exercised by the test case

slide-7
SLIDE 7

7

Related Work

  • State equivalence using observational equivalence

[Bernot et al. 91, Doong&Frankl 94, Henkel&Diwan 03]

  • for verifying or inferring algebraic specifications
  • Expensive because of number of sequences
  • State equivalence based on user-defined

abstraction functions [Grieskamp et al. 02]

  • AsmLT tool for conformance testing
  • Need to define the function
slide-8
SLIDE 8

8

Five State-Representation Techniques

  • Method-sequence representations
  • WholeSeq
  • The entire sequence
  • ModifyingSeq
  • Ignore methods that don’t modify the state
  • Concrete-state representations
  • WholeState
  • The full concrete state
  • MonitorEquals
  • Relevant parts of the concrete state
  • PairwiseEquals
  • equals() method used to compare pairs of states
slide-9
SLIDE 9

9

WholeSeq Representation

Notation: methodName(entryState, methodArgs).state [Henkel&Diwan 03] Test 1 (T1): IntStack s1 = new IntStack(); s1.isEmpty(); s1.push(3); s1.push(2); s1.pop(); s1.push(5); Test 3 (T3): IntStack s3 = new IntStack(); s3.push(3); s3.push(2); s3.pop();

Method sequences that create objects

slide-10
SLIDE 10

10

<init>( ).state

WholeSeq Representation

Notation: methodName(entryState, methodArgs).state [Henkel&Diwan 03] Test 1 (T1): IntStack s1 = new IntStack(); s1.isEmpty(); s1.push(3); s1.push(2); s1.pop(); s1.push(5); Test 3 (T3): IntStack s3 = new IntStack(); s3.push(3); s3.push(2); s3.pop();

Method sequences that create objects

slide-11
SLIDE 11

11

<init>( ).state

WholeSeq Representation

Notation: methodName(entryState, methodArgs).state [Henkel&Diwan 03] Test 1 (T1): IntStack s1 = new IntStack(); s1.isEmpty(); s1.push(3); s1.push(2); s1.pop(); s1.push(5); Test 3 (T3): IntStack s3 = new IntStack(); s3.push(3); s3.push(2); s3.pop();

Method sequences that create objects

isEmpty( ).state

slide-12
SLIDE 12

12

<init>( ).state

WholeSeq Representation

Notation: methodName(entryState, methodArgs).state [Henkel&Diwan 03] Test 1 (T1): IntStack s1 = new IntStack(); s1.isEmpty(); s1.push(3); s1.push(2); s1.pop(); s1.push(5); Test 3 (T3): IntStack s3 = new IntStack(); s3.push(3); s3.push(2); s3.pop();

Method sequences that create objects

isEmpty( ).state push( , 3).state s1.push 2

slide-13
SLIDE 13

13

<init>( ).state

WholeSeq Representation

Notation: methodName(entryState, methodArgs).state [Henkel&Diwan 03] Test 1 (T1): IntStack s1 = new IntStack(); s1.isEmpty(); s1.push(3); s1.push(2); s1.pop(); s1.push(5); Test 3 (T3): IntStack s3 = new IntStack(); s3.push(3); s3.push(2); s3.pop();

Method sequences that create objects

isEmpty( ).state push( , 3).state s1.push 2 s3.push push(<init>( ).state, 3).state 2

slide-14
SLIDE 14

14

s1.push s3.push push(<init>( ).state, 3).state push(isEmpty(<init>( ).state).state, 3).state

ModifyingSeq Representation

Test 1 (T1): IntStack s1 = new IntStack(); s1.isEmpty(); s1.push(3); s1.push(2); s1.pop(); s1.push(5); Test 3 (T3): IntStack s3 = new IntStack(); s3.push(3); s3.push(2); s3.pop();

State-modifying method sequences that create objects

2 2

slide-15
SLIDE 15

15

WholeState Representation

s1.push s2.push

store.length = 3 store[0] = 3 store[1] = 2 store[2] = 0 size = 1

Test 1 (T1): IntStack s1 = new IntStack(); s1.isEmpty(); s1.push(3); s1.push(2); s1.pop(); s1.push(5); Test 2 (T2): IntStack s2 = new IntStack(); s2.push(3); s2.push(5);

store.length = 3 store[0] = 3 store[1] = 0 store[2] = 0 size = 1 5 5

The entire concrete state reachable from the object

slide-16
SLIDE 16

16

MonitorEquals Representation

s1.push s2.push store.length = 3 store[0] = 3 store[1] = 2 store[2] = 0 size = 1 Test 1 (T1): IntStack s1 = new IntStack(); s1.isEmpty(); s1.push(3); s1.push(2); s1.pop(); s1.push(5); Test 2 (T2): IntStack s2 = new IntStack(); s2.push(3); s2.push(5); store.length = 3 store[0] = 3 store[1] = 0 store[2] = 0 size = 1

5 5

The relevant part of the concrete state defined by equals (invoking

  • bj.equals(obj) and monitor field accesses)
slide-17
SLIDE 17

17

PairwiseEquals Representation

s1.push s2.push Test 1 (T1): IntStack s1 = new IntStack(); s1.isEmpty(); s1.push(3); s1.push(2); s1.pop(); s1.push(5); Test 2 (T2): IntStack s2 = new IntStack(); s2.push(3); s2.push(5);

5 5

The results of equals invoked to compare pairs of states

s1.equals(s2) == true

  • Fundamental difference between

MonitorEquals and PairwiseEquals

  • MonitorEquals monitors field

accesses during execution of the equals() method and compares the monitored parts

  • PairwiseEquals relies only on the
  • utput of the equals() method
  • Example of sets
slide-18
SLIDE 18

18

Detected Redundant Tests

T3, T2 MonitorEquals T3 WholeState T3, T2 PairwiseEquals T3 ModifyingSeq WholeSeq

detected redundant tests w.r.t. T1

technique

Test 1 (T1): IntStack s1 = new IntStack(); s1.isEmpty(); s1.push(3); s1.push(2); s1.pop(); s1.push(5); Test 2 (T2): IntStack s2 = new IntStack(); s2.push(3); s2.push(5); Test 3 (T3): IntStack s3 = new IntStack(); s3.push(3); s3.push(2); s3.pop();

slide-19
SLIDE 19

19

Experiment: Evaluated Test Generation Tools

  • ParaSoft Jtest 4.5
  • A commercial Java testing tool
  • Generates tests with method-call lengths up to three
  • JCrasher 0.2.7
  • An academic robustness testing tool
  • Generates tests with method-call lengths of one
slide-20
SLIDE 20

20

Questions to Be Answered

  • How much do we benefit after applying

Rostra on tests generated by Jtest and JCrasher?

  • Does redundant-test removal decrease test

suite quality?

slide-21
SLIDE 21

21

Experimental Subjects

1000 931 949 25 61 TreeMap 86 3028 398 32 38 LinkedList 47 5186 597 19 27 HeapMap 150 3743 468 14 24 FibonacciHeap 64 779 166 7 10 DisjSet 438 6205 535 17 22 BinomialHeap 56 277 246 8 13 BinSearchTree 135 519 34 7 7 BankAccount 31 470 70 8 9 ShoppingCart 14 1423 106 11 11 UBStack 6 94 44 5 5 IntStack JCrasher tests Jtest tests ncnb loc public methods methods class

slide-22
SLIDE 22

22

Assumptions About Subjects

  • Method-sequence representations assume that each

method does not modify argument state

  • MonitorEquals and PairwiseEquals representations

assume a user-defined equals()

slide-23
SLIDE 23

23

Quality of Original Test Suites

30% 53% Avg mutant killing ratio (600 mutants) 52% 77% Avg Branch cov 2 4 Avg num uncaught exceptions

JCrasher-generated tests Jtest-generated tests

slide-24
SLIDE 24

24

Elapsed Real Time in Minimizing Jtest-Generated Tests (in secs)

50 100 150 200 250 300 I n t S t a c k U B S t a c k S h

  • p

p i n g C a r t B a n k A c c

  • u

n t B i n S e a r c h T r e e B i n

  • m

i a l H e a p D i s j S e t F i b

  • n

a c c i H e a p H a s h M a p L i n k e d L i s t T r e e M a p WholeSeq ModifyingSeq WholeState MonitorEquals PairwiseEquals

slide-25
SLIDE 25

25

Elapsed Real Time in Minimizing JCrasher-Generated Tests (in secs)

1 2 3 4 5 6 7 8 IntStack UBStack ShoppingCart BankAccount BinSearchTree BinomialHeap DisjSet FibonacciHeap HashMap LinkedList TreeMap WholeSeq ModifyingSeq WholeState MonitorEquals PairwiseEquals

slide-26
SLIDE 26

26

Redundancy among Jtest-generated Tests

  • The last three techniques detect around 90% redundant tests
  • Detected redundancy in increasing order for five techniques

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% IntStack UBStack ShoppingCart BankAccount BinSearchTree BinomialHeap DisjSet FibonacciHeap HashMap LinkedList TreeMap WholeSeq ModifyingSeq WholeState MonitorEquals PairwiseEquals

slide-27
SLIDE 27

27

Redundancy among JCrasher-generated Tests

  • The last three techniques detect over 50% on half subjects
  • JCrasher generates fewer tests and shorter tests

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 IntStack UBStack ShoppingCart BankAccount BinSearchTree BinomialHeap DisjSet FibonacciHeap HashMap LinkedList TreeMap WholeSeq ModifyingSeq WholeState MonitorEquals PairwiseEquals

slide-28
SLIDE 28

28

Quality of Minimized Test Suites

  • All five techniques on JCrasher preserve all

measurements

  • The first three techniques on Jtest preserve all

measurements.

  • Two equals techniques on Jtest decrease (with
  • nly small loss in 2 programs)
  • in branch cov %
  • in mutant killing %
slide-29
SLIDE 29

29

Comparison of Five Techniques

  • Time and space taken to find redundant tests
  • from a couple of seconds to several minutes across

subjects

  • in roughly increasing order except for pairwiseEquals

(being the least expensive)

  • The number of redundant tests found
  • in increasing order
slide-30
SLIDE 30

30

Conclusions

  • Redundant tests add cost without any benefit
  • Existing test generation tools can be potentially

improved (by incorporating Rostra framework)

  • The experimental results have shown
  • High redundancy among their generated tests
  • Removing them does not decrease test suite quality
  • Rostra framework useful in test minimization,

assessment, selection, and generation

slide-31
SLIDE 31

31

Evolution of ParaSoft Jtest

  • Version 4.5 (released in March 2002) allows

method-call lengths (1 ― 3) [studied in this work]

  • Version 5.0 (released in Feb 2004) allows

method-call length of only 1

  • ParaSoft notified the authors last week that

Version 6.0 (internal version, not yet released) has addressed the test redundancy issue identified by the authors and added back the

  • ption to generate long call sequence
slide-32
SLIDE 32

32

Questions?

slide-33
SLIDE 33

33

Threats to Validity

  • Representative of true practice?
  • Subject programs, third-party test generation

tools

  • Instrumentation effects that bias the results
  • Faults on tools (Rostra, Jtest, JCrasher,

measurement tools)

slide-34
SLIDE 34

34

Applications

  • Assessment: compare the quality of different test

suites.

  • Selection: select a subset of automatically generated

tests to augment an existing test suite.

  • Minimization: minimize an automatically generated

test suite for correctness inspection and regression executions.

  • Generation: avoid generating and executing redundant

tests

slide-35
SLIDE 35

35

Related Work

  • Test selection or minimization with some loss in

the quality of test suites [Rothermel et al. 98,

Chang&Richardson 99, Harder et al. 03, Xie&Notkin 03]

  • for regression testing or test inspection
