Dana Geist & Marat Nigmatullin Root/Jailbreak Detection Evasion Study on iOS and Android Research Project 1 Motivation Compromised (rooted/jailbroken) devices are a major issue in the mobile security field. Security and business

slide-1
SLIDE 1

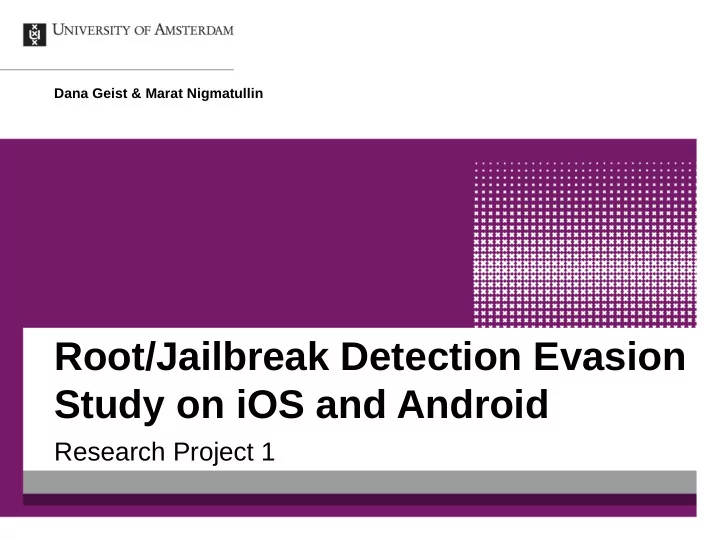

Root/Jailbreak Detection Evasion Study on iOS and Android

Research Project 1

Dana Geist & Marat Nigmatullin

slide-2
SLIDE 2

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 2

Motivation

 Compromised (rooted/jailbroken) devices are a

major issue in the mobile security field.

 Security and business applications often

attempt to identify rooted/jailbroken devices.

 Cloaking techniques are being developed as

the detection counterpart.

slide-3
SLIDE 3

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 3

Research questions

 RQ1: Which techniques are used for root/jailbreak

detection and evasion on Android and iOS?

 RQ2: Are there any differences between the

techniques used for each of the platforms? Are the controls they present effective?

 RQ3: What are the latest trends used for detection?  RQ4: Could those latest trends be circumvented? If

so, is it possible to create new evasion methods and implement them?

slide-4
SLIDE 4

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 4

Related work

 Bulk of the research is focused on Android.  Detection methods are not effective against evasion

techniques.

 Focused on high level (Java) and native languages (C/C++).  IOS  Lack of formal research that addresses iOS detection and

evasion methods.

 NESO Security Labs AppMinder developed a free prototype

for jailbreak detection, based on ARM assembly code.

slide-5
SLIDE 5

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 5

Detection and Evasion Methods

 Methodology  Study detection/evasion methods (RQ1, RQ2):  Primary literature  Existing tools and frameworks  Popular forums  Analyze collected information to detect latest

trends (RQ3)

slide-6
SLIDE 6

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 6

Detection and Evasion Methods

 Taxonomy of Android Root Detection Methods  Presence of packages, applications, files.  Build settings: test keys, build version.  File permissions.  Shell command execution (su, which su).  Runtime characteristics: mount /system partition.

slide-7
SLIDE 7

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 7

Detection and Evasion Methods

Taxonomy of iOS Jailbreak Detection Methods

Existence of files.

Directory permissions.

Process forking.

SSH loopback connections.

Privilege actions execution.

Calling dynamic library functions.

AppMinder Solution.

https://github.com/leecrossley/cordova-plugin-jailbreak-detection

if ([[NSFileManager defaultManager] fileExistsAtPath:@"/Applications/Cydia.app"]) { return YES; } else if ([[NSFileManager defaultManager] fileExistsAtPath:@"/Library/MobileSubstrate/Mobil eSubstrate.dylib"]) { return YES; }

slide-8
SLIDE 8

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 8

Detection and Evasion Methods

 Root/Jailbreak evasion methods  Simple methods:  Hiding su binary (Android)  Runtime checks (Android)  Binary patching (Android and iOS)  Frameworks:  RootCloak (Android)  RootCloak Plus (Android)  xCon (iOS)

slide-9
SLIDE 9

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 9

Detection and Evasion Methods

 Android vs. iOS: Method Comparison  Based on the same idea.  Detection/evasion methods implemented in

different levels of abstraction:

 High level: Java/Objective-C  Native level: C/C++  Low level: ARM assembly (No framework available)  Minor differences in implementation (e.g fork).

slide-10
SLIDE 10

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 10

Detection and Evasion Methods

 Latest trends  Most applications implement detection controls in

high level and native languages

 NESO Security Labs created a jailbreak detection

solution implemented in ARM assembly : AppMinder

slide-11
SLIDE 11

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 11

AppMinder: What is it?

Jailbreak detection tool for Apple iOS.

Based on ARM assembly.

Fork system call is evaluated for detection.

Code consists of 5 functions.

Application is terminated

  • n jailbroken devices

Reference:http://appminder.nesolabs.de/

#if !defined(DISABLE_APPMINDER) && ! (TARGET_IPHONE_SIMULATOR) && !(__arm64__) __attribute__ ((always_inline)) static void dFRdWsEfEaJi (unsigned int *___lxTgdaUaxSYingsbeypmEtHgmILez, unsigned int *___TukDsLwSvzYctQkYpXKiDfwnLvJJJ, unsigned int *___aurUzzwAHntEjodevWkF) {asm volatile ("sub r1, r1, r1;mov r0, r1;b L975215;push {r0-r12};L975215:;mov r12, #32;mov r3, r3;asr r12, #4;mov r3, r3;add r0, r0, #40;b L975216;stmdb sp!, {r0-r12};L975216:;mov r4, pc;ldr r4, [r4, #0];svc 0x80;ldr r3, % [lxTgdaUaxSYingsbeypmEtHgmILez];str r4, [r3, #0];b L975217;push {r0-r12};L975217:;sub r1, r1, r1;mov r0, r0;mov r3, r1;mov r2, r2;add r3, r3, #1;mov r1, r1;cmp r0, r3;b L975218;stmdb sp!, {r0-r12};L975218:;beq L975219;mov r10, #79;mov pc, r10;L975219:;ldr r3, % [TukDsLwSvzYctQkYpXKiDfwnLvJJJ];str r0, [r3, #0];ldr r3, %[aurUzzwAHntEjodevWkF];str r12, [r3, #0]; ...

slide-12
SLIDE 12

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 12

AppMinder

 Why is it difficult to bypass?  No traditional methods work on it.  Polymorphic.  Obsfuscation.  Self integrity checks.  Assembly code added ”inline”.

slide-13
SLIDE 13

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 13

Experiments on iOS

 Methodology (RQ4)  Study AppMinder.  Understand its inner workings.  Create methods for evasion and implement them.

slide-14
SLIDE 14

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 14

Experiments on iOS

 Methodology (RQ4)  Create an iOS testing application with AppMinder

checks.

 Static/Dynamic analysis.  Identify patterns.  Design a strategy to bypass AppMinder’s controls.  Implement solution.

slide-15
SLIDE 15

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 15

Experiments on iOS: bypassing AppMinder

 Techniques explored:  Hooking tools such as Cycript.  Binary patching.  Debbuging tools: GNU Debugger

(a.k.a gdb).

slide-16
SLIDE 16

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 16

Experiments on iOS: bypassing AppMinder

 System architecture:

slide-17
SLIDE 17

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 17

Experiments on iOS: bypassing AppMinder

 Code analysis: supervisor calls (SVC)  Fork: jailbreak detection  Ptrace: anti-debugging measures  Exit

slide-18
SLIDE 18

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 18

Experiments on iOS: bypassing AppMinder

 Bypassing strategy: Fork  Normal device:r0=1  Jailbroken device: r0!=1

(Child's PID)

 Solution  Alter return value:

set r0=1

Sample Code: mov r1 , #2; b L505572 ; stmdb sp ! , { r0−r 1 2 } ; L505572 : ; mov r12 , r1 ; svc 0x80; ←Breakpoint sub r1, r1, r1; ←Breakpoint mov r3, r1; add r3, r3, #1; cmp r0, r3;

slide-19
SLIDE 19

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 19

Experiments on iOS: bypassing AppMinder

 Component interaction:

slide-20
SLIDE 20

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 20

Experiments on iOS: bypassing AppMinder

 Semi-automatic solution

slide-21
SLIDE 21

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 21

Experiments on iOS: bypassing AppMinder

 Limitations:  We studied AppMinder’s variant B.  We worked with our own testing application.  Fifth function call exhibits different behavior.

slide-22
SLIDE 22

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 22

Experiments on iOS: alternative jailbreak detection methods

 Cordova jailbreak detection plugin:  Implemented in Objective-C.  Detection methods:  Check for existing directories, files or packages.  Execute privileged actions like writing outside of the sandbox.

slide-23
SLIDE 23

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 23

Experiments on iOS: alternative jailbreak detection methods

 Cordova bypassing:  Focus on if

statements.

 Target assembly

compares.

 Change register

values.

Objective-C ARM Assembly if ([[NSFileManager defaultManager] fileExistsAtPath: @"/Applications/Cydia.app"]) {return YES;} else if ...(next check) Check for file existence cmp r1, #0

slide-24
SLIDE 24

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 24

Results & Analysis

 AppMinder controls were evaded.  Bypassing mechanisms were successfully

implemented.

 Assembly level techniques can be used to evade

methods at different abstraction levels.

 Attaching a debugger affects performance.

slide-25
SLIDE 25

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 25

Conclusions

 Android and iOS use similar detection and evasion

methods.

 Detection trends are moving controls to lower level

  • languages. AppMinder is an example of that.

 Even low level techniques can be bypassed.  With enough time and resources an attacker will be

able to evade all detection controls.

slide-26
SLIDE 26

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 26

Future Work

 Address limitations of our current study:  Implement an efficient fully automated solution to

evade AppMinder's controls.

 Study evasion of different detection mechanisms

for both Android and iOS.

slide-27
SLIDE 27

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 27

DEMO

slide-28
SLIDE 28

Research Project 1: Root/Jailbreak detection Evasion study on iOS and Android 28

Any questions?
