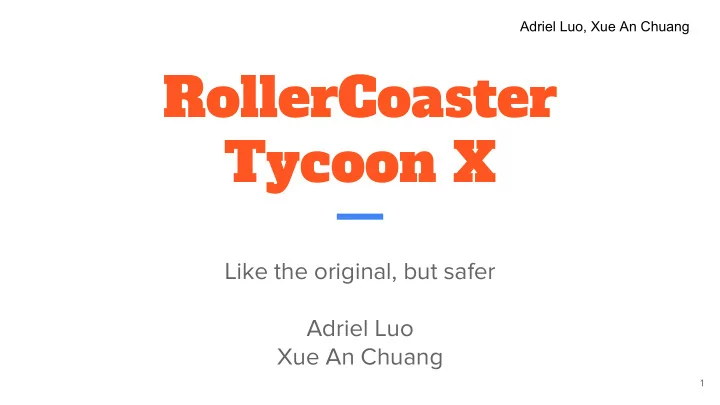

SLIDE 1
Adriel Luo, Xue An Chuang
RollerCoaster Tycoon X
Like the original, but safer Adriel Luo Xue An Chuang
1
Adriel Luo, Xue An Chuang
Who has taken a roller coaster? Who wants to be confident that they are safe?
2
RollerCoaster Tycoon X Like the original, but safer Adriel Luo - - PowerPoint PPT Presentation
RollerCoaster Tycoon X Like the original, but safer Adriel Luo - - PowerPoint PPT Presentation
Adriel Luo, Xue An Chuang RollerCoaster Tycoon X Like the original, but safer Adriel Luo Xue An Chuang 1 Adriel Luo, Xue An Chuang Who has taken a roller coaster? Who wants to be confident that they are safe? 2 Adriel Luo, Xue An
SLIDE 2
SLIDE 3
Adriel Luo, Xue An Chuang
The safety of coasters is verified by numerical simulation
3
SLIDE 4
Adriel Luo, Xue An Chuang
But numerical simulation is subject to error
{x’ = -y, y’ = x} {x’ = x}
4
SLIDE 5
Adriel Luo, Xue An Chuang
Approach
5
SLIDE 6
Adriel Luo, Xue An Chuang
We break a coaster down into track sections and prove safety individually
- Reduces complexity
- More generalizable
- Prove properties for individual sections
- Ending conditions for one section are the starting conditions for next
- Piece the different proofs back together to form a complete proof
6
SLIDE 7
Adriel Luo, Xue An Chuang
Coasters can be modeled with straight lines and arcs
7
SLIDE 8
Adriel Luo, Xue An Chuang
Coasters can be modeled with straight lines and arcs
8
SLIDE 9
Adriel Luo, Xue An Chuang
Coasters can be modeled with straight lines and arcs
9
SLIDE 10
Adriel Luo, Xue An Chuang
Coasters can be modeled with straight lines and arcs
10
SLIDE 11
Adriel Luo, Xue An Chuang
Coasters can be modeled with straight lines and arcs
11
SLIDE 12
Adriel Luo, Xue An Chuang
Coasters can be modeled with straight lines and arcs
12
SLIDE 13
Adriel Luo, Xue An Chuang
Coasters can be modeled with straight lines and arcs
13
SLIDE 14
Adriel Luo, Xue An Chuang
Coasters can be modeled with straight lines and arcs
- Straight lines: y = mx + c
- Arcs: (cx-x)2 + (cy-y)2 = r2
14
SLIDE 15
Adriel Luo, Xue An Chuang
We want to prove several properties about roller coasters
- Train goes forward
- Energy is conserved
- Train stays on the track
15
SLIDE 16
Adriel Luo, Xue An Chuang
Models
16
SLIDE 17
Adriel Luo, Xue An Chuang
Modeling: Basic Assumptions
- Assumptions: zero friction, unit gravity, point mass, two dimensions
17
SLIDE 18
Adriel Luo, Xue An Chuang
Modeling: Straight Line Dynamics
- For straight lines:
○ x’ = v*dx ○ y’ = v*dy ○ v’ = g sin θ
18
SLIDE 19
Adriel Luo, Xue An Chuang
Modeling: Arc Dynamics
- For arcs (clockwise):
○ x’ = v*(y-cy)/r ○ y’ = -v*(x-cx)/r ○ v’ = (x-cx)/r
19
SLIDE 20
Adriel Luo, Xue An Chuang
Proof
20
SLIDE 21
Adriel Luo, Xue An Chuang
Proof approach
- If ODEs are solvable, solve!
- Identify which properties would be proved through similar means
- Proving properties that were essential in proving others
○ Positive velocity is a powerful property!
- Useful proof rules
○ Differential invariants ○ Differential ghosts
21
SLIDE 22
Adriel Luo, Xue An Chuang
Proof Example: Arc motion
1. Stays on track and energy is conserved
○ Proved with invariants
2. Strictly positive velocity
○ Proved with ghosts as velocity is decreasing
3. Stays within the quadrant
○ Proved with invariants using information about velocity
22
SLIDE 23
Adriel Luo, Xue An Chuang
RollerCoaster Tycoon X is a safe roller coaster design tool
23
SLIDE 24
Adriel Luo, Xue An Chuang
We modeled the Top Thrill Dragster and proved that it is safe
24
SLIDE 25
Adriel Luo, Xue An Chuang
25
