RICHMOND METROPOLITAN TRANSPORTATION AUTHORITY We provide safe, convenient, efficient facilities and excellent customer service while maintaining the lowest feasible costs. RMTA Contract MR-2017 Miscellaneous Repairs Pre-Bid Meeting March 30,

slide-1
SLIDE 1

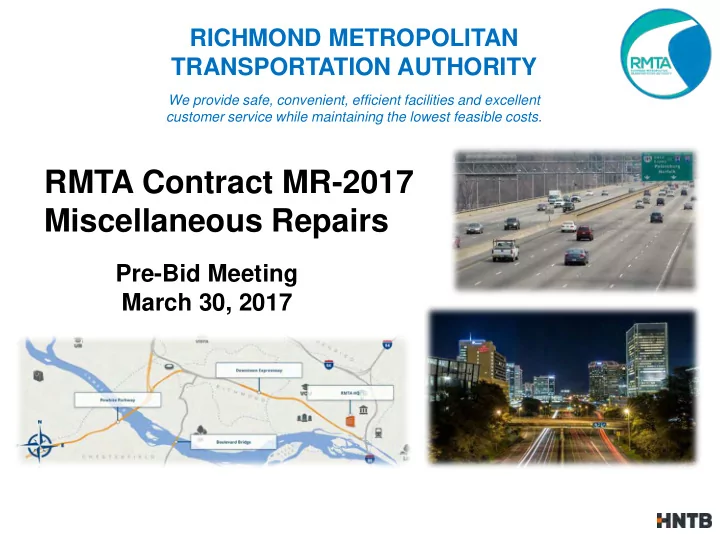

RMTA Contract MR-2017 Miscellaneous Repairs

Pre-Bid Meeting March 30, 2017 RICHMOND METROPOLITAN TRANSPORTATION AUTHORITY

We provide safe, convenient, efficient facilities and excellent customer service while maintaining the lowest feasible costs.

slide-2
SLIDE 2

MR-2017

  • Agenda:

– Complete sign in sheet – Introductions – Bidding requirements – Liquidated Damages – Work Items / Site Photos – Railroad Agreement – Staging Areas – Contract Timeline – Addendum – Required Site Visit

2

slide-3
SLIDE 3

MR-2017

  • Contract Book

– Broken down into (3) sections:

  • Contract & Bid Documents
  • Supplemental Specifications to the 2016 VDOT Specifications
  • Special Provisions and Repair Details
  • Appendix
  • System Map, I-95 Pier Map
  • As-Built Drawings from Original Construction
  • (Paper copies available for $60, or download fromwww.rmtaonline.org)

– Email mfoster@hntb.com for a link to FTP site for the Appendix

3

slide-4
SLIDE 4

MR-2017

  • Bidding Requirements (1 of 3):

– Jacking and Blocking of Beams and Structural Steel Repairs Experience

  • 3 bridge superstructure repair projects (minimum)
  • 1 or more beams jacked off the bearing with portion of

beam replaced by welding for each repair project

  • Complete bidder forms BSS-1, BSS-2

4

slide-5
SLIDE 5

MR-2017

  • Bidding Requirements Continued (2 of 3):

– Shotcrete experience on bridge superstructures

  • 3 projects (minimum)
  • 10,000 S.F. minimum total from 3 projects
  • Complete bidder forms BS-1, BS-2

5

slide-6
SLIDE 6

MR-2017

  • Bidding Requirements Continued (3 of 3):

– Prequalified by VDOT for bidding on State Projects

  • The following categories are preferred:

– Major Structures and/or Bridge Repair

6

slide-7
SLIDE 7

MR-2017

  • Liquidated Damages (1 of 2):

– MOT:

  • RMTA reserves the right to charge damages of $1,000 per

every 15 minutes a lane / ramp closure is in place beyond prescribed time or lane closure is in place for more than 1 hour before or after active work is on-going.

– Certified Personnel

  • Contractors foreman (or other on
  • site employee) must be

properly trained. The training requirement is the “Basic WZTCT” course provided by VDOT.

  • If a trained employee is not on site, RMTA reserves the right

to charge damages of $1,000 per day.

7

slide-8
SLIDE 8

MR-2017

  • Liquidated Damages (2 of 2):

– Completion Dates

  • All Bridge Deck Sealant – September 25, 2017
  • All Shotcrete Repairs – November 22, 2017
  • Project Completion – December 22, 2017

– Railway Coordination Services

  • See Railway-Highway Provisions in the Supplemental

Specifications 107.19

  • Specific Instructions and Timeline for Submittals

8

slide-9
SLIDE 9

MR-2017

9

slide-10
SLIDE 10

MR-2017

  • Significant Work Items (1 of 4):

– Steel Repairs:

  • Bridge BB

(Boulevard Bridge) Multiple locations

  • Bridge 9S

(SB CSX RR) Multiple locations

  • Bridge 9N

(NB CSX RR) Multiple locations

  • Bridge 10S

(SB CSX RR) Multiple locations

  • Bridge 10N (NB CSX RR)

Multiple locations

  • Bridge 64

(Downtown Expy) 1 location

  • Bridge 67

(Downtown Expy) Multiple locations

10

slide-11
SLIDE 11

Boulevard Bridge

  • Multiple Repairs in Known and Unknown Locations:
  • 7,500 LBS. weight limit
  • No 3 or more axle trucks
  • Trailer mounted Hydra Platform Typically allowed

11

MR-2017

slide-12
SLIDE 12

MR-2017

Boulevard Bridge

Replace damaged lacing bars and rivets Replace damaged or missing rivets

12

Three different lacing bars are used Document locations repaired

slide-13
SLIDE 13

Bridge 9S

  • Southbound & Northbound CSX RR:
  • Each bridge contains 6 pins
  • UT Testing

13

MR-2017

Bridge 9N

slide-14
SLIDE 14

Bridge 10S

  • Southbound CSX RR:
  • UT Test 6 pins for both bridges
  • B10S Repair damage to the bottom flange of the south girder

14

MR-2017

Bridge 10N

slide-15
SLIDE 15

MR-2017

Bridge 10S – South Girder

High Load Impact Damage

15

slide-16
SLIDE 16

Bridge 64

  • Note that Bridge 67 (EB DTE ramp to NB I-95)
  • Also includes the truss portion of the ramp
  • From SB I-95 to WB DTE:
  • Duplicated Pier Numbers are noted as W or E

16

MR-2017

slide-17
SLIDE 17

Bridge 64 (see Bridge 67 Plans)

  • SB I-95 to WB DTE:
  • Pier 12W Floorbeam 16 Steel Repair
  • Pier 10W Gusset Plate Replacements

17

MR-2017

slide-18
SLIDE 18

Bridge 67

  • EB DTE to NB I-95:
  • 2 lateral gusset plate repairs
  • Floorbeam Repair

18

MR-2017

slide-19
SLIDE 19

MR-2017

Bridge 67 – Gusset Plate

Pier 10W Top & Lower Lateral Gusset Plate

19

slide-20
SLIDE 20

MR-2017

Bridge 67 – Gusset Plate

Pier 93-94 Top Lateral Gusset Plate

20

slide-21
SLIDE 21

MR-2017

Bridge 67 – Gusset Plate

Pier 12W Floorbeam 16

21

slide-22
SLIDE 22

MR-2017

  • Significant Work Items (2 of 4):

– Concrete Bridge Deck Sealant:

  • B36 (Maplewood Ave over DTE Conn.)

543 S.Y.

  • B61 (WB DTE over 12th St.)

545 S.Y.

  • B63 (WB DTE over Virginia St.)

3,154 S.Y.

  • B64 (Ramp from SB I-95 to WB DTE)

2,343 S.Y.

  • B65 (Ramp from NB I-95 to WB DTE)

4,151 S.Y.

  • B66 (EB DTE over Virginia St.)

6,751 S.Y.

  • B67 (Ramp from EB DTE to NB I-95)

4,885 S.Y.

  • B68 (Ramp from EB DTE to SB I-95)

1,696 S.Y.

22

slide-23
SLIDE 23

MR-2017

23

slide-24
SLIDE 24

MR-2017

24

slide-25
SLIDE 25

MR-2017

  • Significant Work Items (3 of 4):

– Shotcrete

  • Standard (< 30 ft.): 5 possible bridges, multiple

locations

  • Elevated (≥ 30 ft.): 3 possible bridges, multiple

locations

  • Over Water:

2 possible bridges, multiple locations

25

slide-26
SLIDE 26

MR-2017 B4 N. Abutment

26

slide-27
SLIDE 27

MR-2017

  • Significant Work Items (4 of 4):

– Concrete sidewalk

  • 2 possible bridges, multiple locations
  • Remove existing, prepare subgrade, replace

– Concrete curb

  • 2 possible locations and adjacent to sidewalk locations

27

slide-28
SLIDE 28

MR-2017

28

slide-29
SLIDE 29

MR-2017

  • Minor / Remaining Work Items (1 of 2): :

– Trim existing vegetation – Clearing and Grubbing – Hydraulic Cement Concrete Repairs – Patching Asphalt Pavement – Repairing Asphalt Concrete Pavement Cracks – Cleaning Drainage Manhole – Miscellaneous Bridge Coatings – Equipment

29

slide-30
SLIDE 30

MR-2017

  • Minor / Remaining Work Items (2 of 2): :

– Debris Removal – Drainage Structure Repairs – Right-of-Way fence – Slope Stabilization – Pavement Marking Lines/Symbols/Text – Concrete Barrier Delineators – Slope stabilization – Parapet Wall Coatings

30

slide-31
SLIDE 31

MR-2017

  • Railroad Coordination (1 of 2):

– Depending on the contractors means and methods Railroad Approval and Railroad Flagger may be required – Liquidated damages

  • RMTA reserves the right to charge liquidated damages if the

contractor fails to meet the submittal schedule

– Railway Coordination Service

  • Submittal of means and methods, drawings to the

satisfaction of RMTA and NS Corp.

  • All submittals are made directly to NS Corp
  • Contractor will submit directly to NS Corp.
  • Contractor will pay the Flagger Fees

31

slide-32
SLIDE 32

MR-2017

  • Railroad Coordination Continued (2 of 2):

– Norfolk Southern

  • Bridge 65

Pier 9 Shotcrete

32

slide-33
SLIDE 33

MR-2017

  • Point of Contact or Responsible Forman:

– On site at all times – Shall be there day and night during construction

  • r lane closures

– Regardless of work or job being performed – In close contact with Engineer/inspectors – Any changes in personnel, must be clearly communicated

33

slide-34
SLIDE 34

STAGING AREA* REQUIRES CITY’S PERMISSION STAGING AREA

MR-2017

STAGING AREAS

STAGING AREA*

*Yellow and Orange Areas are Unavailable

slide-35
SLIDE 35

MR-2017

  • We anticipate issuing an Addendum:

– Revise Bid Tab to Include UT Testing of pins on Bridges 9 and 10 – Revise details for Bridge 67 Pier 12W – No anticipated change in the Bid Date – Be sure to Acknowledge Receipt on Bid Documents

35

slide-36
SLIDE 36

MR-2017

  • Questions due by April 13th, 1:00 PM
  • Bid’s Due – 10:00 AM on April 20
  • Contract Dates:
  • Begin:

May 1st±

  • End: December 22, 2017

– Shotcrete: November 22 – Concrete Bridge Deck Sealant: September 25

  • Submit Questions to:

– Matt Foster, P.E. at: mfoster@hntb.com – Theresa Simmons, P.E. at: Theresa.Simmons@rmtaonline.org (RMTA Director of Operations)

36

slide-37
SLIDE 37

Questions? Required Site Visit

37

MR-2017

slide-38
SLIDE 38

38

MR-2017

Main Office to Main Street Station

slide-39
SLIDE 39

39

MR-2017

Main Street Station to Douglasdale

slide-40
SLIDE 40

40

MR-2017

Douglasdale to Boulevard Bridge
