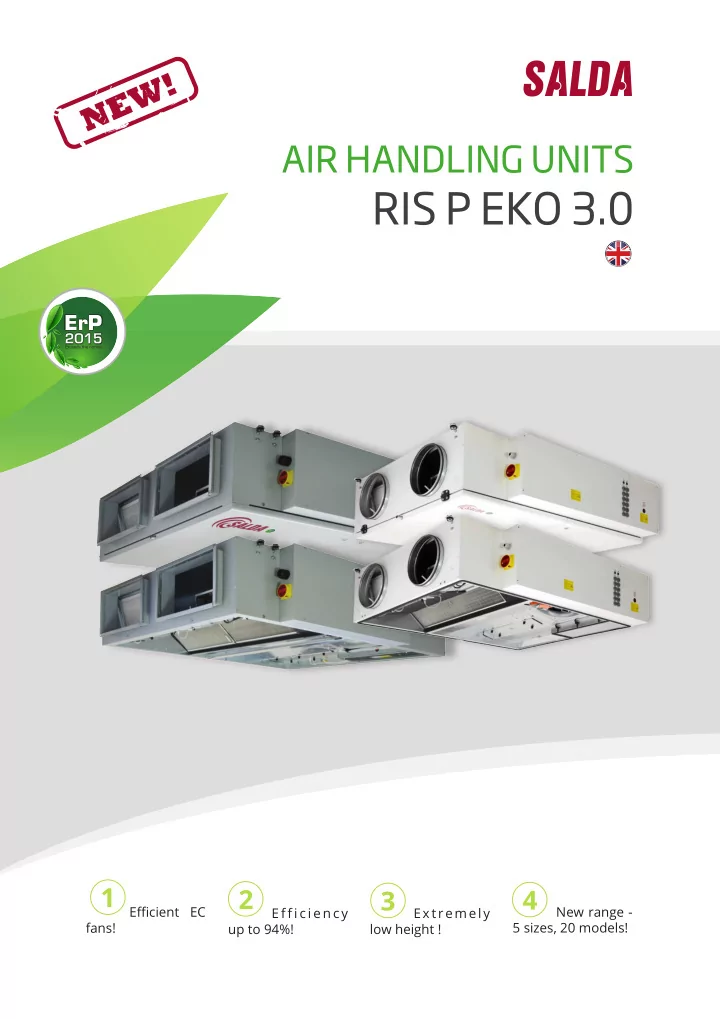

AIR HANDLING UNITS RIS P EKO 3.0 1 2 4 3 Effjcient EC New range - E f f i c i e n c y Extremely fans! 5 sizes, 20 models! up to 94%! low height ! Contents Basic features 4 RIS P EKO 3.0 full range

slide-1
SLIDE 1

New range - 5 sizes, 20 models!

1 2 3 4

AIR HANDLING UNITS

RIS P EKO 3.0

E f f i c i e n c y up to 94%! Extremely low height ! Effjcient EC fans!

slide-2
SLIDE 2
slide-3
SLIDE 3

Contents

Basic features 4 RIS P EKO 3.0 full range 5 RIS 400P EKO 3.0 6 RIS 700P EKO 3.0 9 RIS 1200P EKO 3.0 12 RIS 1900P EKO 3.0 15 RIS 2500P EKO 3.0 18 Accessories 21 Installation assembly 23 Controls 24 Type name codes 26 Article numbers of new AHU range 26

slide-4
SLIDE 4

4

Basic features

Air handling units RIS P EKO are equipped with high effjciency cross - coun- ter fmow heat exchanger and EC motors. AHU range is used for ventilation of houses, offjces or other heated premises: classrooms, apartments, confer- ence rooms and other.

  • Air output range 200 - 2500 m3/h.
  • Wide range – 5 sizes, 20 models !
  • Extremely low height !
  • Energy saving and low noise EC fans compliant with ErP directive 2009/125/EC.
  • Effjciency of heat exchanger up to 94%.
  • Integrated electrical heater or optional water heater/cooler on the duct.
  • Motorized 100% by-pass damper.
  • Effjcient and low pressure loss panel fjlters F7/F5.
  • Designed for installation under the ceiling.
  • Full integrated Plug&Play control system.

Construction

  • Frameless construction from double skinned panels.
  • Acoustic and thermal insulation of the walls - RIS 400 - 2500P EKO - 30/50 mm.
  • RIS 400P - 700P EKO housing: powder coated white colour painting RAL 9016,

RIS 1200P – 2500P EKO - grey colour RAL 7040.

  • Easy removable or plug in electrical heater (Plug&Play).
  • Access to internal components by hinged door with locks (removable doors also).
  • Quick and easy access to control board and Plug&Play by opening separate

compartment on the side of the unit.

  • Stainless steel condensate tray.
  • Fitted with mounting brackets.
slide-5
SLIDE 5

5

Air fmow [m3/h]

Air fmow [m3/h] Static pressure [Pa] Air fmow [l/s] Power [W] 600 800

RIS 400P EKO 3.0 RIS 700P EKO 3.0 RIS 1200P EKO 3.0 RIS 1900P EKO 3.0 RIS 2500P EKO 3.0

Performance Power consumption

400P EKO 3.0 700P EKO 3.0 1200P EKO 3.0 1900P EKO 3.0 2500P EKO 3.0

RIS P EKO 3.0 full range

slide-6
SLIDE 6

6

Dimensions RIS 400P EKO 3.0

1014 1300 1361 200 712 670 330 148 31 304 148

slide-7
SLIDE 7

7

0.9 EKO 3.0 1.6 EKO 3.0 3.0 EKO 3.0 Heater

  • phase/voltage [50Hz/VAC]

~1, 230 ~1, 230 ~3, 400

  • power consumption

[kW] 0,9 1,6 3,0 Fans

  • phase/voltage [50Hz/VAC]

~1, 230 exhaust

  • power/current

[kW/A] 0,125 / 1,17

  • speed

[min-1] 3490 supply

  • power/current

[kW/A] 0,134 / 1,18

  • speed

[min-1] 3490 Motor protection class IP-44 Thermal effjciency 90% Max power consumption [kW/A] 1,16 / 6,39 1,86 / 9,39 3,26/15,39 Automatic control integrated Filter class -exhaust F7

  • supply

M5 Thermal insulation [mm] 30 Weight [kg] 74,0 Comply with ERP 2013 +

RIS 400PE EKO 3.0

Performance Power consumption

Extract air Exhaust air Fresh air Supply air

Temperature effjciency

Air fmow [l/s] η [%] Air fmow [m3/h] Static pressure [Pa] Air fmow [m3/h] Air fmow [l/s] Power [W]

Exhaust air Specifjc fan power

Air fmow [m3/h] Static pressure [Pa] Air fmow [l/s] Power [W]

Supply air

Air fmow [l/s] Static pressure [Pa] Air fmow [m3/h]

total power for supply & exhaust fans kW air fmow m3/h x 3600 SFP=

160 140 120 100 80 60 40 20 160 140 120 100 80 60 40 20 View from inspection side

RIS 400PE EKO 3.0

Air fmow temperature range from -7°C to +40°C Designed for operation indoors only

Technical data

RIS 400PE EKO 3.0

Lwa total, dB(A) LWA, dB(A) 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz

Supply 67 54 59 64 58 57 54 47 Extract 58 48 50 53 51 48 46 41 Surrounding 51 40 43 46 45 40 39 36 Measured at 443 m3/h, 100 Pa

Extract air = 20°C/60% RH - Outdoor air = -7°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 2°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 7°C/90% RH Balance between supply air/extract air = 1.0

slide-8
SLIDE 8

8

Technical data

400PW EKO 3.0 Heater

  • phase/voltage [50Hz/VAC]

AVS 200

  • power consumption

[kW] Fans

  • phase/voltage [50Hz/VAC]

~1, 230

exhaust

  • power/current

[kW/A]

0,125/1,17

  • speed

[min-1]

3490

supply

  • power/current

[kW/A]

0,134/1,18

  • speed

[min-1]

3490

Motor protection class

IP-44

Thermal effjciency

90%

Max power consumption [kW/A]

0,26/2,39

Automatic control

integrated

Filter class -exhaust

F7

  • supply

M5

Thermal insulation [mm]

30

Weight [kg]

73,0

Comply with ERP 2013

+

RIS 400PW EKO 3.0

Performance Power consumption

Extract air Exhaust air Fresh air Supply air

Temperature effjciency

Air fmow [l/s] η [%] Air fmow [m3/h] Static pressure [Pa] Air fmow [m3/h] Air fmow [l/s] Power [W]

Exhaust air Specifjc fan power

Air fmow [m3/h] Static pressure [Pa] Air fmow [l/s] Power [W]

Supply air

Air fmow [l/s] Static pressure [Pa] Air fmow [m3/h]

total power for supply & exhaust fans kW air fmow m3/h x 3600 SFP=

160 140 120 100 80 60 40 20 160 140 120 100 80 60 40 20 View from inspection side

RIS 400PW EKO 3.0

Air fmow temperature range from -7°C to +40°C Designed for operation indoors only

Extract air = 20°C/60% RH - Outdoor air = -7°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 2°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 7°C/90% RH Balance between supply air/extract air = 1.0 RIS 400PW EKO 3.0

Lwa total, dB(A) LWA, dB(A) 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz

Supply 67 54 59 64 58 57 54 47 Extract 58 48 50 53 51 48 46 41 Surrounding 51 40 43 46 45 40 39 36 Measured at 443 m3/h, 100 Pa

slide-9
SLIDE 9

9

Dimensions RIS 700P EKO 3.0

358 1461 241,7 486,6 1074 160 486,6 728,3 1422 970 856,6

slide-10
SLIDE 10

10

Technical data

RIS 700PE EKO 3.0

Performance Power consumption

Extract air Exhaust air Fresh air Supply air

Temperature effjciency

Air fmow [l/s] η [%] Air fmow [m3/h] Static pressure [Pa] Air fmow [m3/h] Air fmow [l/s] Power [W]

Exhaust air Specifjc fan power

Air fmow [m3/h] Static pressure [Pa] Air fmow [l/s] Power [W]

Supply air

Air fmow [l/s] Static pressure [Pa] Air fmow [m3/h]

total power for supply & exhaust fans kW air fmow m3/h x 3600 SFP=

300 250 200 150 100 50 300 250 200 150 100 50 View from inspection side

RIS 700PE EKO 3.0

Air fmow temperature range from -7°C to +40°C Designed for operation indoors only

RIS 700PE EKO 3.0

Lwa total, dB(A) LWA, dB(A) 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz

Supply 75 64 66 68 70 66 60 59 Extract 62 53 55 57 56 52 49 45 Surrounding 56 45 47 50 50 47 43 42 Measured at 764 m3/h, 100 Pa

Extract air = 20°C/60% RH - Outdoor air = -7°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 2°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 7°C/90% RH Balance between supply air/extract air = 1.0

1.2 EKO 3.0 3.0 EKO 3.0 4.5 EKO 3.0 Heater

  • phase/voltage [50Hz/VAC]

~1, 230 ~1, 230 ~3, 400

  • power consumption

[kW] 1,2 3,0 4,5 Fans

  • phase/voltage [50Hz/VAC]

~1, 230 exhaust

  • power/current

[kW/A] 0,218/1,9

  • speed

[min-1] 3380 supply

  • power/current

[kW/A] 0,237/2,07

  • speed

[min-1] 3380 Motor protection class IP-44 Thermal effjciency 90% Max power consumption [kW/A] 1,66/5,51 3,46/19,0 4,96/9,85 Automatic control integrated Filter class -exhaust F7

  • supply

M5 Thermal insulation [mm] 50 Weight [kg] 95,0 Comply with ERP 2013 +

slide-11
SLIDE 11

11

RIS 700PW EKO 3.0

Performance Power consumption

Extract air Exhaust air Fresh air Supply air

Temperature effjciency

Air fmow [l/s] η [%] Air fmow [m3/h] Static pressure [Pa] Air fmow [m3/h] Air fmow [l/s] Power [W]

Exhaust air Specifjc fan power

Air fmow [m3/h] Static pressure [Pa] Air fmow [l/s] Power [W]

Supply air

Air fmow [l/s] Static pressure [Pa] Air fmow [m3/h]

total power for supply & exhaust fans kW air fmow m3/h x 3600 SFP=

300 250 200 150 100 50 300 250 200 150 100 50 View from inspection side

RIS 700PW EKO 3.0

Air fmow temperature range from -7°C to +40°C Designed for operation indoors only

RIS 700PW EKO 3.0

Lwa total, dB(A) LWA, dB(A) 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz

Supply 75 64 66 68 70 66 60 59 Extract 62 53 55 57 56 52 49 45 Surrounding 56 45 47 50 50 47 43 42 Measured at 764 m3/h, 100 Pa

Extract air = 20°C/60% RH - Outdoor air = -7°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 2°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 7°C/90% RH Balance between supply air/extract air = 1.0

700PW EKO 3.0 Heater

  • phase/voltage [50Hz/VAC]

AVS 200

  • power consumption

[kW] Fans

  • phase/voltage [50Hz/VAC]

~1, 230

exhaust

  • power/current

[kW/A]

0,218/1,9

  • speed

[min-1]

3380

supply

  • power/current

[kW/A]

0,237/2,07

  • speed

[min-1]

3380

Motor protection class

IP-44

Thermal effjciency

90%

Max power consumption [kW/A]

0,46/2,5

Automatic control

integrated

Filter class -exhaust

F7

  • supply

M5

Thermal insulation [mm]

50

Weight [kg]

95,0

Comply with ERP 2013

+

Technical data

slide-12
SLIDE 12

12

Dimensions RIS 1200P EKO 3.0

500 686 391 355,5 250 51,5 1439 1653 1550 1319 172 1325 90 90 100 1497 1439 1397

slide-13
SLIDE 13

13

3.0 EKO 3.0 6.0 EKO 3.0 9.0 EKO 3.0 Heater

  • phase/voltage [50Hz/VAC]

~1, 230 ~3, 400 ~3, 400

  • power consumption

[kW] 3,0 6,0 9,0 Fans

  • phase/voltage [50Hz/VAC]

~1, 230 exhaust

  • power/current

[kW/A] 0,37/2,5

  • speed

[min-1] 3400 supply

  • power/current

[kW/A] 0,45/2,95

  • speed

[min-1] 3400 Motor protection class IP-44 Thermal effjciency 90% Max power consumption [kW/A] 3,82/18,49 6,82/14,49 9,82/18,49 Automatic control integrated Filter class -exhaust F7

  • supply

M5 Thermal insulation [mm] 50 Weight [kg] 168,0 Comply with ERP 2013 +

RIS 1200PE EKO 3.0

Performance Power consumption

Extract air Exhaust air Fresh air Supply air

Temperature effjciency

Air fmow [l/s] η [%] Air fmow [m3/h] Static pressure [Pa] Air fmow [m3/h] Air fmow [l/s] Power [W]

Exhaust air Specifjc fan power

Air fmow [m3/h] Static pressure [Pa] Air fmow [l/s] Power [W]

Supply air

Air fmow [l/s] Static pressure [Pa] Air fmow [m3/h]

total power for supply & exhaust fans kW air fmow m3/h x 3600 SFP=

View from inspection side

RIS 1200PE EKO 3.0

Air fmow temperature range from -7°C to +40°C Designed for operation indoors only

Technical data

RIS 1200PE EKO 3.0

Lwa total, dB(A) LWA, dB(A) 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz

Supply 76 58 69 71 69 67 64 56 Extract 64 52 56 61 56 50 45 42 Surrounding 56 42 48 50 49 48 46 40 Measured at 1298 m3/h, 100 Pa

Extract air = 20°C/60% RH - Outdoor air = -7°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 2°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 7°C/90% RH Balance between supply air/extract air = 1.0

slide-14
SLIDE 14

14

RIS 1200PW EKO 3.0

Performance Power consumption

Extract air Exhaust air Fresh air Supply air

Temperature effjciency

Air fmow [l/s] η [%] Air fmow [m3/h] Static pressure [Pa] Air fmow [m3/h] Air fmow [l/s] Power [W]

Exhaust air Specifjc fan power

Air fmow [m3/h] Static pressure [Pa] Air fmow [l/s] Power [W]

Supply air

Air fmow [l/s] Static pressure [Pa] Air fmow [m3/h]

total power for supply & exhaust fans kW air fmow m3/h x 3600 SFP=

View from inspection side

RIS 1200PW EKO 3.0

Air fmow temperature range from -7°C to +40°C Designed for operation indoors only

Technical data

Extract air = 20°C/60% RH - Outdoor air = -7°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 2°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 7°C/90% RH Balance between supply air/extract air = 1.0

1200PW EKO 3.0 Heater

  • phase/voltage [50Hz/VAC]

SVS 500x250

  • power consumption

[kW] Fans

  • phase/voltage [50Hz/VAC]

~1, 230

exhaust

  • power/current

[kW/A]

0,37/2,5

  • speed

[min-1]

3400

supply

  • power/current

[kW/A]

0,45/2,95

  • speed

[min-1]

3400

Motor protection class

IP-44

Thermal effjciency

90%

Max power consumption [kW/A]

0,82/5,49

Automatic control

integrated

Filter class -exhaust

F7

  • supply

M5

Thermal insulation [mm]

50

Weight [kg]

168,0

Comply with ERP 2013

+ RIS 1200PW EKO 3.0

Lwa total, dB(A) LWA, dB(A) 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz

Supply 76 58 69 71 69 67 64 56 Extract 64 52 56 61 56 50 45 42 Surrounding 56 42 48 50 49 48 46 40 Measured at 1298 m3/h, 100 Pa

slide-15
SLIDE 15

15

Dimensions RIS 1900P EKO 3.0

88 300 399 44 440 1892 106

slide-16
SLIDE 16

16

Technical data

RIS 1900PE EKO 3.0

Performance Power consumption

Extract air Exhaust air Fresh air Supply air

Temperature effjciency

Air fmow [l/s] η [%] Air fmow [m3/h] Static pressure [Pa] Air fmow [m3/h] Air fmow [l/s] Power [W]

Exhaust air Specifjc fan power

Air fmow [m3/h] Static pressure [Pa] Air fmow [l/s] Power [W]

Supply air

Air fmow [l/s] Static pressure [Pa] Air fmow [m3/h]

total power for supply & exhaust fans kW air fmow m3/h x 3600 SFP=

600 500 400 300 200 100 600 500 400 300 200 100 View from inspection side

RIS 1900PE EKO 3.0

Air fmow temperature range from -7°C to +40°C Designed for operation indoors only

RIS 1900PE EKO 3.0

Lwa total, dB(A) LWA, dB(A) 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz

Supply 77 53 64 69 73 70 65 61 Extract 68 42 58 64 62 61 58 55 Surrounding 60 50 52 54 54 50 48 41 Measured at 1938 m3/h, 100 Pa

Extract air = 20°C/60% RH - Outdoor air = -7°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 2°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 7°C/90% RH Balance between supply air/extract air = 1.0

3.0 EKO 3.0 6.0 EKO 3.0 12.0 EKO 3.0 Heater

  • phase/voltage [50Hz/VAC]

~1, 230 ~3, 400 ~3, 400

  • power consumption

[kW] 3,0 6,0 12,0 Fans

  • phase/voltage [50Hz/VAC]

~1, 230 exhaust

  • power/current

[kW/A] 0,488/3,16

  • speed

[min-1] 2540 supply

  • power/current

[kW/A] 0,485/3,12

  • speed

[min-1] 2540 Motor protection class IP-54 Thermal effjciency 90% Max power consumption [kW/A] 4,11/19,98 7,02/14,7 13,31/24,03 Automatic control integrated Filter class -exhaust F7

  • supply

M5 Thermal insulation [mm] 50 Weight [kg] 269,0 270,0 272,00 Comply with ERP 2013 +

slide-17
SLIDE 17

17

Technical data

RIS 1900PW EKO 3.0

Performance Power consumption

Extract air Exhaust air Fresh air Supply air

Temperature effjciency

Air fmow [l/s] η [%] Air fmow [m3/h] Static pressure [Pa] Air fmow [m3/h] Air fmow [l/s] Power [W]

Exhaust air Specifjc fan power

Air fmow [m3/h] Static pressure [Pa] Air fmow [l/s] Power [W]

Supply air

Air fmow [l/s] Static pressure [Pa] Air fmow [m3/h]

total power for supply & exhaust fans kW air fmow m3/h x 3600 SFP=

600 500 400 300 200 100 600 500 400 300 200 100 View from inspection side

RIS 1900PW EKO 3.0

Air fmow temperature range from -7°C to +40°C Designed for operation indoors only

RIS 1900PW EKO 3.0

Lwa total, dB(A) LWA, dB(A) 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz

Supply 77 53 64 69 73 70 65 61 Extract 68 42 58 64 62 61 58 55 Surrounding 60 50 52 54 54 50 48 41 Measured at 1938 m3/h, 100 Pa

Extract air = 20°C/60% RH - Outdoor air = -7°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 2°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 7°C/90% RH Balance between supply air/extract air = 1.0

1900PW EKO 3.0 Heater

  • phase/voltage [50Hz/VAC]

SVS 700x400

  • power consumption

[kW] Fans

  • phase/voltage [50Hz/VAC]

~1, 230

exhaust

  • power/current

[kW/A]

0,488/3,16

  • speed

[min-1]

2540

supply

  • power/current

[kW/A]

0,485/3,12

  • speed

[min-1]

2540

Motor protection class

IP-54

Thermal effjciency

90%

Max power consumption [kW/A]

1,21/5,03

Automatic control

integrated

Filter class -exhaust

F7

  • supply

M5

Thermal insulation [mm]

50

Weight [kg]

265,0

Comply with ERP 2013

+

slide-18
SLIDE 18

18

Dimensions RIS 2500 P EKO 3.0

481 1850 60 625,7 557,5 625,7 60 20 506,5 290 625,7 557,5 625,7 1992 715 415,5 715 105 400 145 700 261 700 145 188 44 499

slide-19
SLIDE 19

19

RIS 2500PE EKO 3.0

Performance Power consumption

Extract air Exhaust air Fresh air Supply air

Temperature effjciency

Air fmow [l/s] η [%] Air fmow [m3/h] Static pressure [Pa] Air fmow [m3/h] Air fmow [l/s] Power [W]

Exhaust air Specifjc fan power

Air fmow [m3/h] Static pressure [Pa] Air fmow [l/s] Power [W]

Supply air

Air fmow [l/s] Static pressure [Pa] Air fmow [m3/h]

total power for supply & exhaust fans kW air fmow m3/h x 3600 SFP=

View from inspection side

RIS 2500PE EKO 3.0

Air fmow temperature range from -7°C to +40°C Designed for operation indoors only

Technical data

RIS 2500PE EKO 3.0

Lwa total, dB(A) LWA, dB(A) 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz

Supply 80 60 68 72 75 74 71 65 Extract 69 56 60 64 63 60 58 41 Surrounding 62 46 54 56 57 54 50 45 Measured at 2548 m3/h, 102 Pa

Extract air = 20°C/60% RH - Outdoor air = -7°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 2°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 7°C/90% RH Balance between supply air/extract air = 1.0

4.5 EKO 3.0 9.0 EKO 3.0 18.0 EKO 3.0 Heater

  • phase/voltage [50Hz/VAC]

~3, 400 ~3, 400 ~3, 400

  • power consumption

[kW] 4,5 9,0 18,0 Fans

  • phase/voltage [50Hz/VAC]

~1, 230 exhaust

  • power/current

[kW/A] 0,725/3,24

  • speed

[min-1] 2800 supply

  • power/current

[kW/A] 0,675/3,0

  • speed

[min-1] 2800 Motor protection class IP-54 Thermal effjciency 90% Max power consumption [kW/A] 12,5/5,87 19,5/10,7 33,1/19,7 Automatic control integrated Filter class -exhaust F7

  • supply

M5 Thermal insulation [mm] 50 Weight [kg] 316,0 320,0 322,0 Comply with ERP 2013 +

slide-20
SLIDE 20

20

RIS 2500PW EKO 3.0

Performance Power consumption

Extract air Exhaust air Fresh air Supply air

Temperature effjciency

Air fmow [l/s] η [%] Air fmow [m3/h] Static pressure [Pa] Air fmow [m3/h] Air fmow [l/s] Power [W]

Exhaust air Specifjc fan power

Air fmow [m3/h] Static pressure [Pa] Air fmow [l/s] Power [W]

Supply air

Air fmow [l/s] Static pressure [Pa] Air fmow [m3/h]

total power for supply & exhaust fans kW air fmow m3/h x 3600 SFP=

View from inspection side

RIS 2500PW EKO 3.0

Air fmow temperature range from -7°C to +40°C Designed for operation indoors only

Technical data

Extract air = 20°C/60% RH - Outdoor air = -7°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 2°C/90% RH Balance between supply air/extract air = 1.0 Extract air = 20°C/60% RH - Outdoor air = 7°C/90% RH Balance between supply air/extract air = 1.0 RIS 2500PW EKO 3.0 Lwa total,

dB(A) LWA, dB(A) 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz

Supply 80 60 68 72 75 74 71 65 Extract 69 56 60 64 63 60 58 41 Surrounding 62 46 54 56 57 54 50 45 Measured at 2548 m3/h, 102 Pa 2500PW EKO 3.0 Heater

  • phase/voltage [50Hz/VAC]

SVS 700x400

  • power consumption

[kW] Fans

  • phase/voltage [50Hz/VAC]

~1, 230 exhaust

  • power/current

[kW/A] 0,725/3,24

  • speed

[min-1] 2800 supply

  • power/current

[kW/A] 0,675/3,0

  • speed

[min-1] 2800 Motor protection class IP-54 Thermal effjciency 90% Max power consumption [kW/A]

6,7/1,4

Automatic control

integrated

Filter class -exhaust

F7

  • supply

M5

Thermal insulation [mm]

50

Weight [kg]

313,0

Comply with ERP 2013

+

slide-21
SLIDE 21

21

2 5 1 7 10 4 8 3 1 - exhaust air fan 2 - supply air fan 3 - plate plate exchanger 4 - fjlter for supply air 5 - fjlter for extract air 6 - electrical heater 7 - actuator of by-pass damper 8 - temperature sensor for fresh air 9 - humidity + temperature sensor 10 - control box

Accessories

6 9

View from inspection side exhaust air fresh air extract air supply air

slide-22
SLIDE 22

22

Type Accessories TPC UNI PRO FLEX 1141 RC02-F2 KFF-U SSB PS Supply SP Exhaust SP SVS SSK SKS RMG VVP/VXP SKG AKS AP AVS AVA EKA RIS 400PE EKO + +

  • LM230A-TP

LM230A-TP

  • 200

200 RIS 400PW EKO + + 61

  • NF230A

LM230A-TP

  • +

+ 200 200 RIS 700PE EKO + +

  • LM230A-TP

LM230A-TP

  • 250

250 RIS 700PW EKO + + 61

  • NF230A

LM230A-TP

  • +

+ 250 250 RIS 1200PE EKO + + int LM230A-TP LM230A-TP

  • 500x250

500x250

  • RIS 1200PW EKO

+ + 61 int NF230A LM230A-TP 500x250 500x250 500x250 + +

  • RIS 1900PE EKO

+ + int LM230A-TP LM230A-TP

  • 700x400*

700x400

  • RIS 1900PW EKO

+ + 61 int NF230A LM230A-TP 700x400* 700x400* 700x400 + +

  • RIS 2500PE EKO

+ + int LM230A-TP LM230A-TP

  • 700x400

700x400

  • RIS 2500PW EKO

+ + 61 int NF230A LM230A-TP 700x400 700x400 700x400 + +

  • Remote controller

Difgerential pressure switch Circular duct silencer 2-3-way valve Shut-ofg damper Pressure transmitter Remote controller CO2 transmitter Thermic water valve actuator Mounting clips Water heater coil Heating coil Damper for rectangular duct Circular duct water cooler Rectangular duct silencer Electrical duct heater

1141 FLEX RC02-F2 KFF-U

Duct humidity sensor Programmable controller Programmable controller

UNI PS AKS PRO TPC

Actuator for dampers

SP SSB AP SVS AVS SSK AVA SKS EKA

Mixing point

RMG VVP/VXP SKG

slide-23
SLIDE 23

23

  • Easy and quick installation.
  • Ceiling mounted, supplied with rubber gaskets – vibration absorbers.
  • Mounting position is shown above, another position mounting is prohibited.
  • Unit designed for indoor installation only.
  • RIS P EKO 3.0 range equipped with new PRV V2.2 control board.
  • RIS P EKO 3.0 versions can be controlled with UNI, PRO, TPC and Flex remote control devices.
  • Two RS485 ports – for remote controller and for MODBUS communication.
  • The heat exchanger frost point is detected in two levels: temperature-controlled and pressure-controlled.
  • Automatic defrosting by adjustment of the fresh air fmow or stopping the unit if necessary.
  • Optional self-regulating electrical pre-heater on the duct for effjcient frost protection.
  • Accurate and effjcient pulse-width modulation (PWM) electrical heater control .

YES NO NO NO

Installation assembly Controls

slide-24
SLIDE 24

24

FUNCTIONS Descriptions of the functions PRV V2.2 E W Main functions and control of functional units User and servicing control level Week timer + Holidays + Digital timer channels 8 events for each day or weekday group* per week. *1-7 entire week, 1-5 working days, 6-7 weekend. START/STOP function ,,START/STOP“ function for starting or stopping operation of the heat recovery unit. „STOP“ sign is indicated on a remote control (Flex). It can be used with door lock, motion sensor (PIR),

  • utside switch or other external digital signal (potential-free contacts).

On a position ,,START“ heat recovery unit operates according to the last remote controller settings. Year-round optimization of recovery unit regulation Winter –heat recovery; Summer – cold recovery; Autumn and spring – low rotor speed/half by-pass opened. Free Cooling function The premises are cooled down by supplying fresh air, when exhaust air temperature is higher then fresh air. (Night cooling function) Cool recovery The heat exchanger recovers cold air from exhaust air when premises temperature is lower than outside. ON/OFF rotor motor control 0-10V DC rotor motor speed control By-pass ON/OFF By-pass three-positional control Minimum and maximum limits for supply air temperature By activating temperature control according to extracted air sensor (Min. -15°C, Max. +40°C adjustable in service menu). ON/OFF control of electric post-heater Pulse-width modulation (PWM) control of electrical heater Accuracy of 0,5 °C for supply air temperature. Electric heater’s control by stages For the bigger capacity electric heaters. ON/OFF control of DX coolers Water cooler control with three-positional valve actuator ON/OFF control of circulation pump Fans’ speed synchronous 0-10V control Separate fans’ speed asynchronous 0-10V control 4 speeds for easy end-user control. “Stop” – the unit is stopped; “Low”, “Medium”, and “High”. Service menu allows adjusting each speed individually. BOOST function Fans operate at high speed (set in service menu). Operation time is also set in service menu. „Boost“ function is refmected in FLEX remote. CO2, constant pressure, humidity control Fan speed control only. CO2, constant pressure control Possibility to connect CO2 or two pressure transmitters. Supply air temperature control according to the extract air sensor Exhaust air damper control Supply air damper control Remote control ModBus input Web-based software control. Remote controller input

slide-25
SLIDE 25

25

FUNCTIONS Descriptions of the functions PRV V2.2 E W Safety/emergency signal indications Overheat protection Additional electrical heater overheat protection (software). Rotor fail alarm signal In case of rotor belt break-up or rotor operation stopping indication „RotorFail“ appears on FLEX remote controller. Fire alarm signal Fire and smoke alarm input The AHU stops till service is restored in FLEX remote controller. Fans’ overheating alarm signal Filter pollution indicator by pressure drop transmitter Filter pollution indicator by working hours A possibility to choose period of time after which indication informs about necessity to change the fjlters. (Min. 168 h, Max. 6482 h) Number of working hours set as default -2160h. Other indications FanRun function Unit in operation signal. FanFail function Unit ofg operation signal. Extracted air temperature sensor Exhaust air temperature sensor Returning water temperature sensor Extracted air relative humidity converter Fresh air temperature sensor Supplied air temperature sensor Controllers FLEX controller Adjustment of the new controller with control automatics – Full control (service control included). UNI PRO TPC*

  • Absent control functions:
  • Boost confjguration menu (time, fan speed, night cooling), temperature and time confjguration
  • f water heater);
  • Service menu- PI confjguration;
  • Review of separate alarms at one time;
  • DX cooling confjguration possibility;
  • Night cooling fast button setting;
  • Supply and extract air fans’ speed control (3 speed can be confjgured);
  • Functional components’ type choice.

DCV systems control Demand-Controlled Ventilation for extracted air. Using one pressure or one CO2 transmitter. DCV systems control Demand-Controlled Ventilation for extracted and supplied air. Two pressure or one CO2 transmitter.

UNI PRO TPC

slide-26
SLIDE 26

26

RIS 400 P E 0.9 EKO 3.0

Equipped with new PRV V2.2 control board AHU with EC motors and effjcient cross - counter fmow heat exchanger Electrical heater power in kW Heater type (E - integrated electrical heater; W - optional water heater) Housing type (P - under - ceiling) AHU size according to air fmow range m3/h AHU with plate heat-exchanger

New control board Article No. RIS Date GAGRIS1747_0017A 400 PE 0.9 EKO 3.0 From 01.10.2013 GAGRIS1746_0017A 400 PE 1.6 EKO 3.0 GAGRIS1692_0016A 400 PE 3.0 EKO 3.0 GAGRIS1748_0019A 400 PW EKO 3.0 GAGRIS1737_0008A 700 PE 1.2 EKO 3.0 GAGRIS1736_0007A 700 PE 3.0 EKO 3.0 GAGRIS1693_0005B 700 PE 4.5 EKO 3.0 GAGRIS1738_0009A 700 PW EKO 3.0 GAGRIS1744_0022A 1200 PE 3.0 EKO 3.0 GAGRIS1745_0021B 1200 PE 6.0 EKO 3.0 GAGRIS1701_0020B 1200 PE 9.0 EKO 3.0 GAGRIS1721_0023A 1200 PW EKO 3.0 GAGRIS1751_0025A 1900 PE 3.0 EKO 3.0 GAGRIS1752_0024B 1900 PE 6.0 EKO 3.0 GAGRIS1706_0001B 1900PE 12.0 EKO 3.0 GAGRIS1753_0026A 1900 PW EKO 3.0 GAGRIS1754_0027B 2500 PE 4.5 EKO 3.0 GAGRIS1755_0028B 2500 PE 9.0 EKO 3.0 GAGRIS1707_0015B 2500 PE 18.0 EKO 3.0 GAGRIS1756_0029A 2500 PW EKO 3.0

Type name codes Article numbers of new AHU range

http://new.salda.lt/en/selection/ahu/

slide-27
SLIDE 27

Notes

slide-28
SLIDE 28

UAB SALDA

Ragainės g. 100 LT-78109, Šiauliai Lithuania Tel. +370 41 54 04 15 Fax. +370 41 54 04 17 www.salda.lt

  • ffjce@salda.lt
