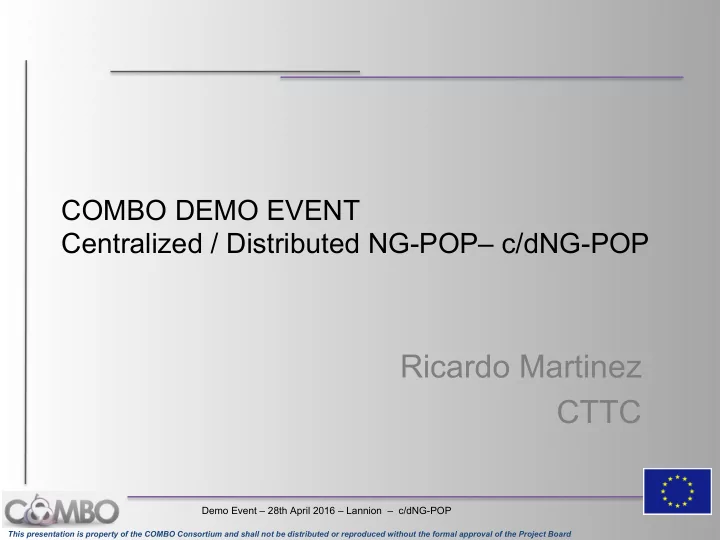

COMBO DEMO EVENT Centralized / Distributed NG-POP– c/dNG-POP

Ricardo Martinez CTTC

Demo Event – 28th April 2016 – Lannion – c/dNG-POP 1

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Context and objective

■ Mobile and fixed networks are independent w/ separated CPs and DPs

♦ Network operators must invest in both networks!! -> CapEx and OpEx ♦ Solu6on: COMBO NG-POP (distributed or centralized) to converge (terminate) fixed and mobile flows and merging common control functions

■ Obj1: Validation of a vEPC implementation within the dNG-POP

♦ Goal: dNG-POP supports multiple vEPC instances, e.g., multiple mobile operator infrastructures

■ Obj2: Validation of a unified SDN-based control for the automatic configuration of an aggregation network (cNG-POP)

♦ Goal: packet and optical Multi-Layer Network (MLN) is automatically configured according to incoming new fixed/mobile services

■ For dNG-POP: emulated RAN (LENA)+ vEPC (LENA) @ dNG-POP (in site)

♦ Complements set of demos in booths ‘uAUT & uDPM’ and ‘uDPM & Caching’

■ For cNG-POP: emulated RAN + EPC @ cNG-POP + aggregation network + SDN orchestrator (remotely from CTTC premises in Barcelona)

Demo Event – 28th April 2016 – Lannion – c/dNG-POP 2

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

What you will see in this booth

■ dNG-POP: vEPC running in a VM (UAG) handles dynamically EPS Bearers from an emulated RAN

♦ Application: video streaming

Demo Event – 28th April 2016 – Lannion – c/dNG-POP 3

UE eNB Video client Emulated RAN

PON

Carrier Ethernet Switch MME S-/P-GW VM (vEPC) Server client UAG (@dNG-POP) NFV server (OpenStack) Laptop1 Laptop2

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

dNG-POP: vEPC for network sharing

• 1. EPS Bearer (LTE/EPC) request
• 2. Trigger video client and server
• 3. Set up of EPS Bearer, i.e. S1-MME, S1-U and SGi

♦ Video is streamed

Demo Event – 28th April 2016 – Lannion – c/dNG-POP

UE eNB Video client Emulated RAN

PON

Carrier Ethernet Switch MME S-/P-GW VM (vEPC) Server client UAG (@dNG-POP) NFV server (OpenStack) Laptop1 S1-MME S11 S1-U SGi Video is received! Laptop2

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

dNG-POP: logical setup

Demo Event – 28th April 2016 – Lannion – c/dNG-POP 5

dNG-POP: End-to-end LTE/EPC configuration in NFV w/ Server/Client nodes

♦ (CTTC LENA vEPC in the NFV server)

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

What you will see in this booth

■ cNG-POP: SDN orchestrator (Aplication Based Network Orchestrator - ABNO) enabling MLN programmability to backhaul EPS Bearers

♦ Application: video streaming

Demo Event – 28th April 2016 – Lannion – c/dNG-POP 6

UE eNB Video client Emulated RAN

Packet and Op6cal Aggrega6on Network

SDN Orchestrator (ABNO) OFP PCEP MME S-/P-GW EPC UAG (cNG-POP) Server client REST API Sever1 Sever1

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

cNG-POP: Unified SDN Orchestrator

• 1. EPS Bearers request
• 2. Trigger video client and server
• 3. Automatic set up of a MLN connection to backhaul

demanded EPS Bearer

♦ Video is streamed

Demo Event – 28th April 2016 – Lannion – c/dNG-POP 7

UE eNB Video client Emulated RAN

MLN AggregaRon

SDN Orchestrator (ABNO) OFP PCEP MME S-/P-GW EPC UAG (cNG-POP) Server client REST API S1-MME POST {A, Z,

traffic parms (bw, latency), eNB, S/P- Gw, TEIDs}

A Z S11 SGi Video is received!

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

cNG-POP: logical setup

Demo Event – 28th April 2016 – Lannion – c/dNG-POP 8 MME

Video Server UE UE

WSON AggregaRon MPLS OFP MPLS OFP OFP packet core (MPLS) OFP packet access (MPLS) PCE Topology Server Provisioning Manager ABNO Controller Flow Server

ABNO

Ryu (SDN) Controller OpenFlow NBI Ryu (SDN) Controller OpenFlow NBI AS PCE

TED

Fixed Service App Mobile Service App IP Edge (vEPC)

Rest API cNG-POP /

HosRng VNFs

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

cNG-POP: physical setup @ CTTC

Demo Event – 28th April 2016 – Lannion – c/dNG-POP 9

WDM nodes + AS PCE MPLS nodes

• Emulated eNB

+ Video Client

• EPC + Video

Server SDN Orchestrator SDN OFP Packet Controllers

8

This presentation is property of the COMBO Consortium and shall not be distributed or reproduced without the formal approval of the Project Board

Demo Event – 28th April 2016 – Lannion – c/dNG-POP 10

Thank you for your attention
