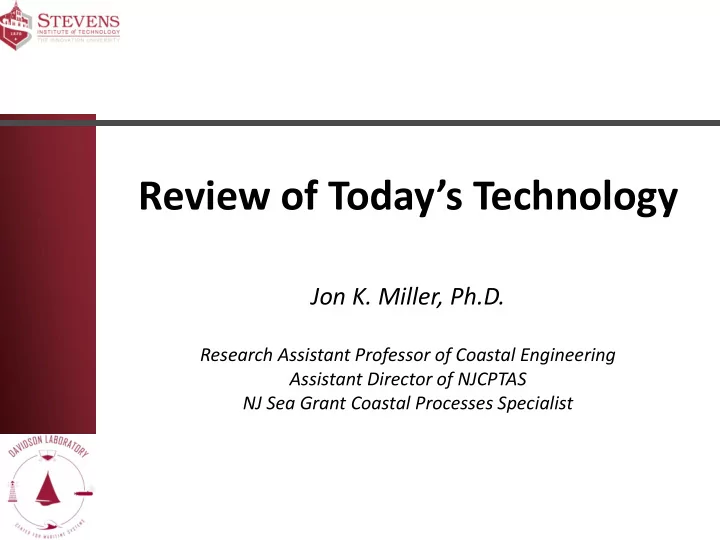

Review of Today’s Technology

Jon K. Miller, Ph.D.

Research Assistant Professor of Coastal Engineering Assistant Director of NJCPTAS NJ Sea Grant Coastal Processes Specialist

SLIDE 2

DARK AGES

Waterfronts of the Past

SLIDE 3

SLIDE 4

SLIDE 5

STORM SURGE BARRIERS

Opportunities to Keep the Water at Bay

SLIDE 6

SLIDE 7

Arcadis Halcrow

SLIDE 8

NATURAL SOLUTIONS

Working with Nature

SLIDE 9

SLIDE 10

SLIDE 11

www.floodsite.net www.dutchwatersector.com

SLIDE 12

www.pbs.org (Image credit: Kate Orff) www.dlandstudio.com

SLIDE 13

Natural Defenses

Oysters

From 17thto the 19th centuries it is estimated that
ysters occupied over 350 square miles of the Hudson-

Raritan estuary between Sandy Hook and Ossining, NY.

Oysters are now functionally extinct, with a loss greater

than ninety-nine percent in the Hudson-Raritan Estuary Marshes

Rule of thumb 3 miles marsh, 1 ft surge dissipation
Loder (2012) – Up to 1.2 m wave height reduction and

35% surge reduction (modeling)

– As marsh elevation decreases, surge decreases and waves increase – 20 km x 20 km marsh

SLIDE 14

HYBRID STRUCTURES

Ecologically Enhanced Alternatives

SLIDE 15

NYC Dept. of Parks and Recreation Designing the Edge

Improve ecological function of

urban shore

Enhance safe access to the water
Increase compatibility with

recreational users

http://www.hrnerr.org/files/2012/07/HarlemRiverPark_CaseStudy.pdf

SLIDE 16

Physical Model Testing

Tested at Davidson Lab

Current Reduction
Wake Dissipation

SLIDE 17

Finished Product

Removal of the vertical bulkhead
Creation of a sloped, reveted shoreline
Creation of a large tidal pool

SLIDE 18

Cuyahoga River Green Bulkhead Project

One of the most heavily polluted waterways

in the U.S.

Heavily utilized industrial shipping channel

SLIDE 19

Option 1 – CHUBS (Cuyahoga Habitat Underwater Baskets)

system uses plant pillows which sit in baskets that hang by chains at various heights, nestled within the wall's corrugations

Option 2 - Pocket Habitat Option 3 – Tiered Wall

CHUBS are planted in locations with damage An sheltered area is created and only

r corrosion but have sound lower portions. a portion of a bulkhead is replaced.

CLEERTEC CLEERTEC CLEERTEC

SLIDE 20

Finished Product

SLIDE 21

Alternative Concrete Solutions

Durable material that is

frequently used to construct marine structures

Poor material for biological

recruitment

Can be altered physically and

chemically

Decrease the PH of the concrete
Texturize the surface

SeArc Ecological Marine Consulting

SLIDE 22

SeArc Ecological Marine Consulting SeArc Ecological Marine Consulting SeArc Ecological Marine Consulting Jason Toft & JC Field Operations SeArc Ecological Marine Consulting SeArc Ecological Marine Consulting Jason Toft & JC Field Operations

SLIDE 23

Sinuosity
Roughness
Mild slope (terracing)
Material selection

“Eco” - concepts

SLIDE 24

INNOVATIVE URBAN SOLUTIONS

More Opportunities to Work with the Water

SLIDE 25

Urban Measures

NJ Monthly/RSA Technologies

SLIDE 26

SeArc Ecological Marine Consulting

SLIDE 27

Questions?

For More Info

Jon Miller Davidson Laboratory Stevens Institute of Technology 711 Hudson Street, Hoboken, NJ jmiller@stevens.edu Ph:201-216-8591
