SLIDE 1

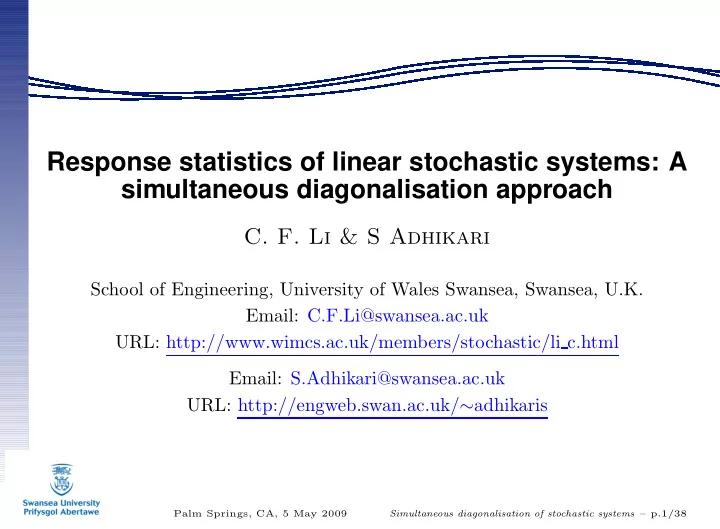

Response statistics of linear stochastic systems: A simultaneous diagonalisation approach

C. F. Li & S Adhikari

School of Engineering, University of Wales Swansea, Swansea, U.K. Email: C.F.Li@swansea.ac.uk URL: http://www.wimcs.ac.uk/members/stochastic/li c.html Email: S.Adhikari@swansea.ac.uk URL: http://engweb.swan.ac.uk/∼adhikaris

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.1/38

SLIDE 2

Outline

Background and Motivation Discretisation of stochastic material parameters Current methods for response-statistics calculation Joint diagonalisation approach Numerical examples Conclusions

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.2/38

SLIDE 3

Background

In many stochastic mechanics problems we need to solve a system of linear stochastic equations: Ku = f. (1) K ∈ Rn×n is a n × n real non-negative definite random matrix, f ∈ Rn is a n-dimensional real deterministic input vector and u ∈ Rn is a n-dimensional real uncertain output vector which we want to determine. This typically arise due to the discretisation of stochastic partial differential equations (eg. in the stochastic finite element method)

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.3/38

SLIDE 4

Background

In the context of linear structural mechanics, K is known as the stiffness matrix, f is the forcing vector and u is the vector

f structural displacements.

Often, the objective is to determine the probability density function (pdf) and consequently the cumulative distribution function (cdf) of u. This will allow one to calculate the reliability of the system. It is generally difficult to obtain the probably density function (pdf) of the response. As a consequence, engineers often intend to obtain only the fist few moments (typically the fist two) of the response quantity.

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.4/38

SLIDE 5

Objectives

We propose a joint diagonalisation method for the solution of stochastic linear systems. The method is based on the recently developed joint diagonalisation solution strategy and the Neumann expansion of inverse matrix. The joint diagonalisation method is applicable to stochastic linear systems with arbitrary number of random variables and has no registration on the type of probability distribution.

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.5/38

SLIDE 6

Example of heterogeneous materials: 1D

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.5 1 1.5 2 2.5 3 3.5 4 Length along the beam (m) EI (Nm2)

baseline value perturbed values

An example of heterogeneous property in one dimension

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.6/38

SLIDE 7

Example of heterogeneous materials: 2D

An example of heterogeneous property in two dimensions

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.7/38

SLIDE 8

Discretisation of stochastic material parameters

middle point method local averaging method shape function method least-squares discretization method trigonometric series approximation K-L expansion method F-K-L expansion method

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.8/38

SLIDE 9

Karhunen-Loève expansion

A second-order stochastic field can be represented as: b (x, ω) = E (b (x, ω)) +

+∞

i=1
λiξi (ω) ψi (x)

(2) The required eigen-structure is obtained through solving a generalized eigen-value problem

D

Cov (b (x1, ω) , b (x2, ω)) ψ (x1) dx1 = λψ (x2) ⇒ Av = λBv (3)

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.9/38

SLIDE 10

Karhunen-Loève expansion

After sorting from high to low the eigen-values of stochastic field, the K-L expansion is optimal in terms of approximation

f the total variance of the random material parameter

+∞

i=1

λi =

D

Cov (b (x, ω) , b (x, ω)) dx (4)

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.10/38

SLIDE 11

Fourier-Karhunen-Loève expansion

For stationary stochastic fields in regular domains, the Fourier-Karhunen-Loève expansion is developed by Li et al.13,14 and by combining the representation theory of stationary stochastic fields, the F-K-L result is much more accurate and is obtained explicitly without solving any equation. a (x, ω) = ao (x) +

Rn e

√−1xydZ (y, ω)

(5) f (y) = 1 (2π)n

n R (τ) e−√−1τydτ

(6)

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.11/38

SLIDE 12

Current Approaches

The random matrix can be represented as K = K0 + ∆K (7) K0 ∈ Rn×n is the deterministic part and the random part: ∆K =

m

j=1

ξjKI

j + m

j=1

j

l=1

ξjξlKII

jl + · · ·

(8) m is the number of random variables, KI

j, KII jl ∈ Rn×n, ∀ j, l are

deterministic matrices and ξj, ∀ j are real random variables.

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.12/38

SLIDE 13

Perturbation based approach

Represent the response as u = u0 + ξjuI

j + m

j=1

j

l=1

ξjξluII

jl + · · · .

(9) where u0 = K0−1f (10) uI

j = −K0−1KI ju0,

∀ j (11) and uII

jl = −K0−1[KII jl u0 + KI juI l + KI l uI j],

∀ j, l. (12)

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.13/38

SLIDE 14

Neumann expansion

Provided

K0−1∆K
F < 1,

K−1 =

K0(In + K0−1∆K)

−1 = K0−1 − K0−1∆KK0−1 + K0−1∆KK0−1∆KK0−1 + · · · . Therefore, u = K−1f = u0 − Tu0 + T2u0 + · · · (13) where T = K0−1∆K ∈ Rn×n is a random matrix.

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.14/38

SLIDE 15

Projection methods

Here one ‘projects’ the solution vector onto a complete stochastic

basis. Depending on how the basis is selected, several methods

are proposed. Using the classical Polynomial Chaos (PC) projection scheme u =

P−1

j=0

ujΨj(ξ) (14) where uj ∈ Rn, ∀j are unknown vectors and Ψj(ξ) are multidimensional Hermite polynomials in ξr.

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.15/38

SLIDE 16

A partial summary

Methods Sub-methods 1. Perturbation First and second order perturbation 11,22, based methods Neumann expansion 1,26, improved perturbation method 3. 2. Projection methods Polynomial chaos expansion 7, random eigenfunction expansion 1, stochastic reduced basis method 16,18,19, Wiener−Askey chaos expansion 23–25, domain decomposition method 20,21. 3. Monte carlo simulation Simulation methods 8,17, and other methods Analytical method in references 5,6,9,10,15, Exact solutions for beams 2,4.

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.16/38

SLIDE 17

Joint diagonalisation approach

We consider a stochastic linear system: (K0 + ξ1(ω)K1 + ξ2(ω)K2 + · · · + ξm(ω)Km)u = f, (15) where Kj, ∀ j are real symmetric deterministic matrices and ξj(ω), ∀ j are real random variables. The above stochastic linear system is commonly obtained in a SFEM formulation after discretising the random material parameters with the K-L (or F-K-L) expansion method.

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.17/38

SLIDE 18

Joint diagonalisation approach

By using a sequence of Givens transformations, stiffness matrices Kj can be simultaneously diagonalised such that Q−1KjQ = Λj + ∆j ≈ Λj, j = 1, 2, · · · , m (16) where Λj, ∀ j are diagonal matrices and ∆j, ∀ j are matrices with zero diagonal entries and small magnitude off-diagonal entries. The transform matrix Q is explicitly obtained as the product of the Givens rotation matrices Q = GT

1 GT 2 · · · GT k

(17) where k is the total number of Givens transformations and Gj, ∀ j are Givens rotation matrices

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.18/38

SLIDE 19

Givens rotation matrix

G = G (p, q, θ) ∆ =

p q p q

                              1 ... 1 cos θ sin θ 1 ... 1 − sin θ cos θ 1 ... 1                               . (18)

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.19/38

SLIDE 20

Optimal Givens rotation angle

For n × n real symmetric matrices Kl let

ff(Kl)

∆

=

n

i=1

n

j=1

j=i

(Kl)2

ij

(l = 1, · · · , m) (19) denote the quadratic sums of off-diagonal elements in Kl. The aim here is to gradually reduce

m

l=1
ff(Kl) through a sequence of
rthogonal similarity transformations that have no effect on

KlF, the Frobenius norm of Kl.

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.20/38

SLIDE 21

Optimal Givens rotation angle

The optimal Givens rotation angle θopt that in the current iteration maximizes the diagonal entries and minimizes the off-diagonal entries can be accurately obtained by solving the following characteristic equation (cos 2θopt sin 2θopt)T J = λJ (cos 2θopt sin 2θopt)T (20) where J is a two by two matrix given by J =

m

j=1

  2 (Kj)2

pq

(Kj)pq

(Kj)qq − (Kj)pp
(Kj)pq
(Kj)qq − (Kj)pp
1

2

(Kj)qq − (Kj)pp

2   (21) and λJ is the smallest eigen-value of J.

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.21/38

SLIDE 22

Joint diagonalisation solution

In the original joint diagonalisation solution, the off-diagonal entries ∆j, ∀ j are completely ignored and this significantly simplifies the random equation system which in turn leads to an explicit solution u ≈ Q(Λ0 + ξ1(ω)Λ1 + · · · + ξm(ω)Λm)−1Q−1f (22) This work propose to take into consideration the contribution from the off-diagonal matrices ∆j, ∀ j. Specifically Q

(Λ0 +

m

j=1

ξj(ω)Λj) + (∆0 +

m

j=1

ξj(ω)∆j)

Q−1u = f.

(23)

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.22/38

SLIDE 23

Improved joint diagonalisation solution

Let V = Λ0 +

m

j=1

ξj(ω)Λj and A = ∆0 +

m

j=1

ξj(ω)∆j (24) the solution can be expressed as u = Q

V(In + V−1A)

−1 Q−1f (25) Noting that matrix V is a diagonal matrix whose inverse can be explicitly obtained, the above expression can be further simplified by using the Neumann expansion as u = Q

V−1 − (V−1A)V−1 + (V−1A)2V−1 − · · ·
Q−1f.

(26)

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.23/38

SLIDE 24

Summary of the joint diagonalisation approach

The joint diagonalisation approach is applicable to any real symmetric matrices. The response statistics for static (or steady-state) stochastic systems can be obtained by following these steps: Discretise the random material parameters by using the F-K-L expansion scheme In space dimension, discretise the unknown field with finite element mesh Following a standard finite element formulation procedure and taking into consideration the F-K-L expansion of random material parameters, construct the stochastic linear system

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.24/38

SLIDE 25

Summary of the joint diagonalisation approach

Approximate joint diagonalisation of all matrices in the stochastic linear system Check in turn all the off-diagonal entries in matrices Kj and find an entry (p, q) , p = q such that

m

j=1

(Kj)2

pq = 0.

For every entry (p, q) satisfying the above condition, compute the optimal Givens rotation angle θopt Apply Givens similarity transformation to all the matrices Repeat the above procedure until the process converges below the given threshold For a specific realization of random variables ξj(ω), ∀ j and by using Neumann expansion, the response vector u is

btained

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.25/38

SLIDE 26

Heat conduction of a concrete pipe

−1 −0.8 −0.6 −0.4 −0.2 0.2 0.4 0.6 0.8 1 −0.8 −0.6 −0.4 −0.2 0.2 0.4 0.6 0.8

X (m) Y (m)

9 oC −2 oC Node 806

Finite element mesh and boundary

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.26/38

SLIDE 27

Heat conduction of a concrete pipe

−0.8 −0.6 −0.4 −0.2 0.2 0.4 0.6 0.8 −0.8 −0.6 −0.4 −0.2 0.2 0.4 0.6 0.8 W/(m.K)

X (m) Y (m)

1.445 1.53 1.615 1.7 1.785 1.87 1.955 2.04 2.125

Thermal conductivity reconstructed from the F-K-L expansion

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.27/38

SLIDE 28

Heat conduction of a concrete pipe

180 360 540 720 900 −4 −1.2 1.6 4.4 7.2 10

Node index Temperature

C

180 360 540 720 900 −3 −1.6 −0.2 1.2 2.6 4

Relative error in temperature %

Monte Carlo solution Neumann expansion solution with 10 terms Improved joint diagonalisation solution with 2 terms Relative error of Neumann expansion solution Relative error of the improved joint diagonalisation solution

Comparison of the improved joint diagonalisation solution, the Neumann expansion solution and the Monte Carlo solution

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.28/38

SLIDE 29

Heat conduction of a concrete pipe

−0.8 −0.6 −0.4 −0.2 0.2 0.4 0.6 0.8 −0.8 −0.6 −0.4 −0.2 0.2 0.4 0.6 0.8

C

X (m) Y (m) −2 2 4 6 8

A sample solution of temperature distribution

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.29/38

SLIDE 30

Heat conduction of a concrete pipe

−0.8 −0.6 −0.4 −0.2 0.2 0.4 0.6 0.8 −0.8 −0.6 −0.4 −0.2 0.2 0.4 0.6 0.8

C

X (m) Y (m) −0.1 −0.05 0.05 0.1

Difference between the random temperature distribution and the deterministic mean-value temperature distribution

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.30/38

SLIDE 31

Heat conduction of a concrete pipe

2.6 2.8 3 3.2 3.4 3.6 3.8 4 4.2 0.5 1 1.5 2 2.5 3 Temperature variation at the node 806

C

Probability density

Probability distribution of temperature at node 806

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.31/38

SLIDE 32

Plain strain analysis of a tunnel model

A tunnel model and its boundary conditions

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.32/38

SLIDE 33

Plain strain analysis of a tunnel model

The first term in the F-K-L expansion

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.33/38

SLIDE 34

Plain strain analysis of a tunnel model

The 25th term in the F-K-L expansion

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.34/38

SLIDE 35

Plain strain analysis of a tunnel model

A specific realization of the random Young’s modulus

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.35/38

SLIDE 36

Plain strain analysis of a tunnel model

Principle stress distribution - σ1

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.36/38

SLIDE 37

Plain strain analysis of a tunnel model

Principle stress distribution - σ2

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.37/38

SLIDE 38

Summary

For the solution of static and steady-state problems of random media, this paper presents an improved joint diagonalisation solution framework. The random medial properties are discretised by using the Fourier-Karhunen-Loève expansion scheme. The resulting stochastic linear system is solved by using the improved joint diagonalization method, in which A Jacobi-like algorithm is developed to jointly diagonalise multiple real-symmetric matrices The Neumann expansion is used to account for small

ff-diagonal entries and obtain accurate solutions.

Palm Springs, CA, 5 May 2009 Simultaneous diagonalisation of stochastic systems – p.38/38

SLIDE 39

References

[1]

S. Adhikari and C. S. Manohar. Dynamic analysis of framed structures
