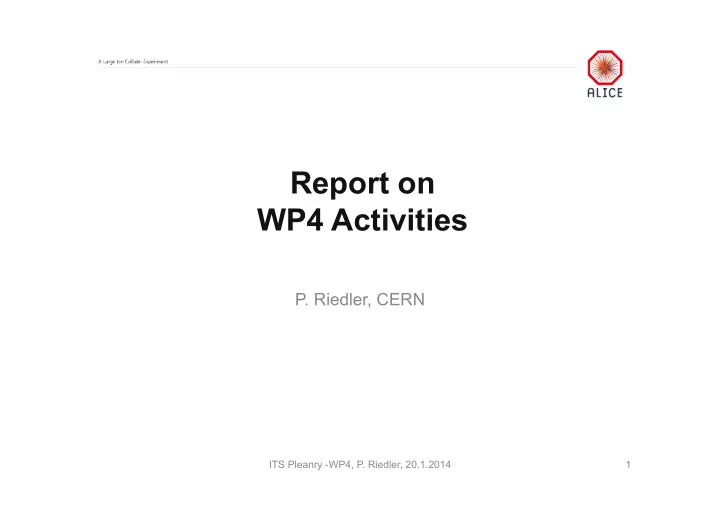

Report on WP4 Activities

• P. Riedler, CERN

ITS Pleanry -WP4, P. Riedler, 20.1.2014 1

WP4 Meetings: bi-weekly on Tuesday 16:00 (GVA time) Next Meeting: January 28, 2014 at 16:00 At CERN: 160-R-009

ITS Pleanry -WP4, P. Riedler, 20.1.2014 2

WP4 Activities and Objectives for 2014

• 1. Wafer procurement and QA

Finalize strategy for procurement and survey of high-res wafers

• 2. Wafer post processing

Definition and qualification of process steps

• 3. Thinning and dicing

Selection and qualification of thinning and dicing process and procedure

• 4. Interconnection R&D

Selection of chip interconnection process (laser soldering or spTAB)

• 5. Mass tests

Define mass-production test procedure and develop prototype set-up

• 6. Procurement of dummy/pad wafers in conjunction with WP3,6,7,8,9

ITS Pleanry -WP4, P. Riedler, 20.1.2014 3

• 1. Wafer procurement and QA

Choice of starting wafer material

• Used different high-res epi wafers in engineering run March2013
• Choice will depend on test results of prototype chips (see WP5):
• Epitaxial layer thickness
• Epitaxial layer resistivity
• Some custom high-res wafers are still available; if new ones are required they need to be ordered now.
• Procurement of the wafers for the production should start end of 2014/beginning of 2015

Goals:

• Finalize choice of high-res wafers by end summer 2014
• Finalize QA by end of 2014

ITS Pleanry -WP4, P. Riedler, 20.1.2014 4

Finalize strategy for procurement and survey of high-res wafers

Table 3.1: Wafers used for the engineering run March 2013. Type Number of wafers Epitaxial Thickness (µm) Resistivity (kΩ cm) 1 (LR-12) 3 12.0 ± 0.5 0.03 2 (HR-18) 4 18.0 ± 1.5 >1 3 (HR-30) 3 30.0 ± 0.3 ≈1 4 (HR-40A) 3 40.0 ± 0.6 ≈1 5 (HR-20) 6 20.0 ± 1.9 6.2 6 (HR-40B) 3 40.0 ± 1.9 7.5 7 (CZ) 3 CZ >0.7

Wafer QA before processing

Data supplied by vendor for custom wafers: epitaxial layer thickness and resistivity QA activities started with TMEC (sample basis): ü SEM cross-section inspection ü Surface resistivity measurement

• SRP measurement of resistivity profile in the epi layer

ITS Pleanry -WP4, P. Riedler, 20.1.2014 5 Surface resistivity map SEM cross-section

Wafer QA after processing

Main task: Basic visual inspection on the wafers, i.e. the connection pads, prior to

• Post-processing and/or
• Thinning and dicing

Rockwood carries out visual entrance inspection for other customers (i.e. inspection of one die in x locations of a wafer) Proposal is in preparation (limit time/cost). Inspection procedure to be tested on next wafers to be diced (Feb. 2014)

ITS Pleanry -WP4, P. Riedler, 20.1.2014 6

• 2. Wafer post-processing

To apply solder on the Al pads the pad needs to be covered with a wet-able metal (i.e. Ni) which is protected from oxidation (Au). The quality of the Ni/Au layer is important to ensure a good soldering connection. Several pad chip wafers have been produced (IZM, TMEC) with Ni/Au pads. In addition Al pad chips have been plated with Ni/Au at CERN. Tower does not provide this service but has an external supplier that provides Ni/Au coating for their products (PacTECH). Goals:

• Contact PacTECH and discuss plating of wafers (January 2014) and time-schedule for subsequent tests.
• Send few pad wafers from the presently processed run to PacTECH for Ni/Au plating (~Feb. 2014) and do

soldering tests.

• TBD: Send engineering run wafer with pALPIDE-FS to PacTECH and carry out soldering tests (~April 2014).
• Finalize process steps and prepare document (end 2014).

ITS Pleanry -WP4, P. Riedler, 20.1.2014 7

Definition and qualification of process steps

• 3. Thinning and dicing

Until now 35 8” wafers and 16 6” wafers have been thinned and diced to 50 (70) um by Rockwood using diamond wheel pre-dicing before grinding. First blank wafers diced and thinned by STARS received last week (laser dicing) – metrological checks

• ngoing.

Requirements: Thickness: 50 um ± 5 um, dimensions: ±30 um (TDR) need to be revised wrt FPC precision Goals:

• Prepare thinning and dicing of pad and engineering run wafers for Feb/March 2014 (dates agreed

with Rockwood) – fast track for first engineering run wafer.

• Special dicing wheel will be used for next wafers to reduce chipping and precision (potentially

possible to achieve 10 um) ~March/April 2014 – evaluate precision and chipping.

• Evaluate laser dicing as option (to be tested on high-res epi wafer) ~summer 2014
• Gradually review QA procedures and implement final protocol (e.g. including now visual inspection

for incoming wafers at Rockwood) ~ end 2014

ITS Pleanry -WP4, P. Riedler, 20.1.2014 8

Selection and qualification of thinning and dicing process and procedure

9 ITS Pleanry -WP4, P. Riedler, 20.1.2014

ER2013 wafer Diamond wheel dicing (2000 mesh wheel) Blank wafer Laser diced (front view)

Blank wafer Laser diced by STARS

• 5. Interconnection R&D
• Since September a laser soldering station is installed at the CERN DSF.
• Systematic studies carried out to define the soldering setup and environment (jigs, gas,

etc.) as well as investigation of the QA requirements for the components (pad structure, FPC,…)

• Requirements and procedures to be included in a QA document.
• Tests based on pad chips with 50 contacts of 200 um diameter and corresponding FPCs

ITS Pleanry -WP4, P. Riedler, 20.1.2014 10

Selection of chip interconnection process (laser soldering or spTAB)

Goals:

• Produce sufficient number of samples for evaluation
• Detailed analysis of the two techniques based on samples close to the final layout
• Decision process to be started before summer 2014

11 ITS Pleanry -WP4, P. Riedler, 20.1.2014

Tin Nickel Aluminium Intermetallic Palladium Series of tests to validate connection

• Electrical daisy-chain test of 50 contacts
• Microscope inspection
• Metallurgical cross-section analysis+SEM

QA document in preparation

• Component requirements
• Procedures
• Fast and detailed analysis

Laser soldering

12

Consistently excellent soldering results over the single chip flexes:

• Perfect solder surface
• Good attachment
• No burning, no oxidation
• Consistent laser power/temperature on all contacts
• Only one profile used – no tweeking needed

Achieved on the last 3 single chip flexes: 49.5/50 contacts – 49.5?

• Only badly done FPCs available (new ones not yet returned from production)
• Holes on the FPC too small (ball does not sink in)

49.5: if putting probe onto one contact – 50/50 electrical contacts

spTAB bonding

• Pad chips for tests given to Bari, Trieste and Karkhov
• Preparation of cables and first connection tests ongoing

13

Example: Cable designed by Bari/produced by Kirana/FBK

5.Mass test

Visual inspection and functional tests Main challenges:

• Handling and contacting of 50 um thick chips
• Testing of a large number of components à development of automatized systems

Status: 1.Visual inspection: Tests on pad chips with VEA (Italy)

• 2. Function tests - contact technique:
• Probe-card contact (Yonsei and Corean company)
• Bed of needle contact (SPEA, Italy)

ITS Pleanry -WP4, P. Riedler, 20.1.2014 14

Define mass-production test procedure and develop prototype set-up

Mass test

ITS Pleanry -WP4, P. Riedler, 20.1.2014 15

Moun%ng'of'the'chips'on'a' jig'or'chip_tray' Visual'and'metrological' inspec%on' Remove'damaged'chips' from'list'of'chips'to'test' Transfer'jig/chip_tray'to'test=sta%on' Electrical''and'func%onal'test'' Categorize'chips' Chips'for'moun%ng'

Started discussion on test-flow

• 5. Mass test

Transport and storage of dies before and after mass test, prior to assembly is an important task. Several boxes under consideration:

• Foam boxes useful for pad and dummy wafers, probably not adapted for real chips

(cleanliness, outgassing,..)

• Gelpak boxes with larger area (125 mm or 150 mm side-length) being investigated

Goals:

• Preparation of prototype mass tests using pad chips (studies ongoing).
• Development of test system based on test system for full scale prototypes (together with

WP3/5/10).

• First functional tests with full scale prototype chips in second half of 2014.
• Further investigation on how to integrate optical inspection into the test flow.

ITS Pleanry -WP4, P. Riedler, 20.1.2014 16

• 6. Dummy and pad chips
• Needed for various activities (interconnection tests, mass tests, assembly,…)
• Production of masks, processing, thinning and dicing of wafers presumably takes about 2-3 months.

WP6 meeting 16/01/14 - P. Riedler

Pad chips

• 15 mm x 30 mm
• 50 um thick
• Metal pads and traces on SiO2/Si
• Daisy chain connections

Dummy chips

• 15 mm x 30 mm
• 50 um thick
• Blank silicon

Component status

• Some chips left of each type, but not sufficient for the activities in 2014!
• Collect needs from the different activities and start producing dummy + pad

chips

– Require estimate on needs from the other workpackages Next:

• Purchase wafers for dummy and pad chips.
• Thin and dice wafers for dummy chips.
• Pad chips: define layout and produce patterned wafers followed by thinning

and dicing.

WP6 meeting 16/01/14 - P. Riedler

Pad chips – main parameters tbc

Thickness: 50 um Chip dimension:

• Approximately 15 mm x 30 mm (tbc)

– Studies on stave arrangement and new beam-pipe ongoing – Study the possibility to use the full reticle length (32 mm)

Number of pads:

• Assume 88 contacts (32 VDDD, 32 VDDA, 8 SUB, 8 DATA, 4 CLK, 4 Conf)

– Feed-back from FPC design (IB+OB) needed (e.g. distance of pads from the edge, etc.)

Pad positions:

• Should be as close as possible to final layout (TDR version)
• File ready soon

Pad form:

• Square or octagonal preferred over round pad form

Pad diameter:

• Has to take into account the alignment precision of the holes on the FPC
• Tentative diameters: 250, 300 and 350 um to be evaluated on dummy chips

WP6 meeting 16/01/14 - P. Riedler
