SLIDE 1
Presentation: Marek Vinkler 2/27
Motivation
- ray tracing
- data structure (kd-tree)
– GPU memory allocation – existing allocators slow
Register Efficient Memory Allocator for GPUs Marek Vinkler - - PowerPoint PPT Presentation
Register Efficient Memory Allocator for GPUs Marek Vinkler - - PowerPoint PPT Presentation

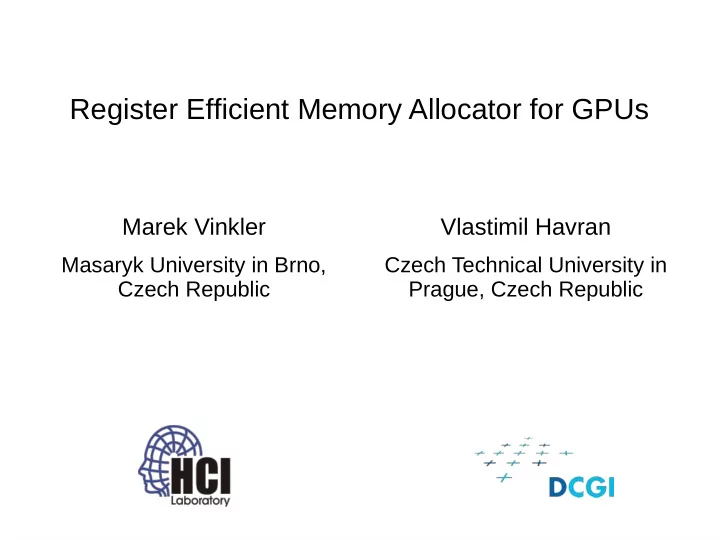

Register Efficient Memory Allocator for GPUs Marek Vinkler Vlastimil Havran Masaryk University in Brno, Czech Technical University in Czech Republic Prague, Czech Republic Motivation ray tracing data structure (kd-tree) GPU memory
SLIDE 2
SLIDE 3
Presentation: Marek Vinkler 3/27
Motivation contd.
- sophisticated algorithms
– complex memory usage
- kernel launch overhead
- CPU allocators inefficient
- http://decibel.fi.muni.cz/~xvinkl/CMalloc
SLIDE 4
Presentation: Marek Vinkler 4/27
State-of-the-art
- AtomicMalloc [Tzeng et al., 2010] (hinted)
- CudaMalloc (CUDA built-in, 2010)
- ScatterAlloc [Steinberger et al., 2012]
- FDGMalloc [Widmer et al., 2013]
SLIDE 5
Presentation: Marek Vinkler 5/27
AtomicMalloc [Tzeng et al., 2010]
- simplest: one atomic operation
- very fast
- serialization of execution
- cannot free memory
SLIDE 6
Presentation: Marek Vinkler 6/27
AtomicMalloc contd.
mem memOffset
SLIDE 7
Presentation: Marek Vinkler 7/27
CudaMalloc [2010]
- CUDA 3.2 and higher built-in
- unpublished algorithm
- very slow
SLIDE 8
Presentation: Marek Vinkler 8/27
CudaMalloc contd.
CudaMalloc
?
SLIDE 9
Presentation: Marek Vinkler 9/27
ScatterAlloc [Steinberger et al., 2012]
- hashing
– many parallel allocations – roughly the same size of requests
- very fast on small allocations
- very slow on large allocations
SLIDE 10
Presentation: Marek Vinkler 10/27
ScatterAlloc contd.
mem page
SLIDE 11
Presentation: Marek Vinkler 11/27
FDGMalloc [Widmer et al., 2013]
- CudaMalloc for superblocks
- local management in superblocks
– low overhead
- very fast subsequent allocations
- cannot free memory separately
SLIDE 12
Presentation: Marek Vinkler 12/27
CudaMalloc
FDGMalloc contd.
- ffset
- ffset
SLIDE 13
Presentation: Marek Vinkler 13/27
Limitations
- slow on large/variable sized allocations
– CudaMalloc (CUDA built-in, 2010) – ScatterAlloc [Steinberger et al., 2012]
- cannot reuse memory
– AtomicMalloc [Tzeng et al. 2010] – FDGMalloc [Widmer et al. 2013]
SLIDE 14
Presentation: Marek Vinkler 14/27
Two Proposed GPU Allocators
- AWMalloc
– variant of AtomicMalloc – can reuse memory
- CMalloc
– practical list-based allocator
SLIDE 15
Presentation: Marek Vinkler 15/27
AWMalloc
- circular memory pool
- used memory can be overwritten
- large memory pool and short-lived allocations
SLIDE 16
Presentation: Marek Vinkler 16/27
AWMalloc contd.
mem memOffset
SLIDE 17
Presentation: Marek Vinkler 17/27
CMalloc
- circular memory pool
- header for individual allocations
– correctness – split / merge
- initial splitting:
SLIDE 18
Presentation: Marek Vinkler 18/27
CMalloc contd.
mem memOffset
SLIDE 19
Presentation: Marek Vinkler 19/27
CMalloc Variants
- CFMalloc
– fused flag and next pointer – single word read/write
- CMMalloc & CFMMalloc
– multiple offsets into memory pool – fewer conflicts – fused variant
SLIDE 20
Presentation: Marek Vinkler 20/27
Four Evaluation Tests
- Alloc Dealloc [Huang et al., 2010]
– allocation followed by deallocation
- Alloc Cycle Dealloc [Widmer et al. 2013]
– many allocations followed by deallocation of all memory
- Probability [Steinberger et al., 2012]
– multiple kernels – allocation with probability pAlloc, deallocation with probability pFree
- Data Structure Build
– kd-tree build – allocation of children index arrays
SLIDE 21
21/27
Alloc Dealloc – Allocation Size
SLIDE 22
23/27
Alloc Cycle Dealloc – Allocations per Thread
SLIDE 23
24/27
Probability – Number of CUDA Blocks
SLIDE 24
25/27
Data Structure Build (Slowdown)
Kd-tree build time (the lower the better) Allocator #Registers Sponza Crytek Sponza Dragon Sodahall AtomicMalloc* 4 18.4 ms 43.2 ms 378.9 ms 325.5 ms CudaMalloc 6 2.99x 3.82x 20.95x 3.38x ScatterAlloc 38 1.74x 2.01x 1.78x 5.08x AWMalloc* 6 0.88x 0.96x 0.90x 0.95x CMalloc 16 1.04x 1.14x 1.27x 1.14x CFMalloc 10 1.20x 1.08x 1.17x 1.17x * Not full dynamic memory allocator
SLIDE 25
Presentation: Marek Vinkler 26/27
Conclusions
- four evaluation tests (new kd-tree build)
- AtomicMalloc / AWMalloc
– no deallocation
- ScatterAlloc
– similarly sized allocations, enough registers
- FDGMalloc
– successive allocations
- CMalloc / CFMalloc
– variably sized allocations / unknown allocation properties – up to 5.08 / 1.14 = 4.46x faster than ScatterAlloc
SLIDE 26
Presentation: Marek Vinkler 27
Project Webpage
- http://decibel.fi.muni.cz/~xvinkl/CMalloc
